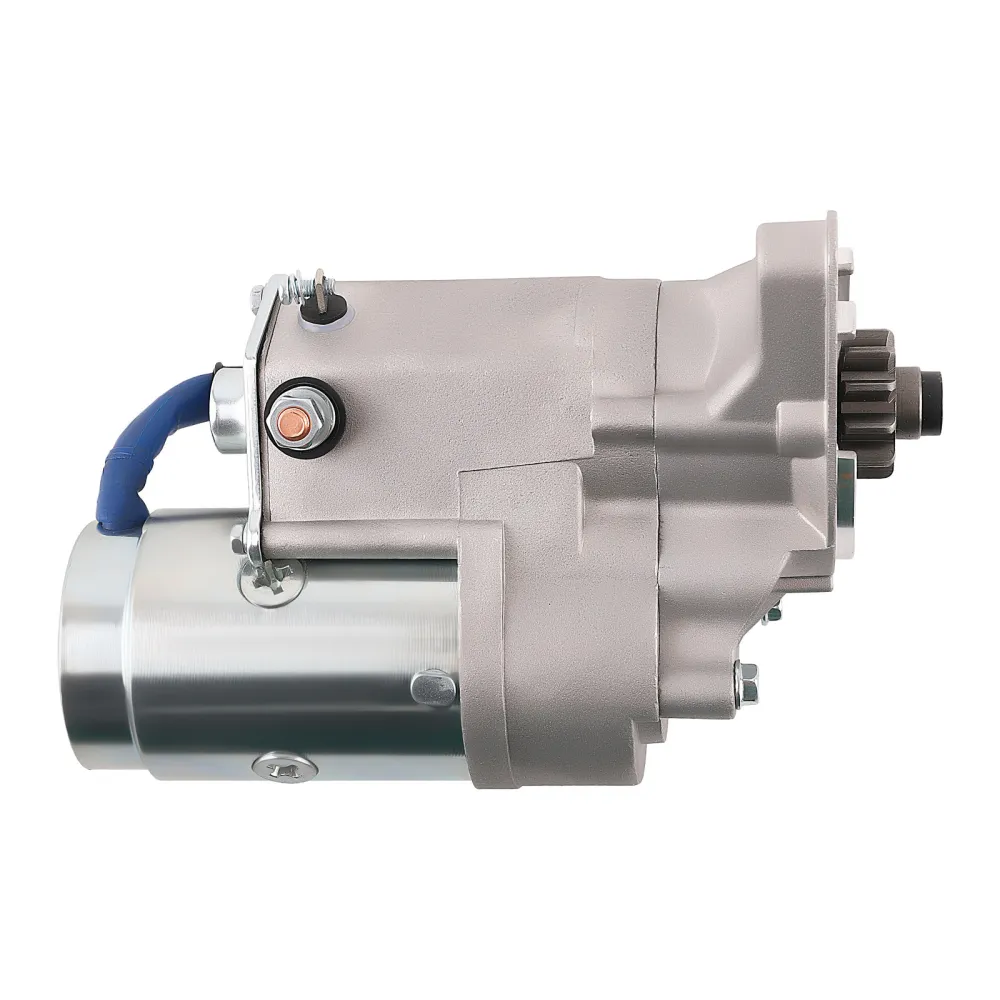

Starter Motor compatible for TOYOTA Hilux LN106 LN111 LN130 LN132 LN147 LN165 LN167 LN172

Applications:

Compatible for Toyota 4Runner LR60 eng.2L 2.4L Diesel 84-85;
Compatible for Toyota 4Runner LR61 eng.2L 2.4L Diesel 85-89;
Compatible for Toyota 4Runner LR61 eng.3L 2.8L Diesel 85-96;
Blizzard eng.L 2.2L Diesel 82-83;
Bundera LJ70 eng.2L-T 2.4L Diesel 85-91;
Compatible for Toyota 150 Series LY211 eng. 3L 2.8L 94-01;
Compatible for Toyota 150 Series LY230R eng. 5L 3.0L 01-05;
Compatible for Toyota 150 Series LY61R eng. 2L 2.4L 88-95;
Compatible for Toyota 150 Series LY61R eng. 3L 2.8L 88-95;
Compatible for Toyota Hi-Ace LH11, LH20, LH30, LH50, LH60, LH70 eng.L 2.2L 81-84;
Compatible for Toyota Hi-Ace LH51, LH61, LH71 eng.2L 2.4L 84-89;
Compatible for Toyota Hi-Ace LH103, LH113, LH125 eng.3L 2.8L 89-00;
Compatible for Toyota Hi-Ace LH162, LH172, LH184R eng.5L 3.0L 00-05;
Compatible for Toyota Hi-Lux LN40, LN46R, LN55 eng.L 2.2L Diesel 79-89;
Compatible for Toyota Hi-Lux LN56, LN60, LN61, LN65, LN65R, LN85, LN86 eng.2L 2.4L 83-97;
Compatible for Toyota Hi-Lux LN86, LN106, LN106R, LN107, LN111, LN130, LN131, LN132 including Surf eng.3L 2.8L 89-97;
Compatible for Toyota Hi-Lux LN147, LN165, LN167, LN172 eng.3L, 5LE 3.0L 97-05;
Compatible for Toyota Pickup 2.2L (Disesel) 1981-1983;
Compatible for Toyota Pickup 2.4L (Disesel) 1984-1987

Part Number:

28100-54032, 2810054032, 28100-54052, 28100-54061, 28100-54090, 28100-54320

Specifications:

12V, 2.0KW, CW, eng. L, 2L, 3L, 5L Diesel
Voltage: 12 V
Power Rating: 2.0 kW
Number of Teeth: 11
Rotation: CW ( Clockwise Rotation )
Overall Length (mm): 230
Mt. Hole Cnt. To Cnt. (mm): 135
Nose Cone Length (mm): 27
Flange Diameter (mm): 82
Pinon Diameter (mm): 39.7
Mount Hole Dia.(mm): 13.5/M12x1.5
Out of Mesh Clearance: 15
Field Hsg. Dia. : 76

Notice:

* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.
