Universal for GT3582 Intercooler Turbo Piping Pipe KitT3 AR.70/63 Anti-Surge

Perfect for all 4/6 cylinder and 3.0L-6.0L engines

Horse Power: Capable of Boosting Horse Power up to 600HP

Cooling Type: Water + Oil

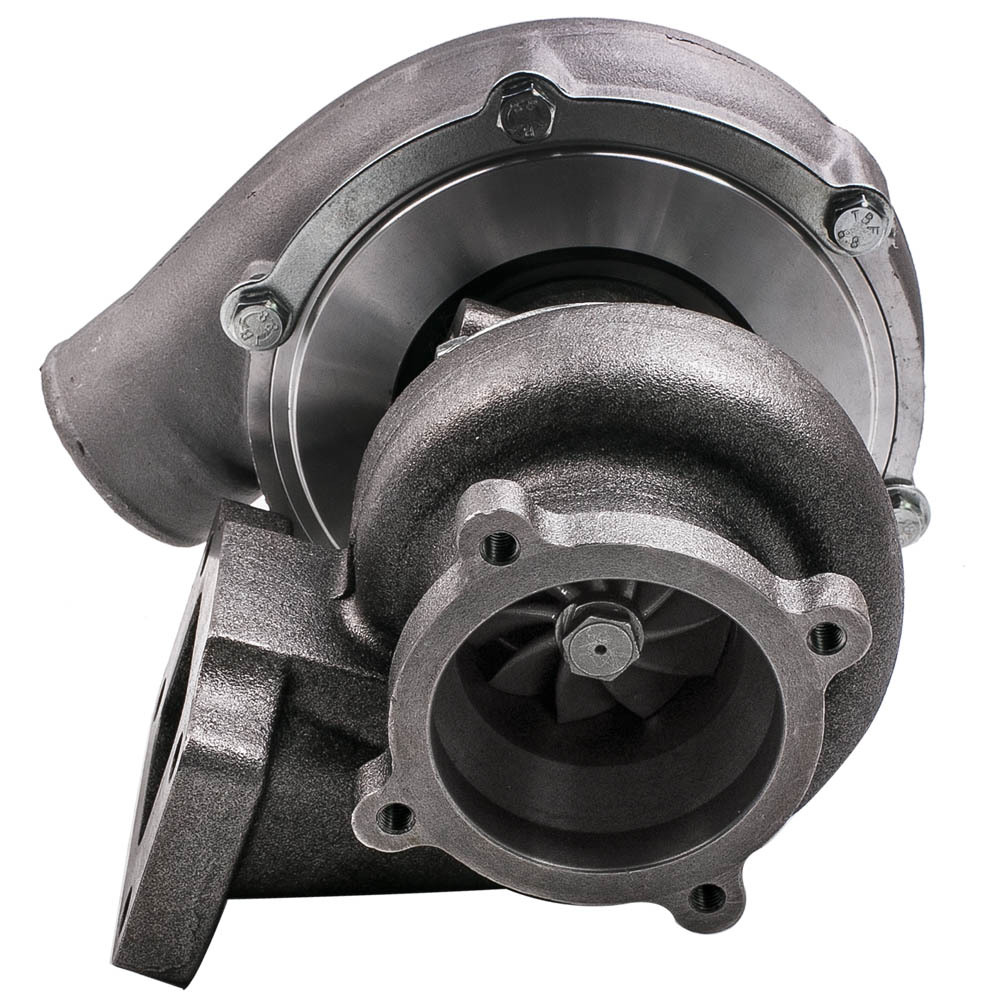

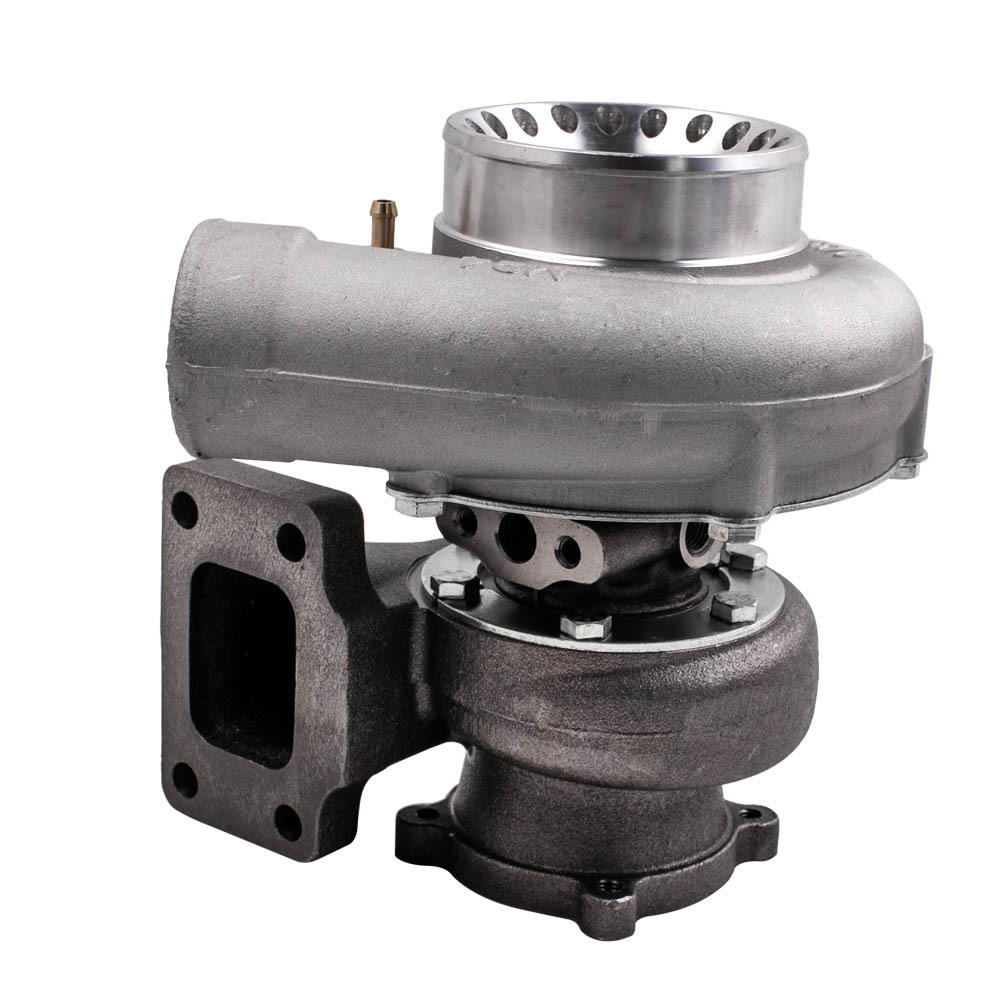

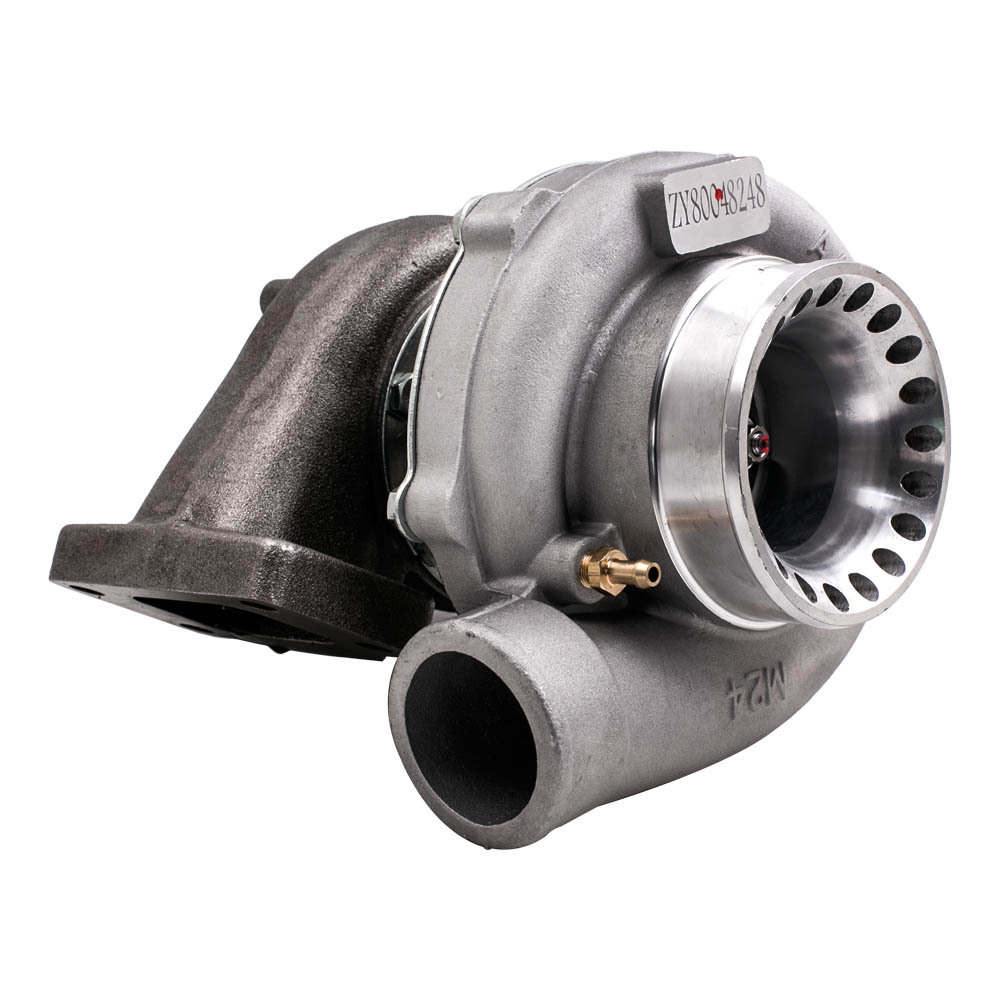

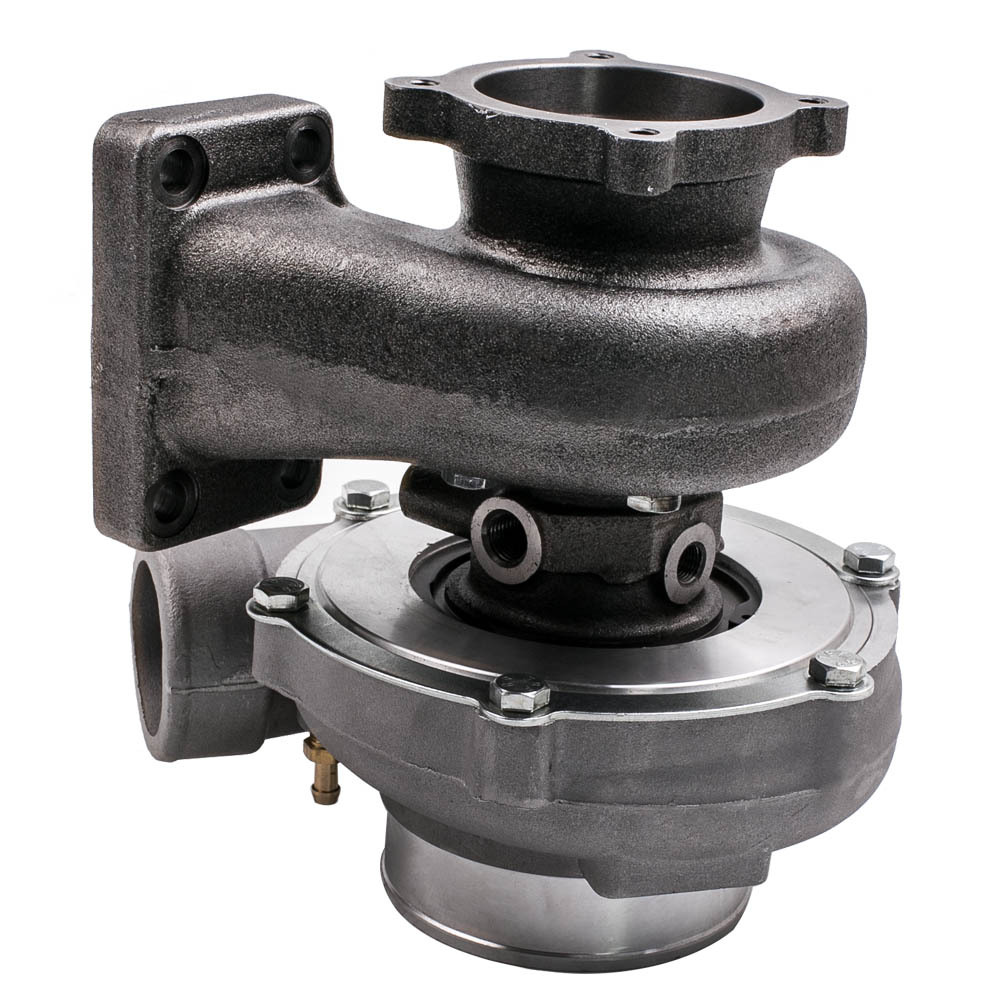

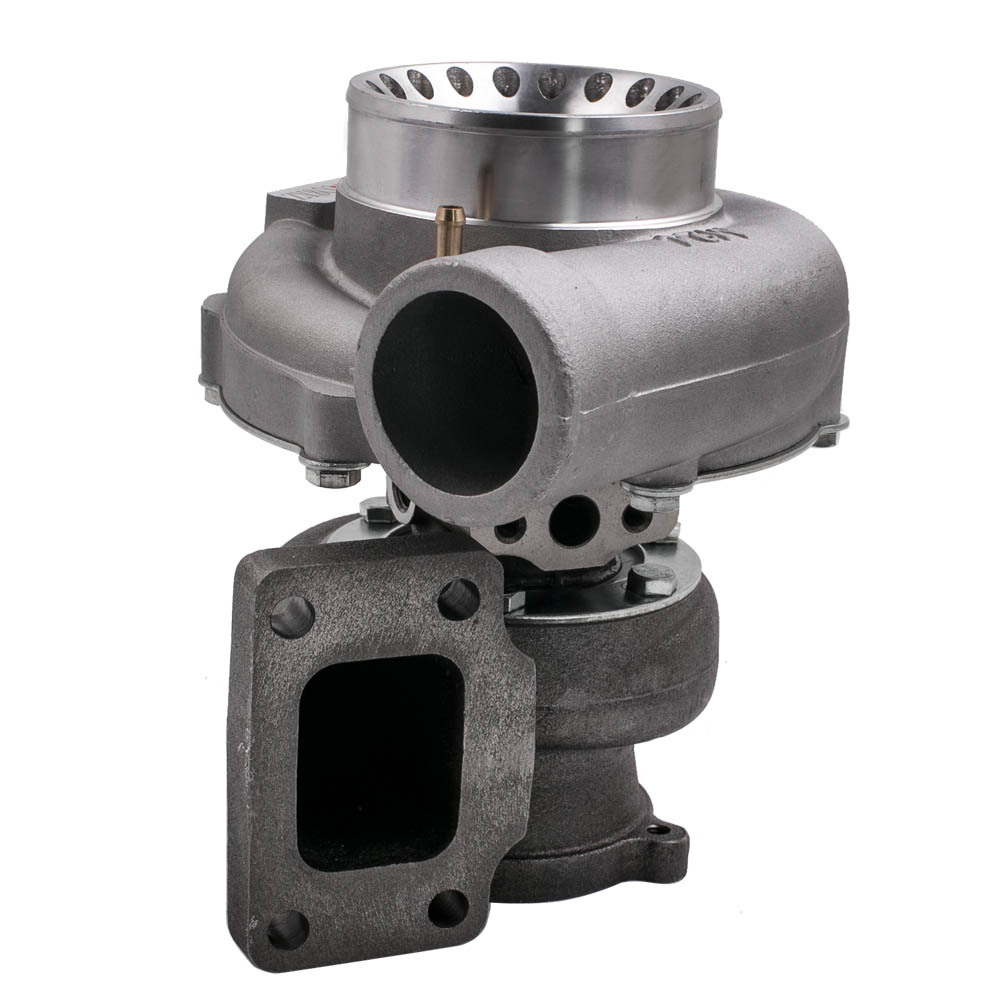

Turbo

Exhaust Inlet (Turbo Manifold) Flange: T3 Flange

Exhaust Outlet (Downpipe) Flange: 4 Bolt

Turbine Trim: 84

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Turbine A/R: 0.63

Compressor Trim: 57

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compressor A/R: 0.7

Bearing: Floating Bearing

Warranty: one year

Internal Wastegate: No

Oil Inlet: M10*7/16-24

Oil Outlet: M14.1 & 2*M8*1.25

Water: M14*1.5

Intercooler Turbo Piping Pipe Kit

Pipe Thickness: 1.8mm

Pipe length: 18''

-New Never been tried or installed.

-100% quality assurance tested

-Made out of high quality of 6061 aluminum Manual polishing finished

Intercooler

Core Dimension: 600 X 300 X 76 MM

Inlet / outlet size: 3" inch

Thickness: 3" (76mm)

Pipe length: 18''

Pipe Thickness: 1.8mm

Core design: Tube & Fin

Color: Silver

Intercoolers are designed with a tube and fin core which has the highest thermomic dissipative process.

100% quality assurance tested

Made out of high quality of 6061 aluminum Manual polishing finished

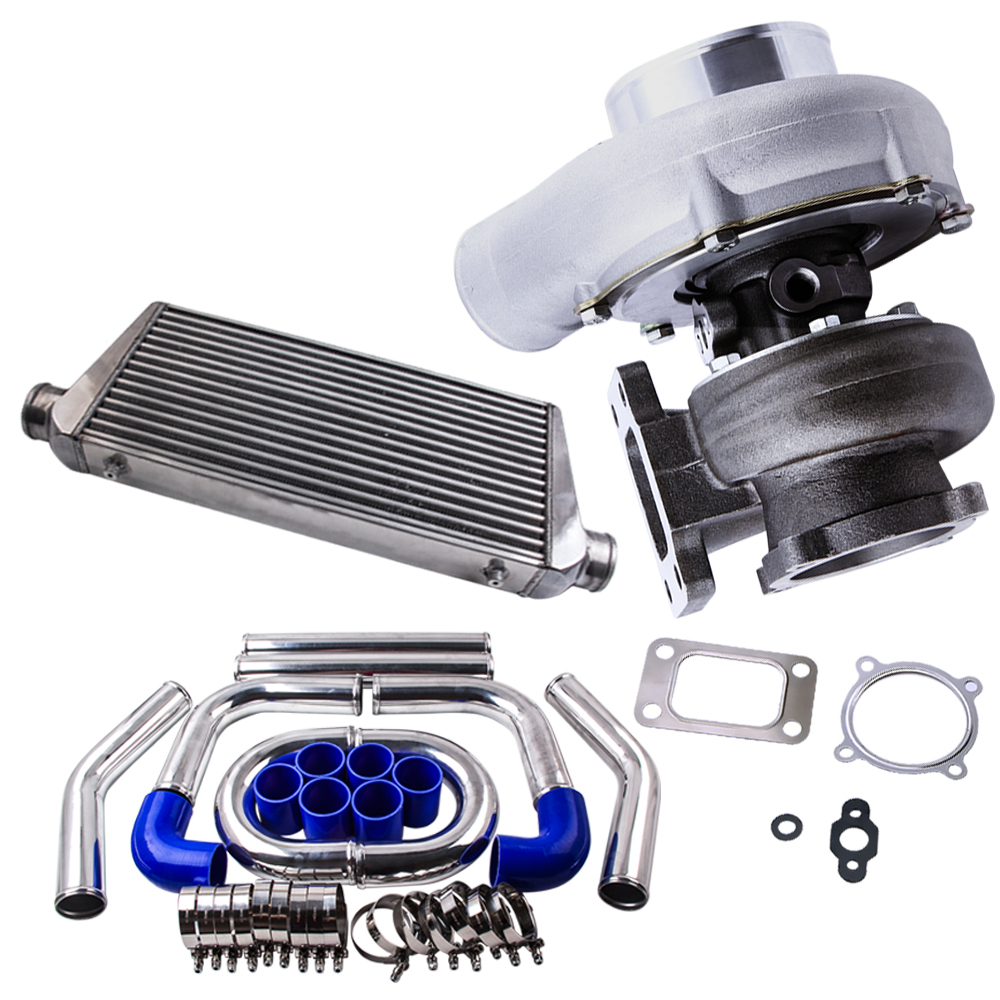

Package Including

2x 90 Degree Aluminum Pipe 2.5"

2x Straight aluminum pipe 2.5"

2x 135 Degree Aluminum Pipe×2 2.5"

2x U Aluminum Pipe×2 2.5"

6x Straight Silicon Hose 2.5" (Blue )

2x 90 Degree Silicone Hose×2 2.5"(Blue )

16x Clamps 2.5"

1x Turbo and gaskets

600x300x76mm Intercooler

* Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.

* This is universal application turbo, so modification might be required for some vehicles.

* Professional installation is highly recommended (No Instruction Included).

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
