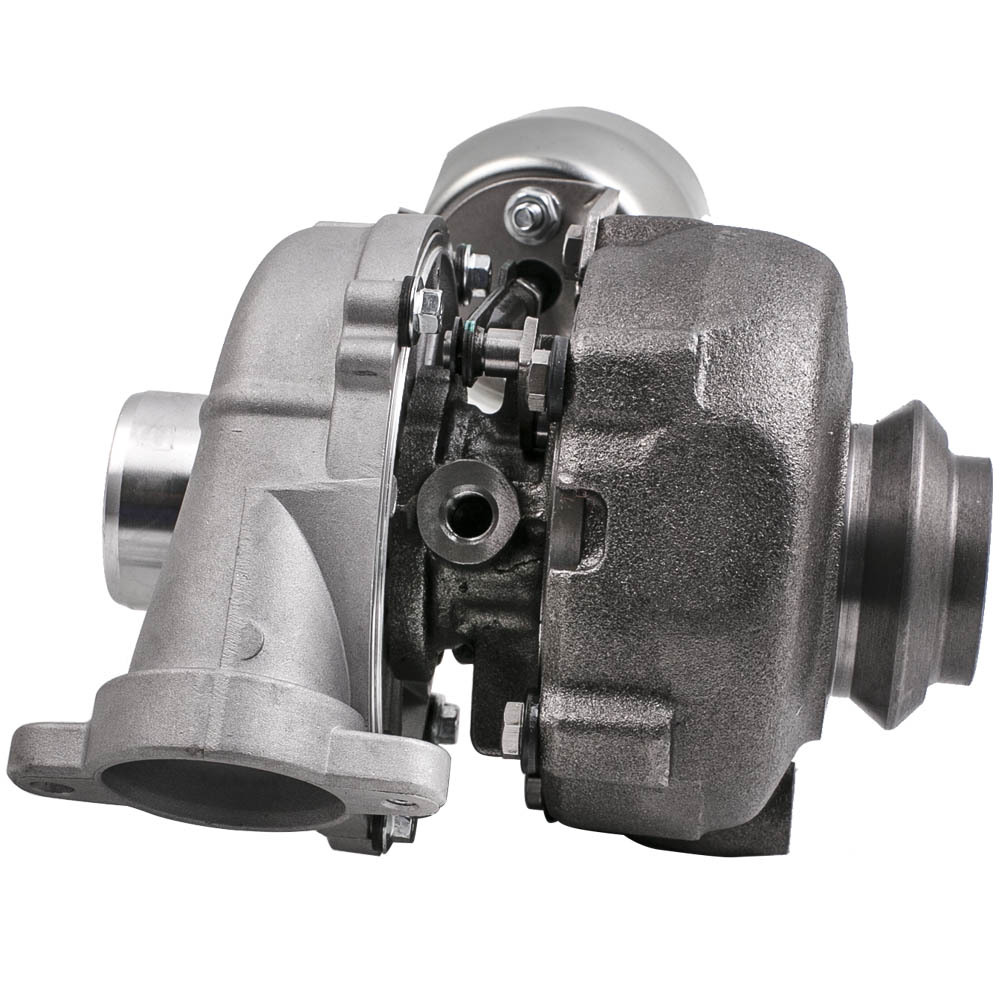

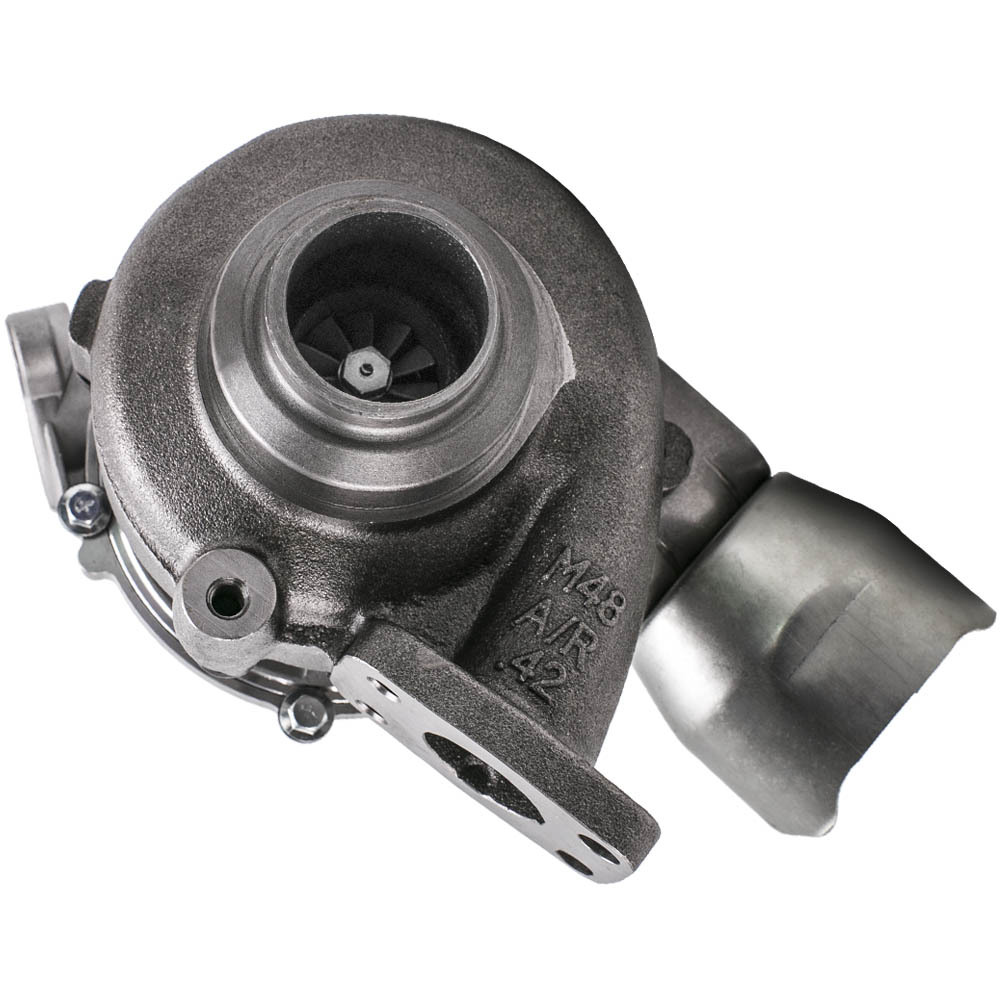

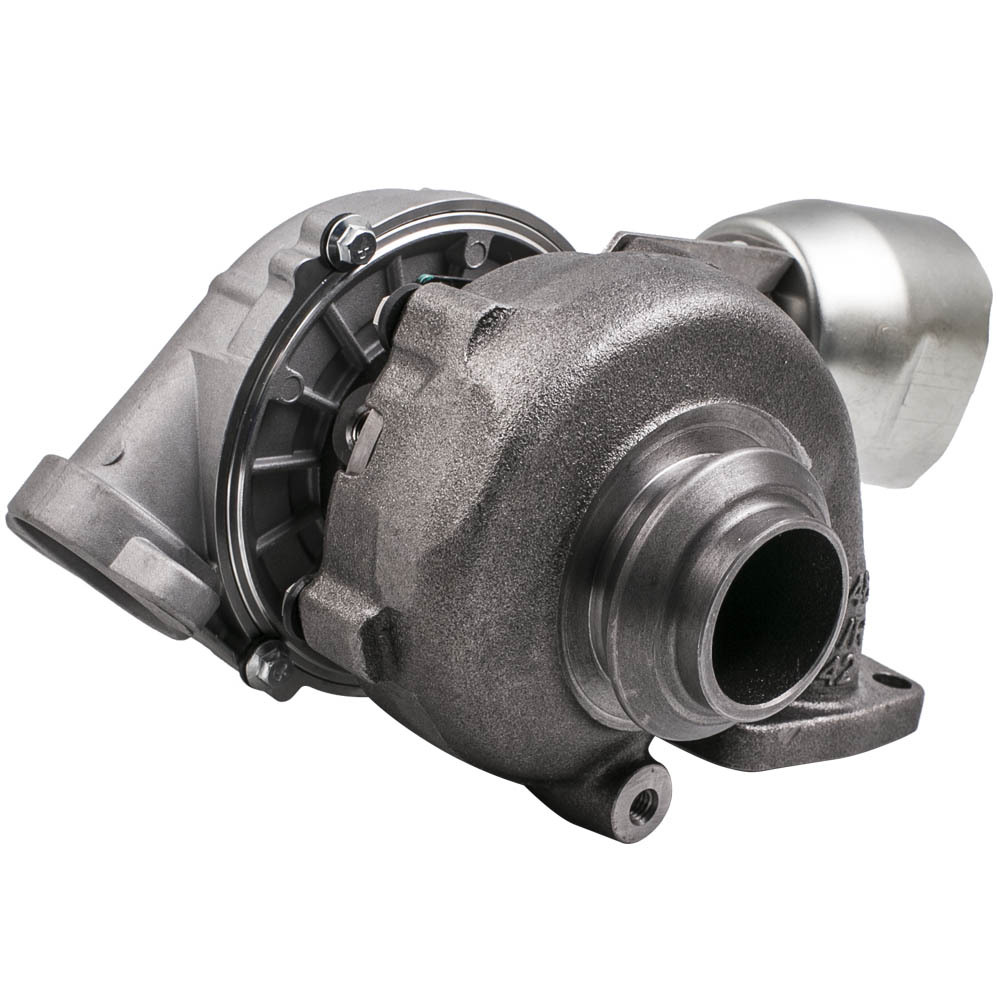

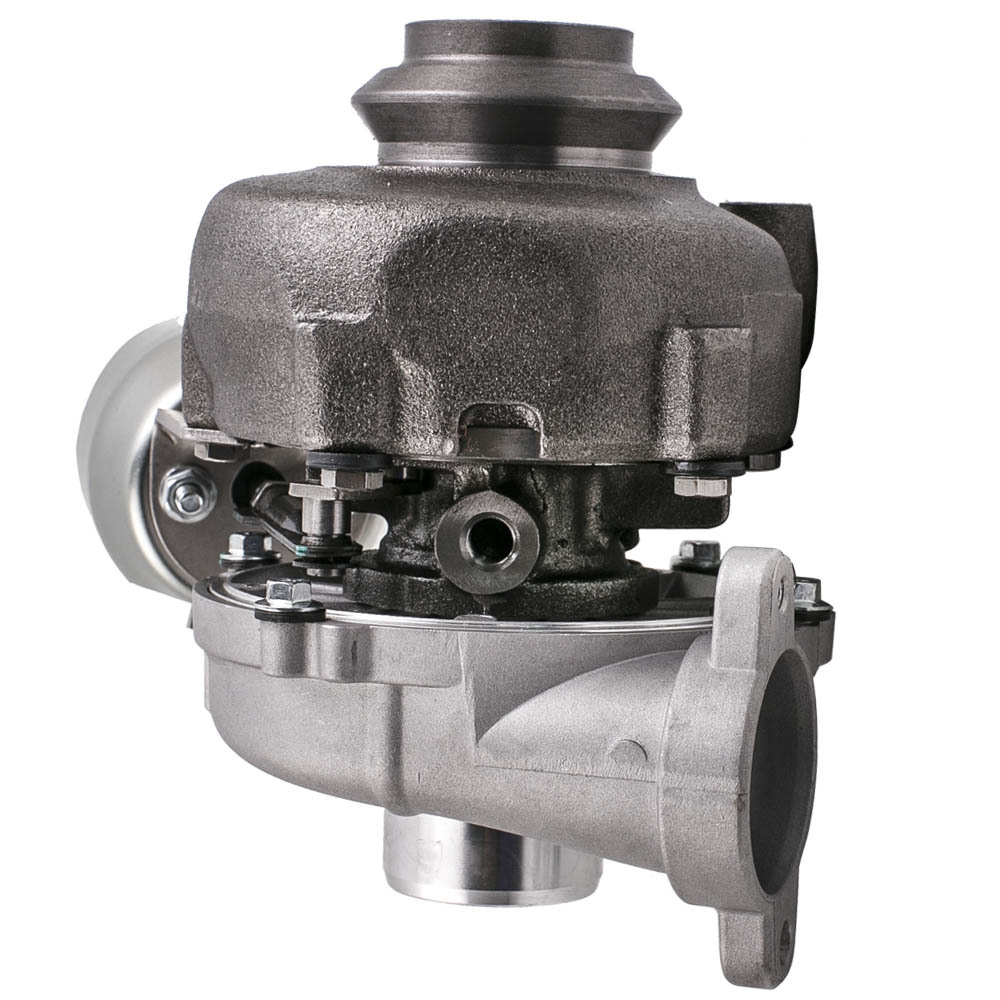

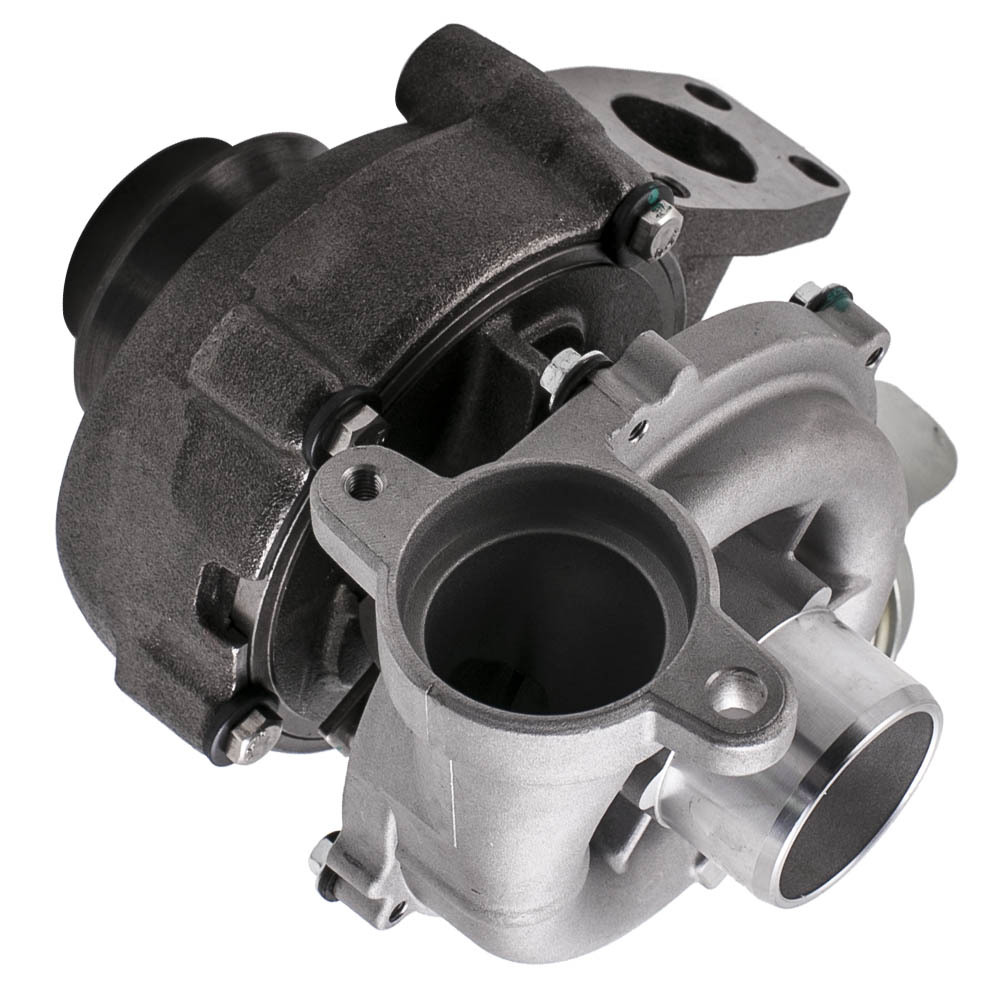

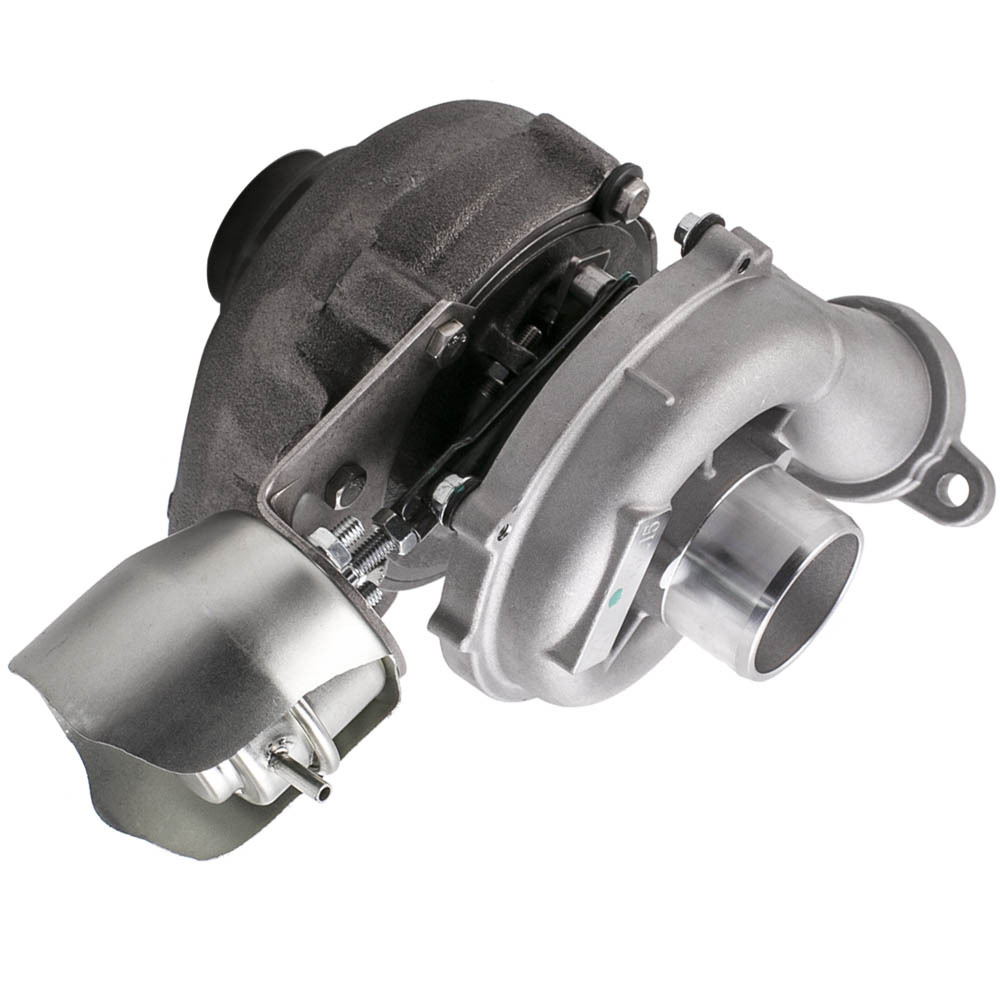

Turbo Turbocharger Turbolader 1.6HDI TDCI 109 PS 80KW Compatible forFord compatible for Citroen compatible for Peugeot Volvo Mazda Mini 1340133

Introduction

Looking to boost your car's power? Is your car's original turbocharger not performing well, or does it need replaced? Maxpeedingrods stocks all the best OEM-quality turbochargers, turbo parts to give your car the power, performance and reliability you deserve. Maxpeedingrods aftermarket replacement turbo provide the perfect solution by delivering a high-quality turbo.

Application

Compatible for CITROEN C2 1.6L D DV6TED4 05 -
Compatible for CITROEN C3 HDI 1.6L D DV6TED4 06 -
Compatible for CITROEN C4 HDI 1.6L D DV6TED4 04 -
Compatible for CITROEN C5 HDI 1.6L D DV6TED4 03 -
Compatible for CITROEN XSARA Picasso 1.6L D DV6TED4 03 -
Compatible for CITROEN Picasso 1.6 HDi FAP 1.6L D DV6TED4 04 -
Compatible for CITROEN Berlingo 1.6 HDi FAP 1.6L D DV6TED4 05 -
Compatible for PEUGEOT 1007 109HP 1.6DHi Fap DV6TED18 05 -
Compatible for PEUGEOT 207 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 206 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 407 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 307 Hdi 1.6L D DV6TED4 04 -
Compatible for PEUGEOT 308 Hdi 1.6L D DV6TED4 07 -
Compatible for PEUGEOT 3008 TDi 110 1.6L D DV6TED4 09 -
Compatible for PEUGEOT 5008 HDI 110 1.6L D DV6TED4 10 -
Compatible for Peugeot Partner 1.6 HDi 110 FAP 05-
Compatible for FORD C MAX 1.6L D DV6TED4 04 -
Compatible for FORD C-MAX TDCi 1.6L D DV6TED4 03 -
Compatible for FORD Focus TDCi 1.6L D DV6TED4 04 -
Compatible for FORD Mondeo III 1.6 TDCi 03-
Compatible for Volvo C30 1.6D 1.6L D4164T 06-
Compatible for VOLVO S40 1.6L D DV6TED4 05-09
compatible for VOLVO V50 1.6L D DV6TED4 07-09
compatible for MAZDA 3 1.6L D DV6TED4 04 -
For MINICOOPER D 1.6L D(R55 R56) W16 07 -

OE/Part number

740821，740821-1，740821-2，740821-0001，740821-0002，740821-5001S，740821-5002S
750030，750030-1，750030-2，750030-0001，750030-0002，750030-5001S，750030-5002S
753420，753420-2，
753420-3，753420-4, 753420-5，
7534202, 7534203, 7534204, 7534205, 753420-0002，753420-0003，753420-0004，753420-0005，753420-0006，753420-5002S，753420-5003S，753420-5004S，753420-5005S，753420-5006S
0375J3，0375J6，0375J7，0375J8
1373584，1479055，1355027，1254337，1231096，1789074，1465162，1340133，1441253，1319614，8603746，36002480，36000722，31259243，8603489
Y60113700, Y60113700A, Y60113700B，Y60113700C, Y60113700D，Y60113700E，Y60113700F， Y60113700G
7804903，11657804903,
3M5Q6K682AK，3M5Q6K682AE, 3M5Q6K682AF ，3M5Q6K682AH，
9656125880，9657248680，9660641380，9650764480，9663199280，9654128780，9651839880

*HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo , please let us know this information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger

Specification

Turbo Model：GT1544V GT15V GT15
Engine Code：W16，D4164T，DV6TED4
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 109HP
Turbo Type: VNT variable geometry turbo
Actuation: Vacuum
Condition: Brand New

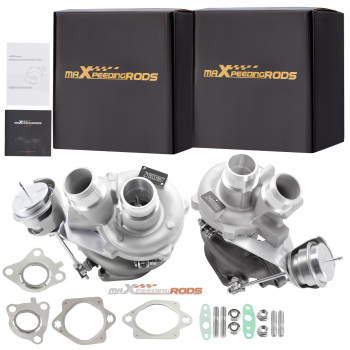

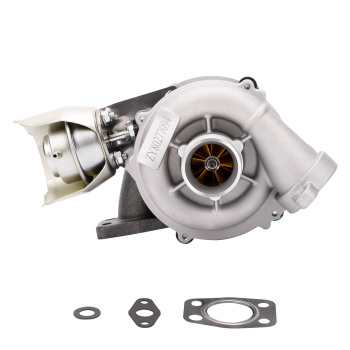

Accessories: You will receive the parts exactly as shown in the picture above.
Package Size:36x24x23cm
Package Weight: 5400g

Feature

*Product Material
1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance

*Product Performance
1. OEM-quality and size with little modification
2. Rich Experience In Turbo Production And Own Factory
3. Quality Assurance
4. High-Speed Oil Seal Ring
5. Strict Quality Inspection
6. Precision Clearance
7. High-speed Accessories

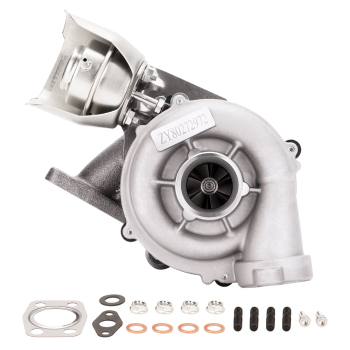

*All necessary gaskets included for ease of installation

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Technology Advantage

1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.

3. Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.
