Turbocharger compatible for Citroen C 3 1.6 Hdi1.6L DV6B DV6ATED4 2005 -

Application

Compatible for Citroen C 3 1.6 Hdi1.6L DV6B DV6ATED4 2005 -

Compatible for Citroen C 4 1.6 Hdi1.6L DV6ATED4 2005 -

Compatible for Citroen Jumpy 1.6 HDi 1.6L DV6B DV6ATED4 2005 -

Compatible for Citroen Xsara 1.6 HDi 1.6L DV6B DV6ATED4 2005 -

Compatible for Ford Fiesta VI 1.6 TDCi1.6L DV6ATED4 2005 -

Compatible for Ford Focus II 1.6 TDCi1.6L HHDA 2005 -

Compatible for Ford Fusion 1.6 TDCi1.6L DV6ATED4 2005 -

Compatible for Peugeot 207 1.6 Hdi1.6L DV6ATED4 2005 -

Compatible for Peugeot 307 1.6 Hdi1.6L DV6ATED4 2002 -

Compatible for Peugeot 308 1.6 HDi FAP1.6L DV6ATED4 2007 -

Compatible for Peugeot Expert 1.6 HDi FAP1.6L DV6B DV6ATED4 2007 -

Compatible for Peugeot Partner 1.6 Hdi1.6L DV6B DV6ATED4 2005 -

Compatible for Volvo S40/V50 90HP 66kW 1.6D DV6ATED4 2005-

Compatible for Fiat Scudo 90HP 66 1.6HDI DV6ATED4

*Please make sure your engine is not 110hp or 109ps, this item does not fit 110hp or 109ps engine

OE/Part number

49173-07502,49173-07503,49173-07504,

49173-07506,49173-07507,49173-07508,

49173-07513,49173-07514,49173-56201

49173-07516,49173-07517,49173-07518,

49173-07522,49173-07523,49173-07524,

49173-07526,49173-07527,49173-07528,

54359707000, 5435 970 7000, 5435-970-7000,

54359887000, 5435 988 7000, 5435-988-7000,

0375Q2, 0375Q3, 0375Q4, 0375Q5,

0375N5, 0375K5, 0375J0, 0375N0,

1684949,1335262,1441254,1479841,1523337,

71793889,71793891,71794229,

9682881380,9685293080,9657603780,

9670371380,9657530580,9662371080,9682881780,

3M5Q6K682DA,3M5Q6K682DB,3M5Q6K682DC,3M5Q6K682DD,

3M5Q6K682DE,3M5Q-6K682-DA,3M5Q-6K682-DB,3M5Q-6K682-DC,

3M5Q-6K682-DD,3M5Q-6K682-DE,

Specification

Turbo Model：TD025

Engine Code：DV6ATED4/ DV6B / DV6UTED4

Turbo Type:  VNT variable geometry turbo

Actuation: Vacuum

Cooling Type: Oil Cooling

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower: Up to 90HP

Condition: New

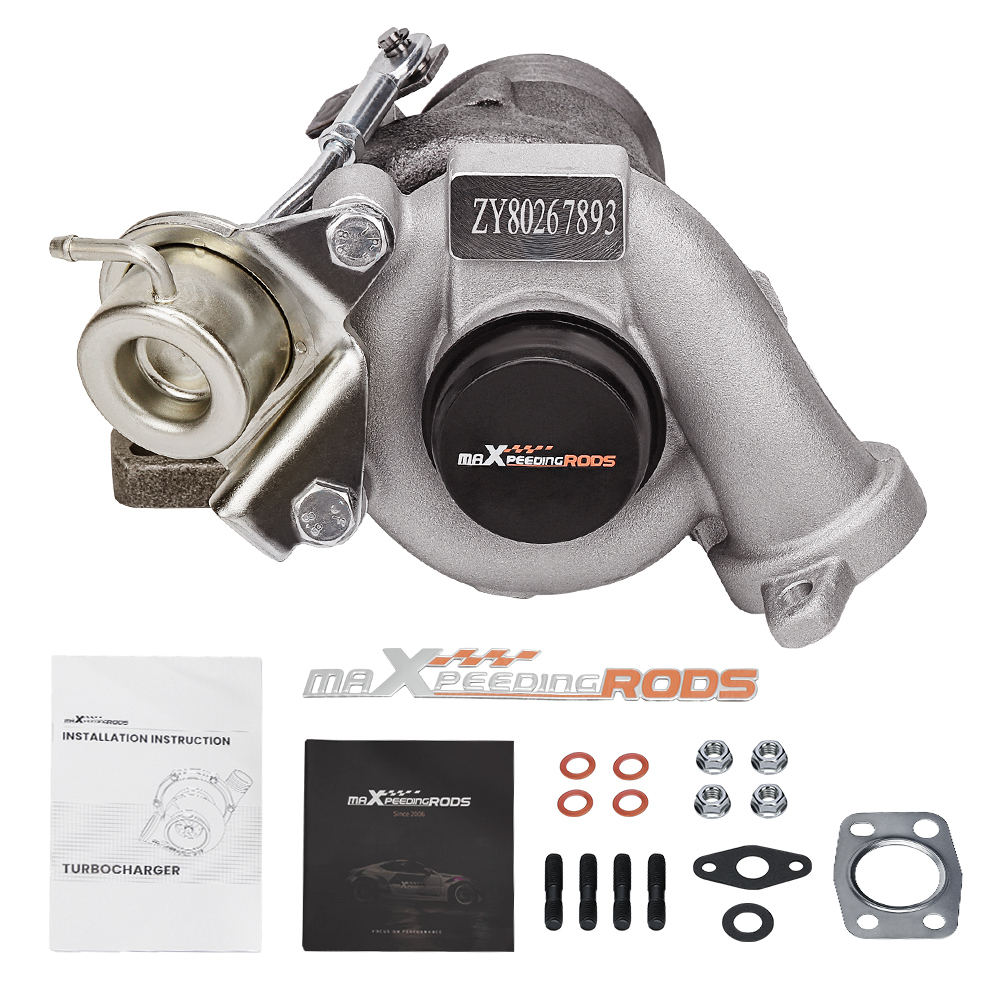

Accessories: You will receive the parts exactly as shown in the picture above.

Package Size：26x25x23cm

Package Weight：3700g

Feature

* Product Material

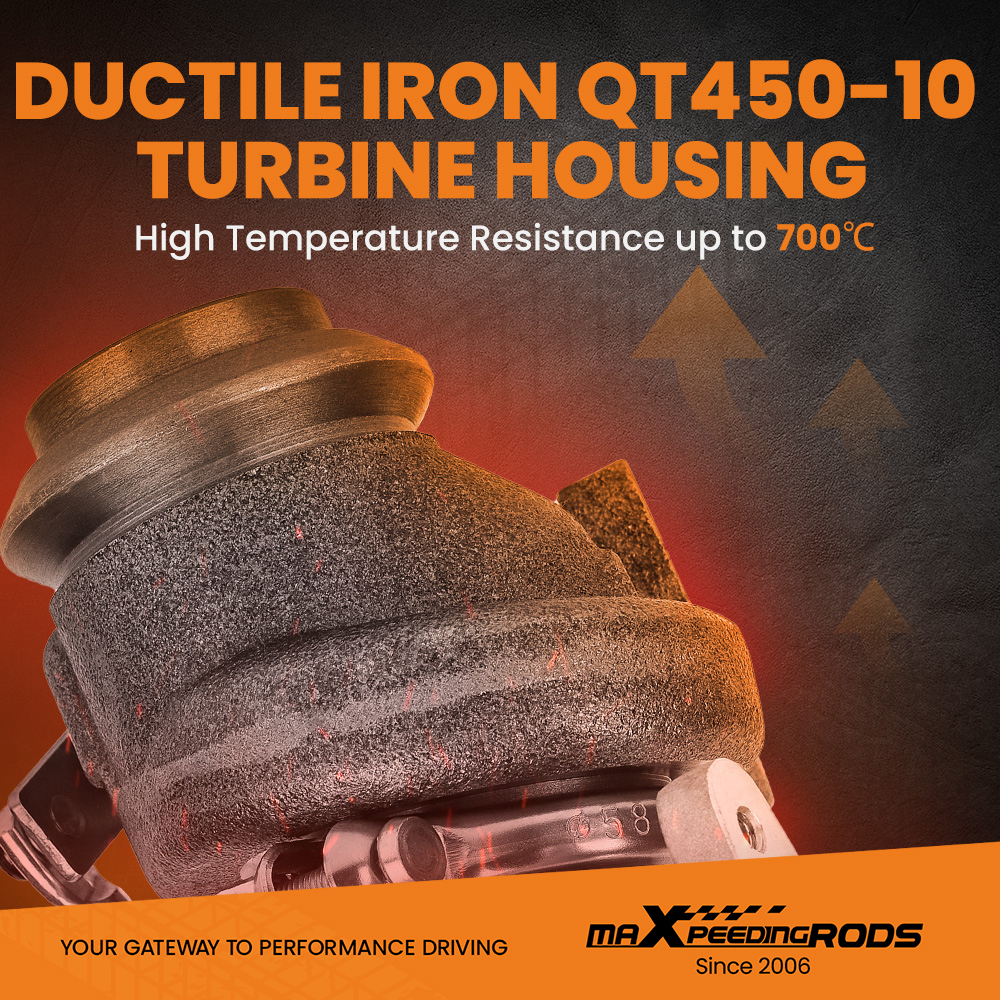

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

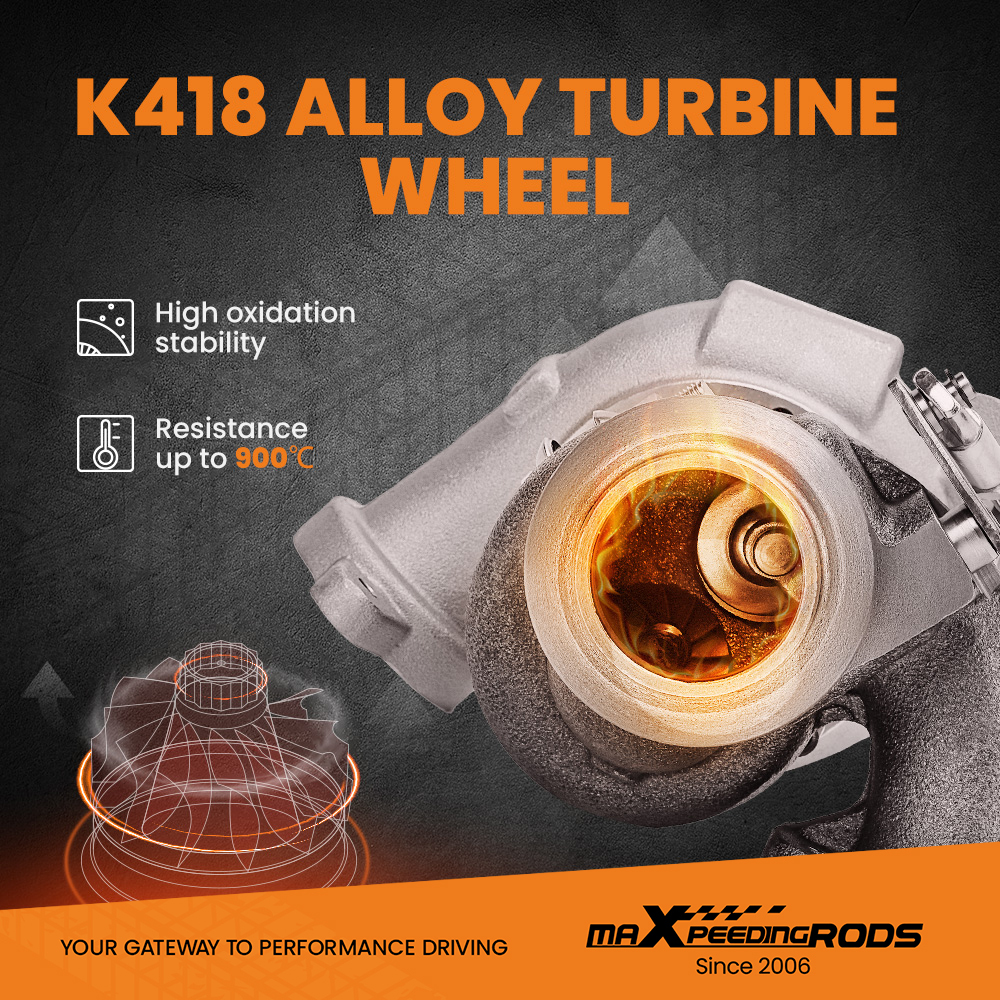

2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃

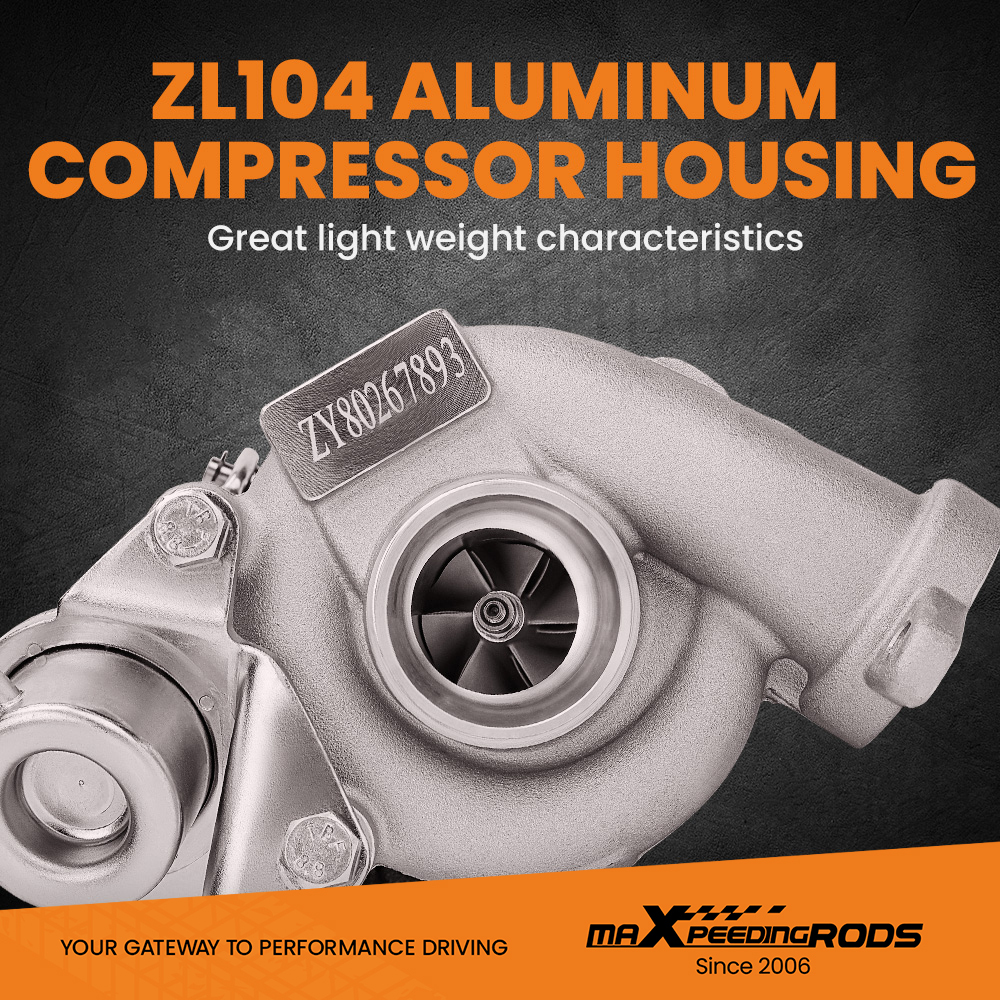

3. Compressor housing: ZL104 aluminium with lightweight

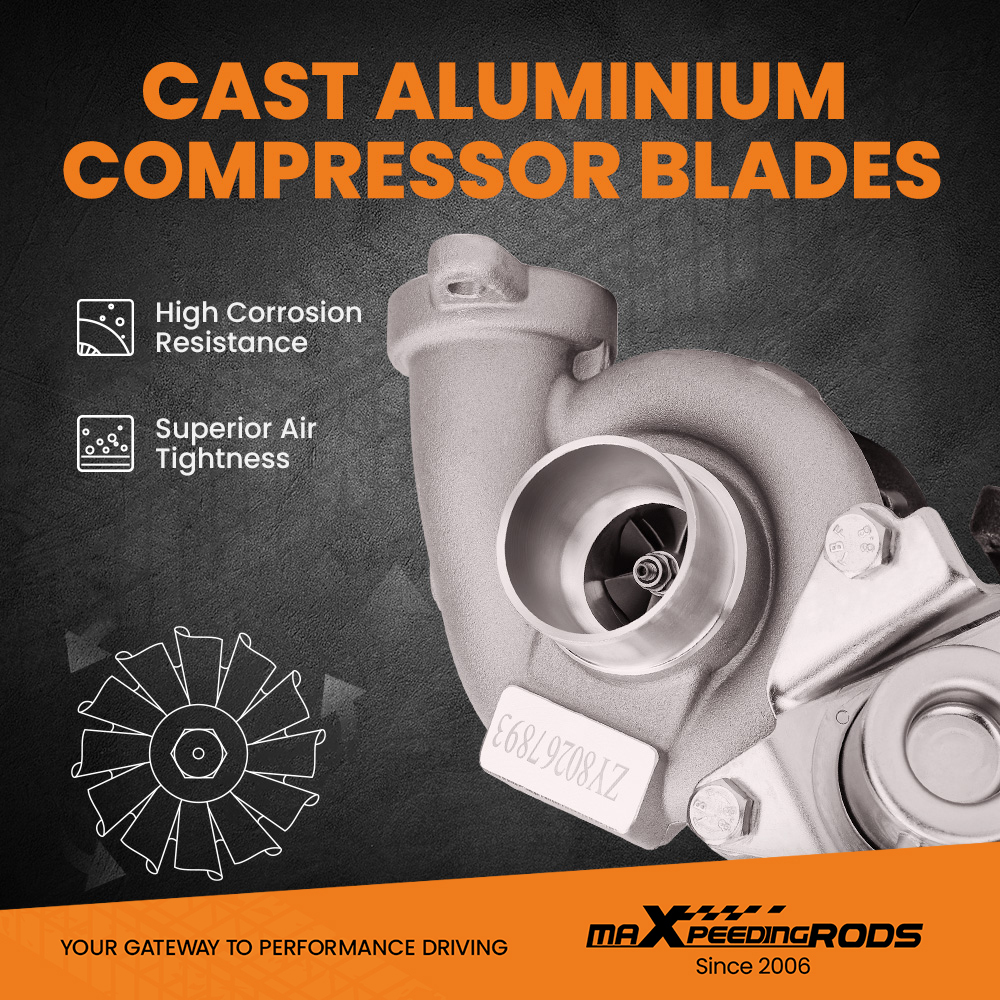

4. Compressor wheel/blades: Cast aluminium blades – superior airtightness & corrosion resistance

* Product  Performance

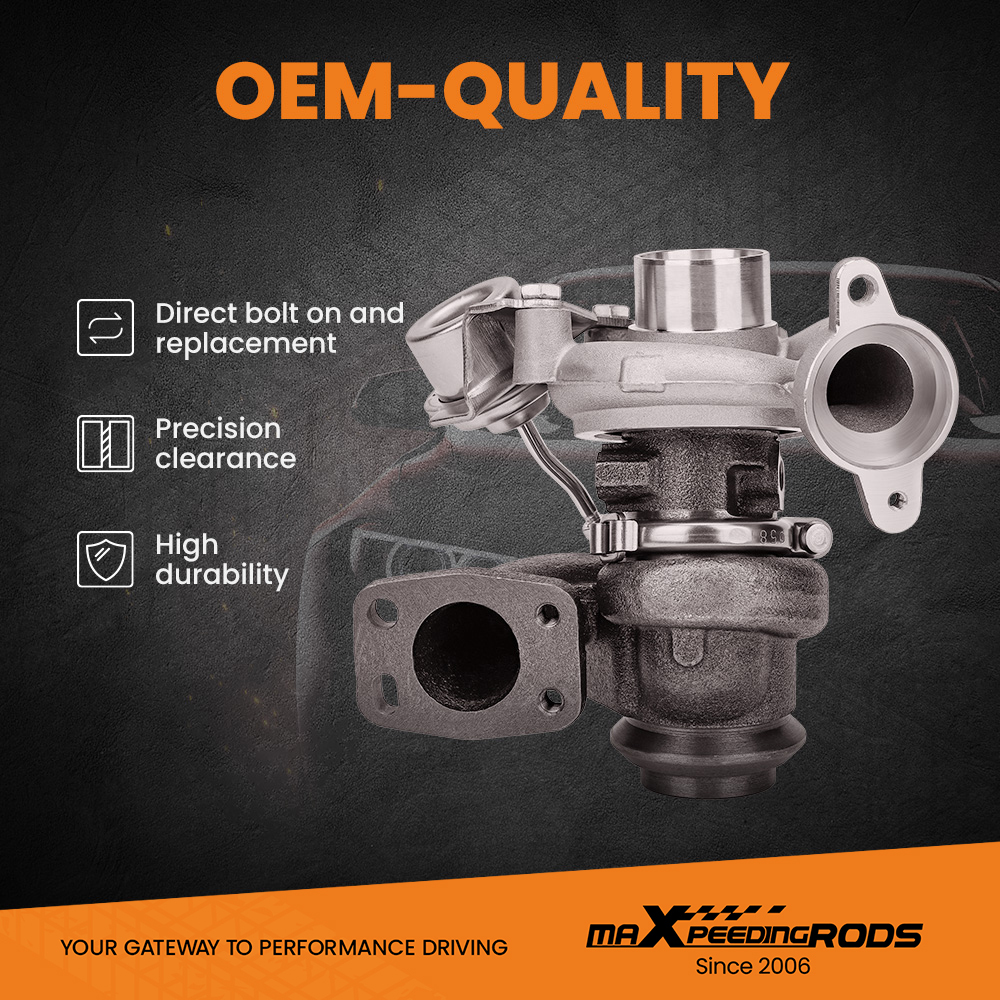

1. OEM quality and size with little modification

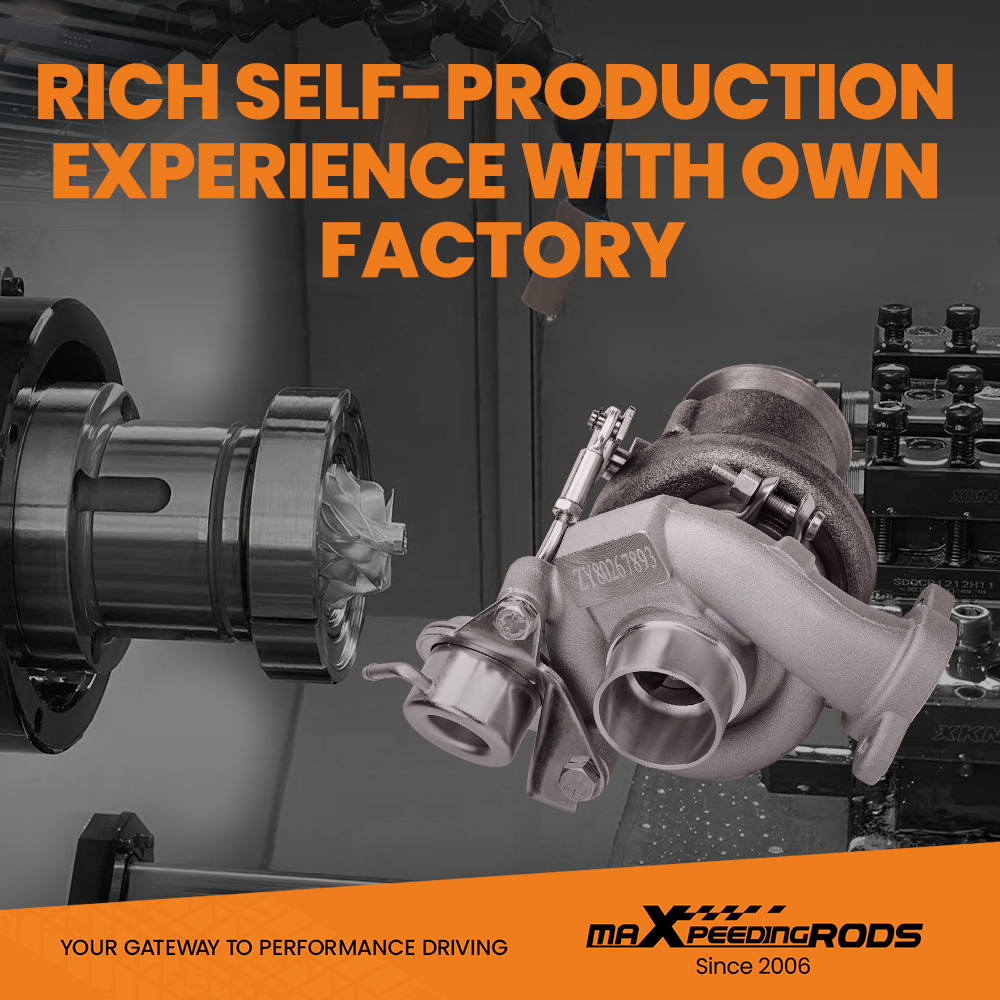

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Product Certification: TÜV ISO 9001 CERTIFIED

* Technology Advantage:

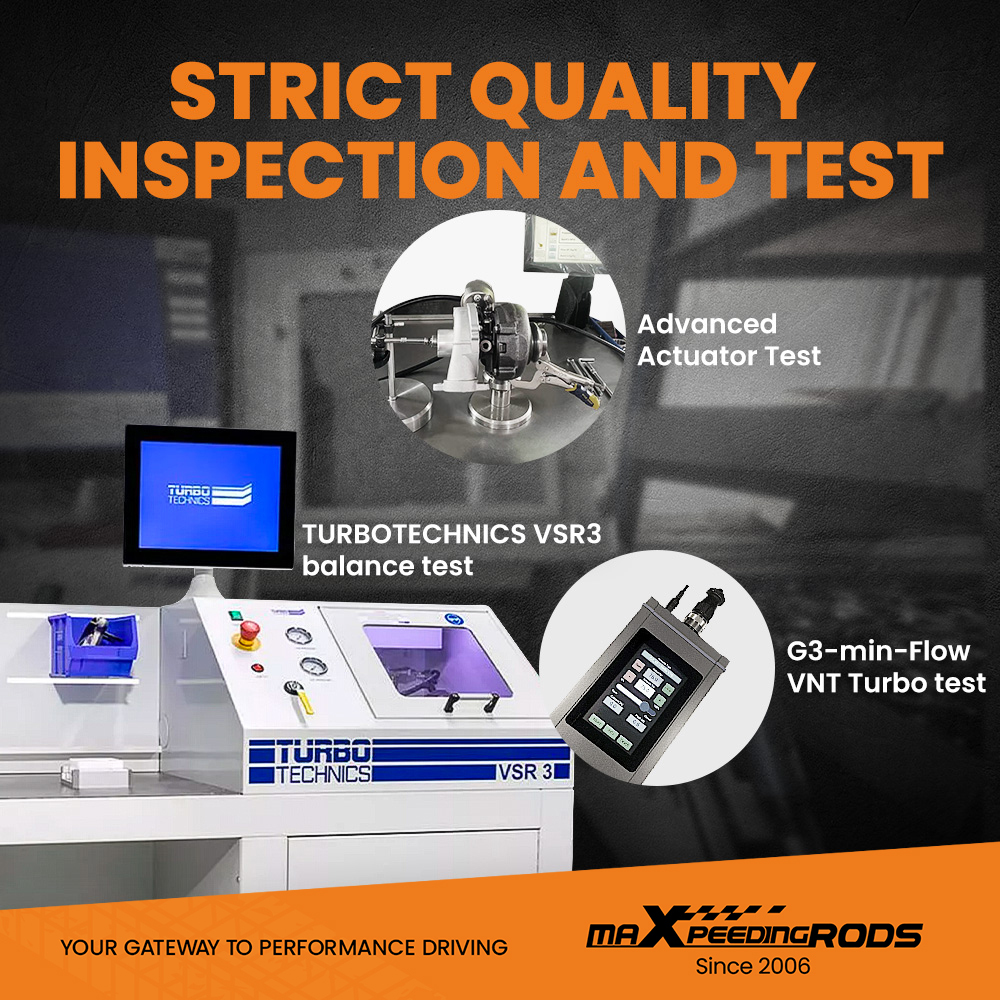

1. 100% balancing Test by TURBO TECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
