Turbo Turbocharger compatible for BMW 530 d /730 d 06/2002 - 12/2005 for GT2260V 725364

Application

Compatible for BMW 730D 3.0D, 2993 compatible for ccm, 218 BHP with M57DTUE65 Engine 2007-10
compatible for BMW 530 d (E60 / E61) 3.0D, 2993 compatible for ccm, 218 BHP M57DTUE65 Engine 2007-10
compatible for BMW 730 d (E65) 3.0D, 2993 compatible for ccm, 218 BHP M57DTUE65 Engine 2007-10
Note: this turbocharger comes with vaccum actuator but not with electronic actuator, please check carefully before purchasing.

OE/Part number

725364-4,725364-5,725364-6,
725364-7,725364-9, 725364-12 ,
725364-15, 725364-18,725364-21, 725364-22,
725364-0004,725364-0005, 725364-0006,
725364-0007 , 725364-0009, 725364-0012 ,
725364-0015 , 725364-0018, 725364-0021 , 725364-0022,
725364-5004S ,725364-5005S , 725364-5006S,
725364-5007S, 725364-5009S, 725364-5012S，
725364-5015S ,725364-5018S, 725364-5021S , 725364-5022S,

7789081,7789081G, 7789081D，11657789081 ,11657789081G,
7789083,7789083E,7789083H,7789083J，7789083L09,
11657789083,11657789083E, 11657789083H,11657789083J, 11657789083L09,
778908G, 1165778908G,

Specification

Turbo Model: GT2260V
Engine: M57N, M57TUD, M57DTUE65
Displacement: 3.0L, 2993 compatible for ccm, 6 Cyl.
Horsepower: 218 HP
Actuator Type: Vaccum Actuator
Cooling Type: Oil cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust Bearings: 270 Degrees
Condition: 100% Brand New

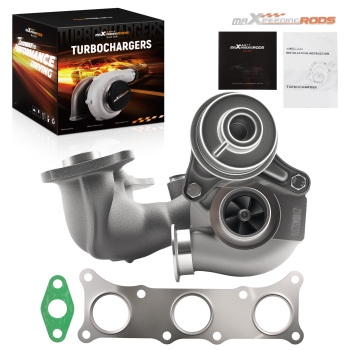

Accessories: You will get exactly as the picture above shown
Package size: 26* 24 * 23 cm
Weight: 6820 g

Feature

* Product Material
1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

* Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Product Certification: TÜV ISO 9001 CERTIFIED

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
