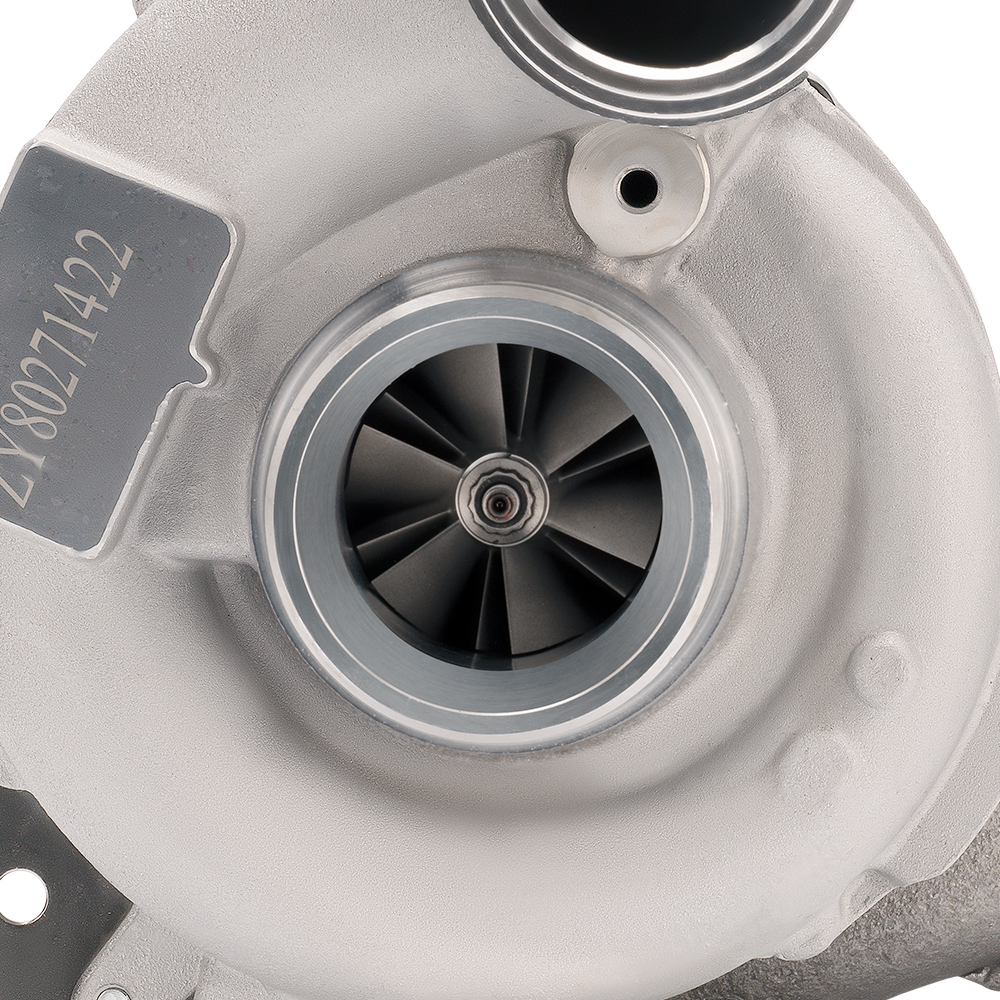

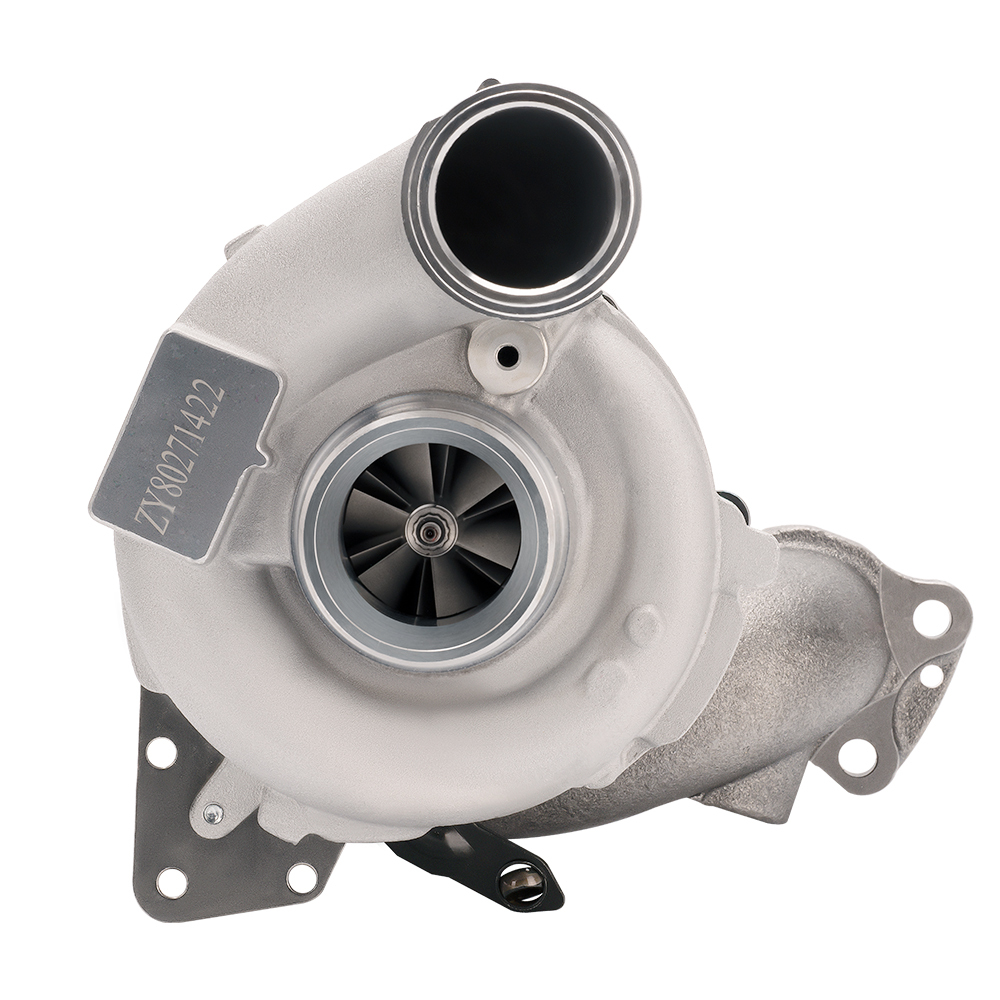

Turbo compatible for Mercedes-Benz 3.0L 320 280 CDI 165kw OM642 Engine 765155-0007

Attention:

This Item come Without Sensor Hole,please carefully check your old part before purcharse

Applications:

Compatible for Chrysler 300C CRD 3.0L 165kw / 160KW,OM642 engine,2006-2012，
Compatible for Jeep Grand Cherokee (WH) with OM642 Engine 2006-2010，
Compatible for Mercedes-car C-Class 3.0L 320 CDI (W203) 165kw OM642 engine, 2002-2007
Compatible for Mercedes cars E-class 3.0L 320 CDI (W211) 165kw OM642 engine, 2005-2009 (Don't for Bluetec type)
Compatible for Mercedes cars E-class 3.0L 280 CDI (W211) 140kw OM642 engine,2005-2009
Compatible for Mercedes-car G-Class 3.0L 280 CDI (W461) 135kw OM642 engine,2007-
Compatible for Mercedes-PKW GL-Class 3.0L 320 CDI (W164) 165kw OM642 engine, 2005-2009
Compatible for Mercedes-car M-Class 3.0L 280 CDI (W164) 165kw OM642 engine, 2005-2009
Compatible for Mercedes-car M-Class 3.0L 320 CDI (W164) 165kw OM642 engine, 2005-2009
Compatible for Mercedes-car R-Class 3.0L 320 CDI (W251) 165kw OM642 engine, 2006-2009 (Don't for Bluetec type)
Compatible for Mercedes-car R-Class 3.0L 280 CDI (W251) 140kw OM642 engine, 2007-2009
Compatible for Mercedes car Viano 3.0 CDI (W639) 150kw OM642 engine 2006
Compatible for Mercedes Vito 3.0L 120 CDI car (W639) 150kw OM642 engine 2007

Note: This turbo come without oxygen sensor hole, please carefully check your  old  turbo before purcharse.

Turbo Model:  GTA2052GVK

Engine: R2816K5, R2816K5(VM), R2816K5 Euro-4

Turbo Part Number/OEM Number:

765155 ,757608 , 743507, 765155-4 , 765155-7 , 765155-8 ,
757608-1 ,743507-9, 765155-0004, 765155-5004S ,
765155-0007, 765155-5007S , 765155-9007W,
765155-0008, 765155-5008S, 757608-0001,757608-5001S,
743507-0009, 743507-5009S,

A6420900280, 6420900280 , A6420900780, 6420900780,
A6420901180, 6420901180, A6420901480, 6420901480,
A6420901880, 6420901880, A6420903080, 6420903080,
A6420904980, 6420904980, A6420905980 , 6420905980,
A6420900080, 6420900080, A6420901490, 6420901490,
A6420902080, 6420902080, A6420902980, 6420902980
A6420904780, 6420904780, A6420908780, 6420908780,
A6420900080, 6420900080, A6420908780, 6420908780,
A642090698080, 642090698080, A642090598080, 642090598080 ,
68037207AA , 68019589AA ,05179566AB

Note: Dont for Turbo with Part number A6420905580/ 781745-1

Specific:

Turbo Model: GTA2052GVK
Engine: OM642, OM642DELA, OM642 DE LA, OM642 Euro-4
Displacement: 3.0L, 2987 compatible for ccm, V6 Cylinders
Cooling Type: Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New

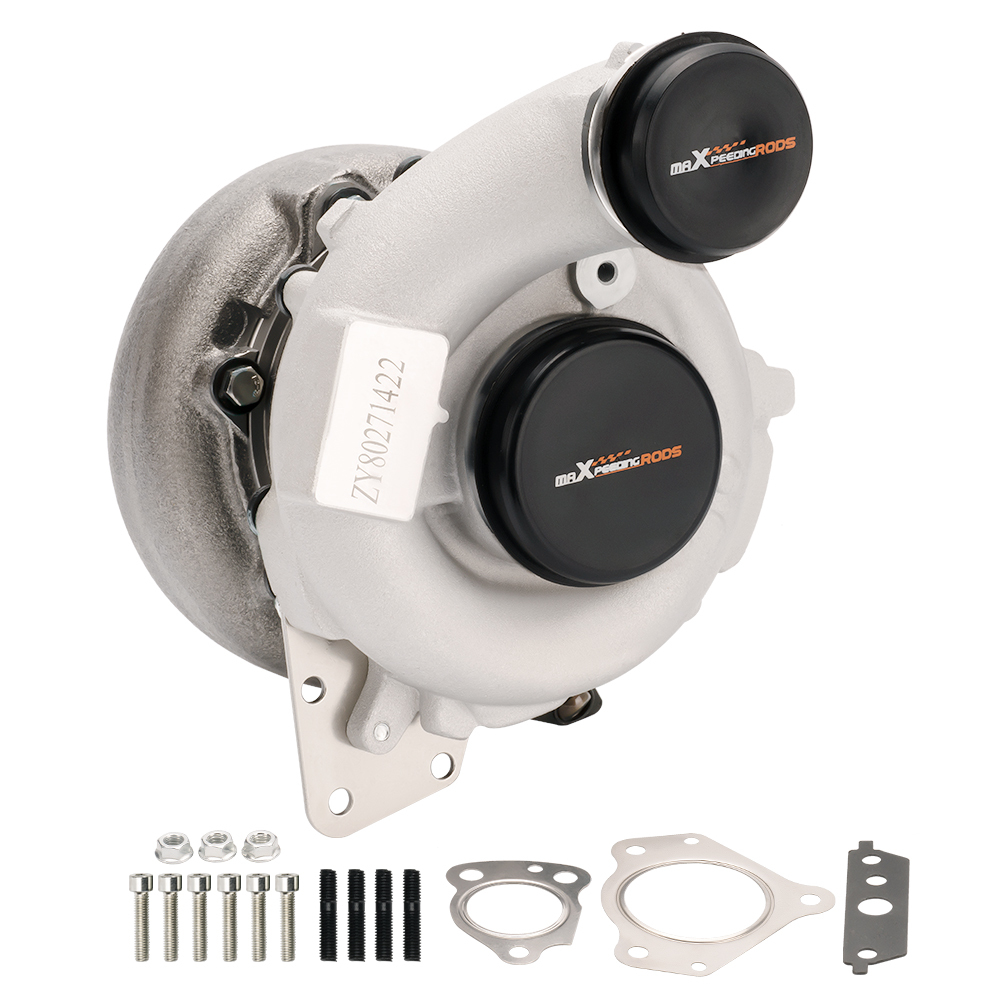

Accessories: You will get exactly as shown as picture above
Package Size: 30x 27 x 24 cm
Package Weight: 7720g

Our Product Feature

* Product Material

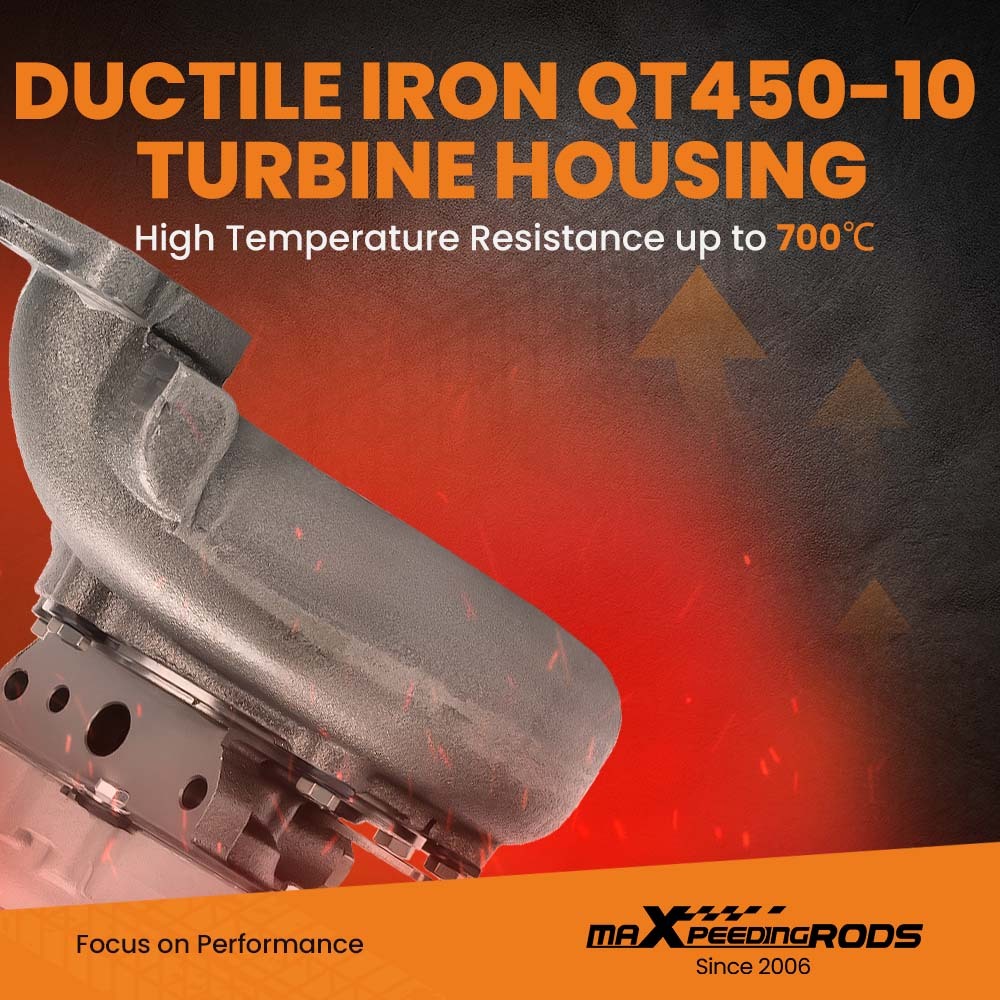

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

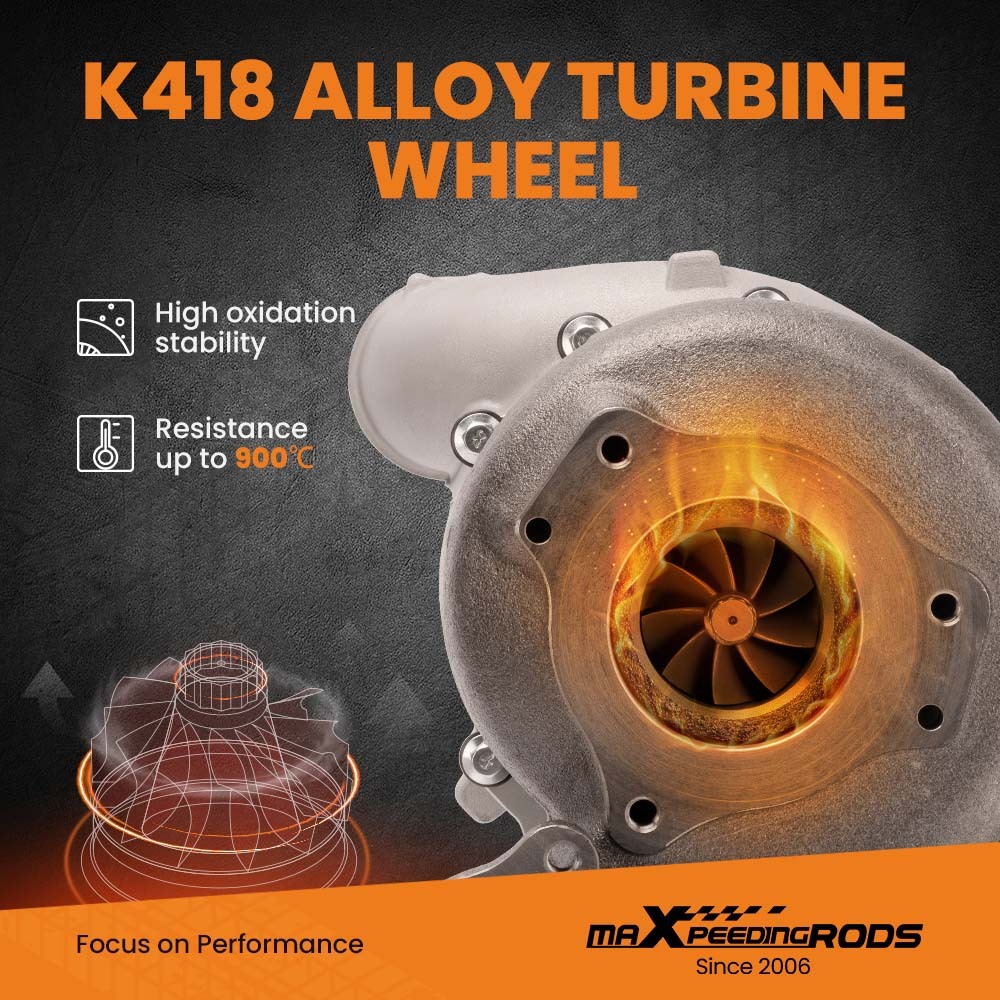

2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃

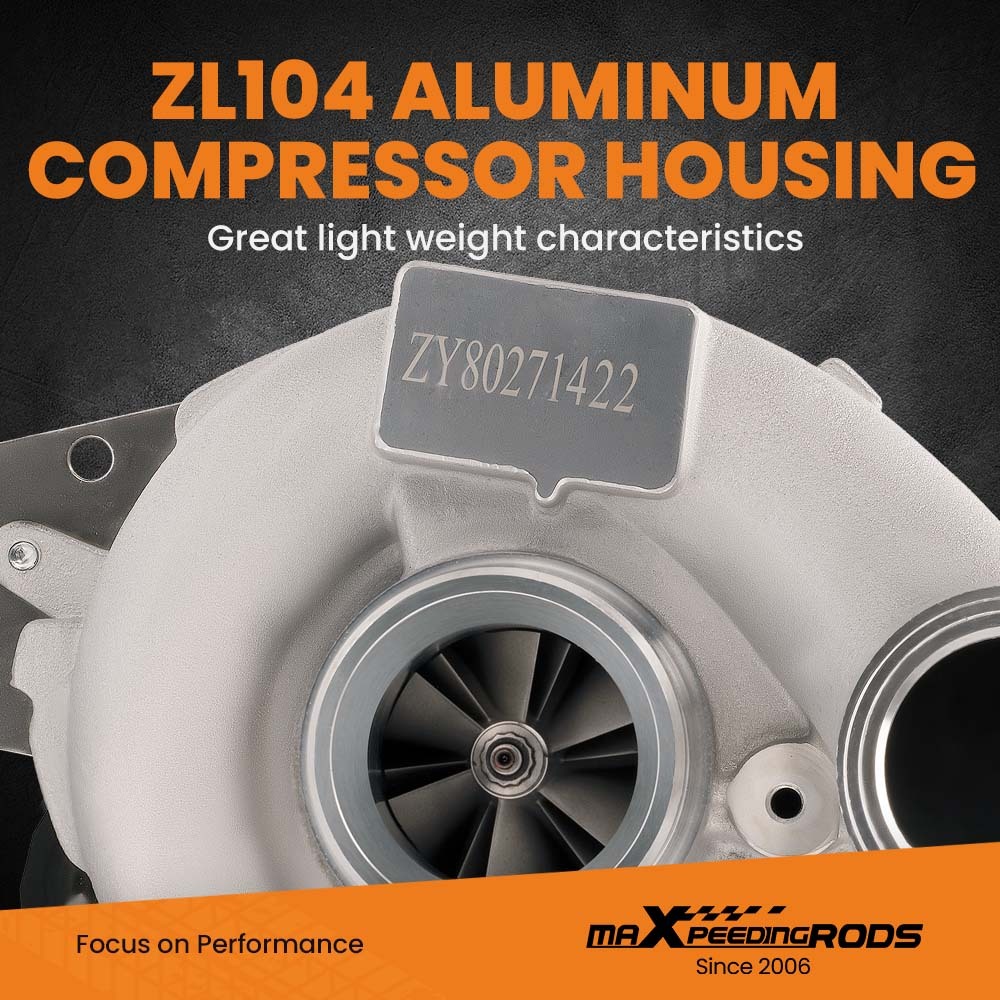

3. Compressor housing: ZL104 aluminum with lightweight

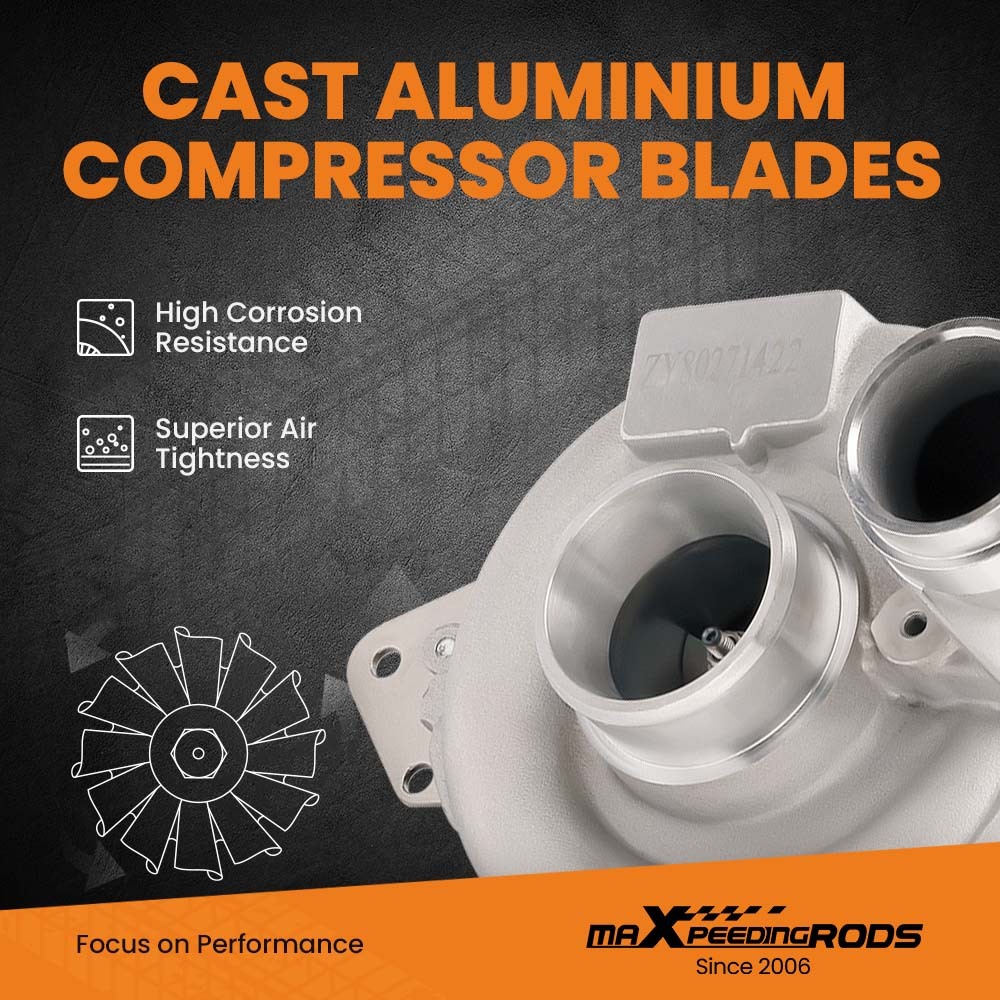

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

* Product  Performance

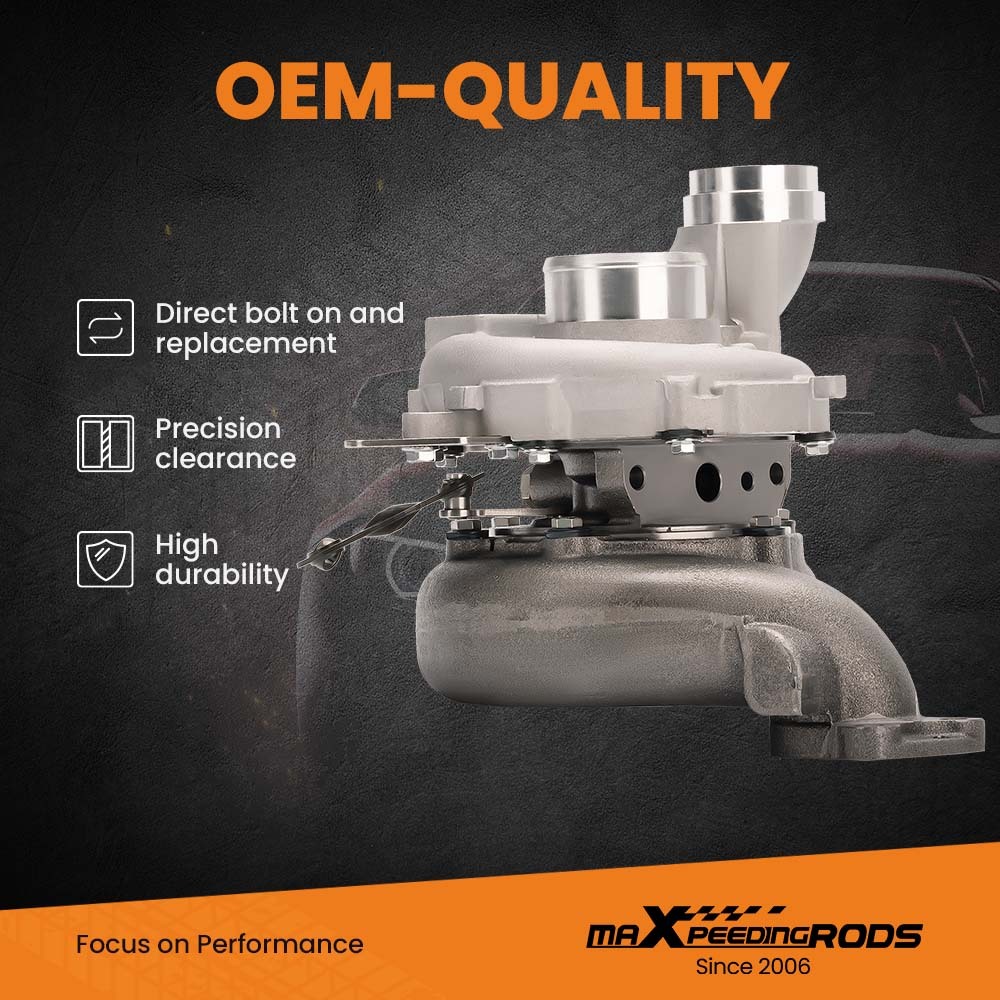

1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

NOTE:

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
