Turbo Charger Compatible for Toyota Auris 2.0D-4D 126HP 1CD-FTV 2007- Compatible for Toyota Picnic TD 2.0 115HP 1CD-FTV 2001-

Application

Compatible for Toyota 1CD-FTV Engine

Compatible for Toyota  Picnic   2.0L TD  85KW/116HP 1CD-FTV  2001-

Compatible for Toyota  Previa  2.0L TD   85KW/116HP 1CD-FTV  2001-

Compatible for Toyota  Compatible for RAV4   2.0L D-4D  85KW/116HP 1CD-FTV  2001-2005

Compatible for Toyota  Estima  2.0L 021Y  85KW 116HP  2001-2003

Compatible for Toyota  Avensis  2.0L  85KW/116H 1CD-FTV 2001-2002 （not for 1AD-FTV Engine)

OE/Part number

17201-27030，17201-27030A, 17201-27030E, 17201-27030F，

17201-27040，17201-27040D,

721164-0003，721164-0004，721164-0005，721164-0006，

721164-0009，721164-0010，721164-0011，721164-0012，

721164-0013，721164-0014，

801891-5001S，801891-5002S, 801891-0001, 801891-0002，

Note:

Don't fit fot turbo with the OE/PN number as below: 17201-0R041、17201-06010，17201-26051.

Specification

Turbo Model: For GT1749V

Engine Code: 1CD-FTV

Cooling type: Water cooled

Bearing Type: Journal Bearing

Thrust Bearings: 270 Degrees

Hosepower:  Up to 126HP

Condition: New

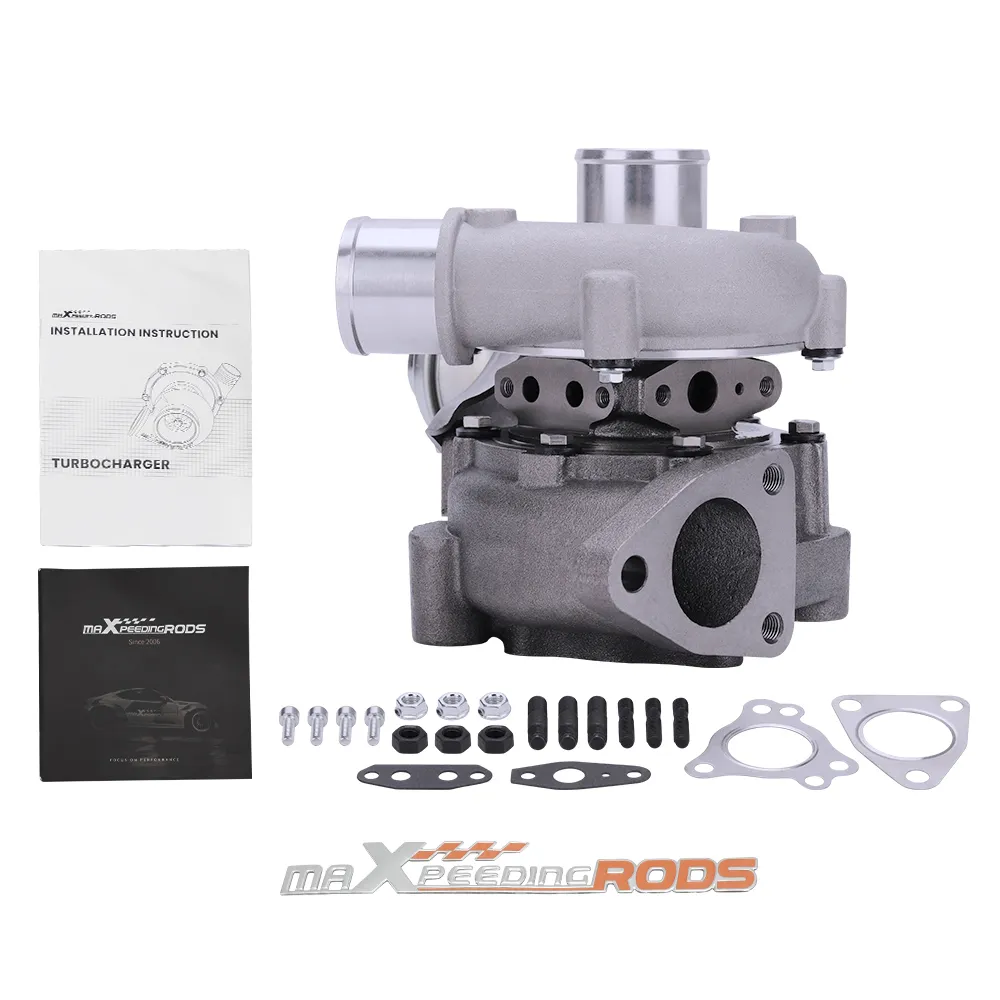

Accessories: You will get exactly as shown in the picture above

Package Size:26x23.5 x 23 cm

Package Weight: 7450g

Feature

* Product Material

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing: ZL104 aluminium with lightweight

4. Compressor wheel/blades: Cast aluminium blades – superior airtightness & corrosion resistance

* Product  Performance

1. OEM quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Product Certification: TÜV ISO 9001 CERTIFIED

* Technology Advantage:

1. 100% balancing Test by TURBO TECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
