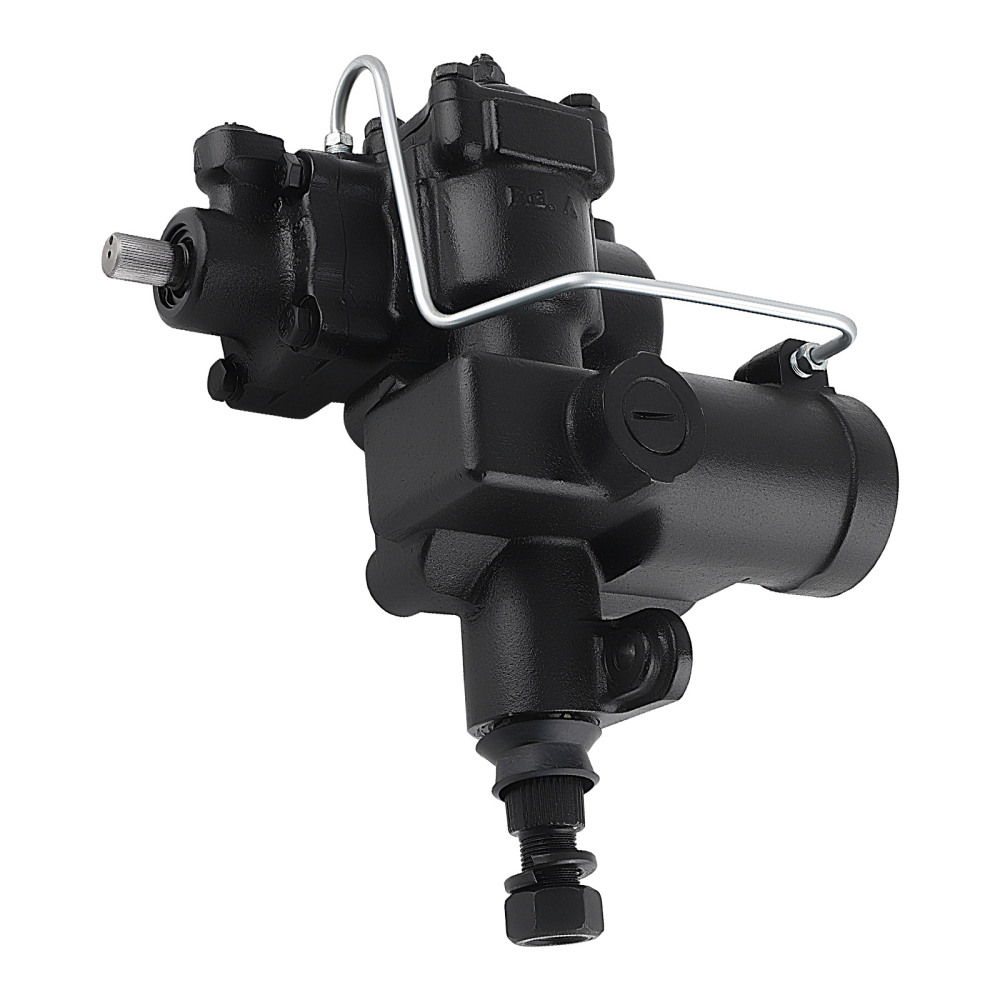

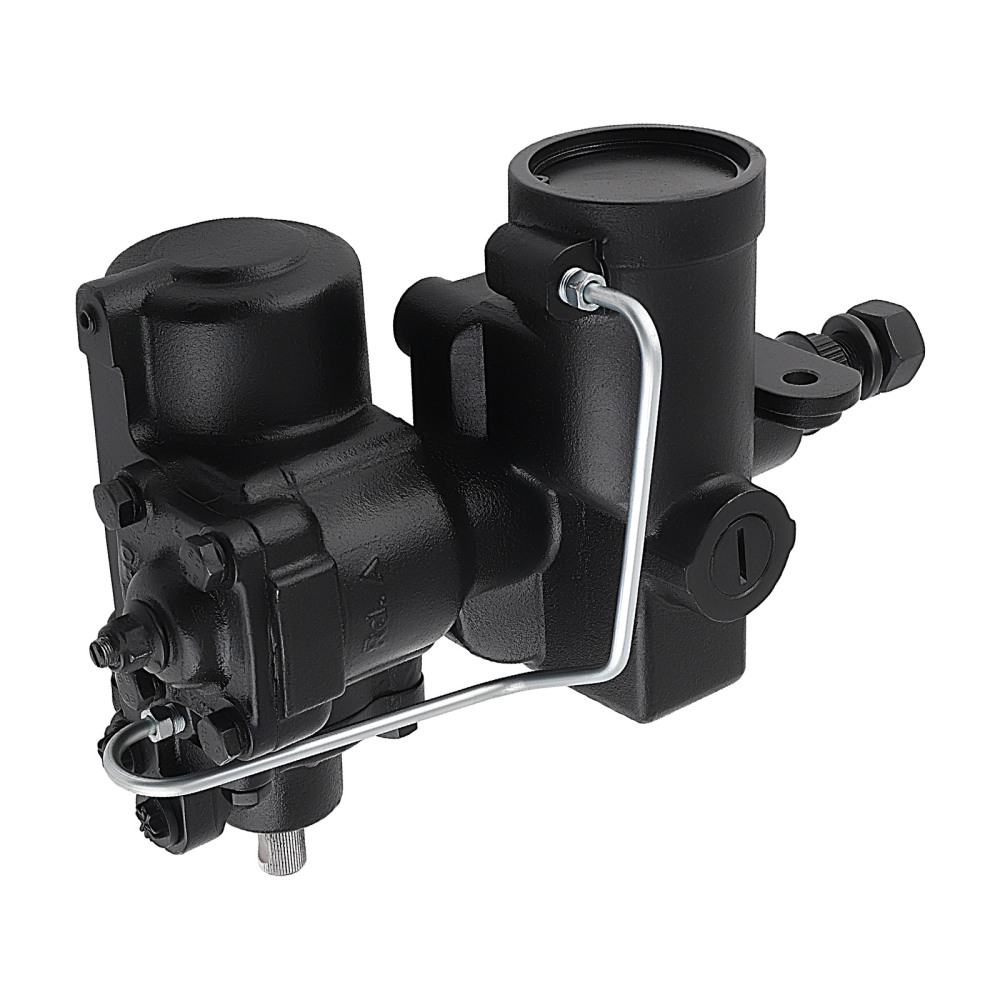

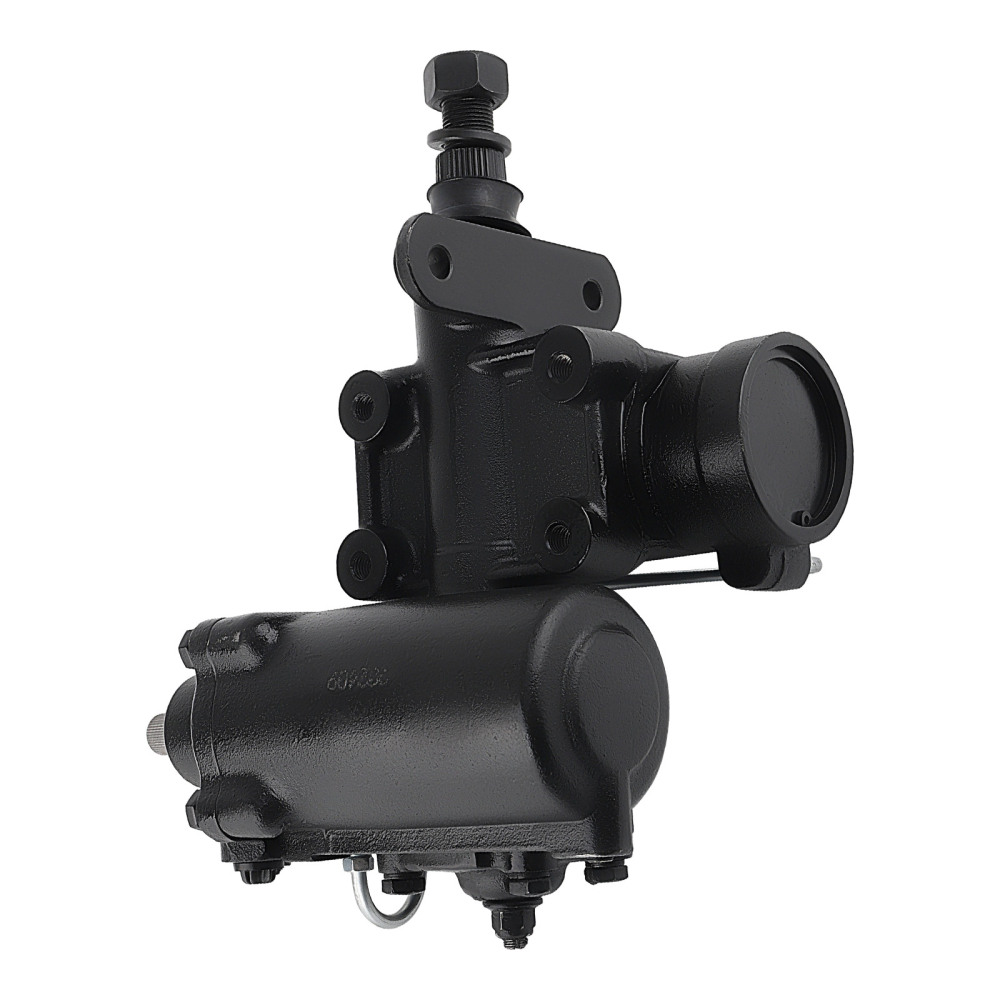

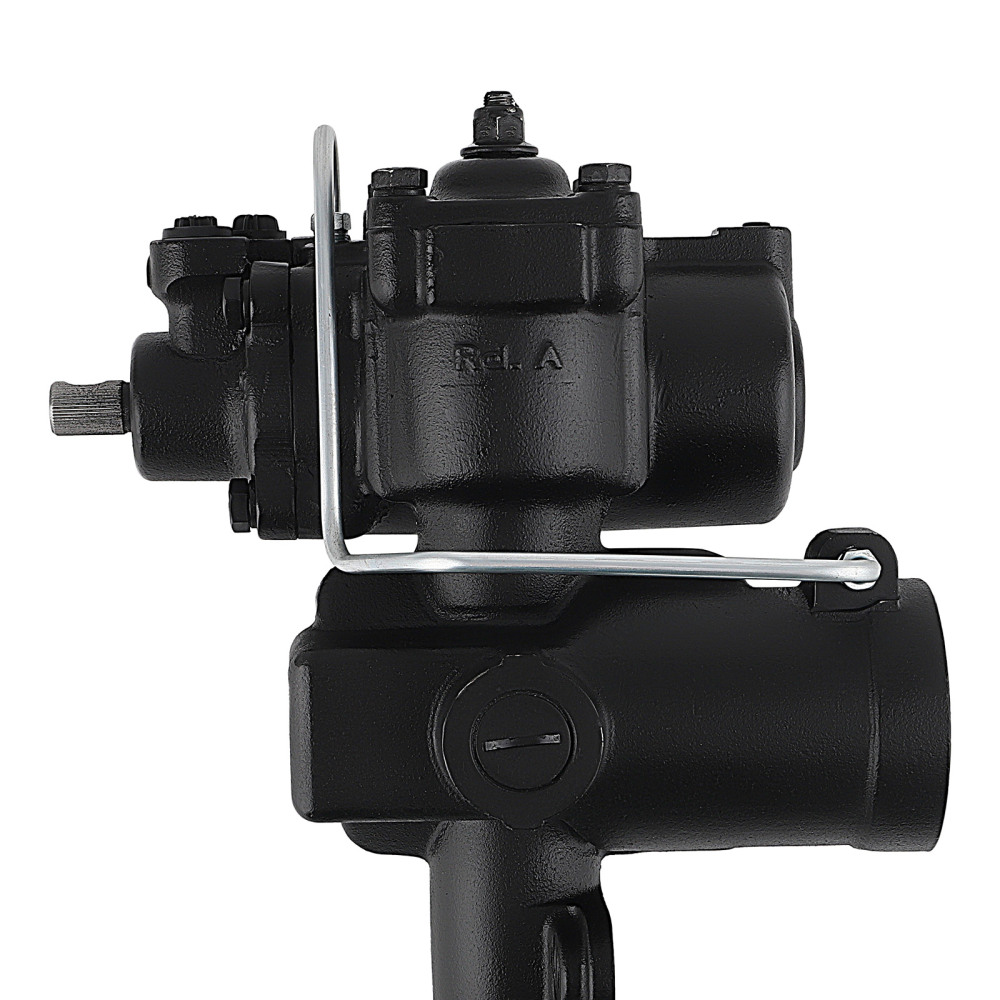

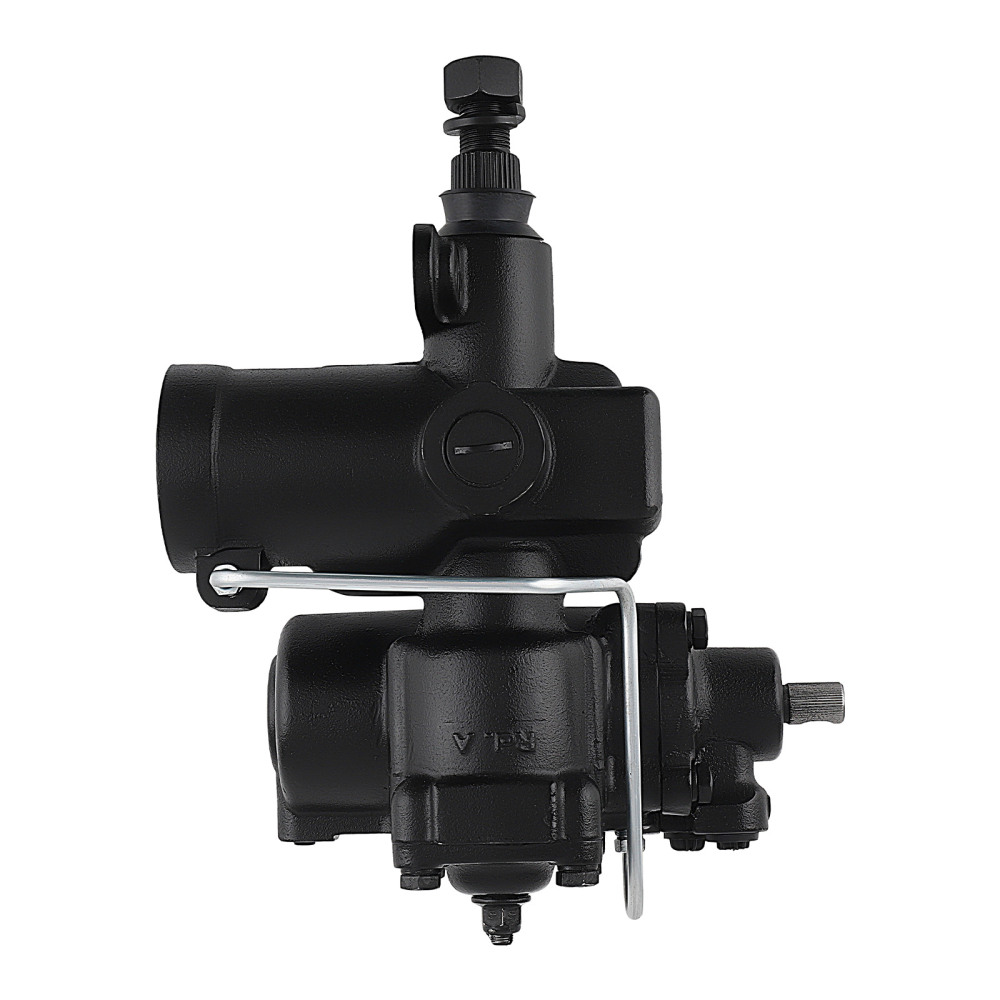

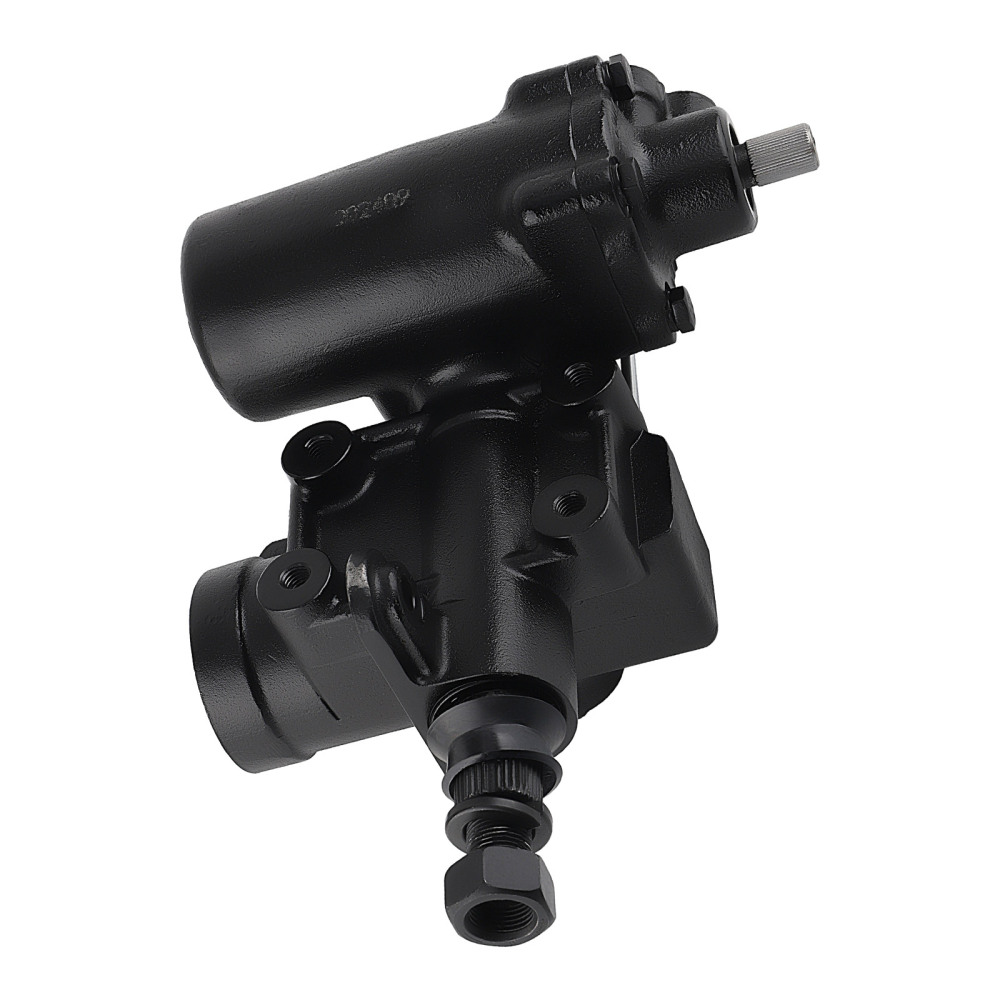

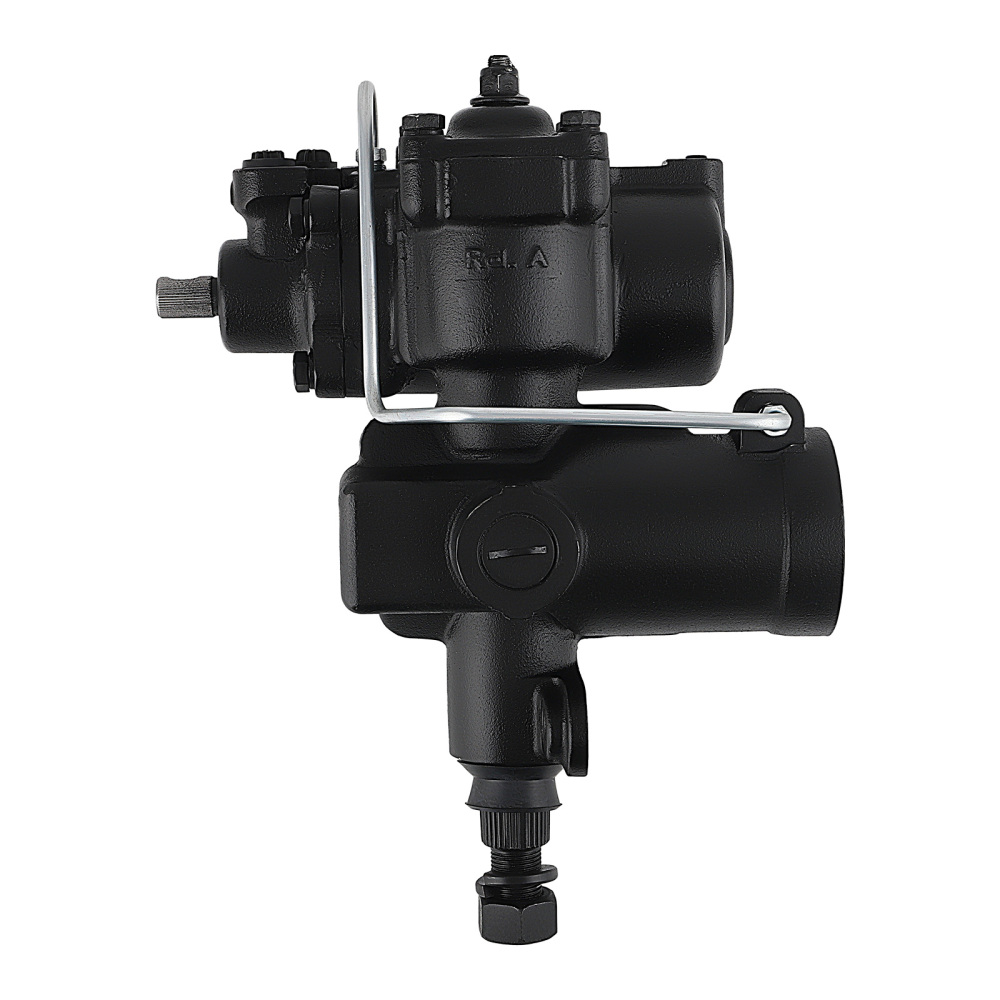

Power Steering Gear box compatible for Land Rover Defender All Models 1994-1995 27-8700

Application

Compatible for Land Rover Defender Power Steering - All Models 1994-1995
compatible for Land Rover Defender Power Steering - All Models 1997
compatible for Land Rover Range Rover Power Steering - All Models 1994
compatible for Land Rover Range Rover Power Steering - County Wagon Model 1995
compatible for Land Rover Discovery Power Steering - All Models 1994-1998
compatible for Land Rover Discovery Power Steering - SD Models 1999

OE/Part number

27-8700, 278700,82-00109R, 8200109R,18200109-101, 18200109-102, 18200109-103, 18200109101, 18200109102, 18200109103, 19321491,STC2845, STC2848, STC8684E, STC888

Specification

Material: Iron
Type: Power Steering Gear Box
Fitment Type: Direct Replacement
Steering Box Type: Power Steering
Color: Black
Hose Port Type: O-Ring
Input Shaft Diameter-Imperial (IN): 0.74
Input Shaft Diameter-Metric (MM): 18.8
Input Shaft Spline Quantity: 48
Input Shaft Type: Splined; Grooved
Number of Mounting Holes: 6
Output Shaft Diameter-Imperial (IN): 0.864
Output Shaft Diameter-Metric (MM): 21.95
Pitman Arm Included: No
Pressure Port Internal Diameter Size: 0
Pressure Port Thread Size: 14 x 1.5
Return Port Internal Diameter Size: 0
Return Port Thread Size: 16 x 1.5
Rotation Rotation: Reverse
Steering Box Type: Power
Total Turns Lock To Lock: 4.1

Package included

1*Power Steering Gear Box

Feature

1. This steering gear box has excellent steering response, which ensures that you can more easily control the vehicle during driving and provide a smoother steering experience.
2. Built to strict quality control standards 100% factory tested.Shafts are surfaced to precise specifications. Each unit features 100% new O-rings and lip seals to ensure leak-free, long-lasting performance.
3. This Power Steering Gear Box is made of high-strength Ductile iron,with polished and has anti-rust protection to ensure its long-lasting use, durable in the strength and efficiency in the performance.
4. 100% hydraulic testing measures for proper flow, leakage and performance to ensure perfect fit and function.

Note

1. Fitment above is for reference only, please check the part number and the size of cylinder bore before you purchase.
2. Professional installation is highly recommended.
3. Please allow 1-3mm error due to manual measurement, thanks for understanding.
4. Please kindly understand that the actual color may slightly vary from presented pictures due to different monitor.
