Pair Air Suspension Bags for Firestone W01-M58-8472 for ContiTech 4560NP03

OE/Part number

replacement for Firestone W01-M58-8472
replacement for ContiTech 4560NP03,82206M,6605NP01,63368
replacement for Goodyear 1R11 805,566223535
compatible for Volvo 20427803,1076415,20531984,20427800,20456150,1075890,20375226,21961374,20582206
replacement for Dunlop FR D11B42

Other parts number:
for Airtech 135582, 37803 C
for Blacktech RML78914C
for Neotec ABM 220 29 A 04
for Phoenix 1DF20D-1
for Primeride 56605 A PO1,1R11805,566-22-3-535
for Springride 1R11-805, 566-22-3-535
for Vibracoustic V1DF20B-1
compatible for Renault 7422071638

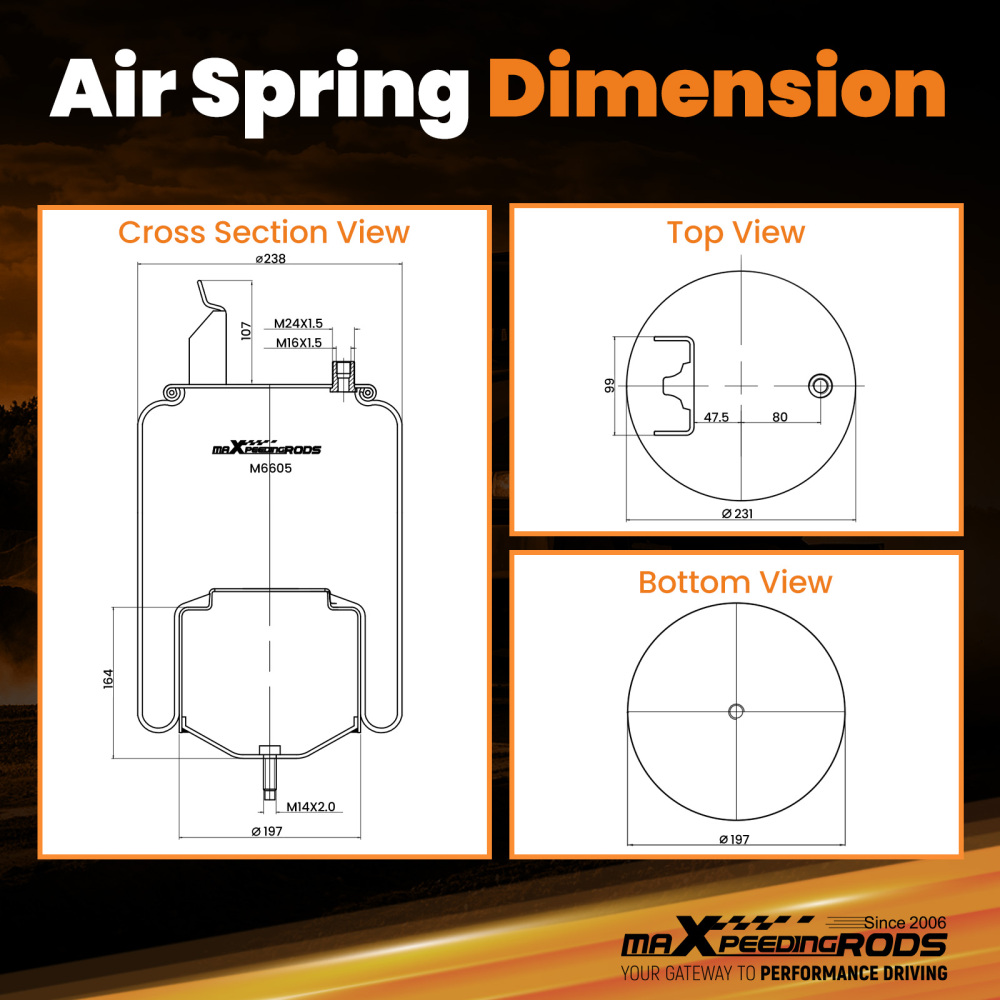

Specification

Top plate screw (nut) teeth: M24x1.5
Screw (nut) teeth of the bottom cover plate: M14x2
Air hole/air inlet: M16x1.5
Top plate diameter: 231 mm / 9.1 inch
Diameter of the bottom cover: 197 mm / 7.76 inch
Stroke: from 220 mm/8.66 inch to 16.14 inch / 410 mm
Intern Jounce Bumper: No

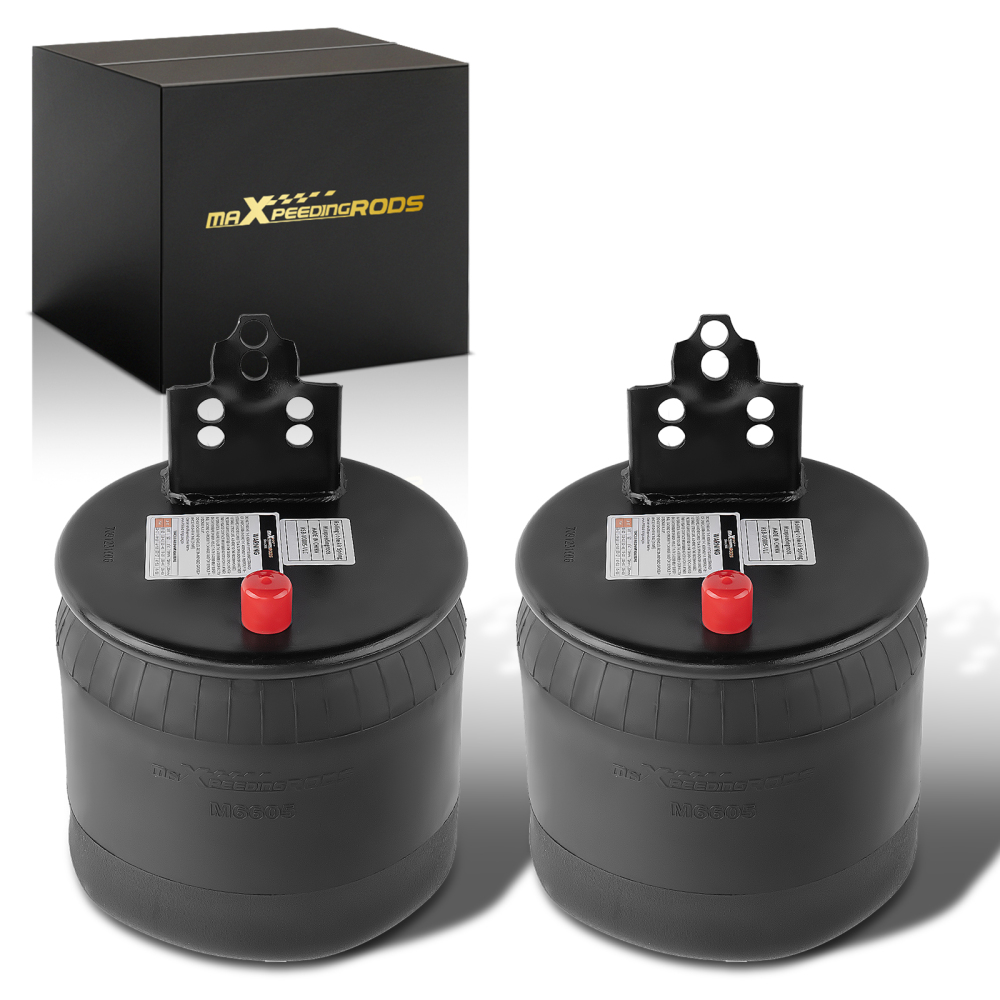

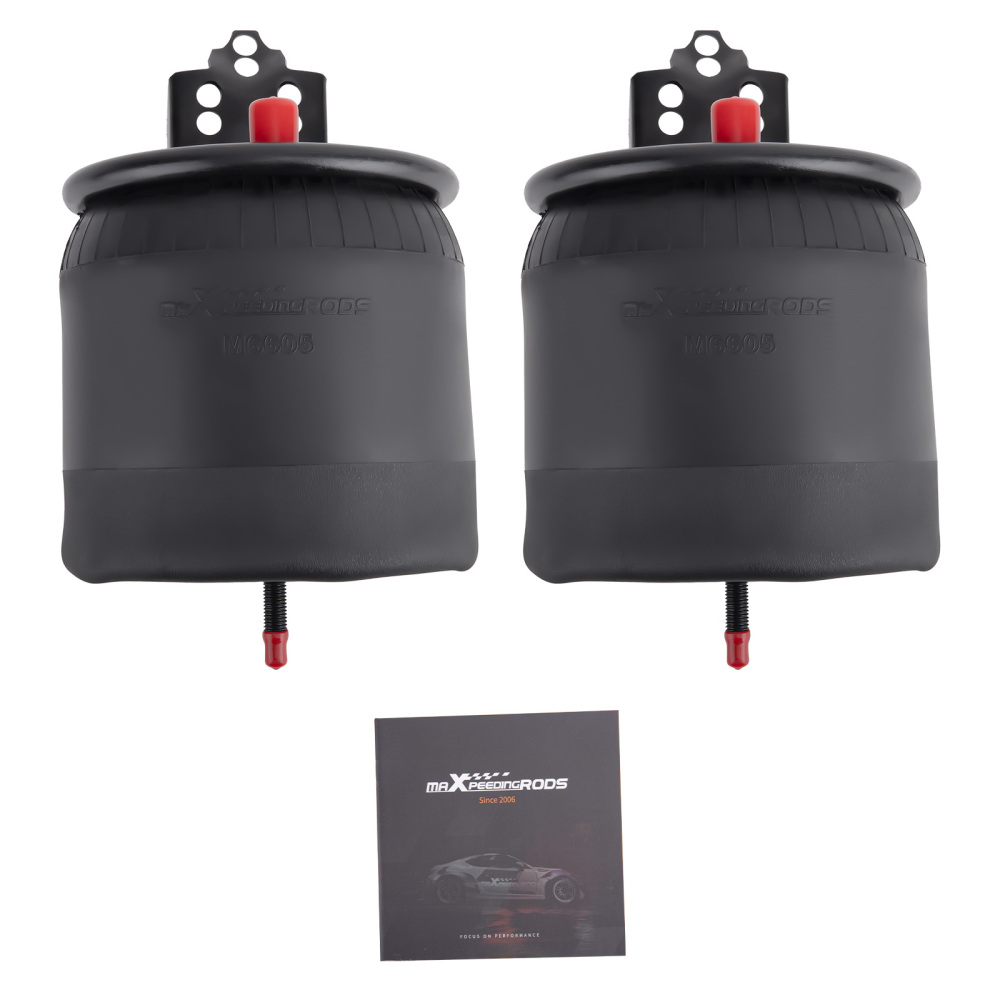

Quantity: 2 Pieces
Condition: Brand New
Material: Natural rubber

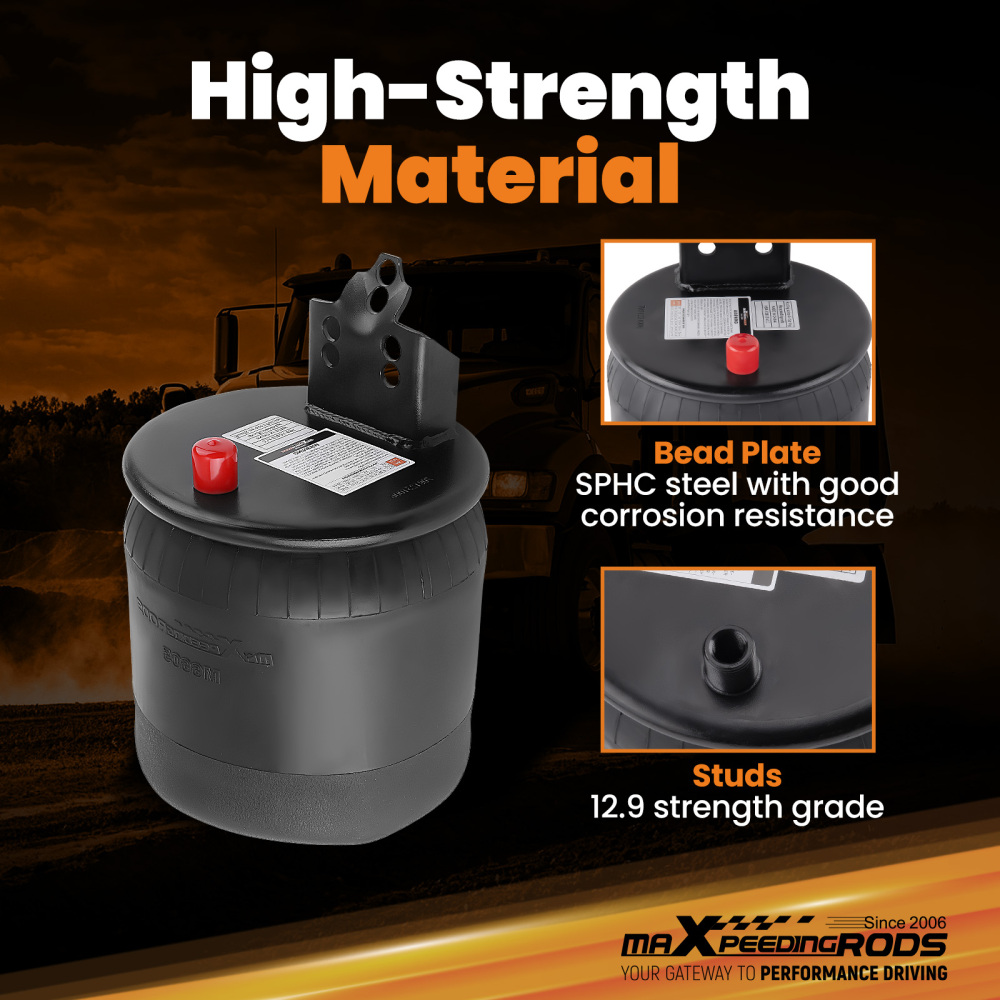

Piston Material: SPHC Steel
Package Length, width and height: 66*34*50 cm/25.98*13.39*19.69 inch
Package Wight: 21.1 Kg/46 LBS

Feature

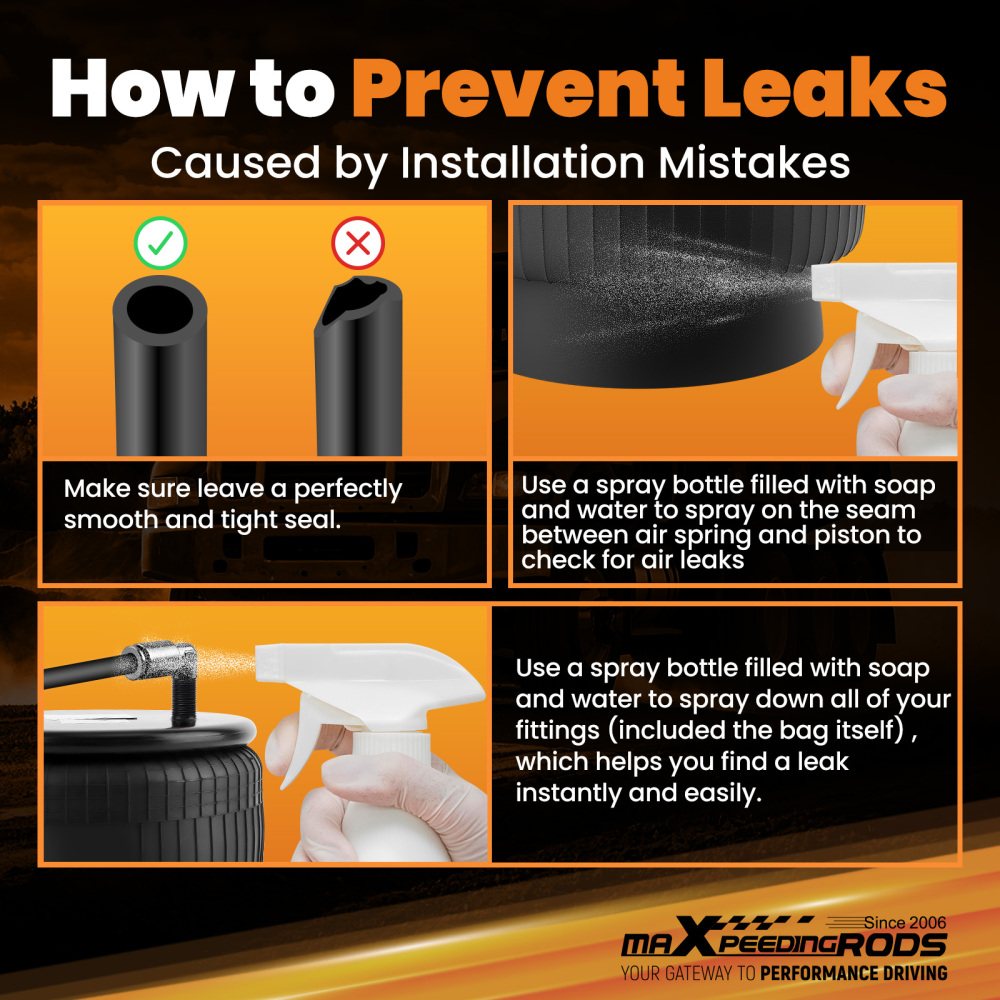

1、Highest leak test ratio: 100% Air Tightness Testing.

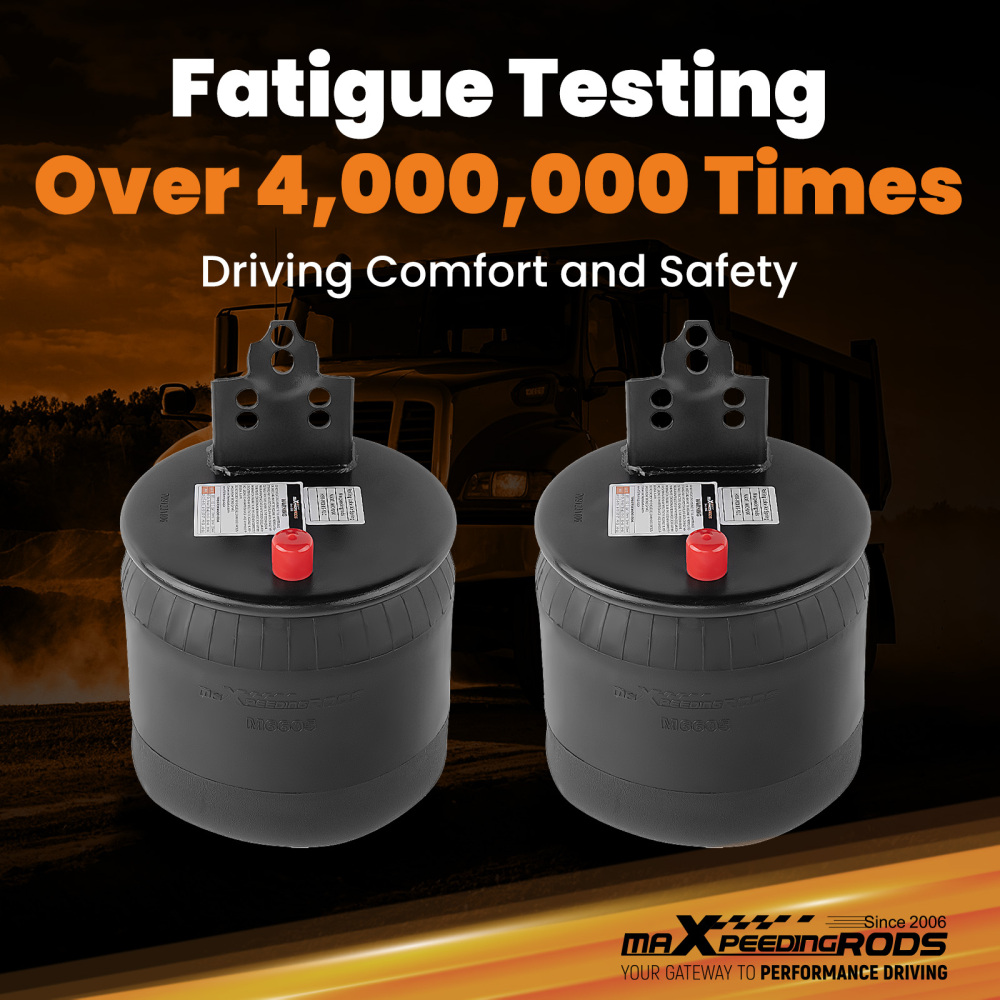

2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.

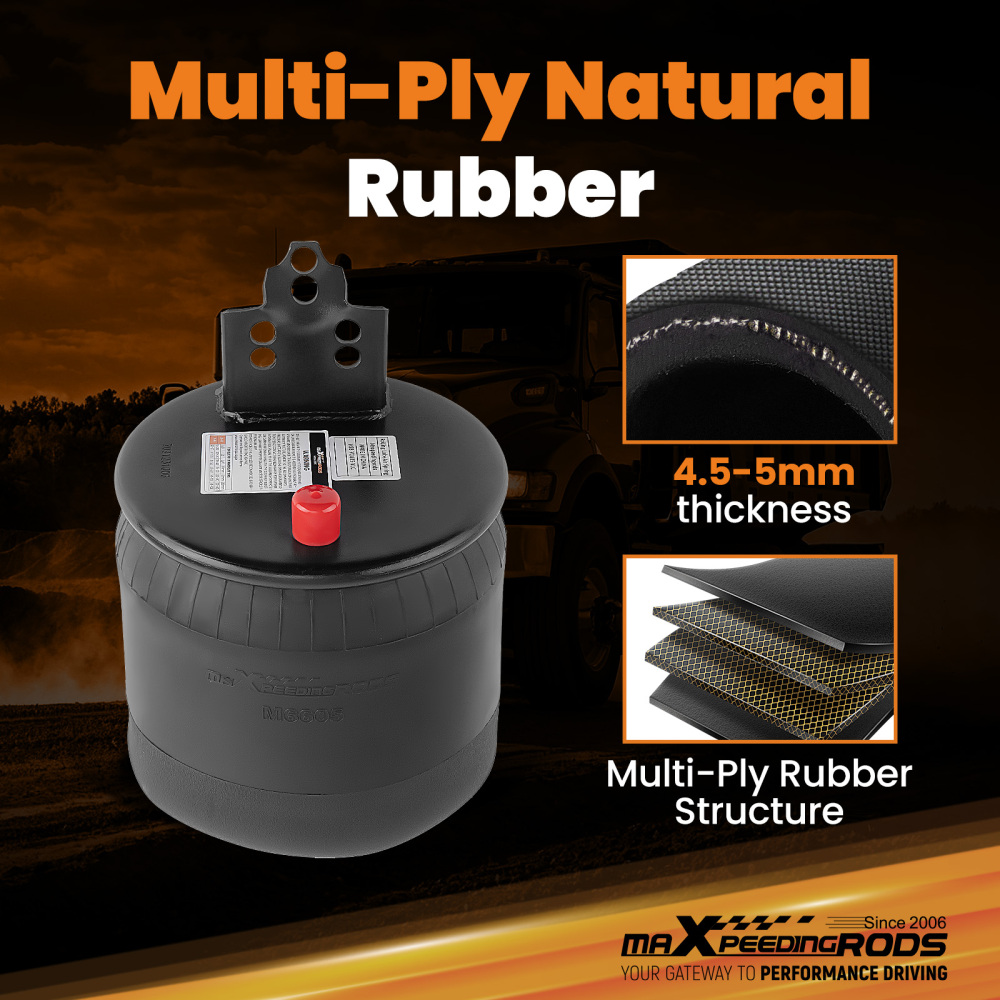

4、The thickness of the rubber is 4.5-5.00mm.
5、12.9 grade high strength steel studs.
6、Withstand 2Mpa of air pressure before the rubber burst.
7、Careful evaluation of OEM specifications.
8、Strict quality control.
9、Sturdy & Durable Material.
10、Reduces Damage of Trailer, Cab And Truck Body.
11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
12、Allow perfect load equalization between axles. Provide constant-level hauling.
13、Increase life of tires and brake linings.
14、Substantially reduce breakage and maintenance of other vehicle components.
