Outboard Trim/Tilt Pin Wrench Tools compatible for YAMAHA Compatible for Suzuki MT0004 MT0006 MT0009

Application

For ALL SeaStar Steering Cylinders
For ALL Four Stroke V6 (F200-F300)(3.3L, 4.2L)
For 2 strokes (225-300hp)(Non VMAX)
for 2011-Current F150（ONLY）
Does NOT fit VMAX

For ALL SHOWA manufactured Trim/Tilt Units
compatible for Yamaha F115-F150
For ALL compatible for Yamaha l4 2.8L(F175-F200)
Compatible for Yamaha 2-Strokes (115-225hp)
For ALL compatible for Yamaha VMAX
For ALL compatible for Suzuki Honda Johnson Evinrude

For ALL SHOWA manufactured Trim/Tilt Units
compatible for Yamaha F115-F150 04-10
For ALL compatible for Yamaha l4 2.8L(F175-F200)
Compatible for Yamaha 2-Strokes (115-225hp)
For ALL compatible for Yamaha VMAX
For ALL compatible for Suzuki Honda Johnson Evinrude

OE/Part number

YB-06175-2B, YB-06175-1A, YB-06548

Specification

Strength of MT0004 & MT0006 MIN Pin Strength：180 ft-lb
Strength of MT0009 MIN Pin：200 ft-lb
Material: 45# steel
MT0004 size：38mm x 4mm
MT0006 size：32mm x 4mm/4.5mm
MT0009 size：35mm x 6mm
Tilt Pin Wrench：1/2" Square Drive ratchet

Package included

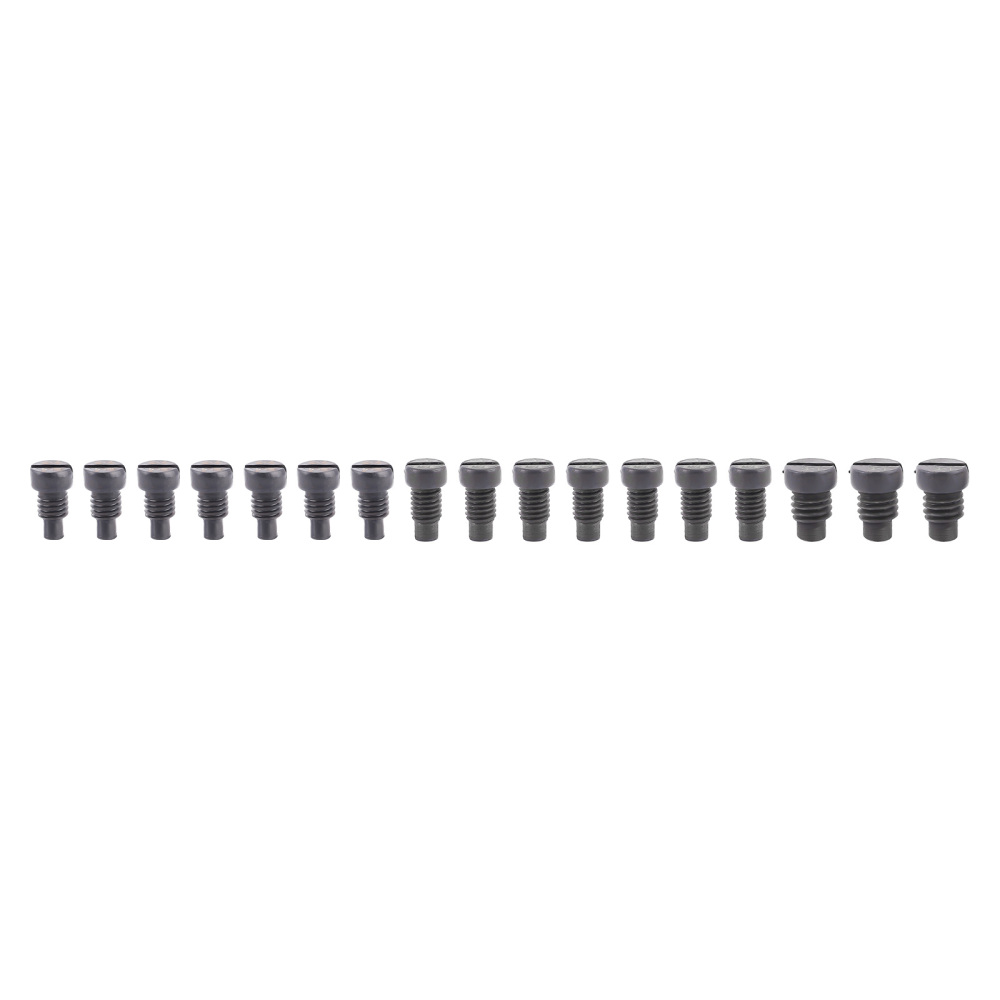

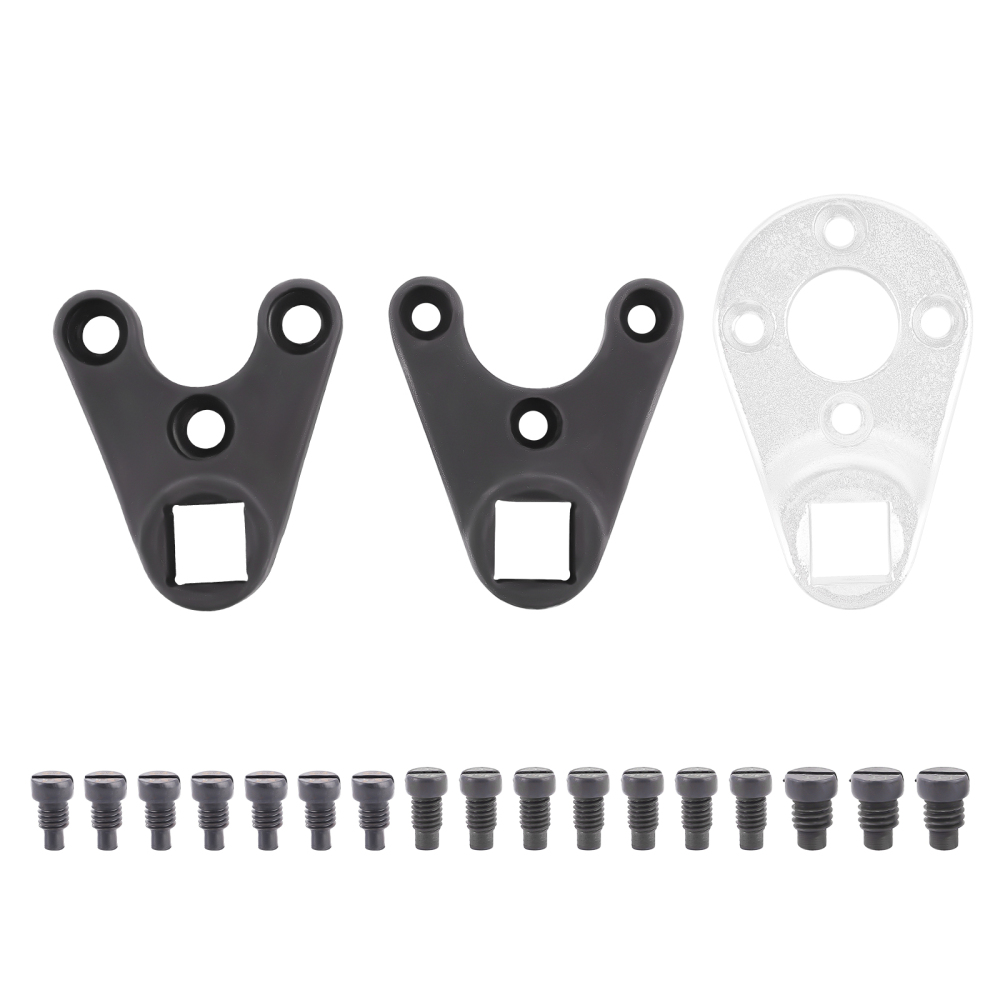

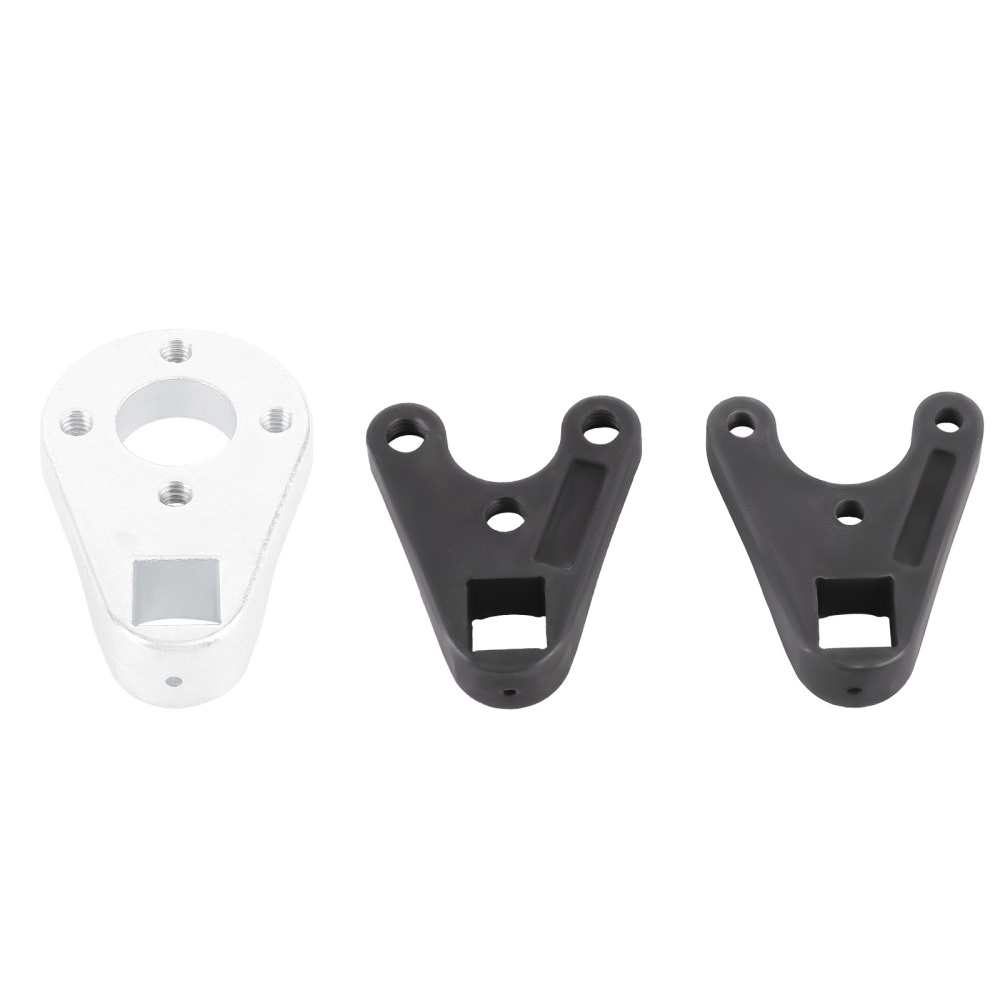

3× Pin Wrench with pins（MT0004(38mm x 4mm), MT0006(32mm x 4mm/4.5mm) and MT0009(35mm x 6mm)
（as shown in the picture）

Feature

1. WIDE APPLICATION: Comptible with all compatible for Yamaha Suzuki Johnson Evinrude Hydraulic Trim/Tilt End caps.Comptible with All Seastar Hydraulic Steering End Caps.
2. EXCELLENT FUNCTION：Trim and Tilt hydraulic pin wrench, designed to safely, quickly and easily remove trim or steering caps without damage. Help to better resolving leaking issues.
3. SUPERIOR MATERIAL：Made of high quality Steel to ensure resistance to corrosion and rust,also show superior durability and impact resistance. Not easy deformation and not break, protection and years of trouble-free use.

Note

Professional installation is highly recommended.
Please double confim the compatibility as well as the OEM number before purchasing
