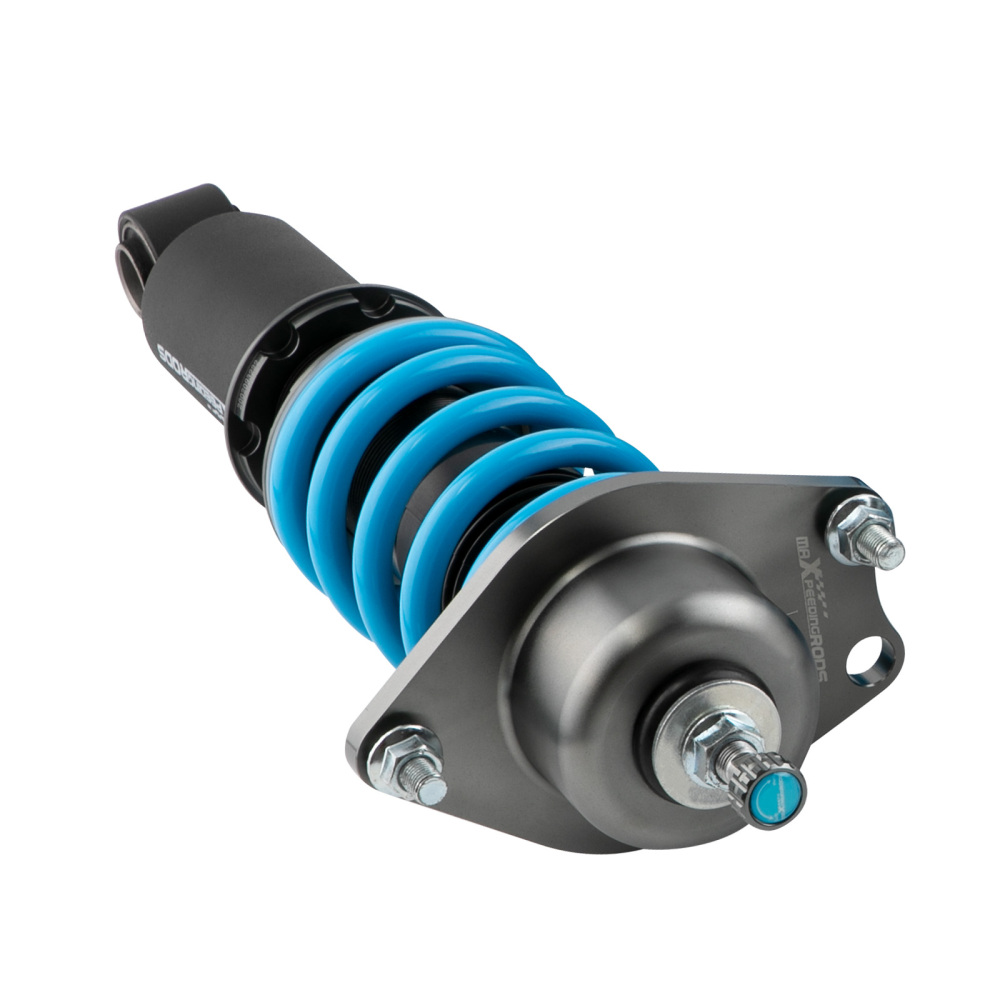

MaXpeedingrods COT6 Coilovers Suspension Lowering Kit compatible for Toyota Corolla Matrix

Introduction

MaXpeedingrods COT6 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles) and decent outlook , offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality and long life.

Application

Compatible for TOYOTA COROLLA (E140) AZE141L XRS 2009-2010
Compatible for TOYOTA COROLLA (E140/E160) ZRE142L LE 2009-2013
Compatible for TOYOTA COROLLA (E150/E170) ZRE172L all 2014-2019
Compatible for TOYOTA MATRIX (E140)  LE 2009-2014

Specification

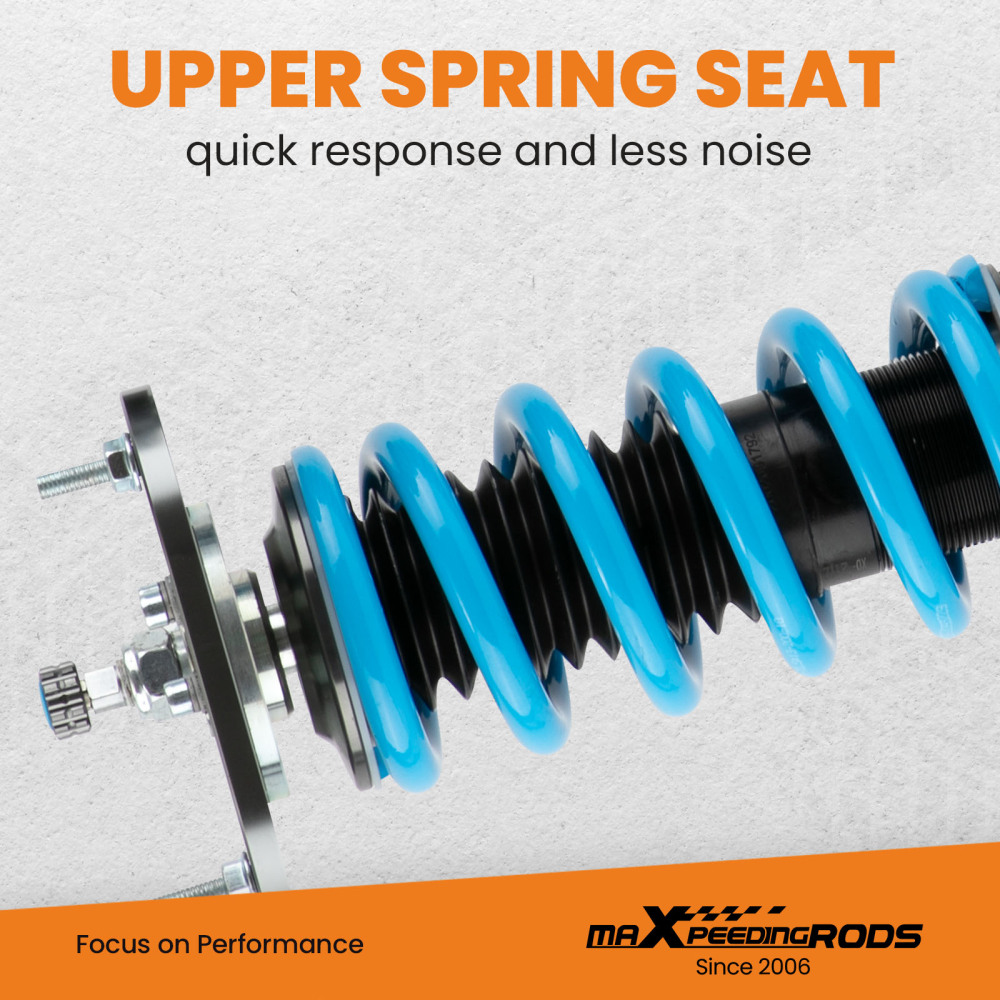

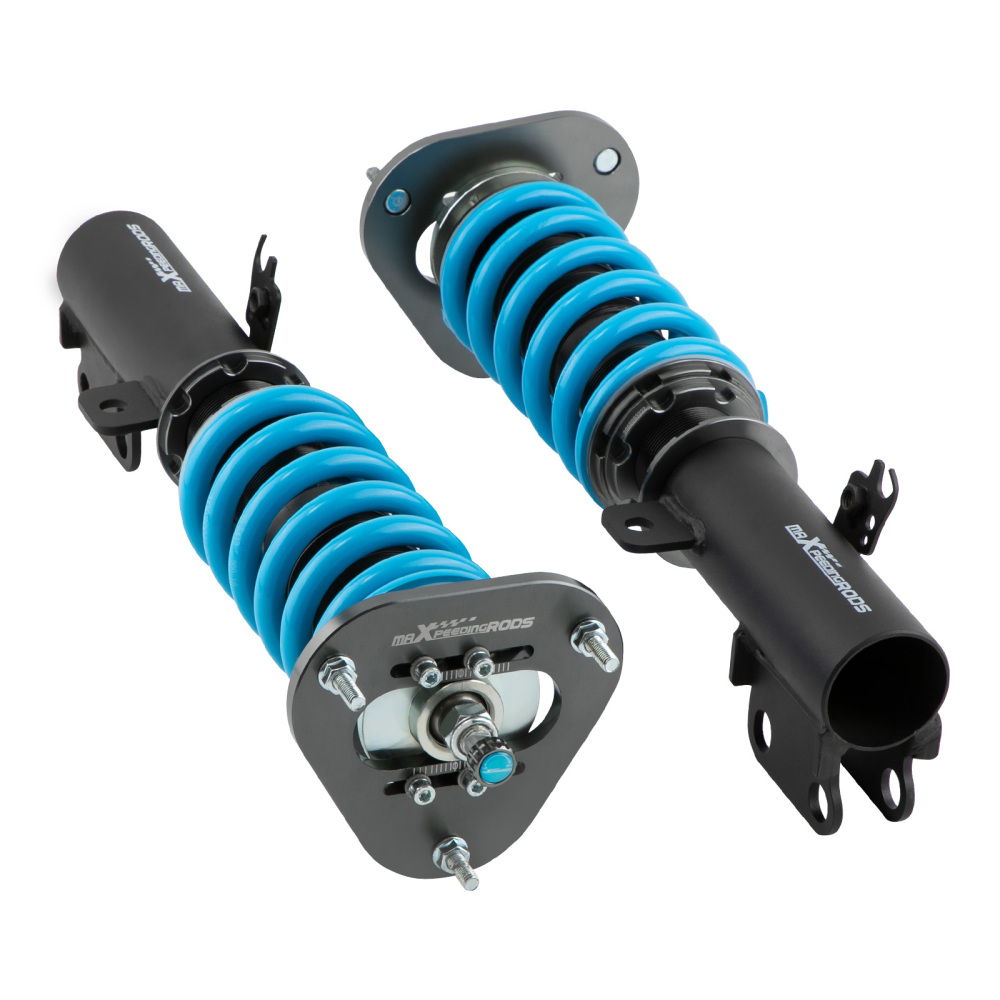

Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear.
Damping: 24 levels rebound damping adjustable
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 200mm
Spring length Rear: 160mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 360mm-455mm
Coilover overall length Rear: 313mm-370mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: black body and blue spring

Package included

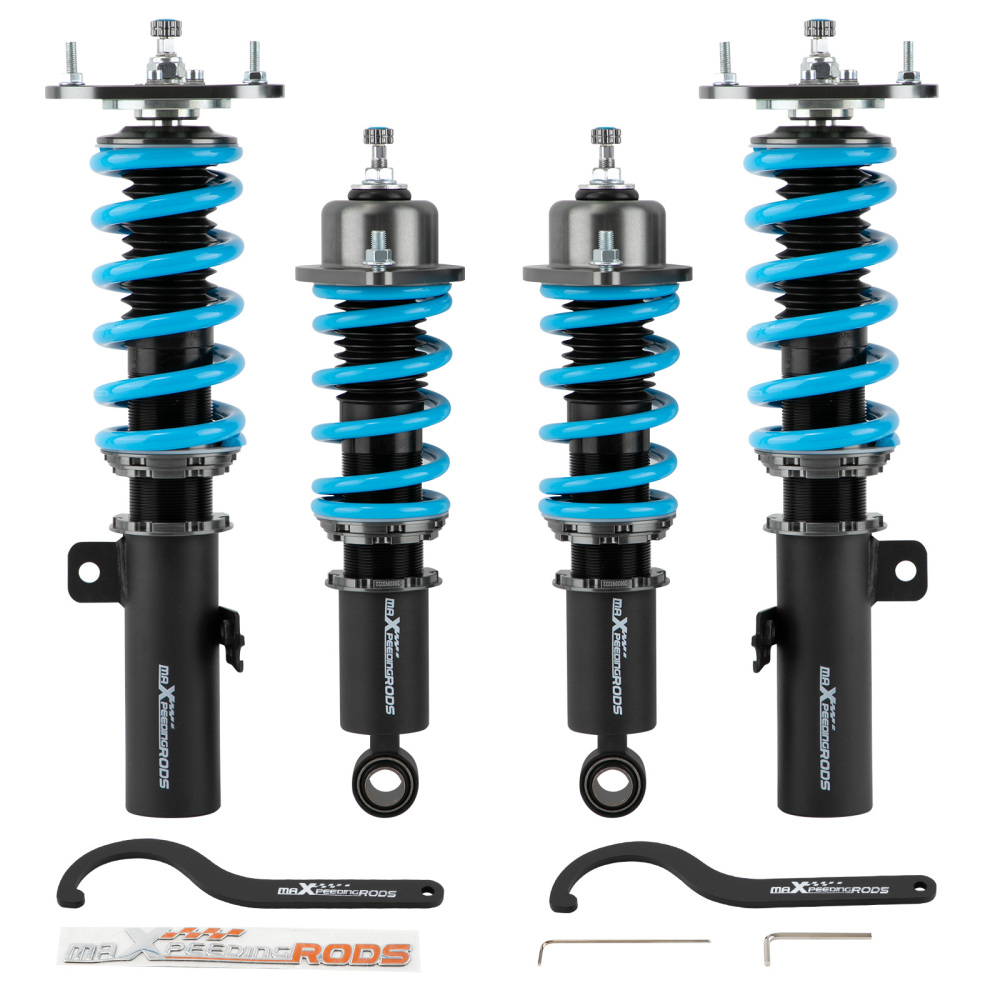

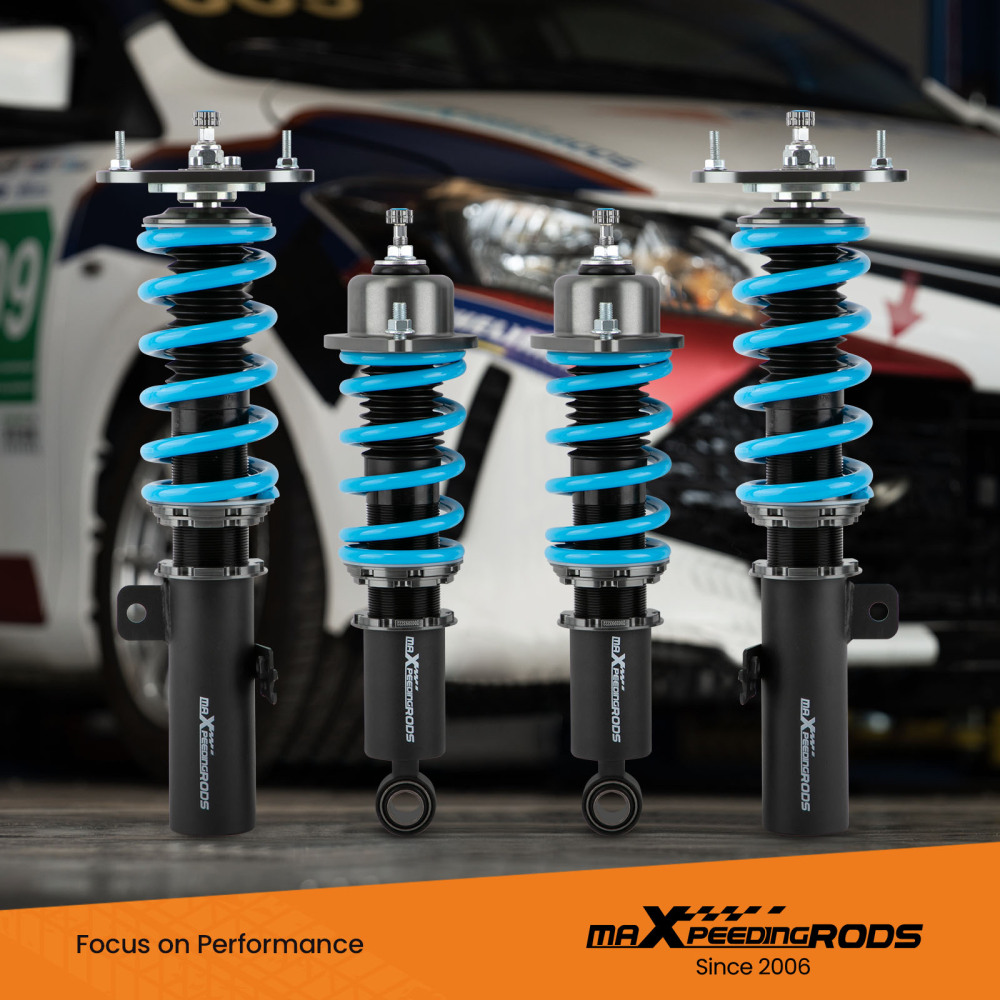

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

1 x Installation Instructions

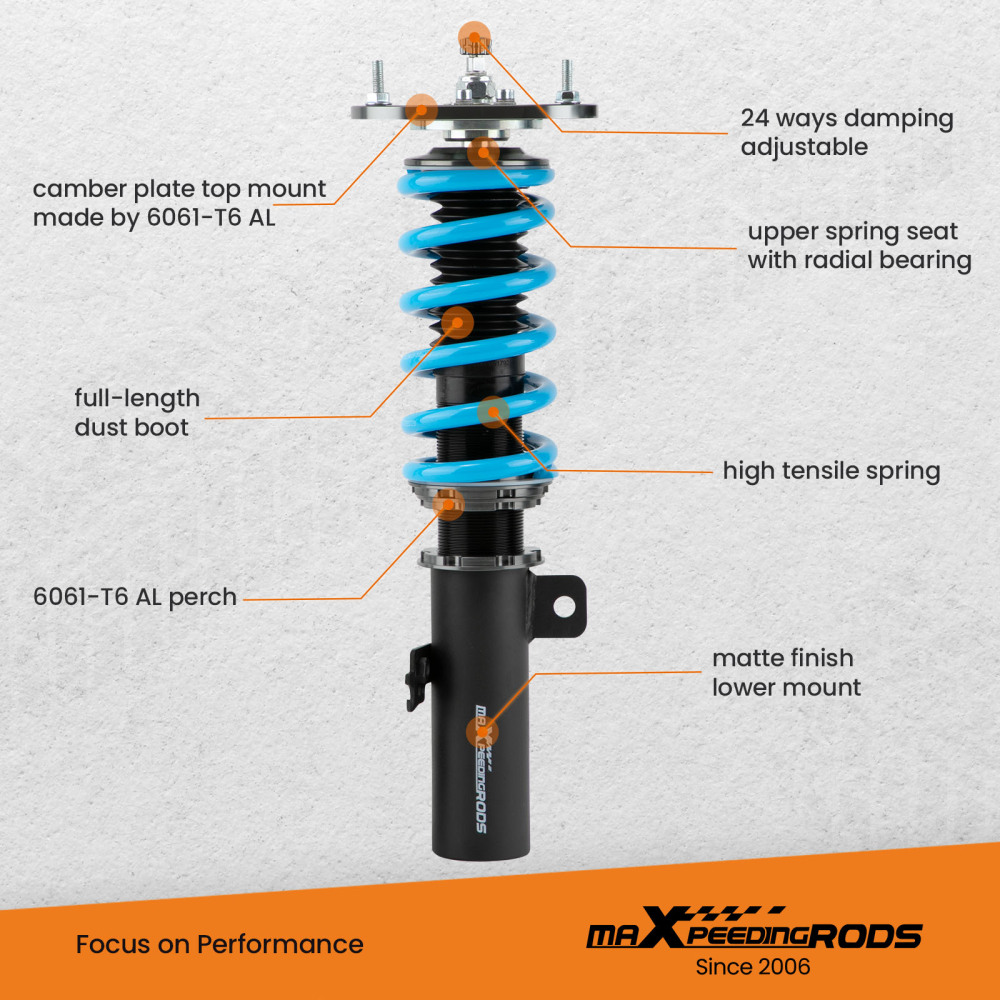

Features

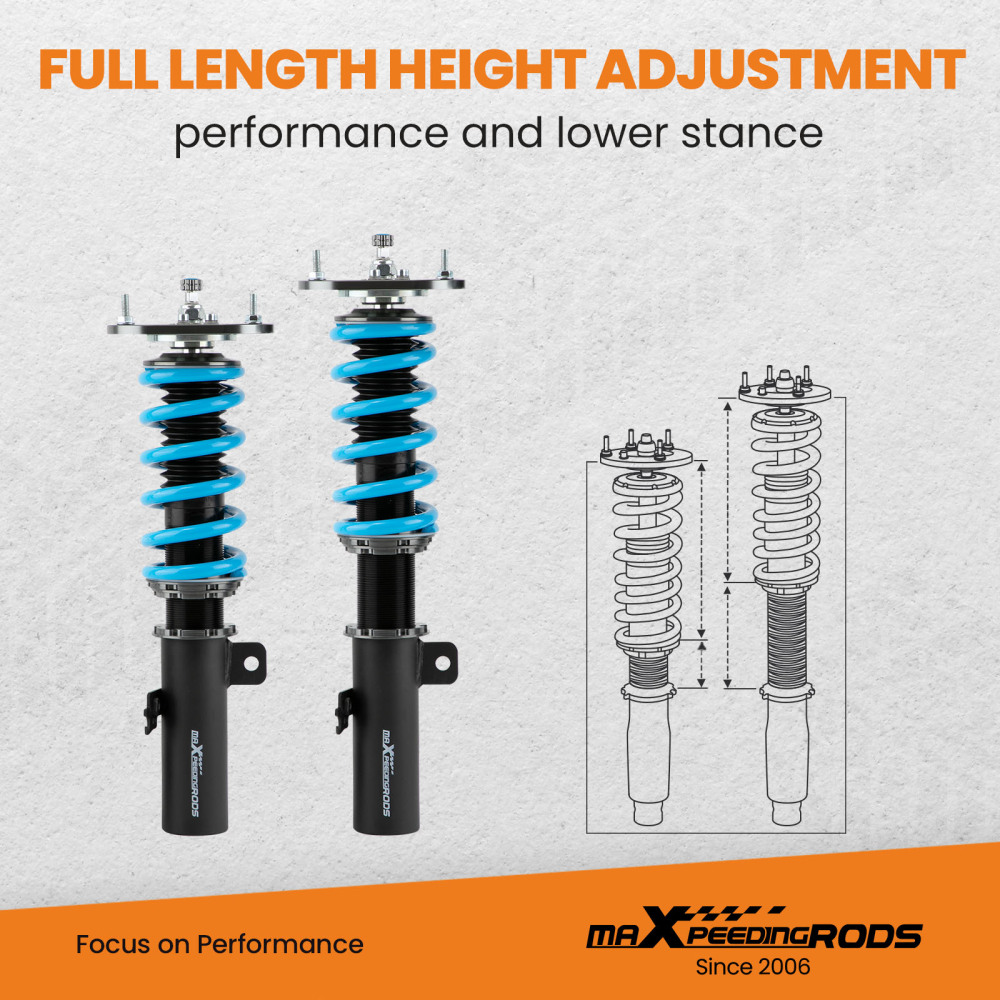

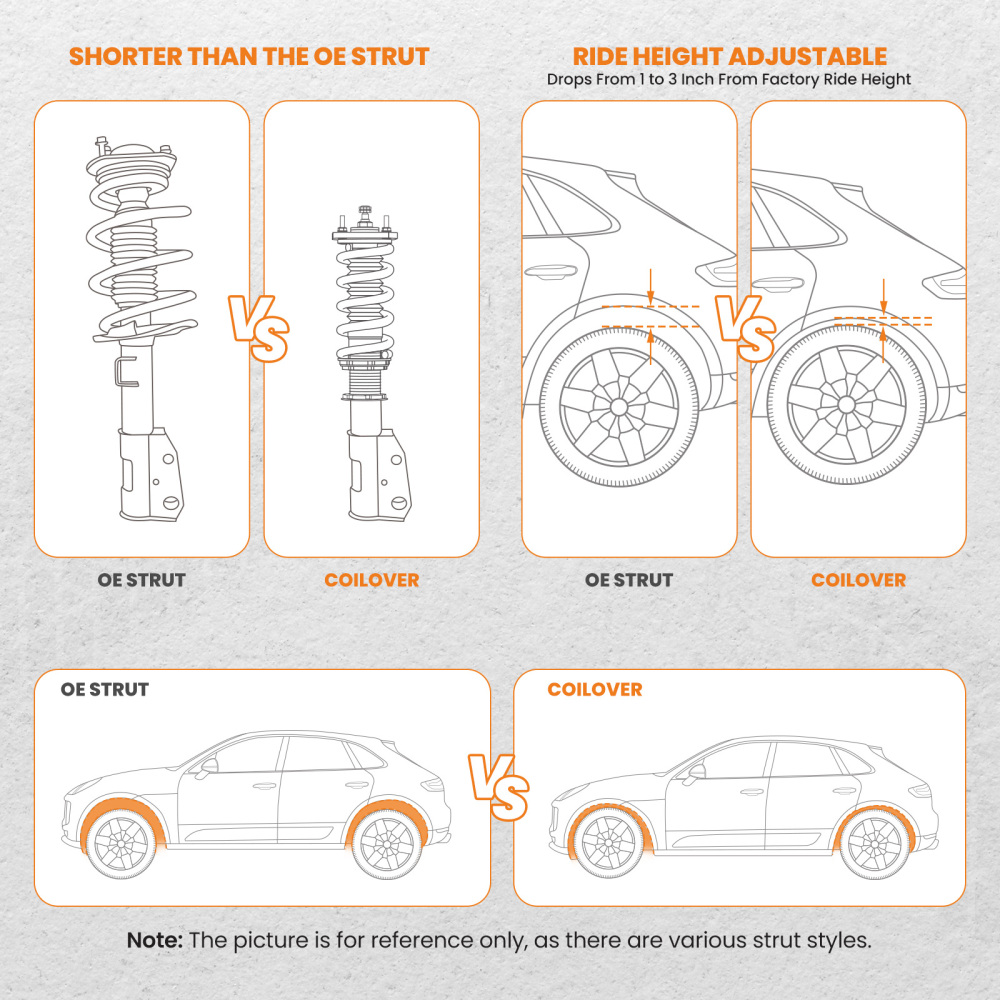

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

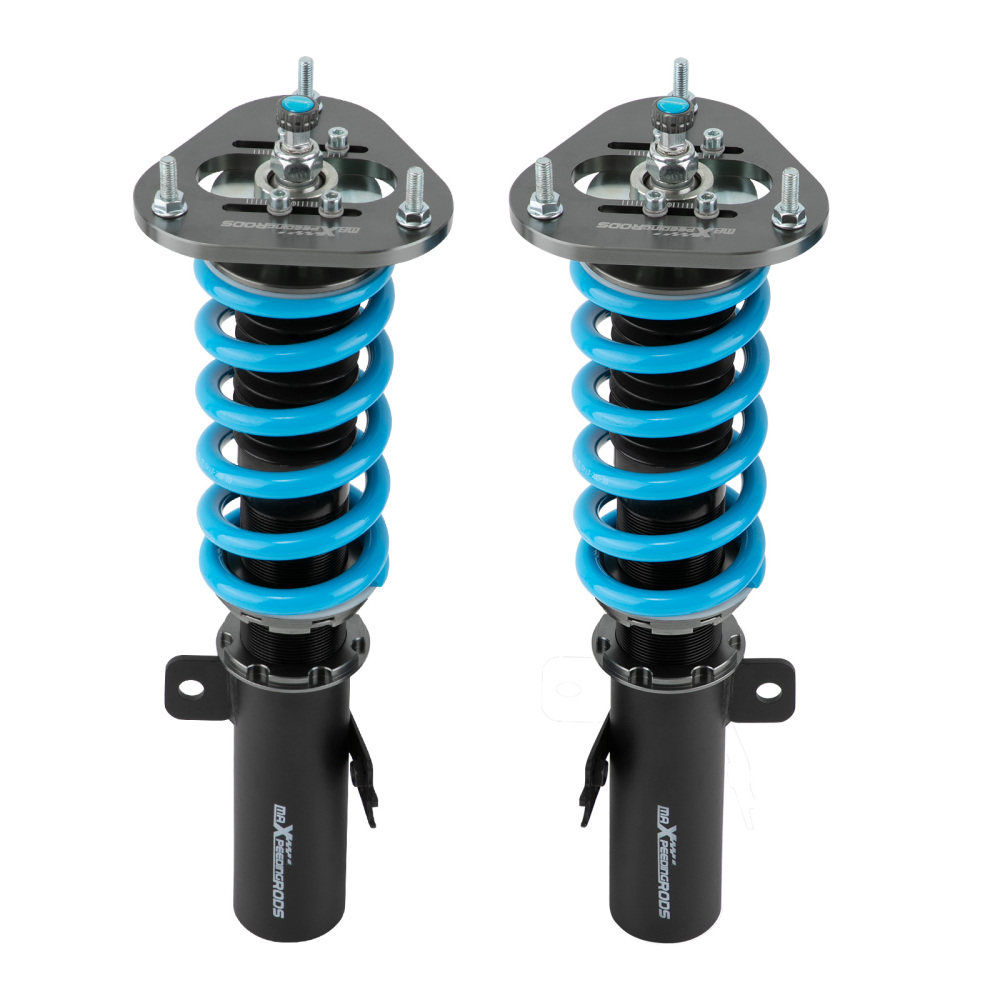

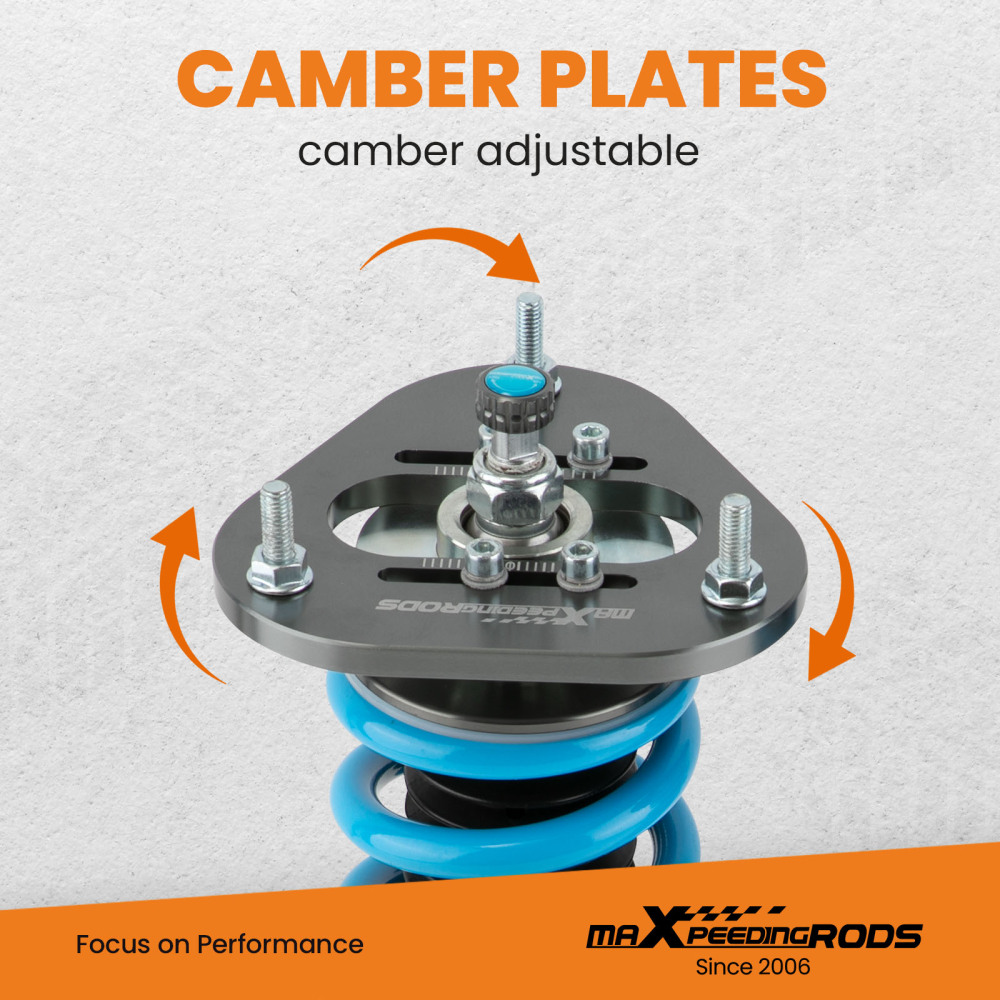

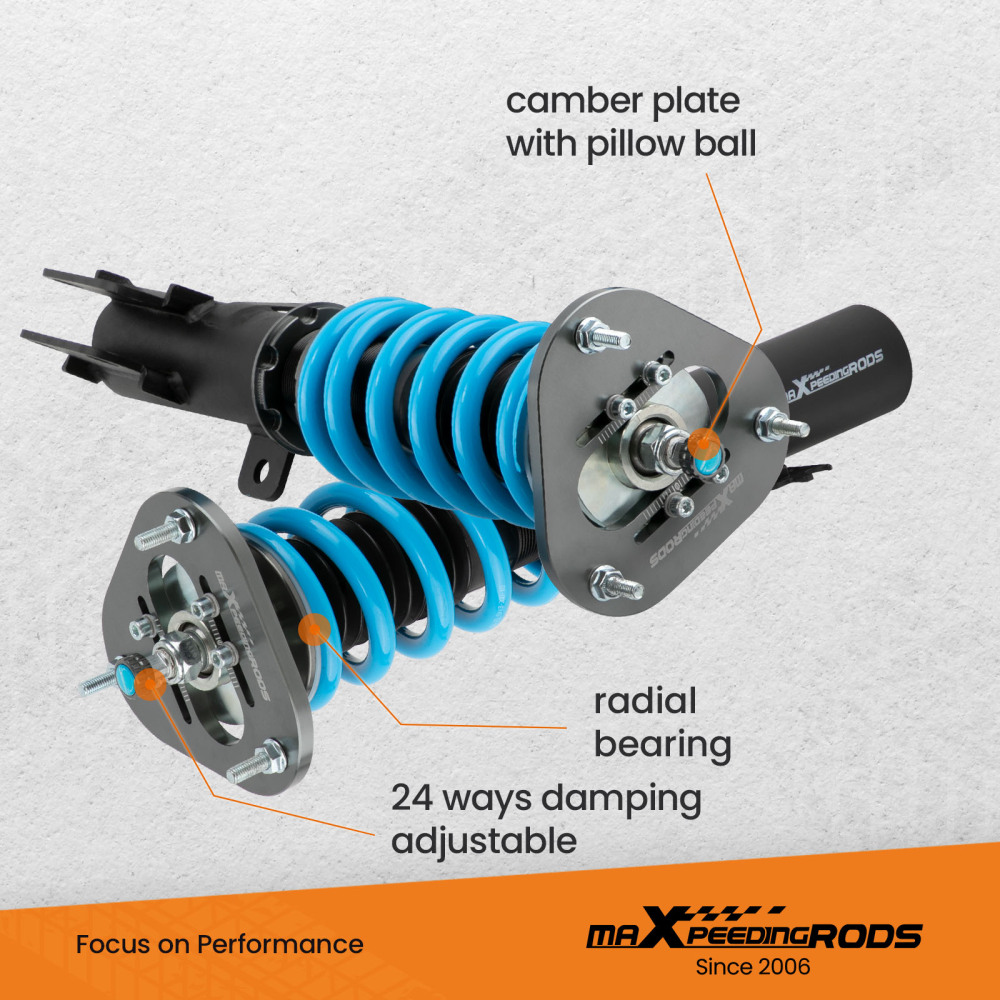

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

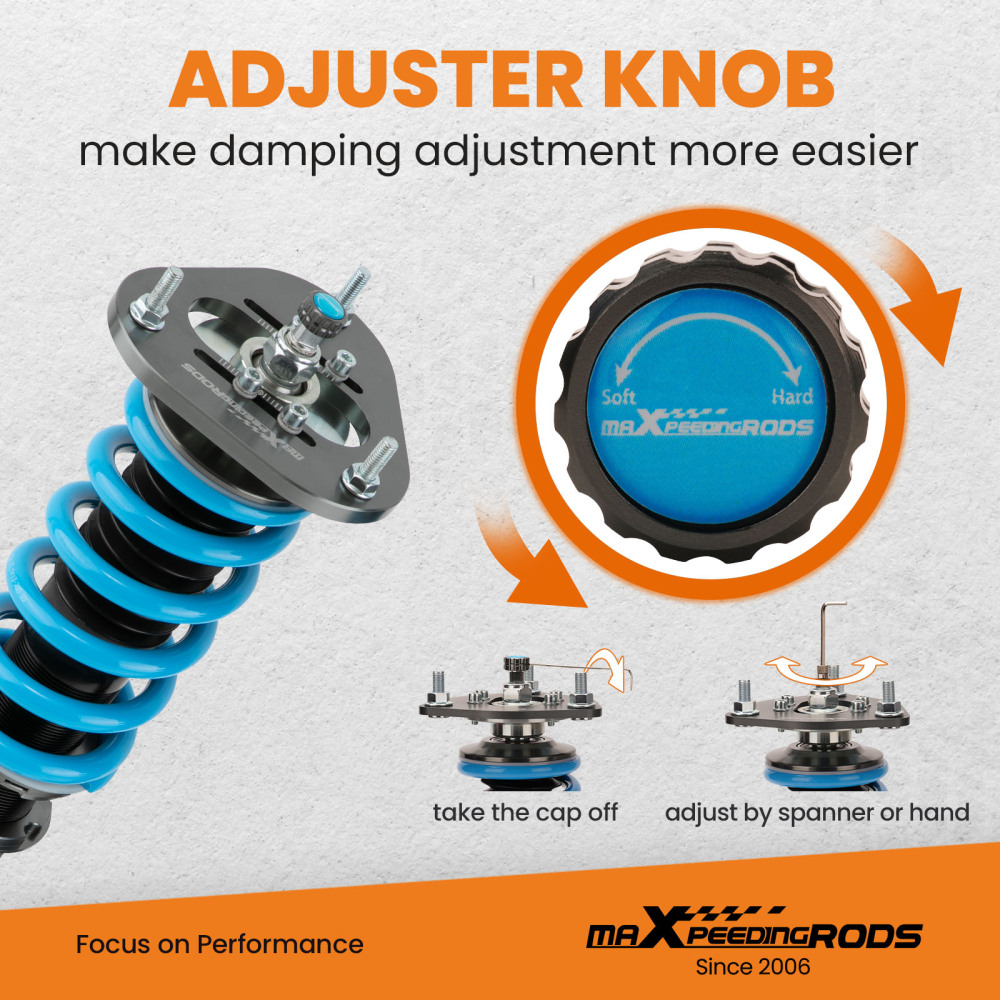

4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

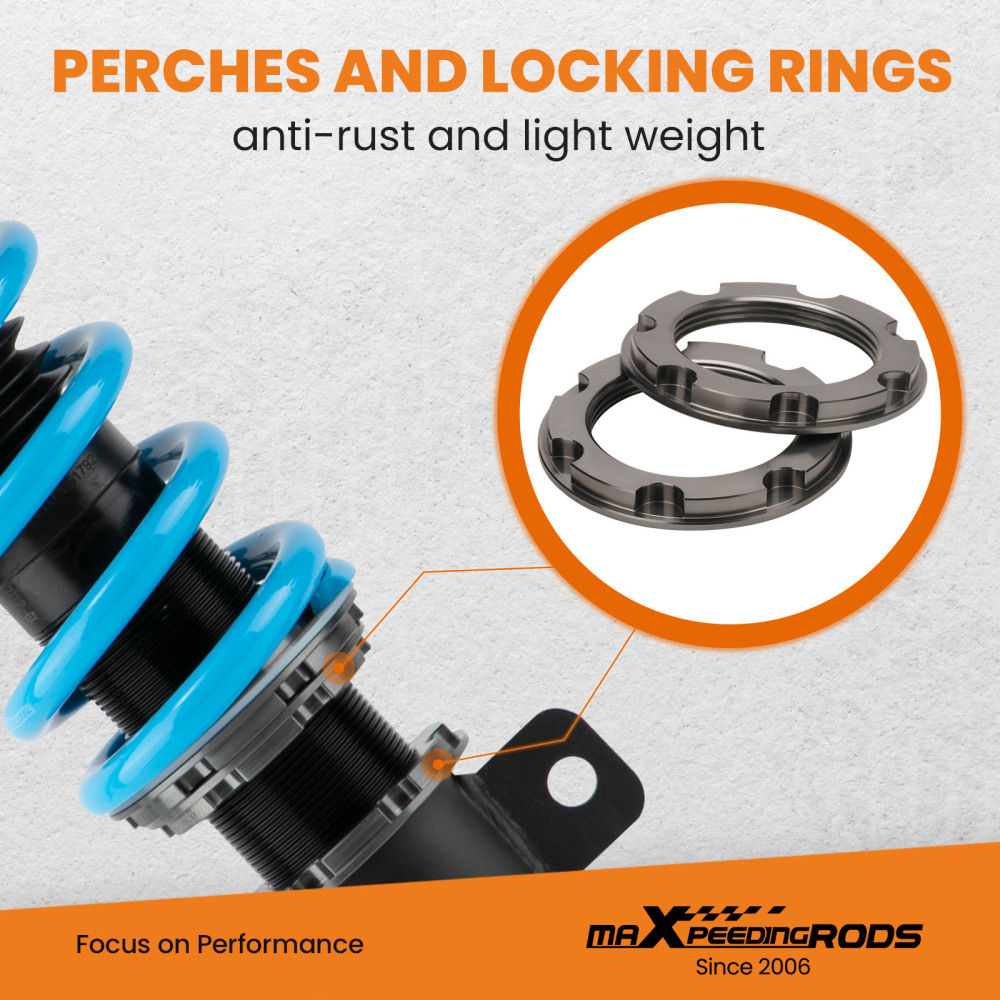

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

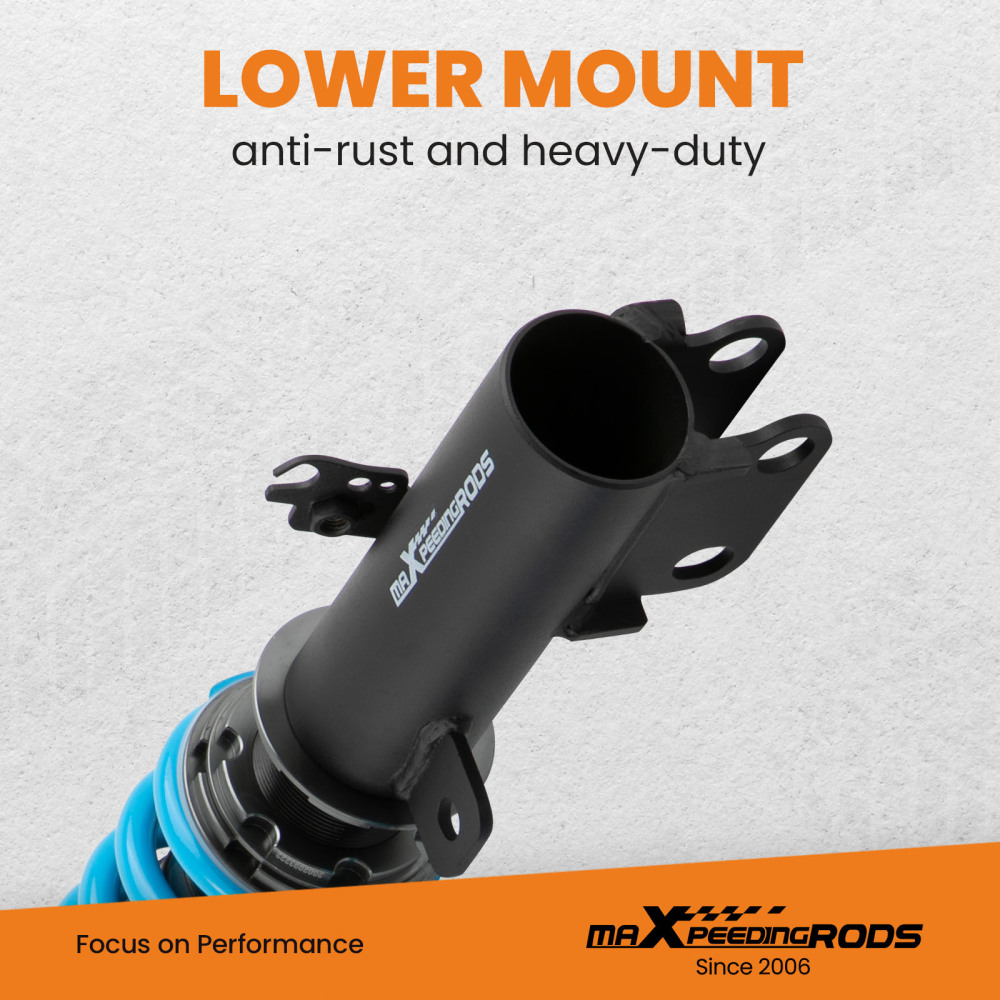

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

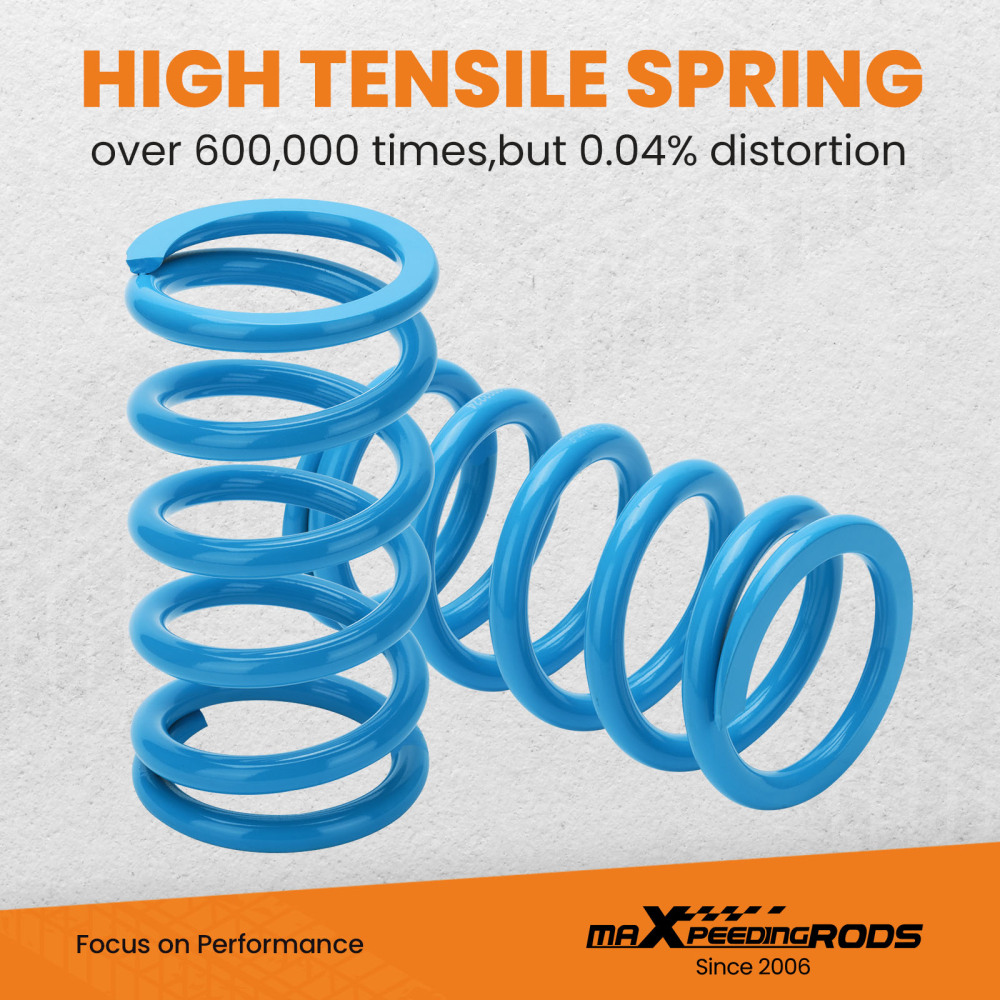

7. Upgraded spring --- more than 600,000 times continuously test to assure it's high tensile strength.

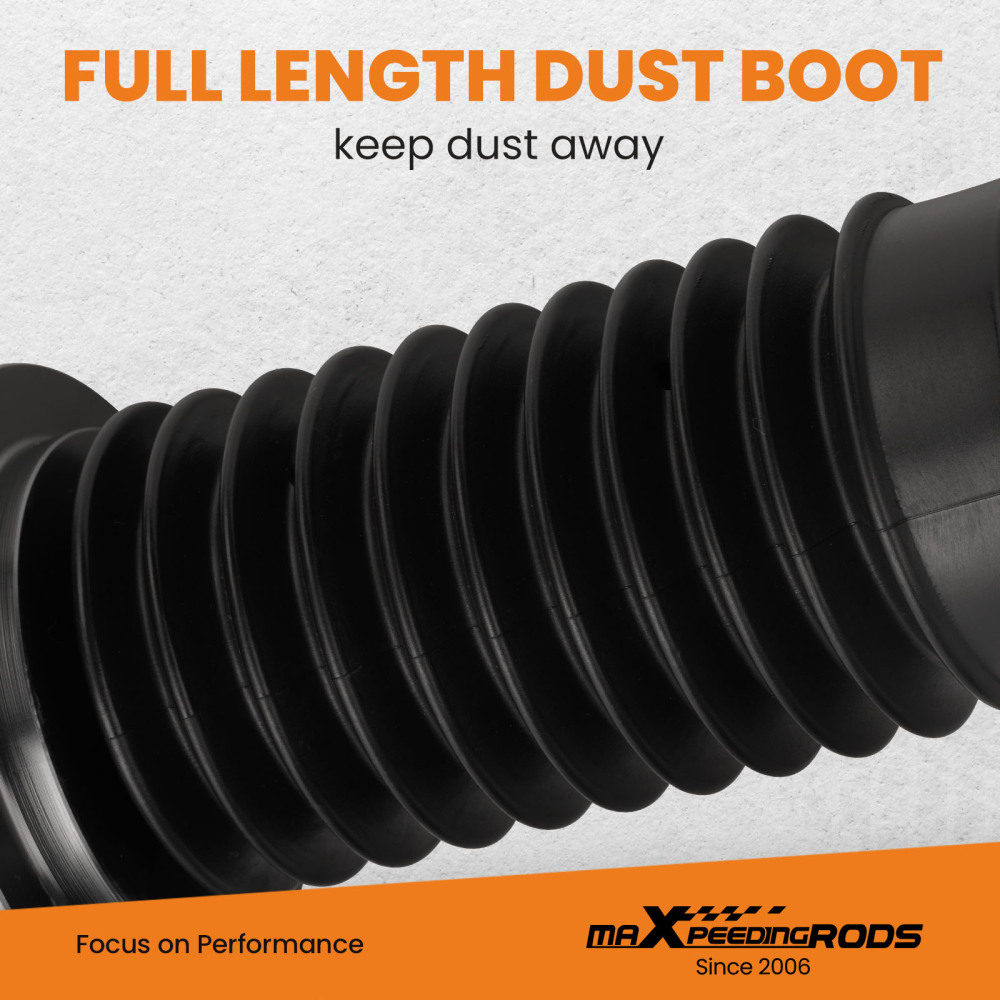

8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
9. With better damping setting,you will get better performance and comfort at the same time.
10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
11. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
12. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
13. Clean room assembled---maintain higher level of accuracy and reliability.
14. Upgraded damper oil---make damping more stable and smooth in wide temperature range.
