MaXpeedingrods COT6 Coilover Suspension Damper Kit compatible for BMW 5 Series E39 96-03 lowering kit

Introduction

Maxpeedingrods is a professional coilover manufacturer with 17 years industry experience.  We have a professional technical and customer service team who can provide you technical support and after-sales service in time.

MaXpeedingrods COT6 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles) and decent outlook , offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality and long life.

Application

Compatible for BMW 5 (E39) (1995-2003)RWD notchback
model:525i,530i,540i,520d,520i,523i,525td,525tds,528i,525d,530d,535i

Note: 1. Not for Wagon or M5 Models. 2. Will not fit Self Leveling/Air suspension model

Specification

- Top mounts: front - pillow ball top mounts with camber plate; rear - rubber top mounts
- Damping: 24 ways damping adjustable
- Spring rate Front: 12 kg/mm (672 lbs/in)
- Spring rate Rear: 9kg/mm (504 lbs/in)
- Spring length Front: 190mm
- Spring length Rear: 190mm
- Adjustable height: lowering 1-3inch
- Coilover overall length Front: 490mm-540mm
- Coilover overall length Rear: 520mm-605mm
- Shock type: Twin tube
- Spring preload: 7-10 mm
- Color: black body with blue spring

- Brand: MaXpeedingrods
- Condition: 100% Brand New
- Warranty: 1 Year

Package included

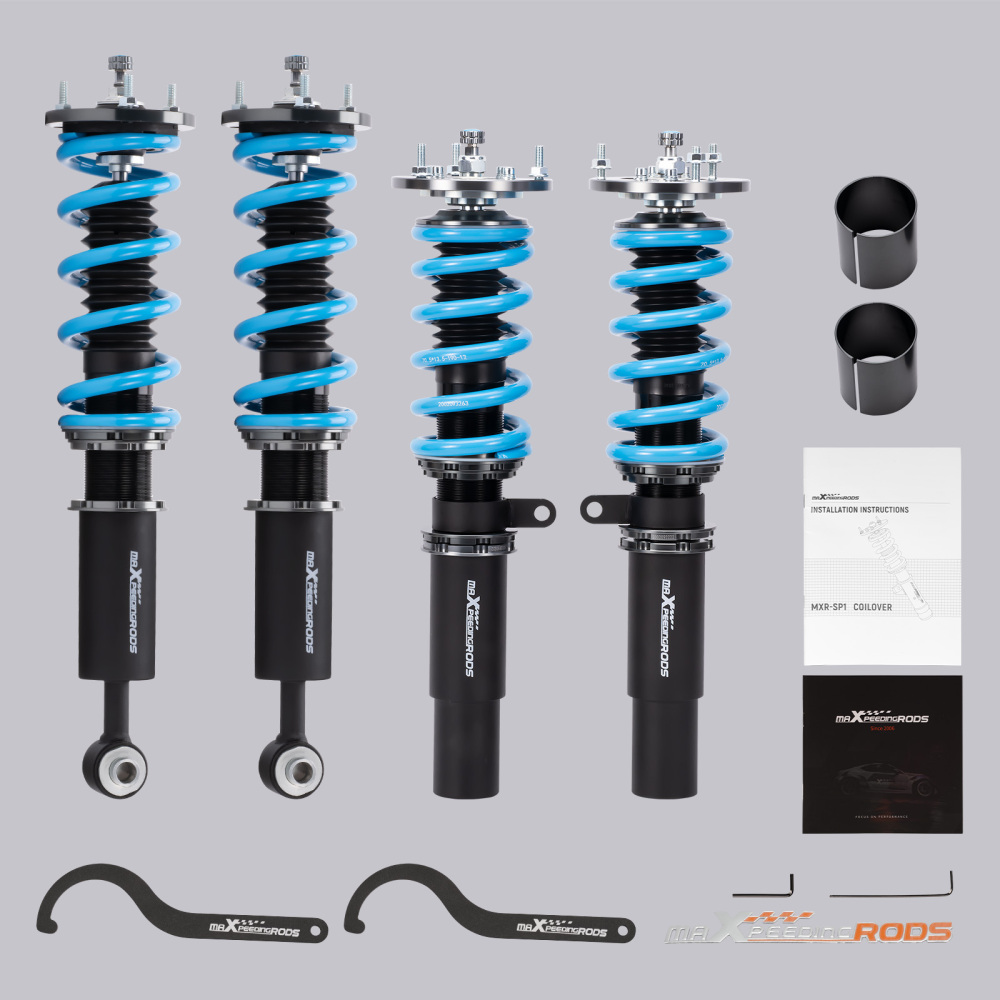

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

1 x Installation Instructions

Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. 24 levels of damping force adjustability. A wide range of dampening adjustments can be made to provide a variety of responses to different road conditions and to tune the ride feel.
3. Pillow ball top mounts improve the steering feel and response.
4. Full length dust boot keeps shaft and oil seal from damage.
5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.
