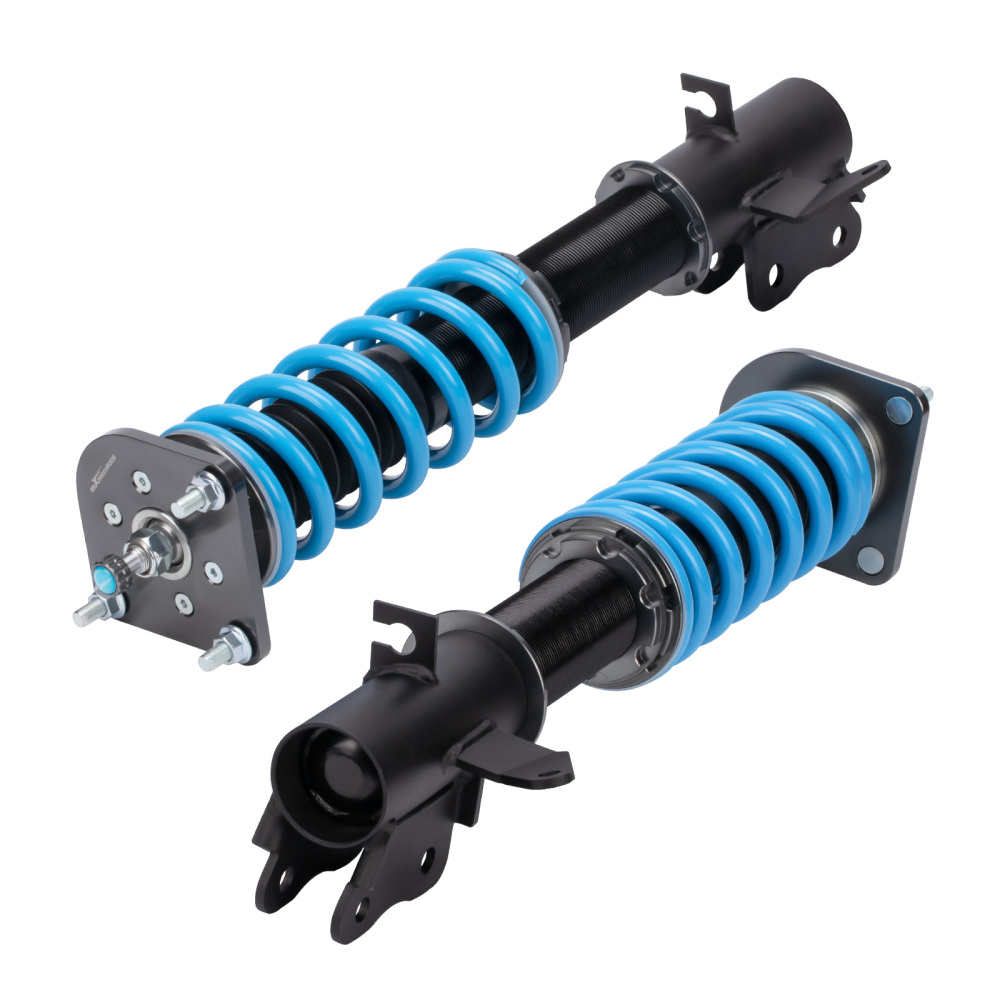

Maxpeedingrods COT6 Adjustable Coilover Damper Kit compatible for Mazda 323 / Protege 99-03 lowering kit

Introduction

MaXpeedingrods COT6 lowering coilover, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles) and decent outlook , offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coilover are assembled in dust-free factory, which turns out good quality and long life.

Applications

Compatible for Mazda 323 1999-2003
Compatible for Mazda Protegé 1999-2003
Compatible for Mazda Protegé5 1999-2003
Compatible for Mazdaspeed Protegé 1999-2003
Compatible for Mazda Isamu Genki (Taiwan) 1999-2003
Compatible for Mazda Allegro 1999-2003
Compatible for Ford Activa 1999-2003
Compatible for Ford Laser (KN/KQ) 1999-2003
Compatible for Ford Tierra 1999-2003
Compatible for Haima Family (China) 1999-2003
Compatible for Haima Happin (China) 1999-2003

Specifications

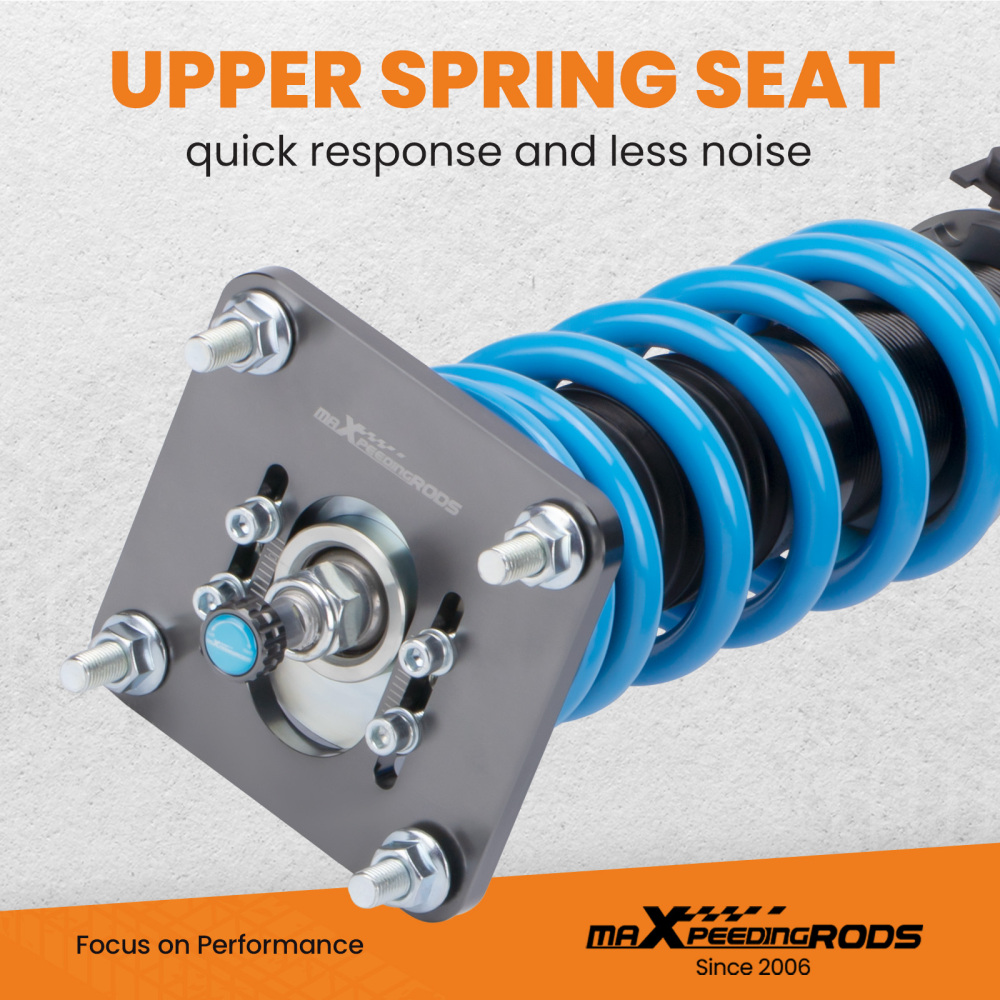

Top mounts: front pillow ball top mount with camber plate

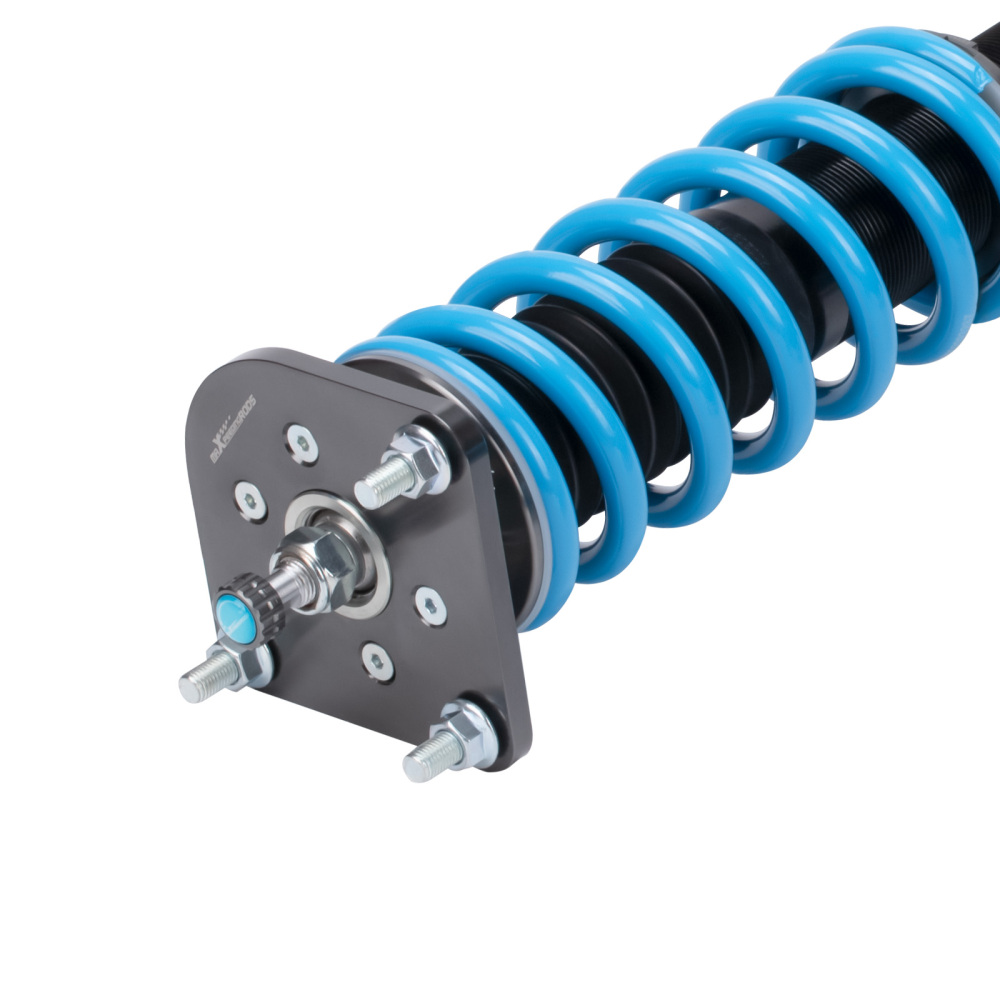

rear pillow ball top mount

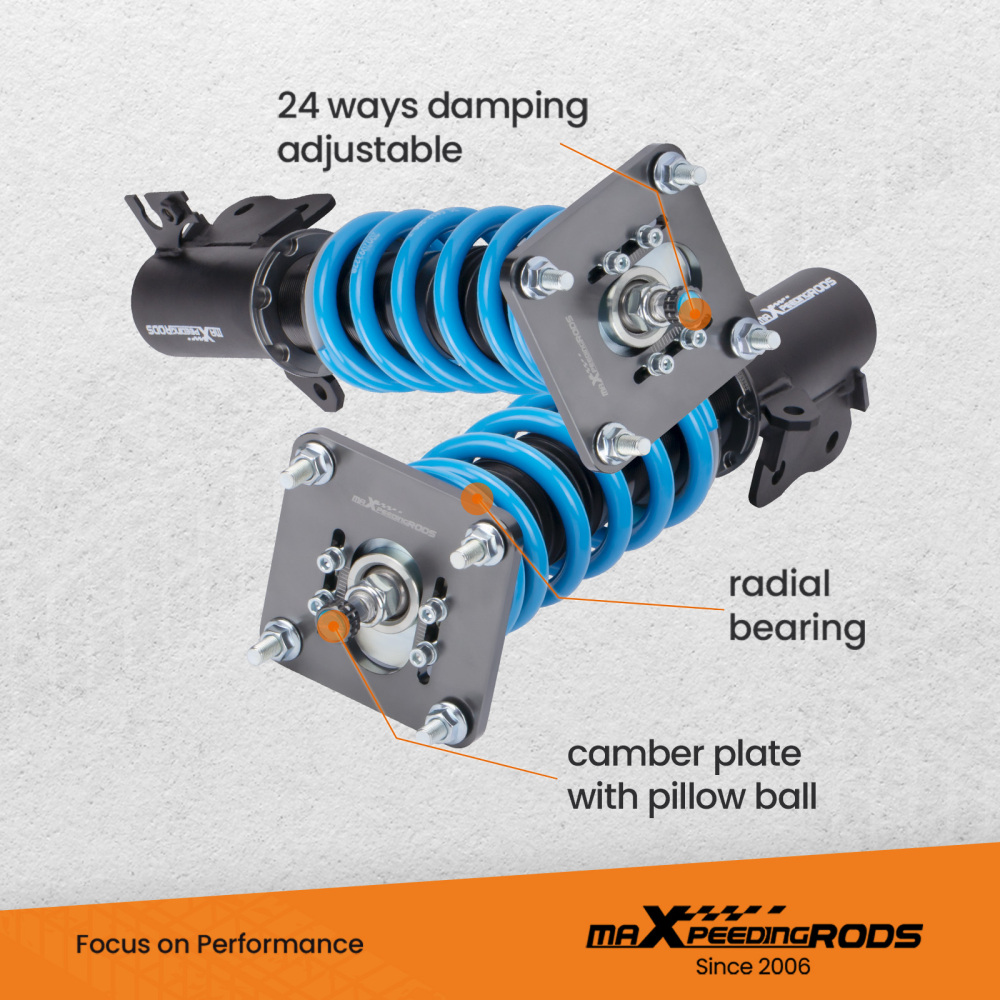

Damping: 24 levels rebound damping adjustable
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 200mm
Spring length Rear: 230mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 420mm-520mm
Coilover overall length Rear: 520mm-620mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: black body +blue spring

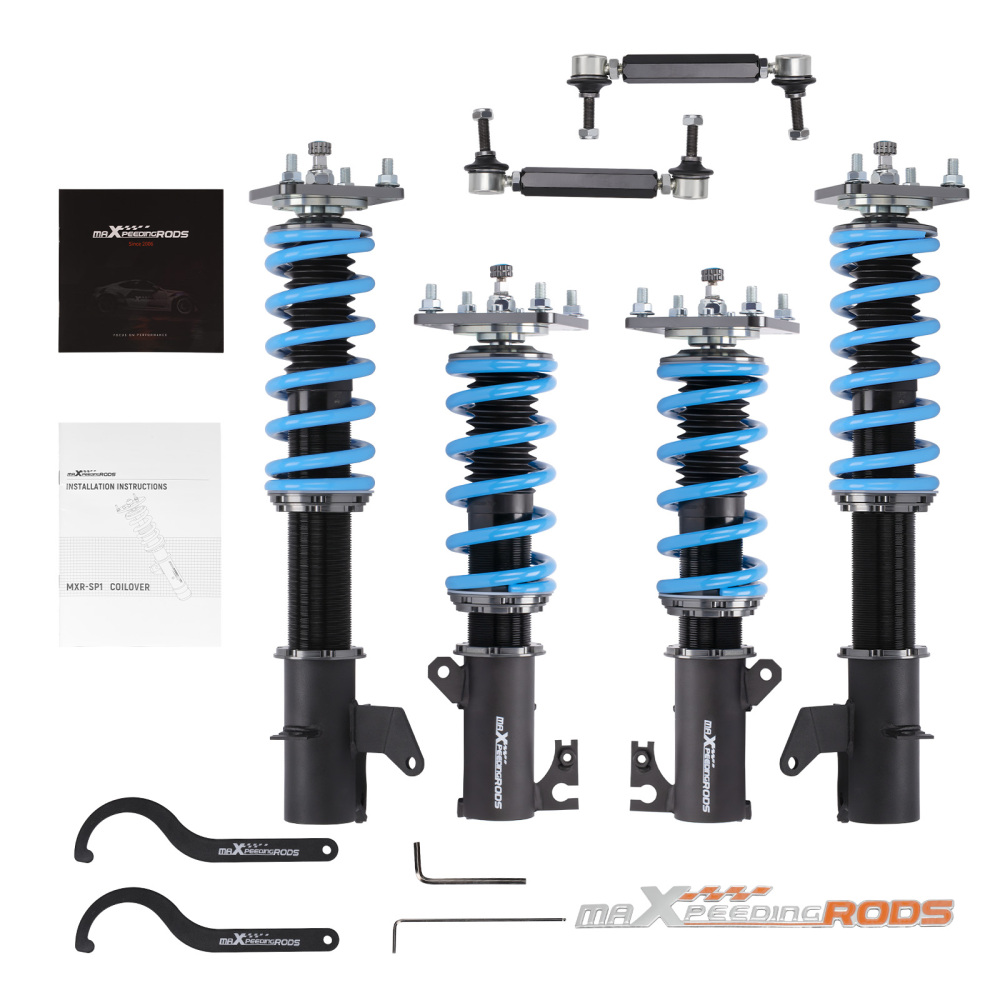

Package Included

Complete coilovers 2 front and 2 rear
A pair wrench for height adjustment

Notice: No front sway bar links, only the rear ones included.

Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

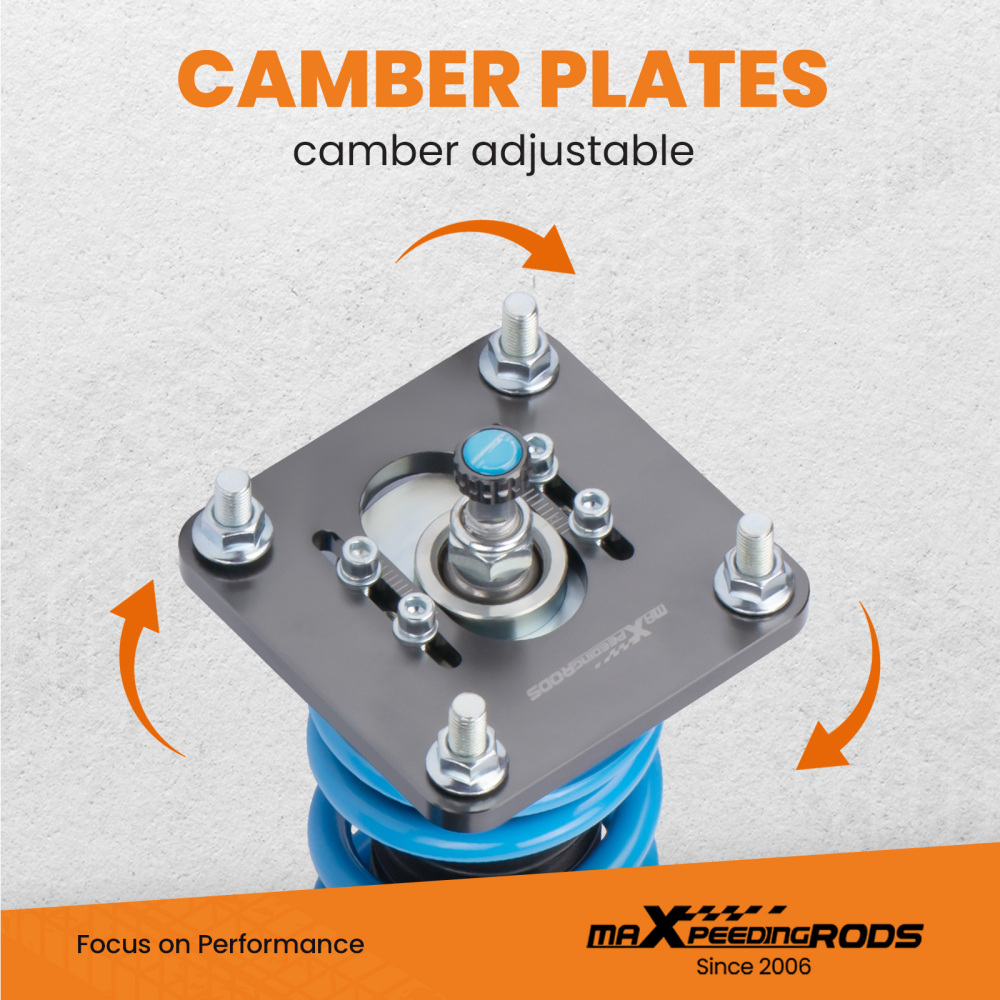

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

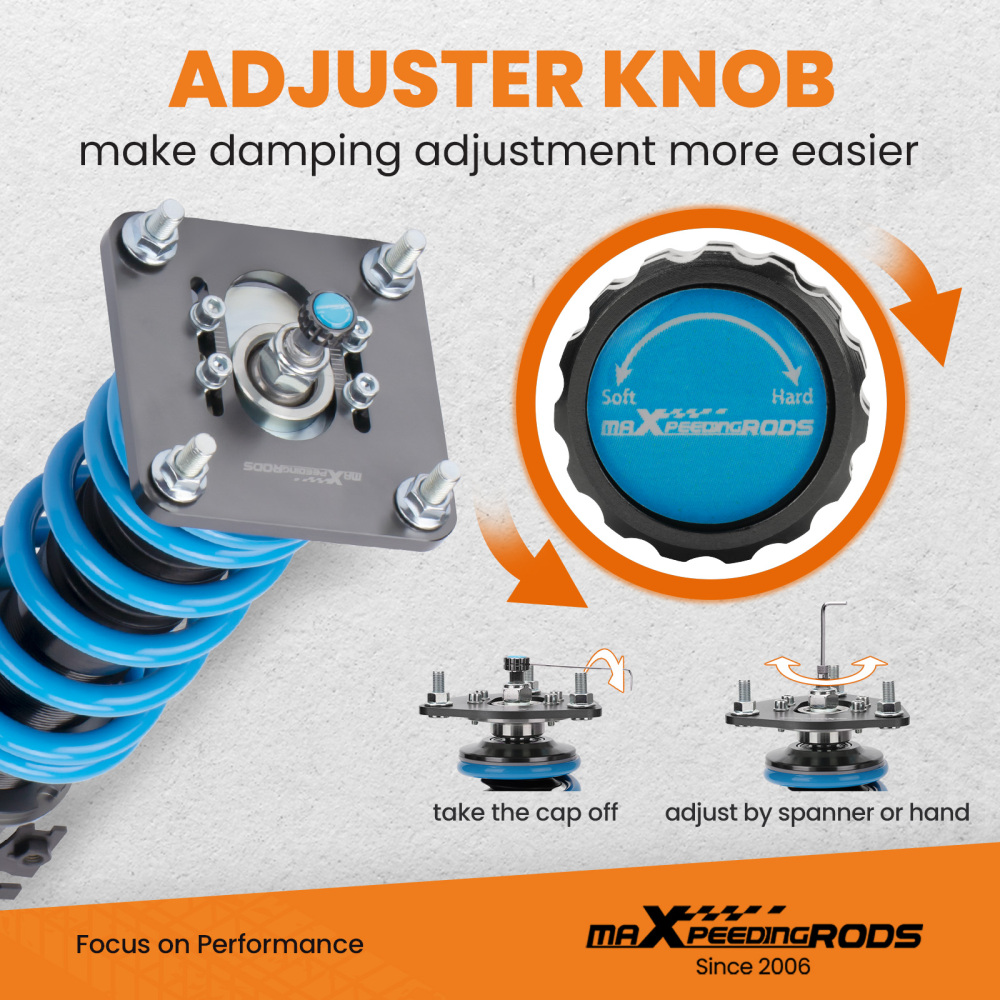

4. 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

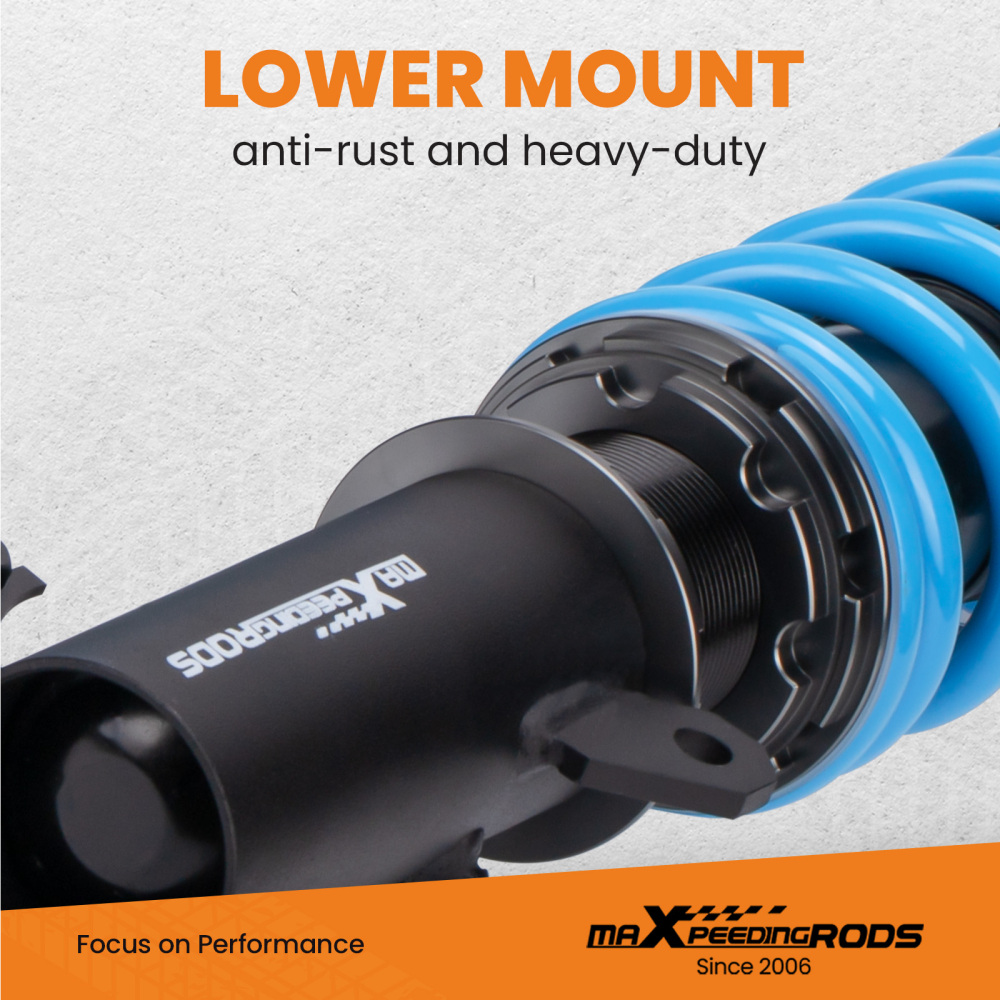

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

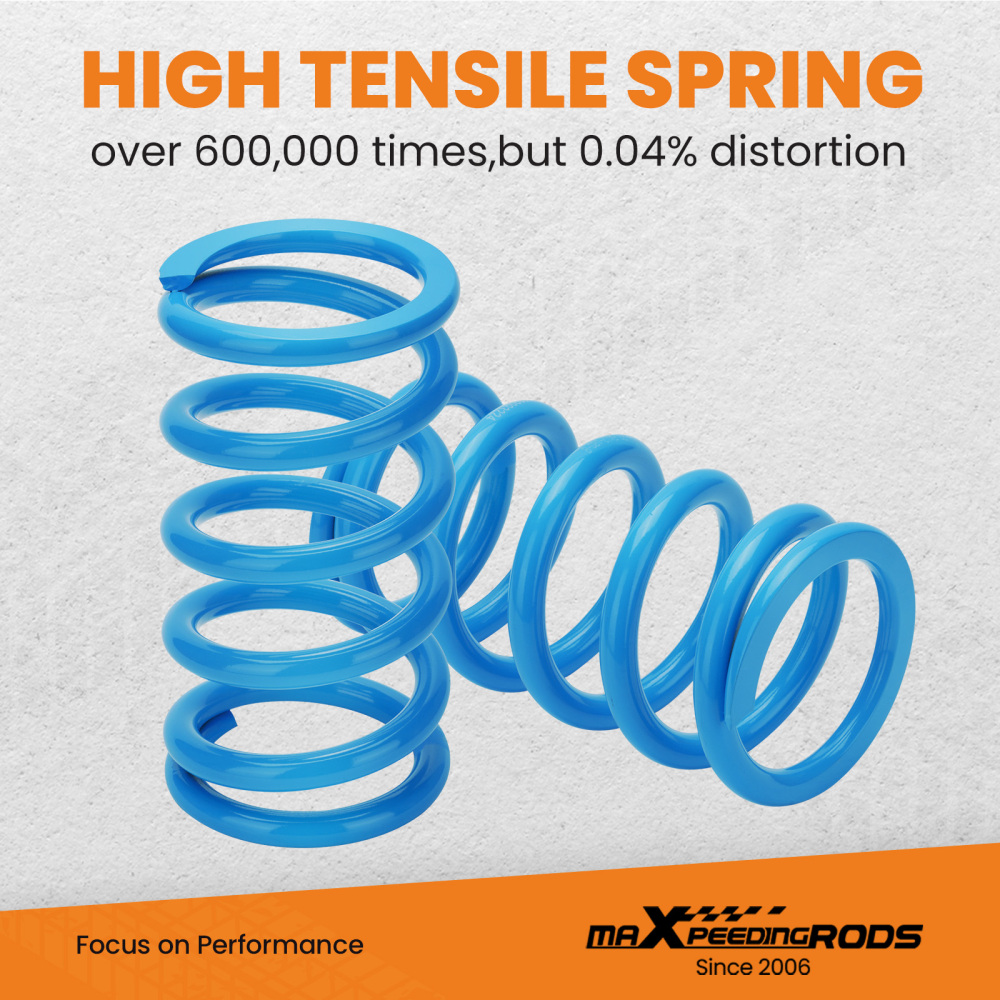

7. Upgraded spring --- more than 600,000 times continuously test to assure it's high tensile strength.

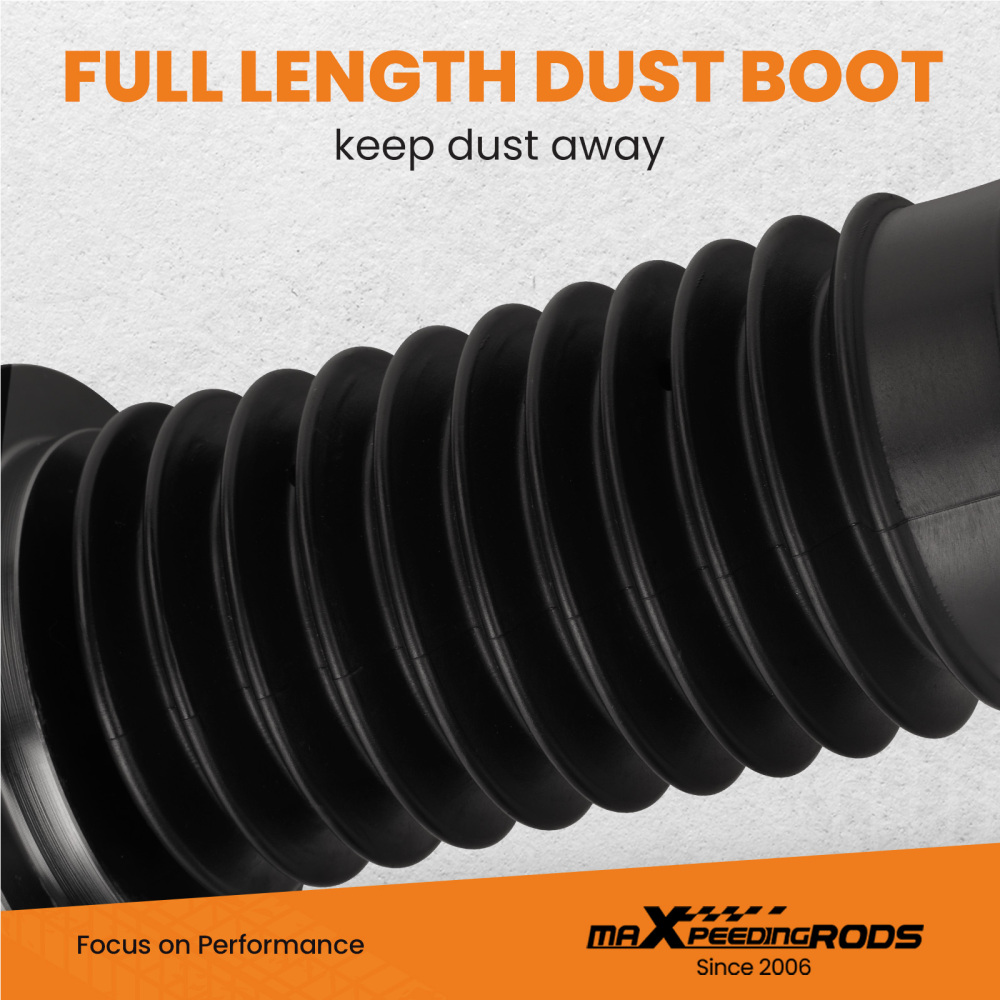

8. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
9. With better damping setting,you will get better performance and comfort at the same time.
10. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
11. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
12. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
13. Clean room assembled---maintain higher level of accuracy and reliability.
14. Upgraded damper oil---make damping more stable and smooth in wide temperature range.
