MaXpeedingrods Coilover Shock Suspension Kit compatible for Volkswagen Jetta MK5 MK6 06-17

Introduction

MaXpeedingRods-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

Application

Compatible for VW Jetta MK5/A5 2005-2011
compatible for VW Jetta MK6/A6 2011-2019
compatible for VW Golf (GTI,DTI) MK5/A5 2003-2009
compatible for VW Golf MK6/A6 2009-2012
Note: Compatible with front strut inserts of 54.5mm inner diameter.

Specification

Front top mount: Pillow ball with camber plate
Rear top mount: OE top mount required
Damping adjustable: Not available
Camber adjustable: Available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 6 kg/mm (336 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 160 mm
Spring length Rear: 180 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring
Warranty: one year for any manufacturing defects

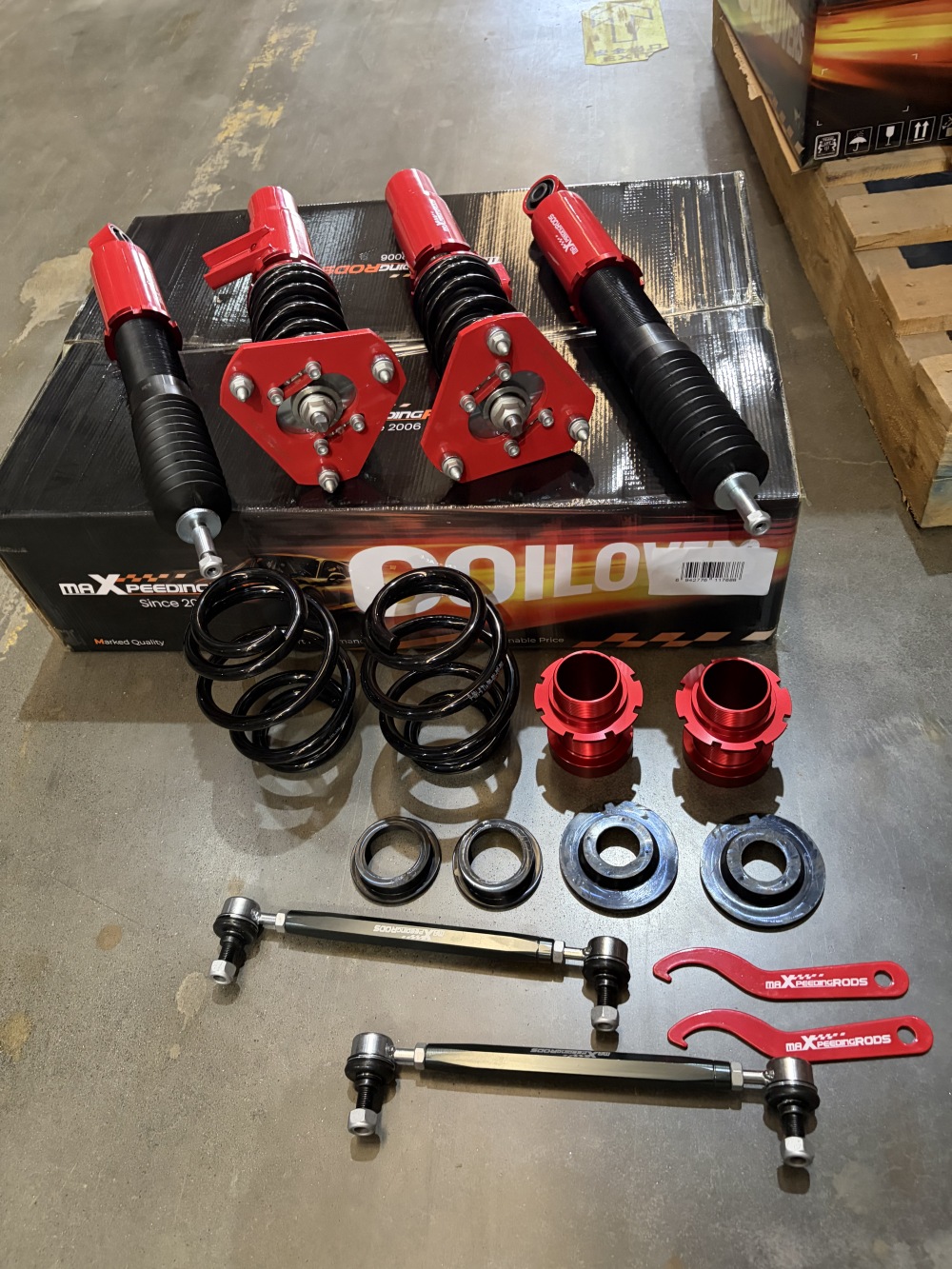

Package included

2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners

Dimension

Package size : 70*50*20 cm
Weight: 25500 g

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
