Left Turbo compatible for Charger compatible for Ford F-150 F150 Trucks 3.5L 2010 2011-2012 BL3Z6K682E

Application

Compatible for Ford F Series Trucks compatible for F-150 3.5L Engine 2010-2012 Turbocharger
Left Side

OE/Part number

179204, 855562-5001S, 9G438 BL3EAU, 9G438BL3EAU,
BL3E 9G438 UA, BL3E9G438UA, BL3E-9G438-UA,
CL3E 6K682 A, CL3E6K682A, CL3Z 6K682 A, CL3Z6K682A,
BL3Z 6K682 C, BL3Z6K682C, CL3Z 6K682 C, CL3Z6K682C,
BL3Z6K682E, BL3Z-6K682-E

Specification

Turbo Model: K0CG
Engine Code: Compatible for Ford EcoBoost
Cooling Type: Water+Oil Cooling
Position: Left Driver Side Turbocharger

Bearing Type: Journal Bearing/Floating Bearing
Actuator Type:Vacuum Actuator
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get what you can see in the pictures exactly
Package Size:27x 25 x 26 cm
Package Weight: 6.1 kg

Package included

1x Left Side Turbocharger
2x Flange Gaskets
1x Oil port Gasket
2x Bolts & Nuts
1x Manual
1x Brochure
1x Sticker

Feature

* Product Material

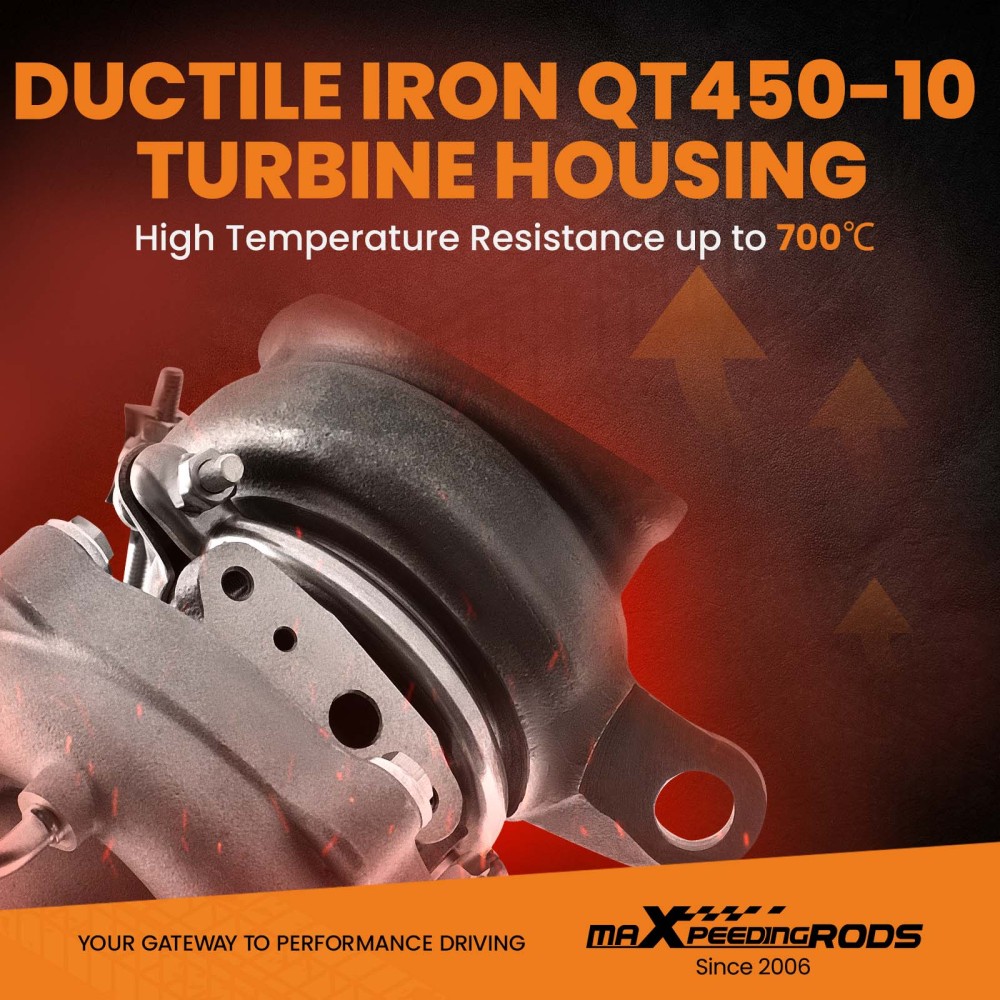

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

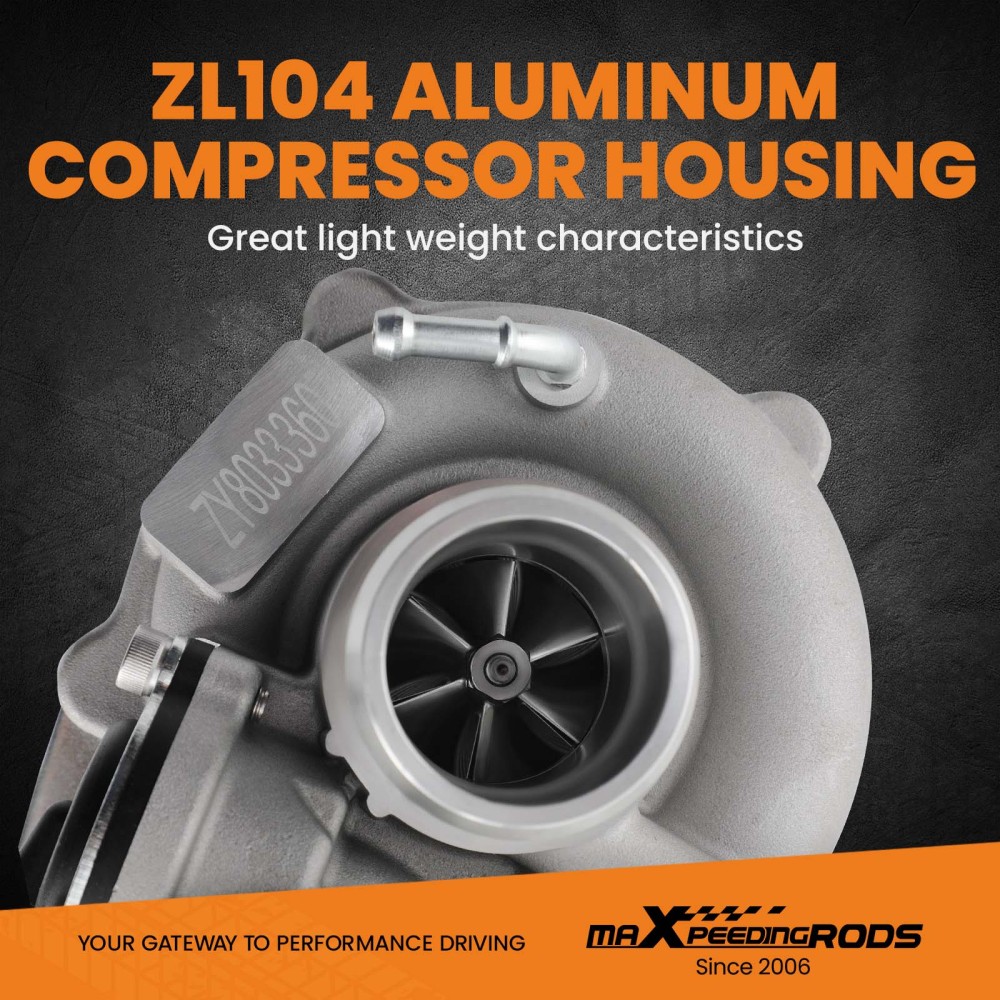

3. Compressor housing：ZL104 aluminum with lightweight

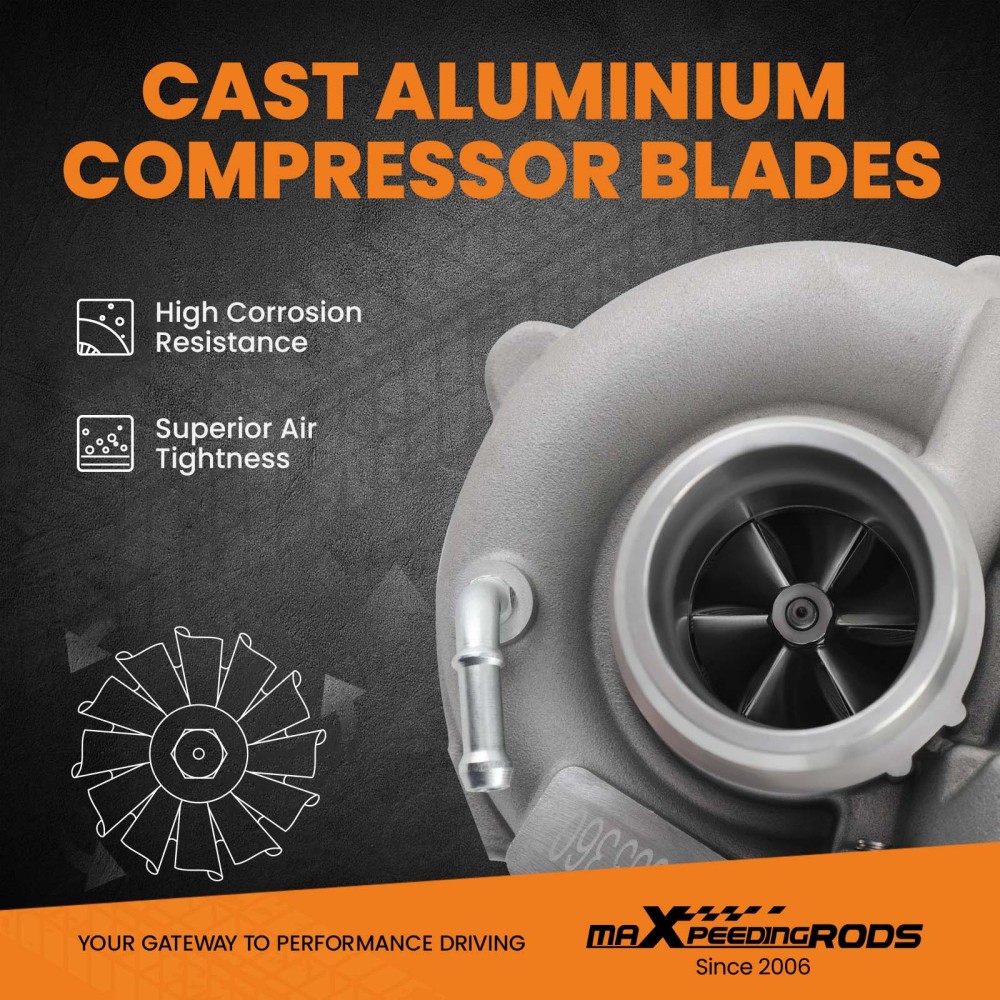

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product

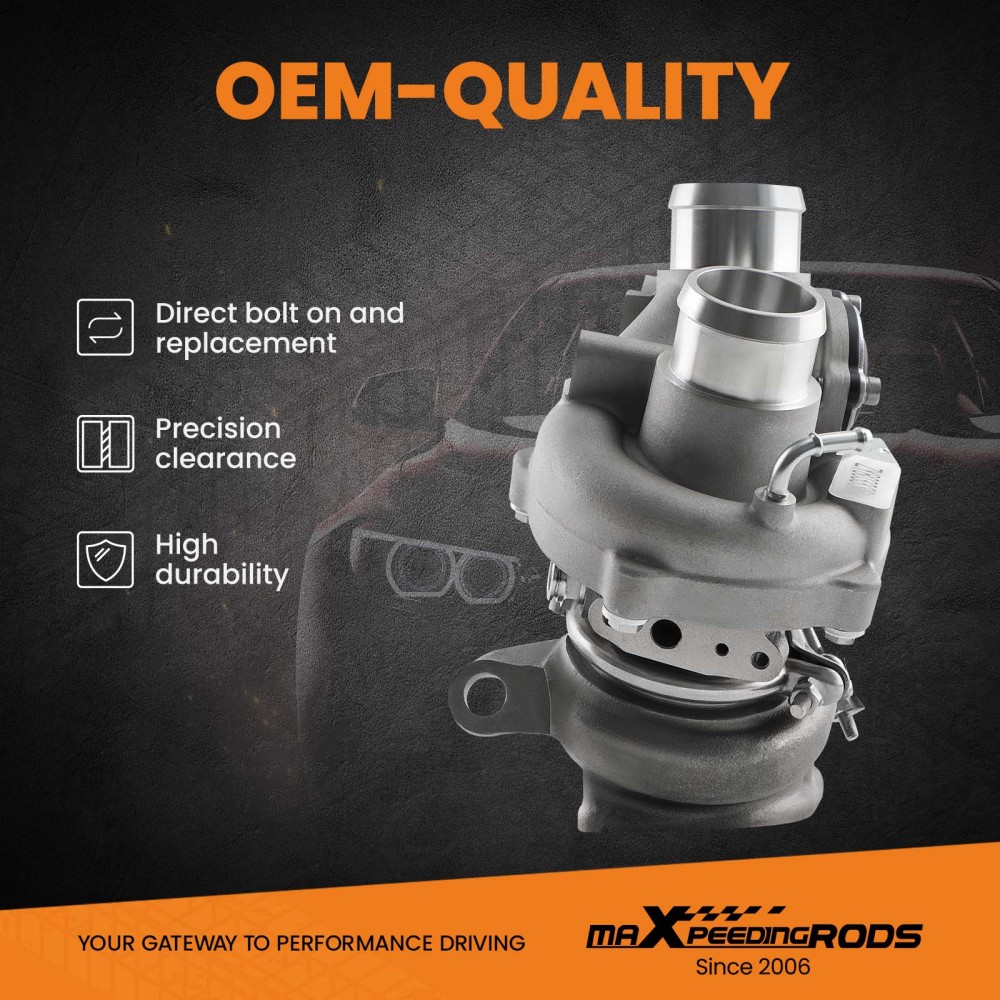

1. OEM-quality and size with little modification

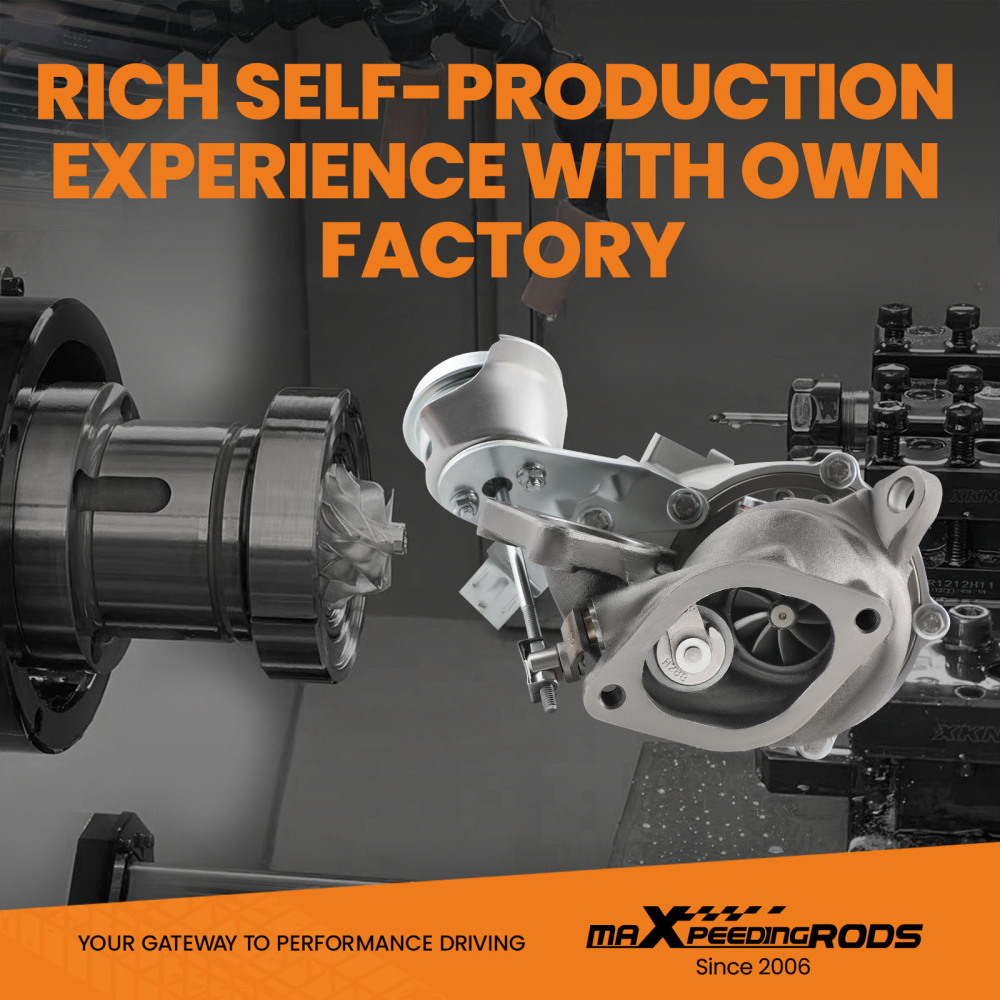

2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

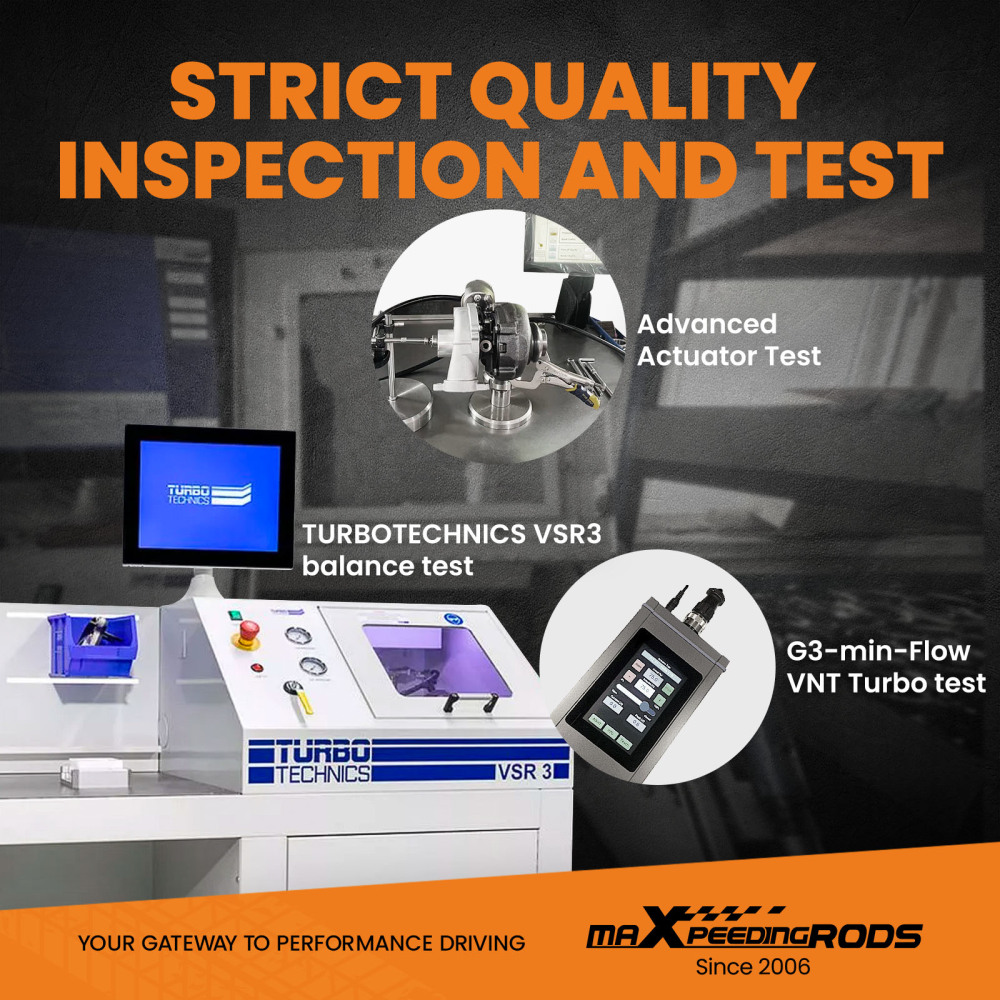

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
