For GT45 T4 V-Band 1.05 A/R 98mm Huge 600+HPs Boost Turbocharger

Application

for all 4.0L-6.0L engine

Specification

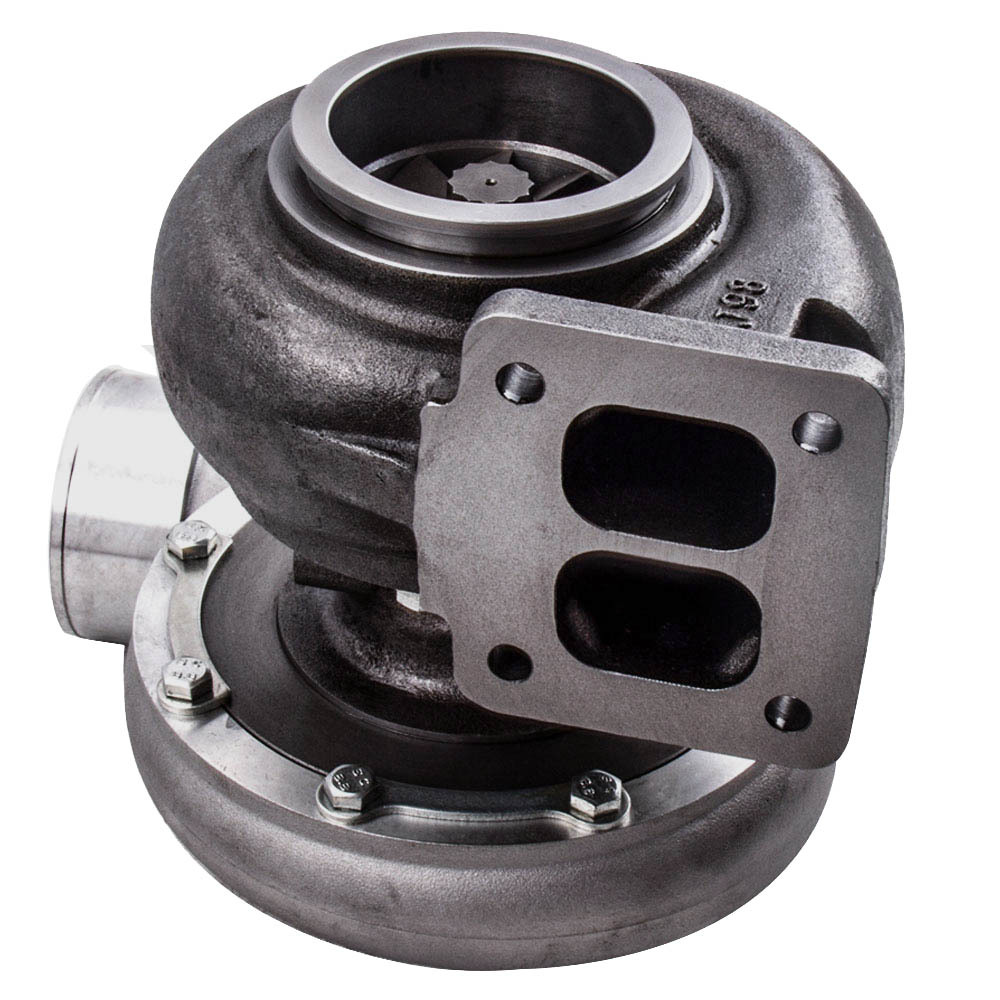

Exhaust (Turbo Manifold) Flange: T4 4 Bolt Flange
Exhaust Outlet (Downpipe) Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 600+ BHP
Turbo Height: 243cm
Turbo Width: 273cm

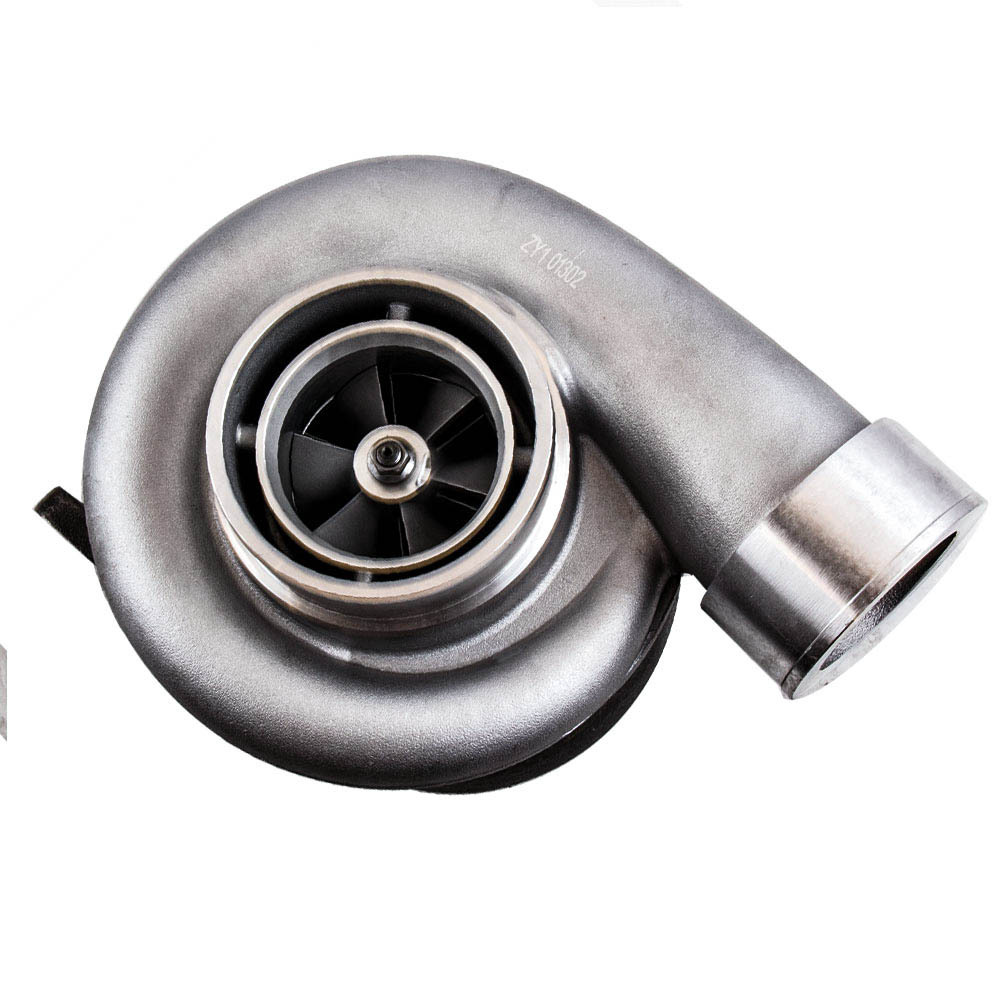

Compressor:
Trim: 50
Inducer Diameter: 69mm
Exducer Diameter: 98mm
A/R: 0.66

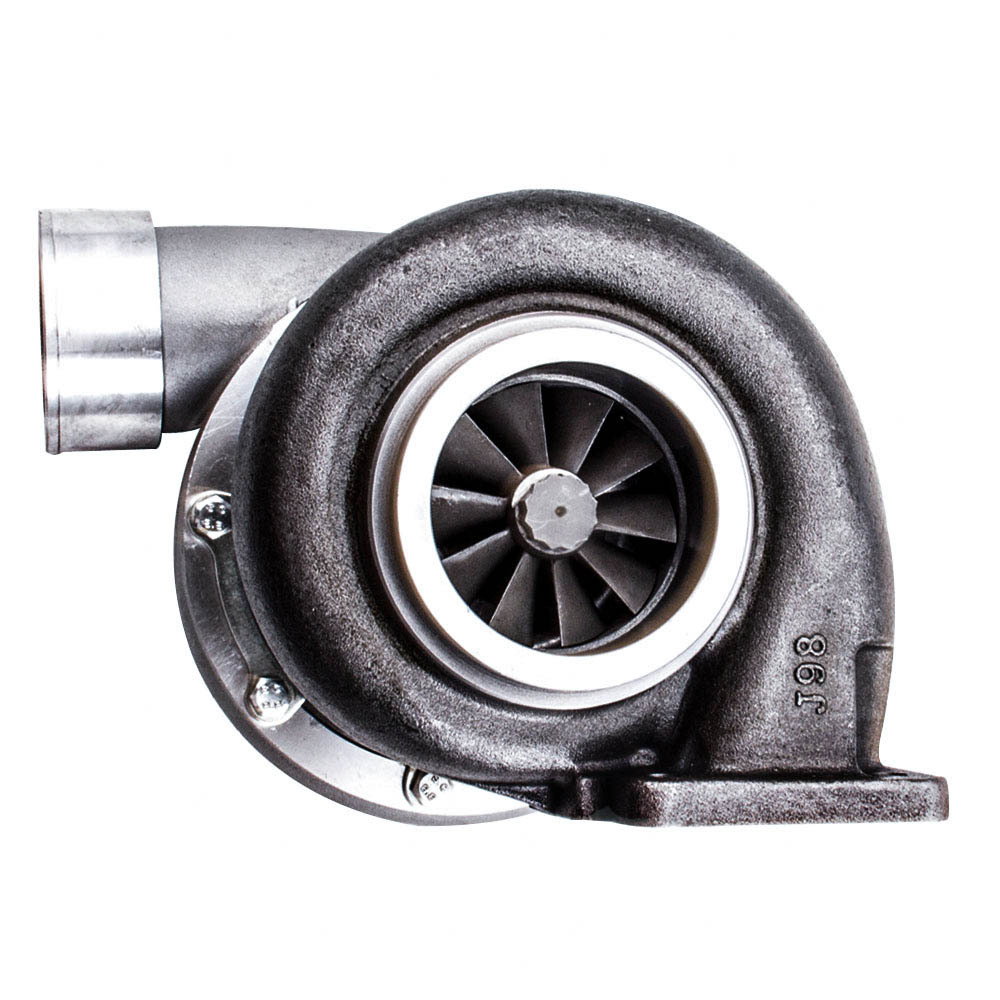

Turbine
Trim: 77
Inducer Diameter: 88mm
Exducer Diameter: 77.5 mm
A/R: 1.05

Oil Inlet: M9 & 2*M8*1.25

Oil Outlet: M19 & 2*M8*1.25

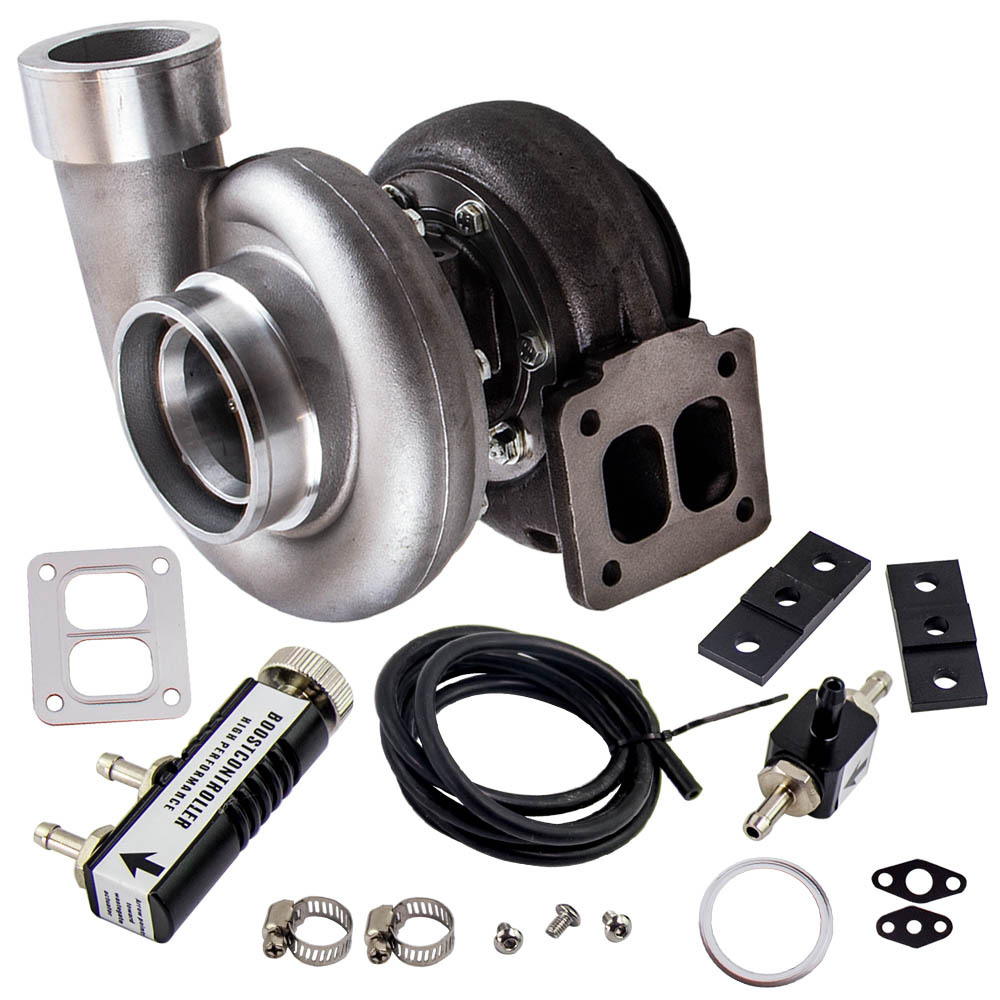

Accessories:
1 x Turbocharger Kit
1 x Turbo Boost Controller

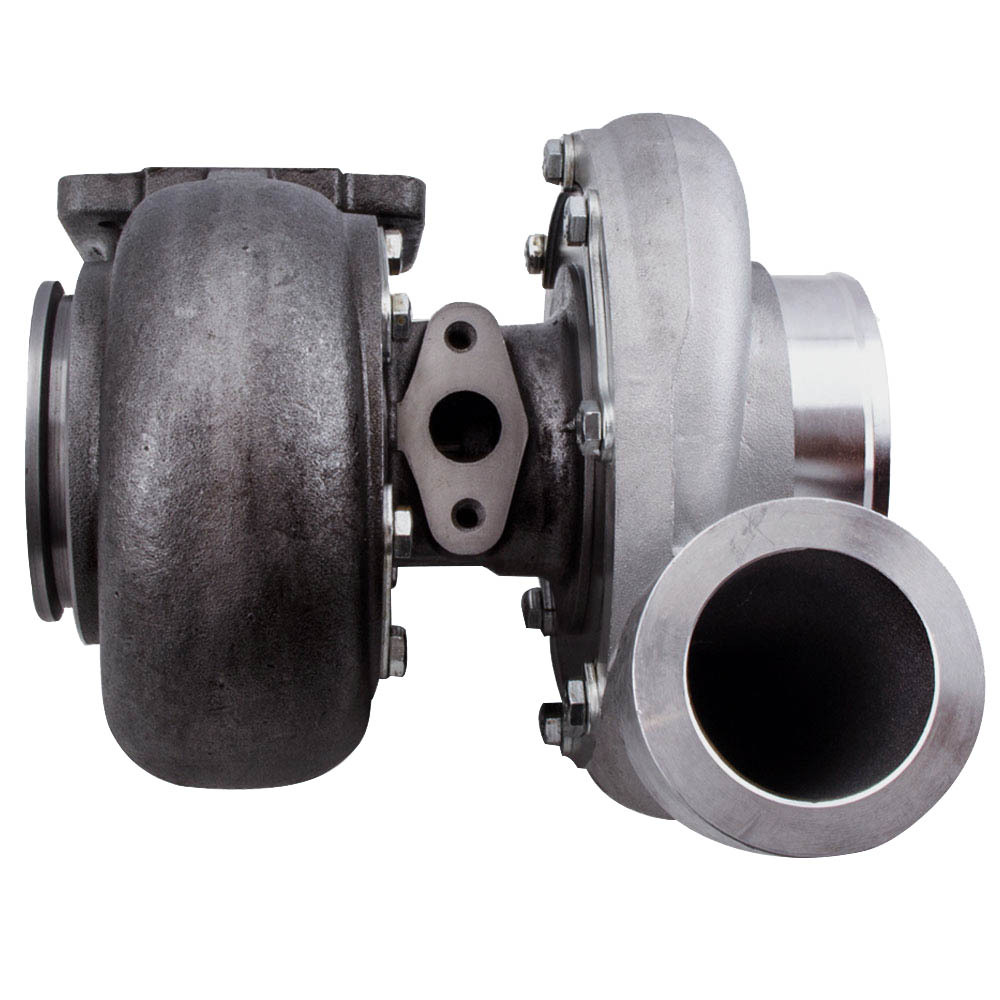

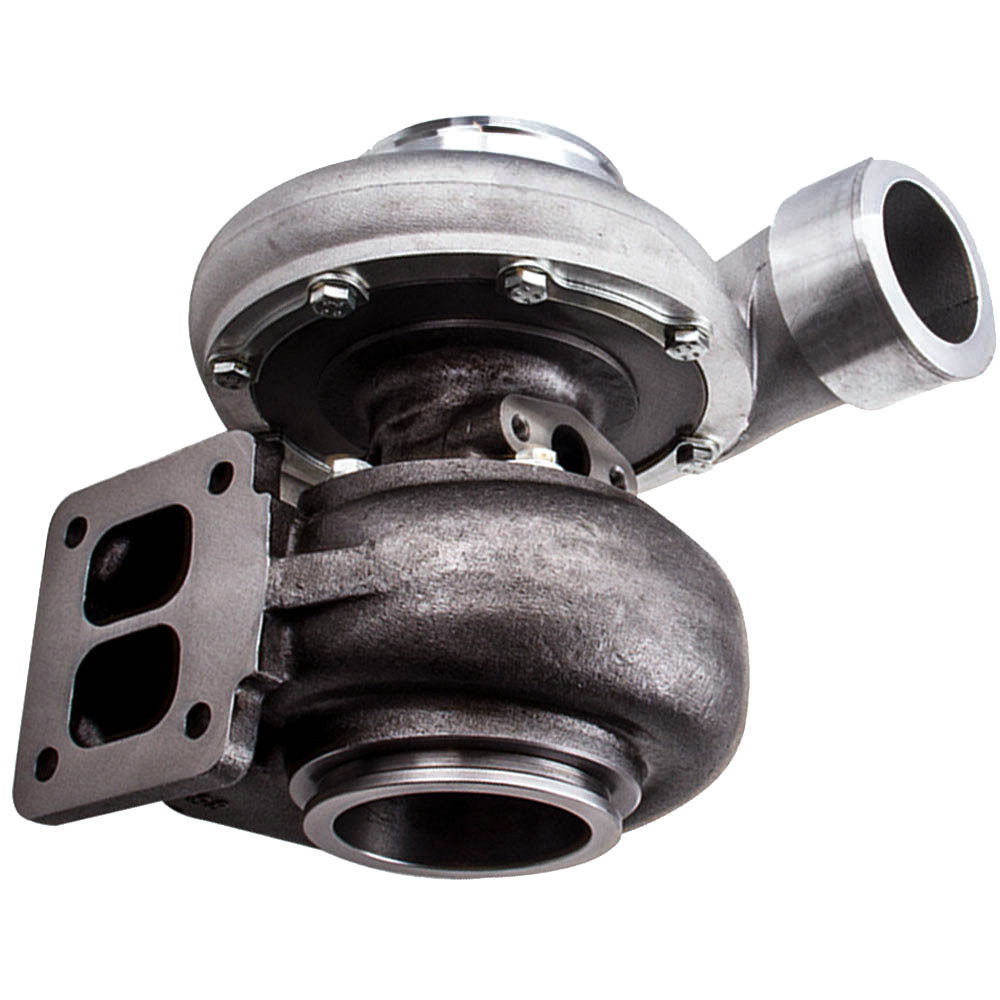

You will get exactly as shown in the picture above

Feature

Condition: New
Bearing Type: Wet Float Bearing
Warranty: one year warranty for any manufacturing defect

Note

- Professional installation is highly recommended (No Instruction Included).
- For any needs please contact us.
- This is universal application turbo, so modification might be required for some vehicles.

- Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

- Make sure the oil drain line is lower than the turbo itself.

- Ensure exhaust outlet are well sealed by welding.
