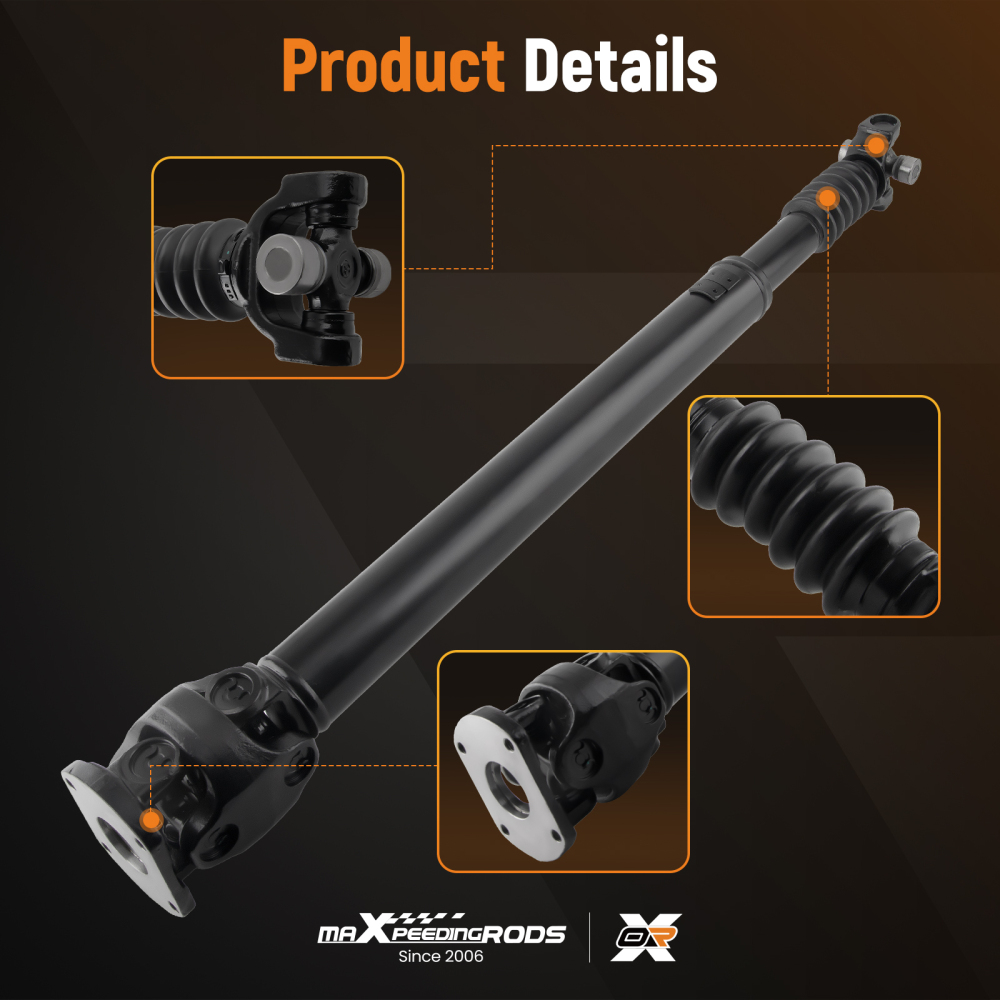

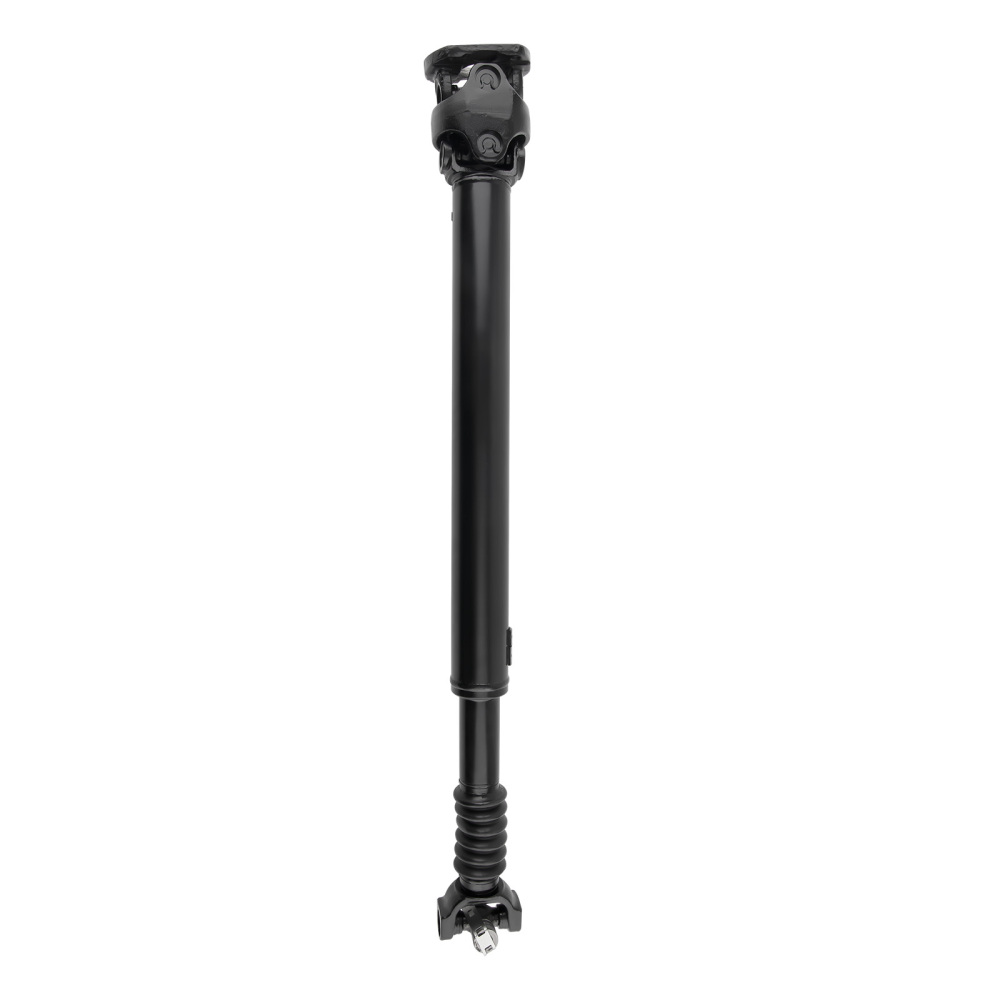

Front Driveshaft Prop Shaft compatible for Ford F-250 F-350 F-450 F-550 Super Duty 4WD

Application

Compatible for Ford F-250 Super Duty 2005-2007 compatible for V8 6.0L Front 4WD, Auto Trans
compatible for Ford F-250 Super Duty 2003 compatible for V8 6.0L Front 4WD, Auto Trans, From 11/04/02
compatible for Ford F-250 Super Duty 2004 compatible for V8 6.0L Front 4WD, Manual Trans
compatible for Ford F-250 Super Duty 2008-2010 compatible for V8 6.4L Front 4WD, Auto Trans
compatible for Ford F-350 Super Duty 2004-2007 compatible for V8 6.0L Front 4WD, Auto Trans
compatible for Ford F-350 Super Duty 2003 compatible for V8 6.0L Front 4WD, Manual Trans, From 11/04/02
compatible for Ford F-350 Super Duty 2008-2010 compatible for V8 6.4L Front 4WD, Auto Trans
compatible for Ford F-450 Super Duty 2003-2007 compatible for V8 6.0L Front 4 X 4, Auto Trans
compatible for Ford F-450 Super Duty 2008-2010 compatible for V8 6.4L Front 4 X 4, Auto Trans
compatible for Ford F-550 Super Duty 2005-2007 compatible for V8 6.0L Front 4 X 4, Auto Trans
compatible for Ford F-550 Super Duty 2003-2004 compatible for V8 6.0L Front 4 X 4, Manual Trans
compatible for Ford F-550 Super Duty 2008-2010 compatible for V8 6.4L Front 4 X 4, Auto Trans

OE/Part number

3C3Z4A376AA, 5C3Z4A376DA, 5C3Z4A376F, 5C3Z4A376JA, 9C3Z4A376B, 938-801, 65-9546, 65-9551

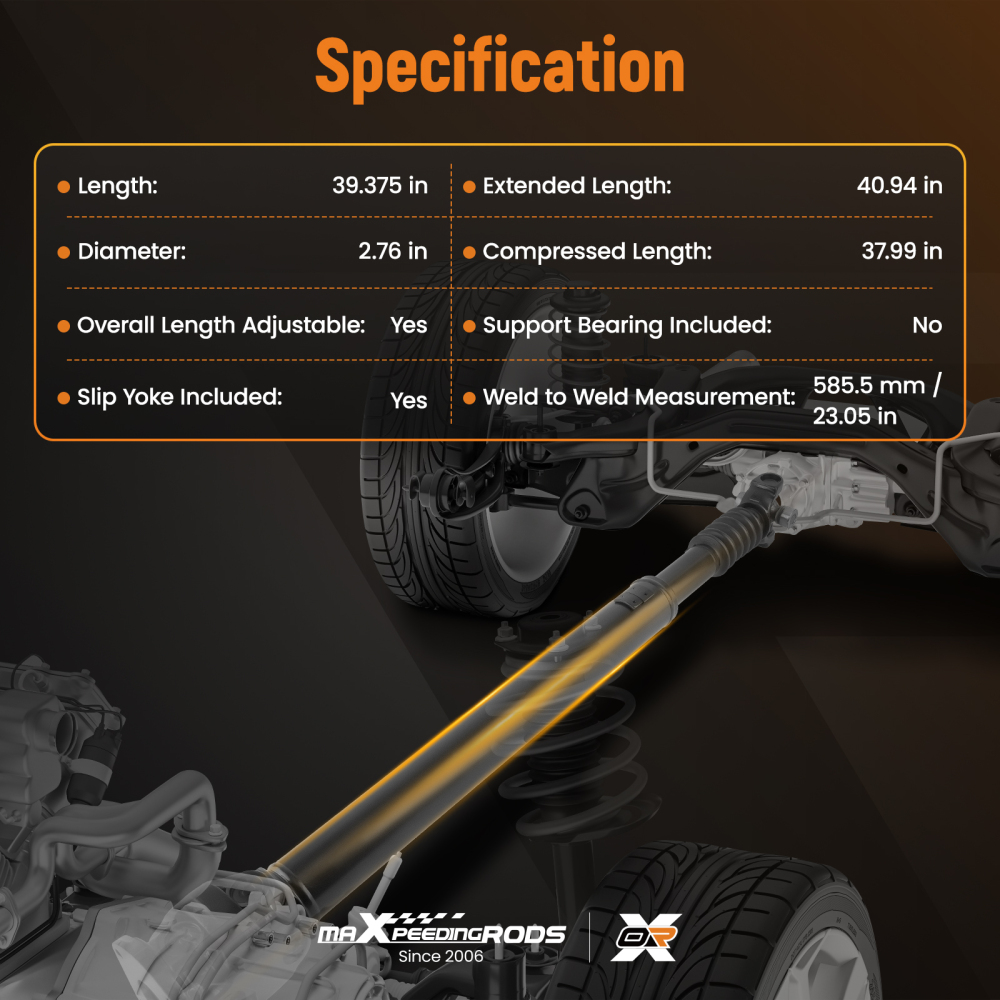

Specification

Type：Driveshaft
Fitment Type: Direct Replacement
Size: 106x16x14(cm)
Weight: 12.35kg

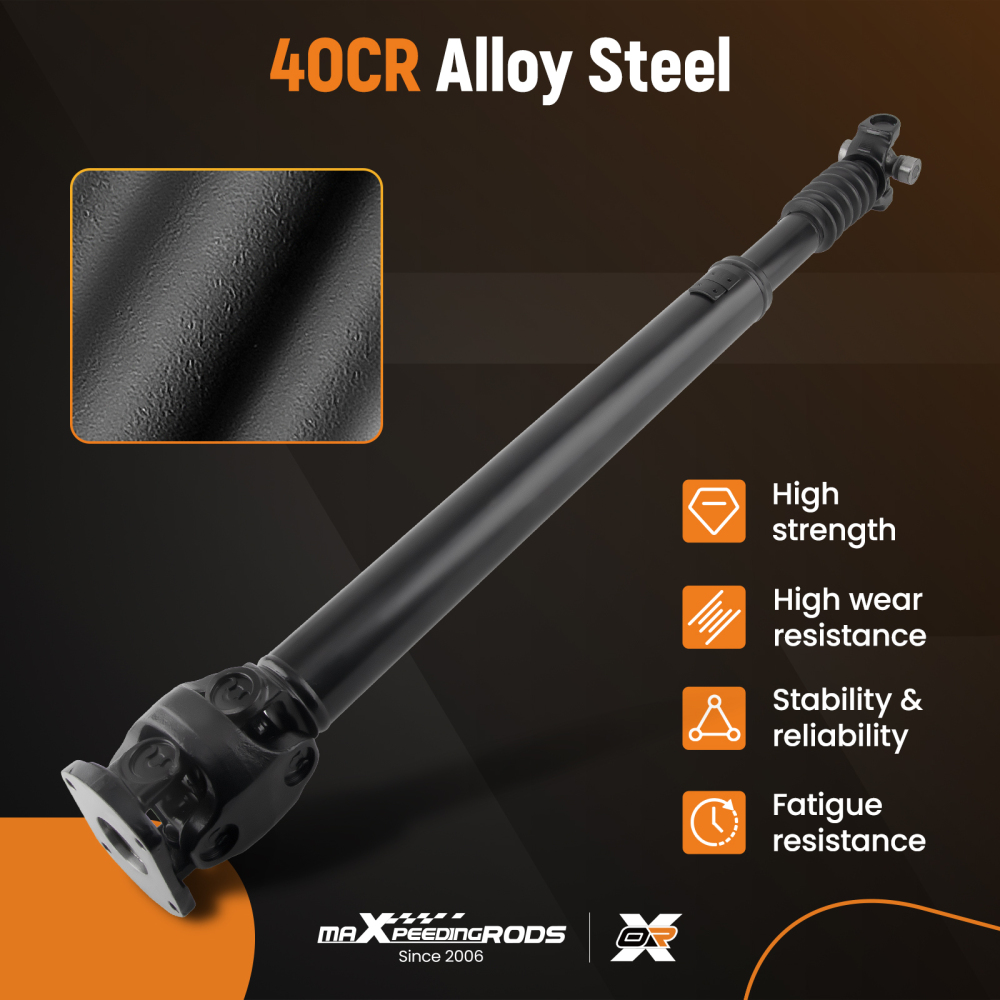

Material: Steel
Color: Black
Weld to Weld Measurement 1 585.5 mm / 23.05 in
U-Joints Replaceable 2

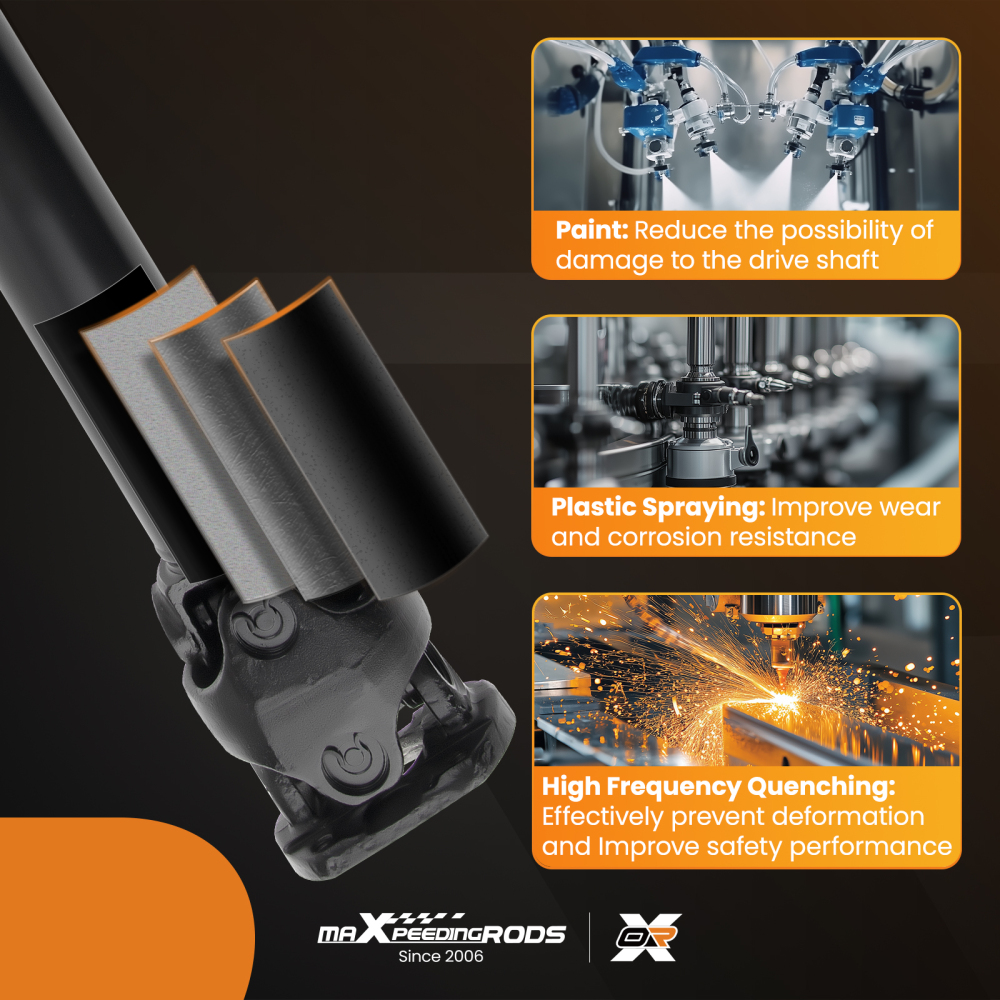

Surface Finish Rust Protected
Support Bearing Included No
Slip Yoke Included Yes
Overall Length Adjustable Yes
Number of Pieces 1
Material Steel
Length 39.375 in / 1000 mm
Items Included N/A
Instructions Included No
Hardware Included No
Extended Length 40.94 in / 1040 mm
Drive Type 4WD
Diameter 2.76 in / 69.98 mm
CV Joints Included No
Compressed Length 37.99 in / 965 mm
Axle Nut Included Yes
Package Includes:

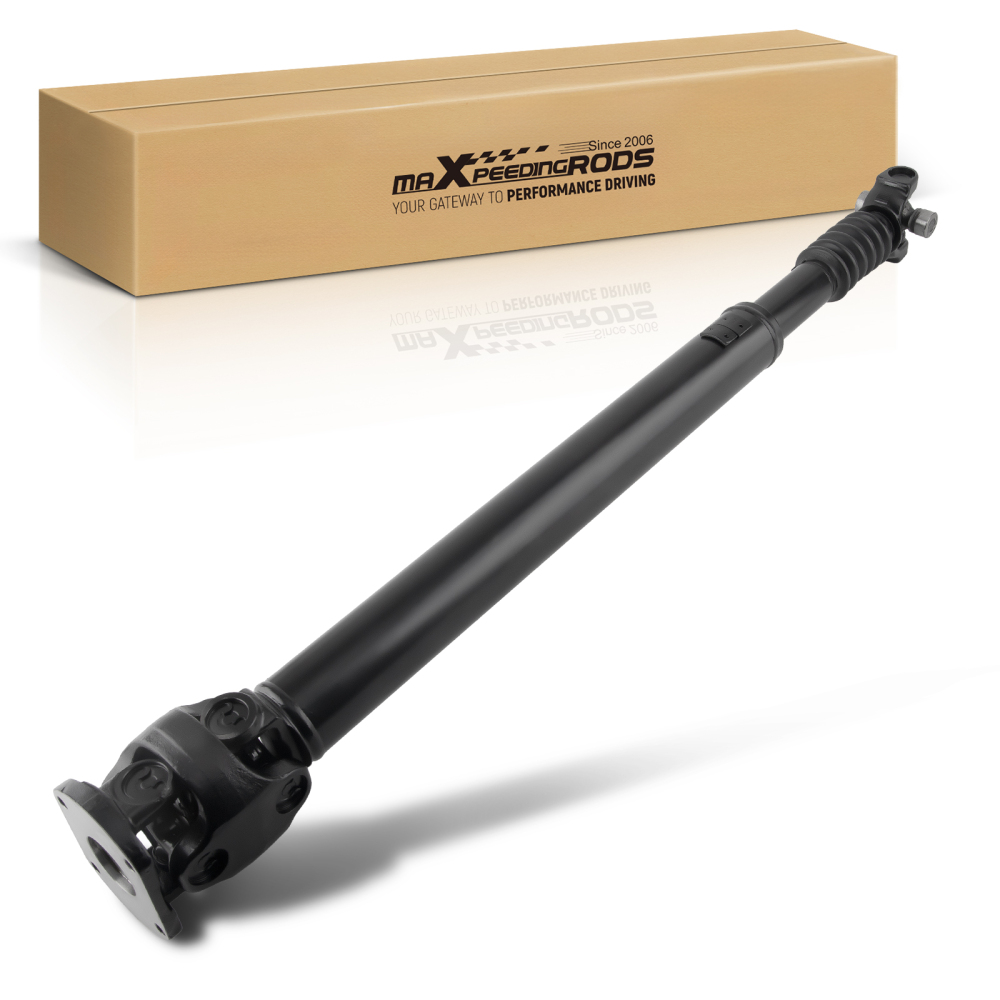

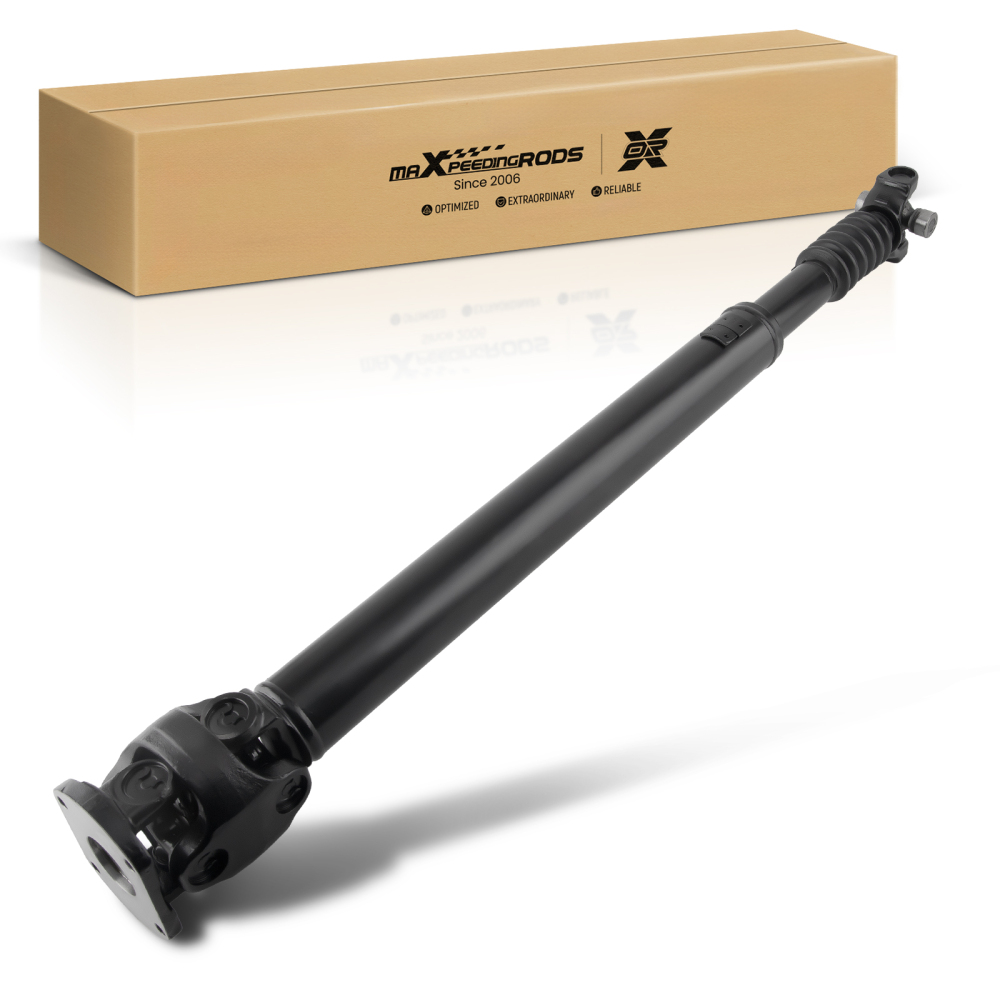

1PC Drive Shaft Assembly
(Showing as the picture)

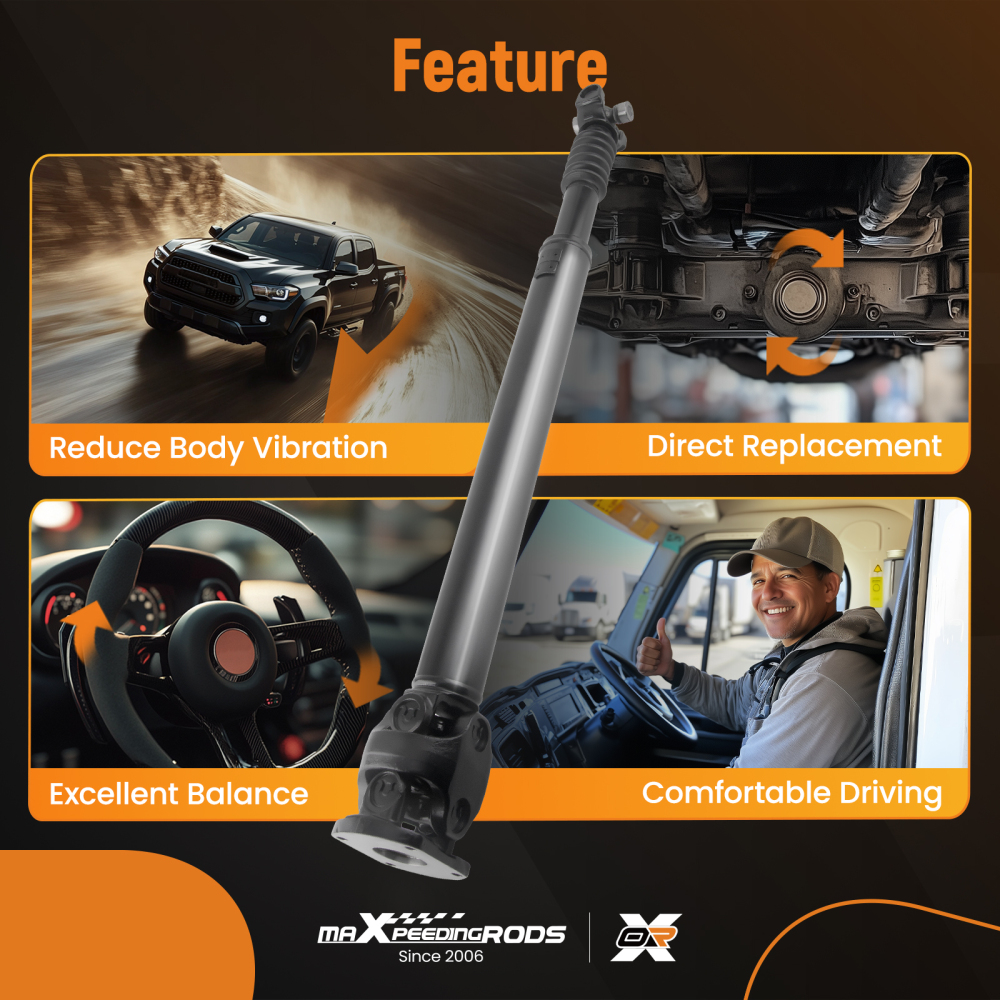

Feature

-This drive shaft is shipped pre-assembled and factory balanced to ensure immediate smooth operation

Note

Vibration and noise: The driveshaft may vibrate or produce noise when the vehicle is driven at high speeds. This may be caused by an unbalanced driveshaft or worn bearings.
Troubleshooting measures: Check the balance of the driveshaft and perform balancing if necessary. Check the bearings for wear and replace them if necessary.
