Conrods compatible for Audi RS3 TT RS 5 Cylinder 2.5L Connecting Rods

Conrods compatible for Audi RS3 TT RS 5 Cylinder 2.5L Connecting Rods

( 0 reviews )

* H-Beam con rods compatible for Audi RS3 TT RS 5 Cylinder 2.5L compatible for Audi RS 3 (8PA) 2.5L TFSI (EA855) | 340 PS compatible for Audi RS 3 (8VA) 2.5L TFSI (EA855) | 367 PS compatible for Audi RS 3 (8VA) 2.5L TFSI (EA855EVO) | 400 PS compatible for Audi TT RS (8J) 2.5L TFSI (EA855) | 340 PS compatible for Audi TT RS (8J) 2.5L TFSI (EA855) | 360 PS compatible for Audi TT RS (8S) 2.5L TFSI (EA855EVO) | 400 PS Will fit following compatible for VW 2.5L 5 cylinder FSI engine codes: CEPA, BGP, BGQ, BPR, BRS, CBTA, CBUA. Built in the Jetta, compatible for Golf or compatible for Audi RS3 / TTRS

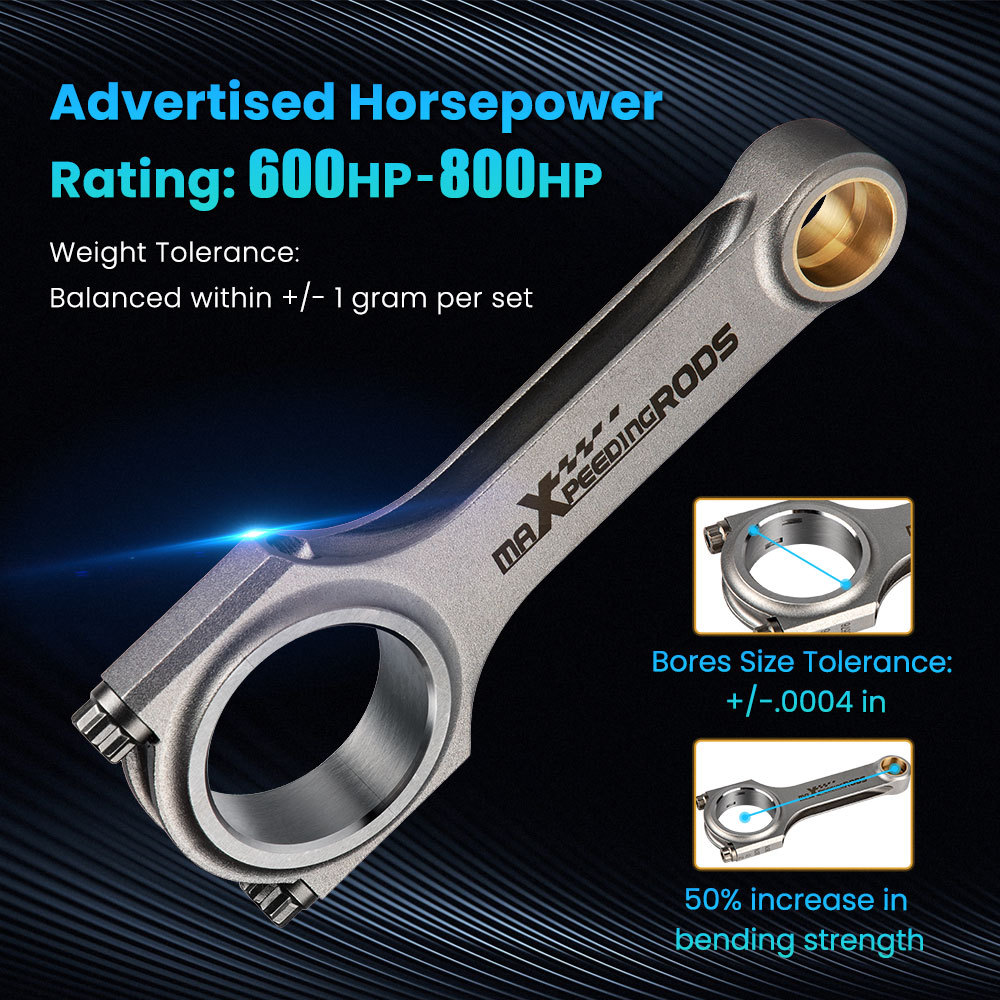

* Advertised Horsepower Rating: 800HP

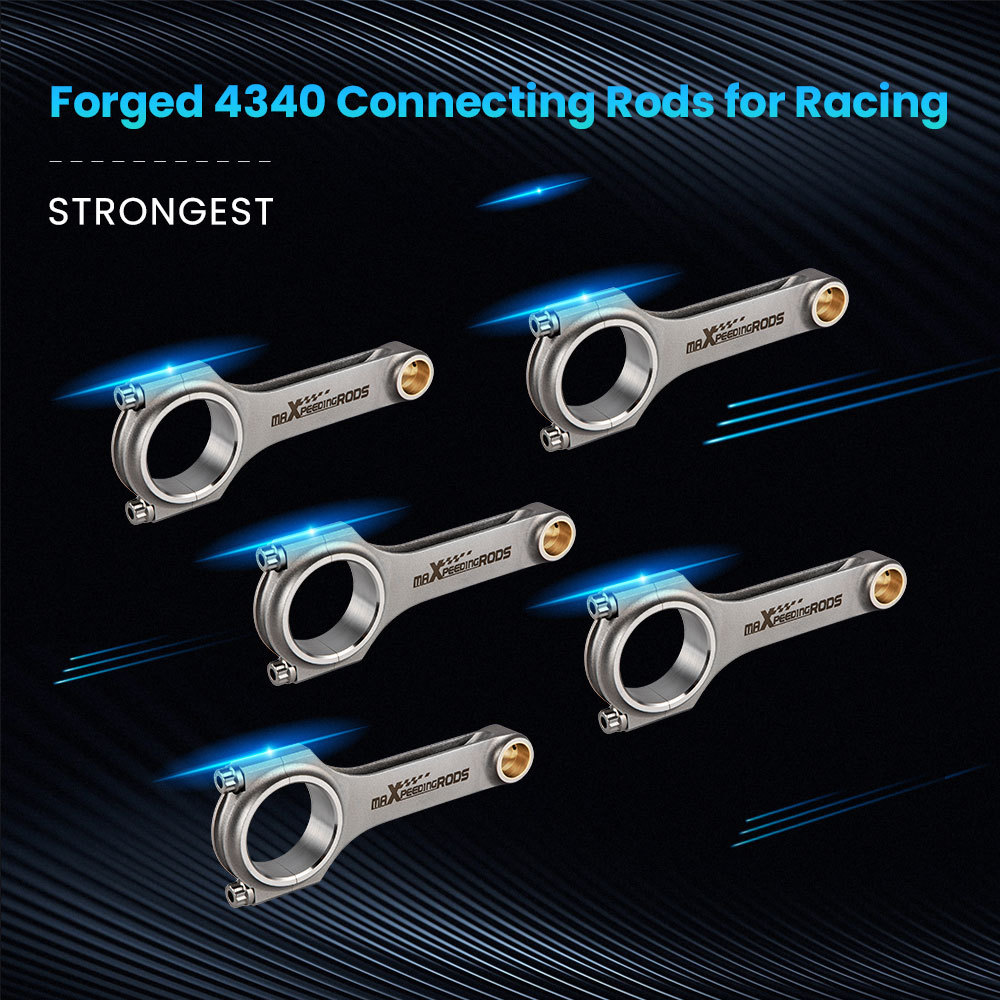

* Material: Forged 4340 aircraft chrome moly quality steel
* Dimensions: Center-to-Center: 5.670"/144.00mm; Big End Bore: 1.9928"/50.6mm; Pin Size: 22mm; Big End Width: 0.862"/21.9mm; Pin Width: 0.862"/24.95mm

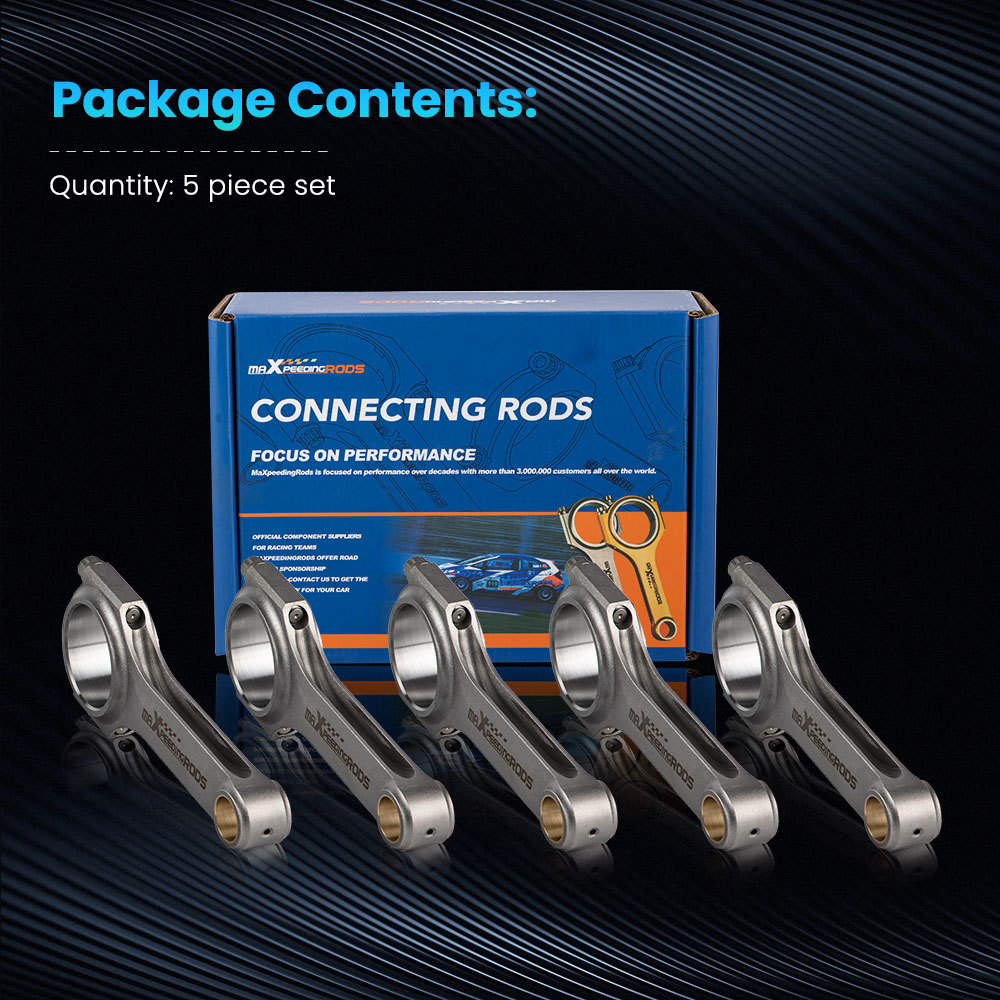

* Package Contents: 5 Pieces of H-Beam Connecting Rods; 10 Pieces of ARP 2000 3/8" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
* Performance Con Rods
* Advertised RPM Rating: 7000-9000 rpm
* Fastener Tensile Strength (psi):200,000 - 220,000 psi
* Balanced to within +/- 1 gram per end
* The big end bores are honed to a +/-.01mm tolerance
* Heat-treating & Shot-peened for remained consistent and strong

SHOW MORE SHOW LESS

Stock

Item Number 3002068407

Quantity:

Add to wishlist
Add to compare

We Accept

MORE OPTIONS

SHOW MORE SHOW LESS

MORE OPTIONS

Combination offer

High Quality Components

With Standard ARP 2000 Bolts （Upgradable ARP L19)

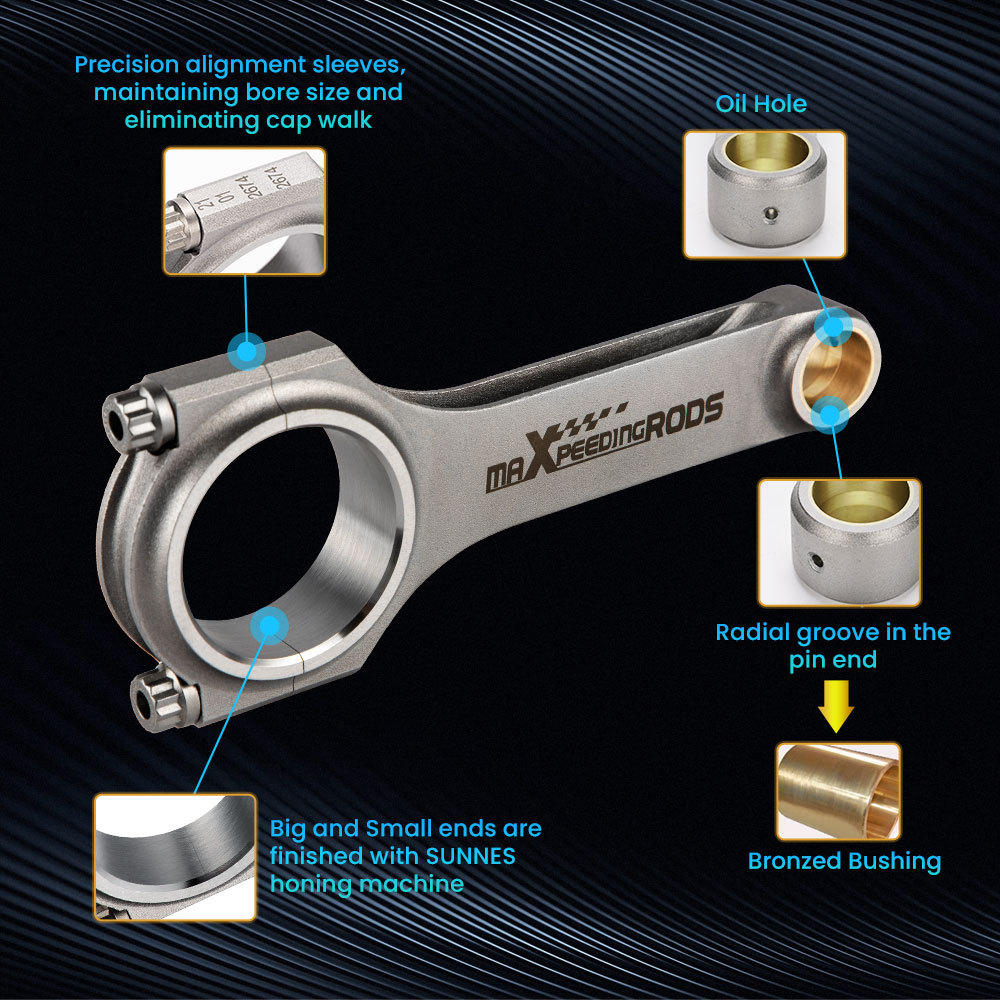

Precision Machining Manufacturing

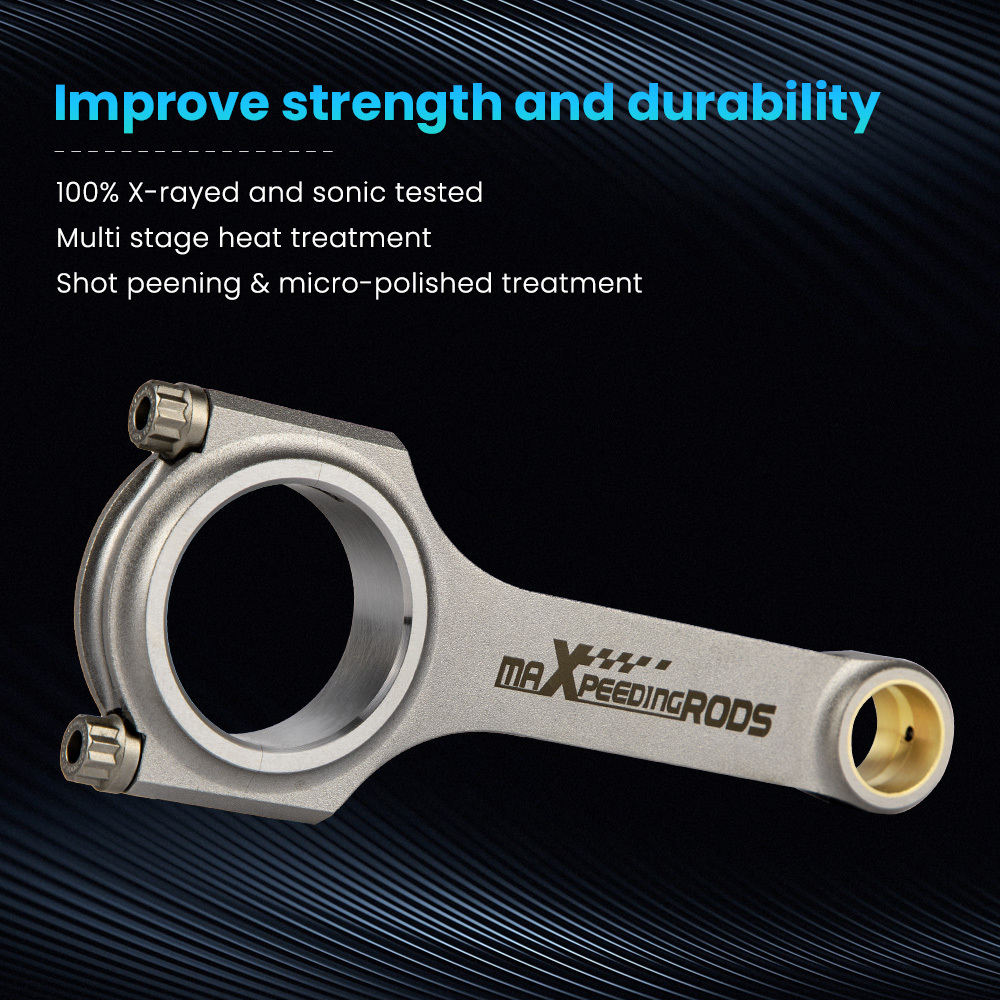

Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances,Precision rod cap alignment dowels

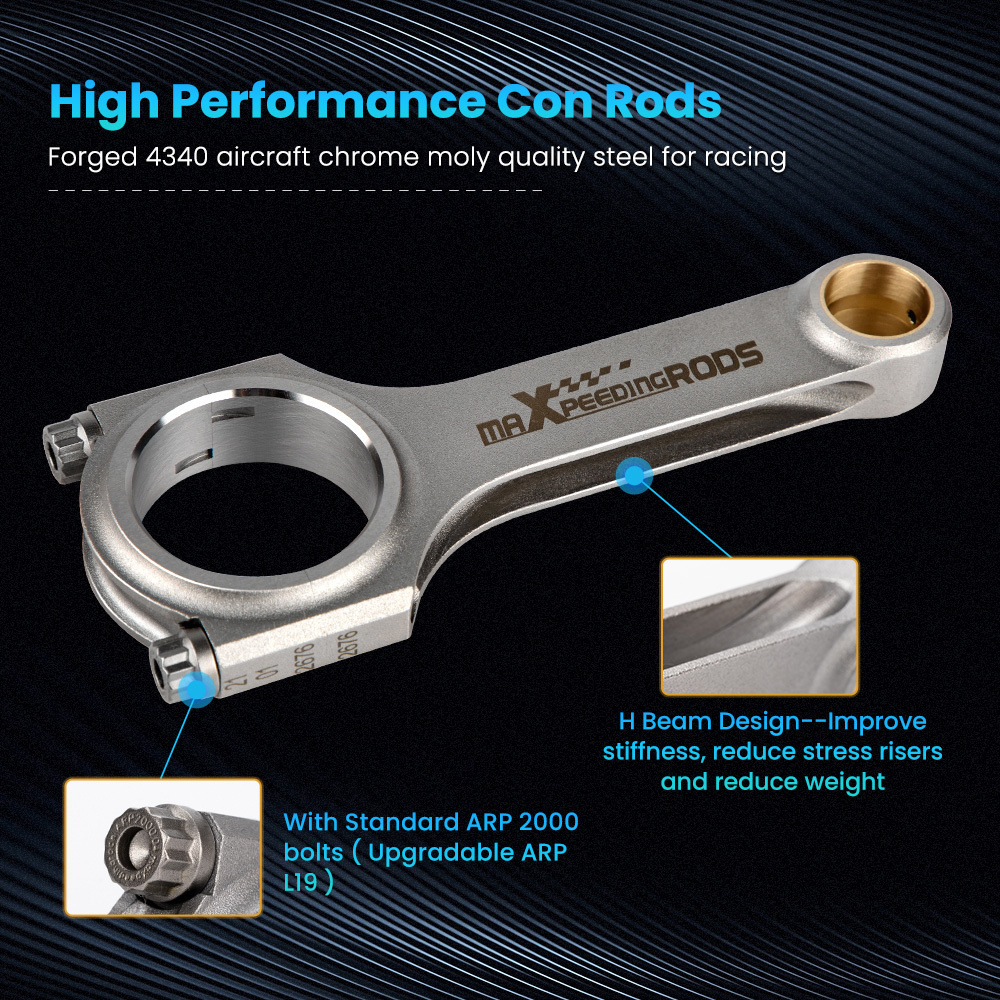

Professional H-Beam Design

Improve stiffness, reduce stress risers and reduce weight

High Performance Material

Forged 4340 aircraft chrome moly quality steel for racing.Advertised Horsepower Rating:800HP

Application

Compatible for Audi RS3 TT RS 5 Cylinder 2.5L
Compatible for Audi RS 3 (8PA) 2.5L TFSI (EA855) | 340 PS
Compatible for Audi RS 3 (8VA) 2.5L TFSI (EA855) | 367 PS
Compatible for Audi RS 3 (8VA) 2.5L TFSI (EA855EVO) | 400 PS
Compatible for Audi TT RS (8J) 2.5L TFSI (EA855) | 340 PS
Compatible for Audi TT RS (8J) 2.5L TFSI (EA855) | 360 PS
Compatible for Audi TT RS (8S) 2.5L TFSI (EA855EVO) | 400 PS
Will fit following compatible for VW 2.5L 5 cylinder FSI engine codes: CEPA, BGP, BGQ, BPR, BRS, CBTA, CBUA.
Built in the Jetta, compatible for Golf or compatible Compatible for Audi RS3 / TTRS

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 5 Pieces a set
Bolts:Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect

Dimension

Center-to-Center: 5.670"/144.00mm
Big End Bore: 1.9928"/50.6mm
Pin Size: 22mm
Big End Width: 0.862"/21.9mm
Pin Width: 0.862"/24.95mm

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
