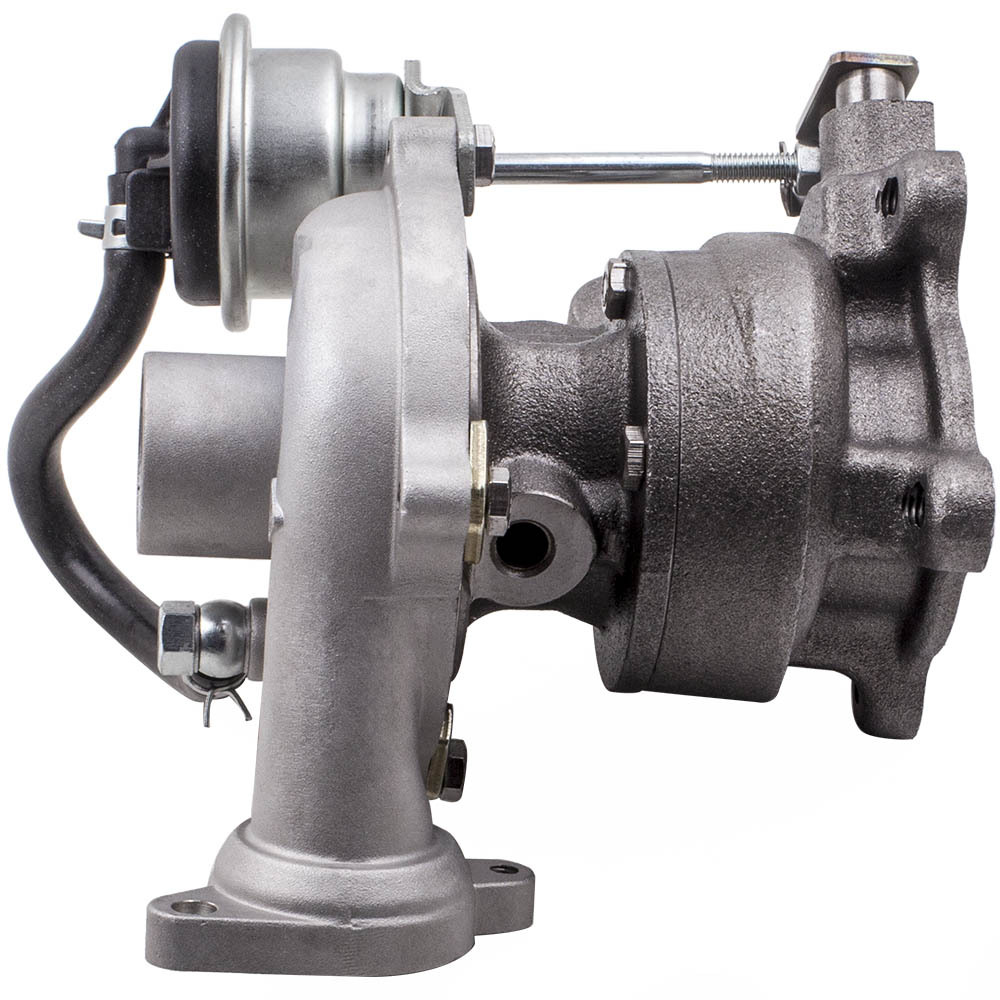

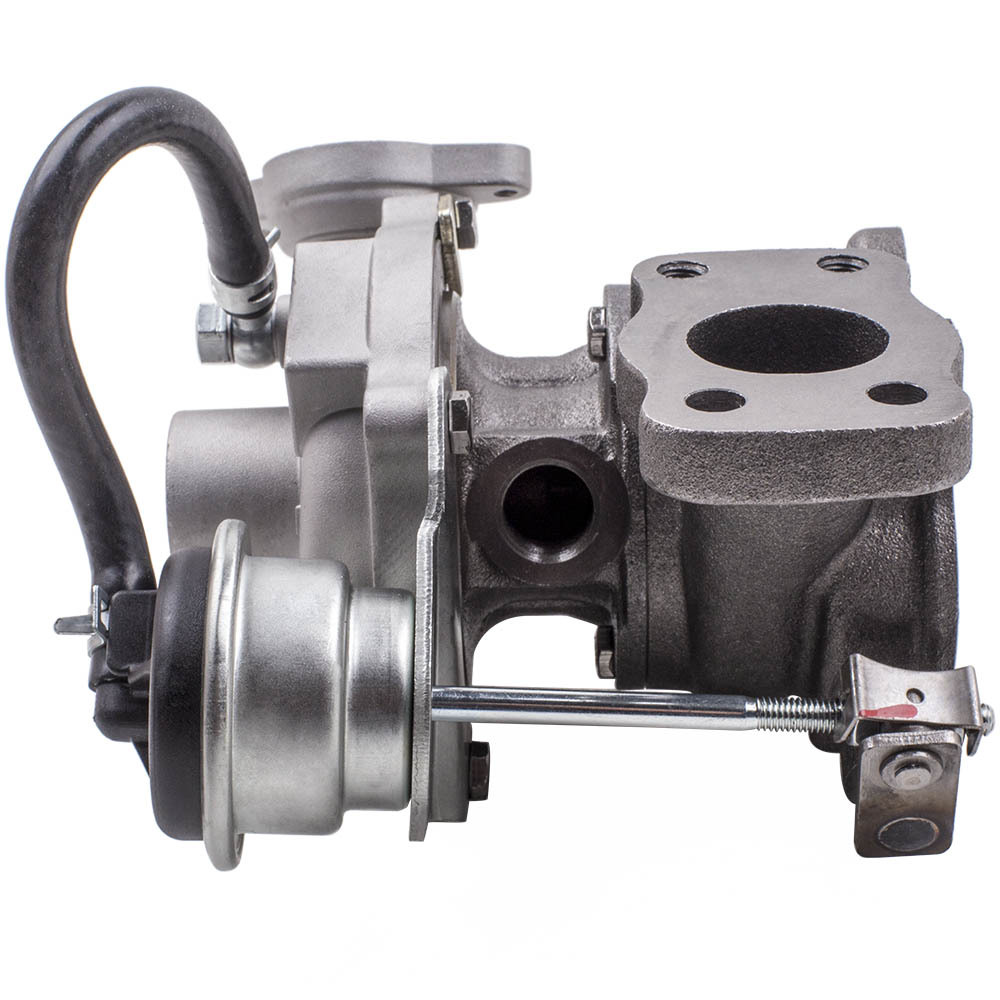

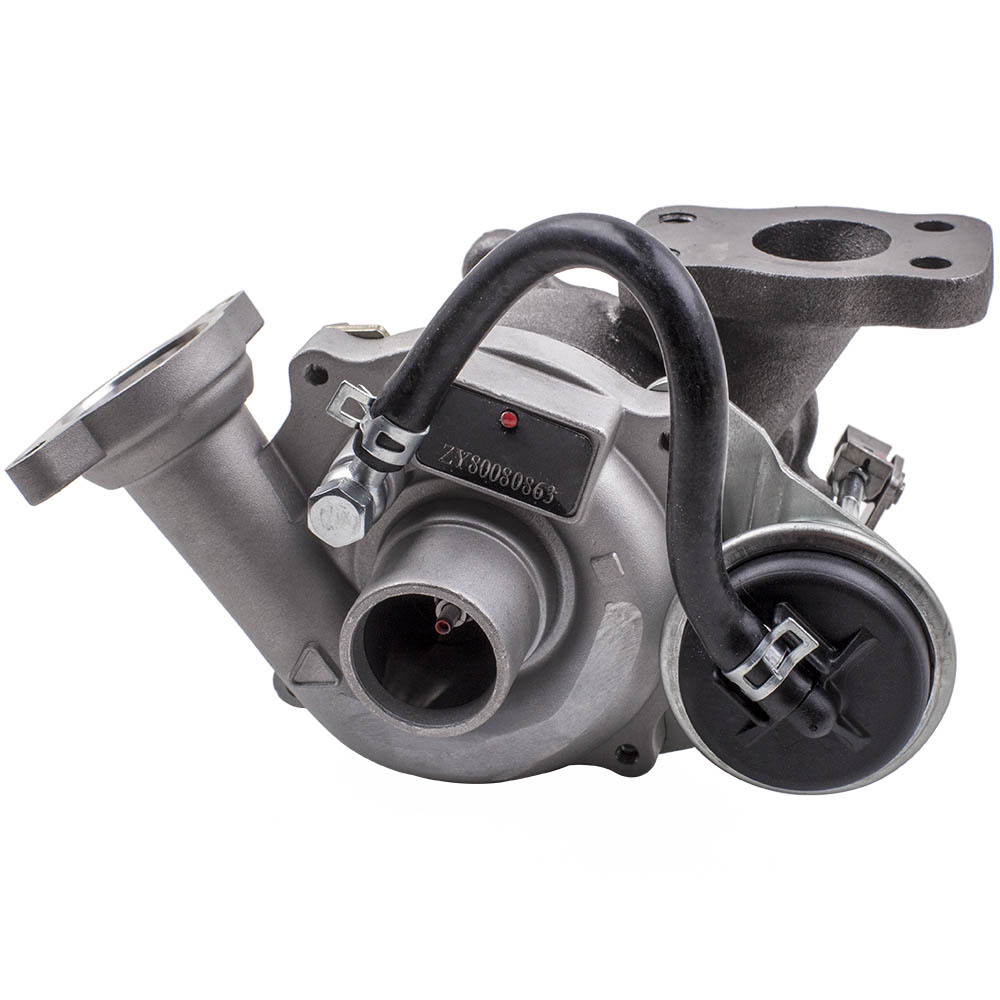

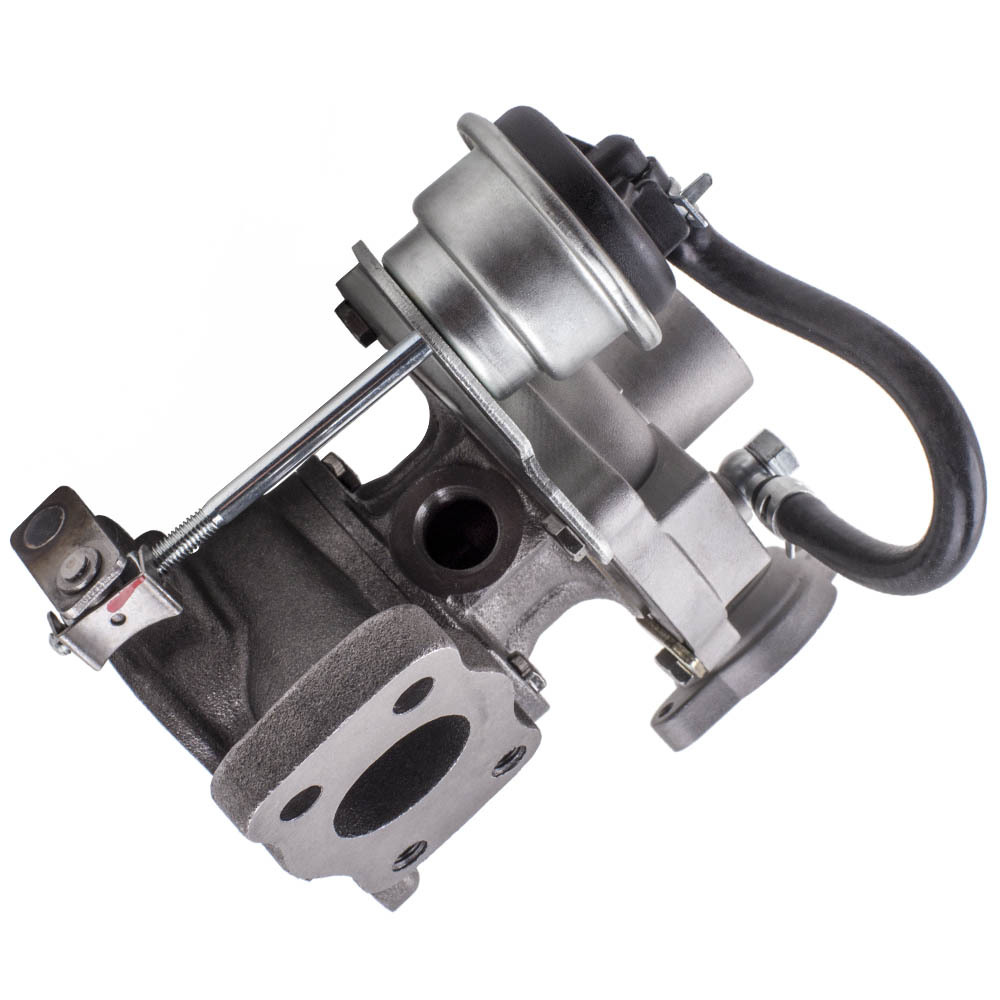

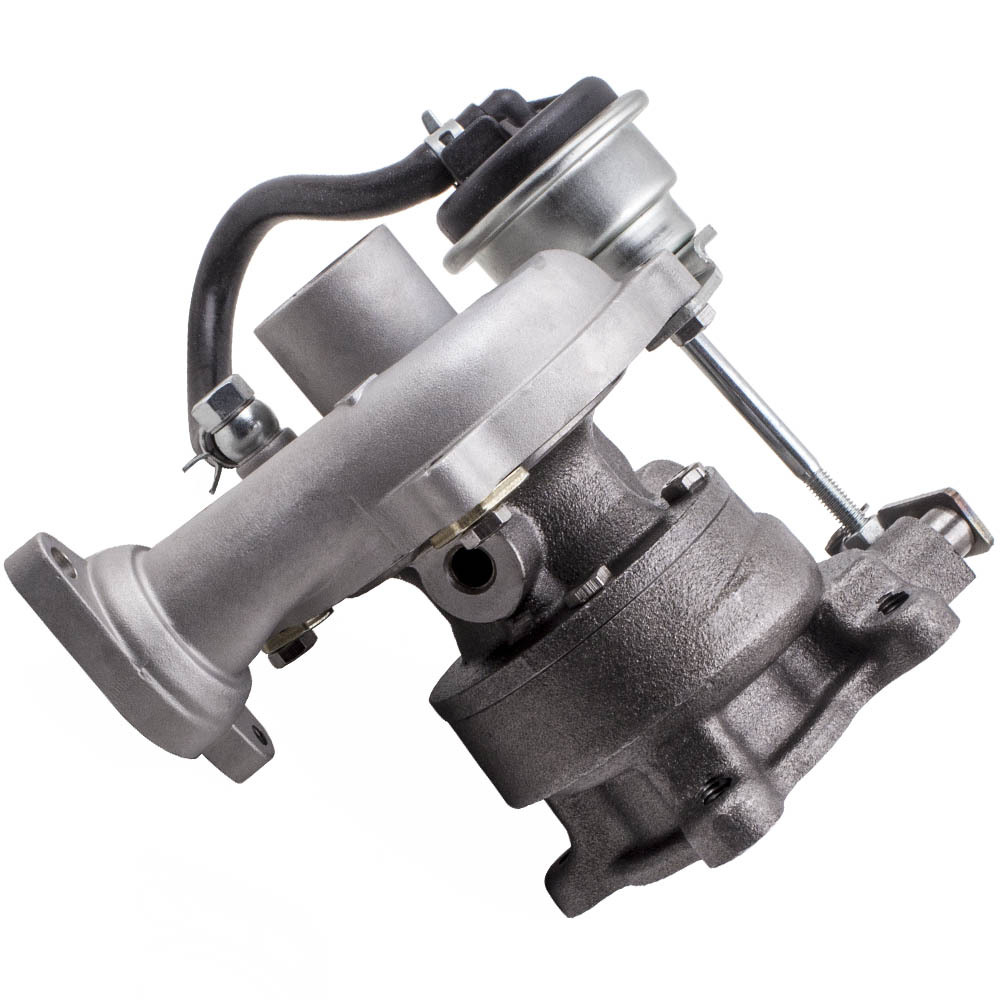

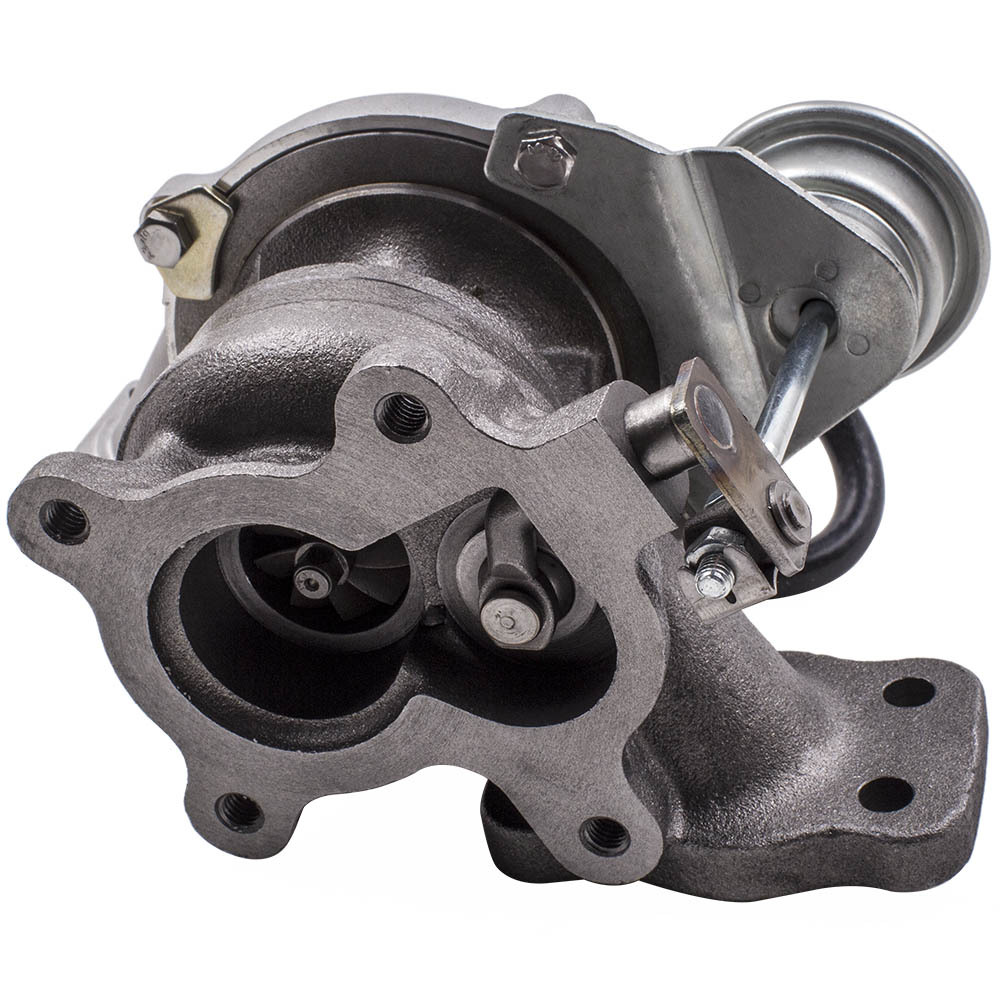

Compatible for Citroen C1 C2 C3 Xsara 1.4L D DV4TD / 8HX KP35 Turbo Turbocharger

Application

Compatible for Citroen C1 1.4HDi DV4TD 50kW/68HP 2005-
Compatible for Citroen C2 1.4HDi DV4TD/8HX 50kW/68HP 2003-
Compatible for Citroen C3 1.4HDi DV4TD/8HX 50kW/68HP 2002-
Compatible for Citroen Xsara 1.4HDi DV4TD 50kW/68HP 2005-
Compatible for Ford Fiesta 1.4TDCi DV4TD/8HX 50kW/68HP 2002-
Compatible for Ford Fusion 1.4LTDC DV4TD/8HX 50kW/68HP 2002-
Compatible for Mazda 2 1.4L D DV4TD/8HX 50kW/68HP 2003 -2009
Compatible for Peugeot 1007 1.4HDi DV4TD 50kW/68HP 2005-
Compatible for Peugeot 107 1.4HDi DV4TD 40kW/54HP 2002-
Compatible for Peugeot 206 1.4HDi DV4TD 50kW/68HP 2002-
Compatible for Peugeot 207 1.4HDi DV4TD 50kW/68HP 2002-
Compatible for Peugeot 307 1.4HDi DV4TD  50kW/68HP 2002-

OE/Part number

54359700009, 5435-970-0009，5435 970 0009
54359700007, 5435-970-0007，5435 970 0007
54359700001, 5435-970-0001，5435 970 0001
54359880009, 5435-988-0009, 5435 988 0009
54359880007, 5435-988-0007，5435 988 0007
54359880001，5435-988-0001，5435 988 0001
54359710009，5435-9710-009，5435 9710 009

2S6Q6K682AA, 2S6Q-6K682-AA,2S6Q 6K682 AA
2S6Q6K682AB, 2S6Q-6K682-AB,2S6Q 6K682 AB
2S6Q6K682Compatible for AC, 2S6Q-6K682-Compatible for AC,2S6Q 6K682 compatible for AC
2S6Q6K682AD, 2S6Q-6K682-AD,2S6Q 6K682 AD

9643574980,9643675880,9648759980
0375G9,0375K0,1219456,1348618
Y40113700，Y40113700A，Y40113700B，Y40113700C

HOW TO IDENTIFY YOUR TURBOCHARGER
If you are not sure fitment for your old turbo , please let us know this information :
1 . The OEM code information from your original turbo nameplate
2 . The Engine code & KW , HP , Year for your car
3 . The Photos of your complete turbo
4 . Please note that the registration number cannot identify your turbocharger

Specification

Engine Model：KP35
Engine Code： DV4TD，8HX
Cooling Type：Oil Cooled
Bearing Type: Floating Bearing
Hosepower:  Up to 68HP
Condition: Brand New
Package Size:25x 25 x 22 cm
Package Weight: 3840g

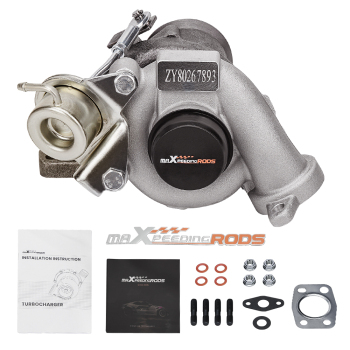

Accessories: You will get exactly as shown in the picture above

Feature

*Product Material
1. Turbine housing ：Ductile iron qt450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. Quality assurance
4. High-Speed oil seal ring
5. Strict quality inspection
6. Precision clearance

*All necessary gaskets included for ease of installation

Note

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Technology Advantage

1. 100% balancing Test by TURBOTECHNICS VSR3
This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static and dynamic balance detection technology, and reliability.

2. G3-min-Flow VNT Turbo testing
The G3-min-Flow (Air) machine can accurately measure the flow through the VGT turbo and verify that it is set to the OEM factory setting. easily adjust the critical minimum-flow stop to the correct setting before the turbocharger leaves workshop.

3. Advanced Actuator Tester/Programmer
Electronic actuator diagnostic with G3-rea-master can rewrite memory in electronic actuators and also allows to modify operation range of the actuator arm, that includes changing open and close positions of the working angle.
