Bearing Disassembly Puller Inner Hole Puller Removal Tool Three-jaw Set New

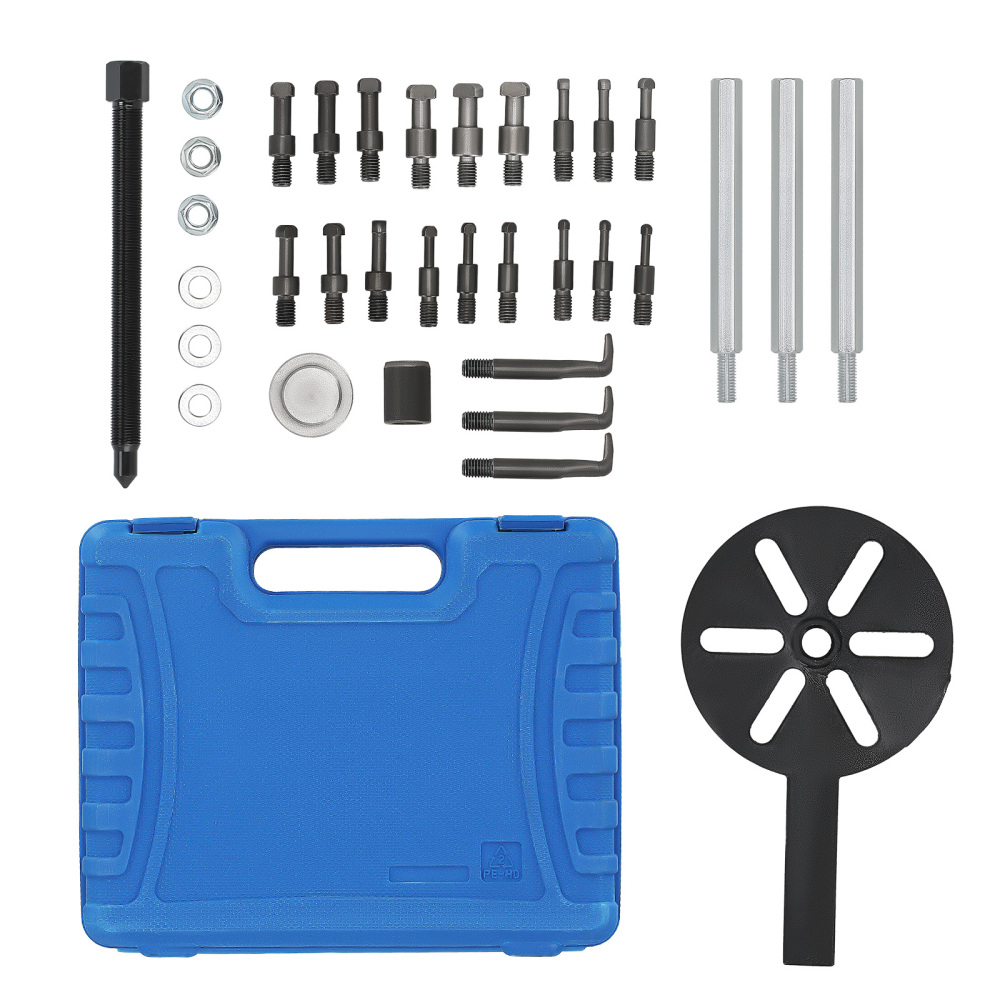

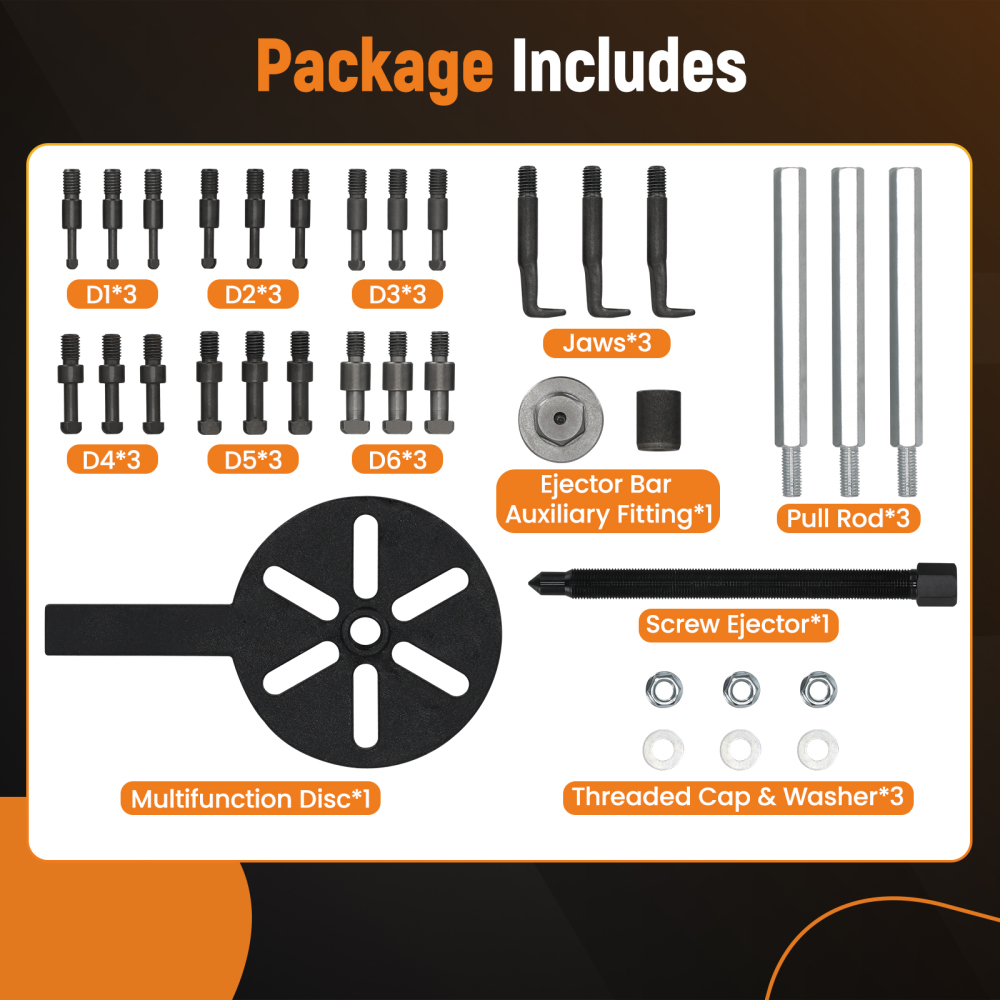

Package included

Multifunction Disc *1
Screw Ejector *1
Pull Rod *3
D1*3, D2*3, D3*3, D4*3, D5*3, D6*3
Optional Puller *3
Ejector Bar Auxiliary Fitting*1
Threaded Cap & Washer *3

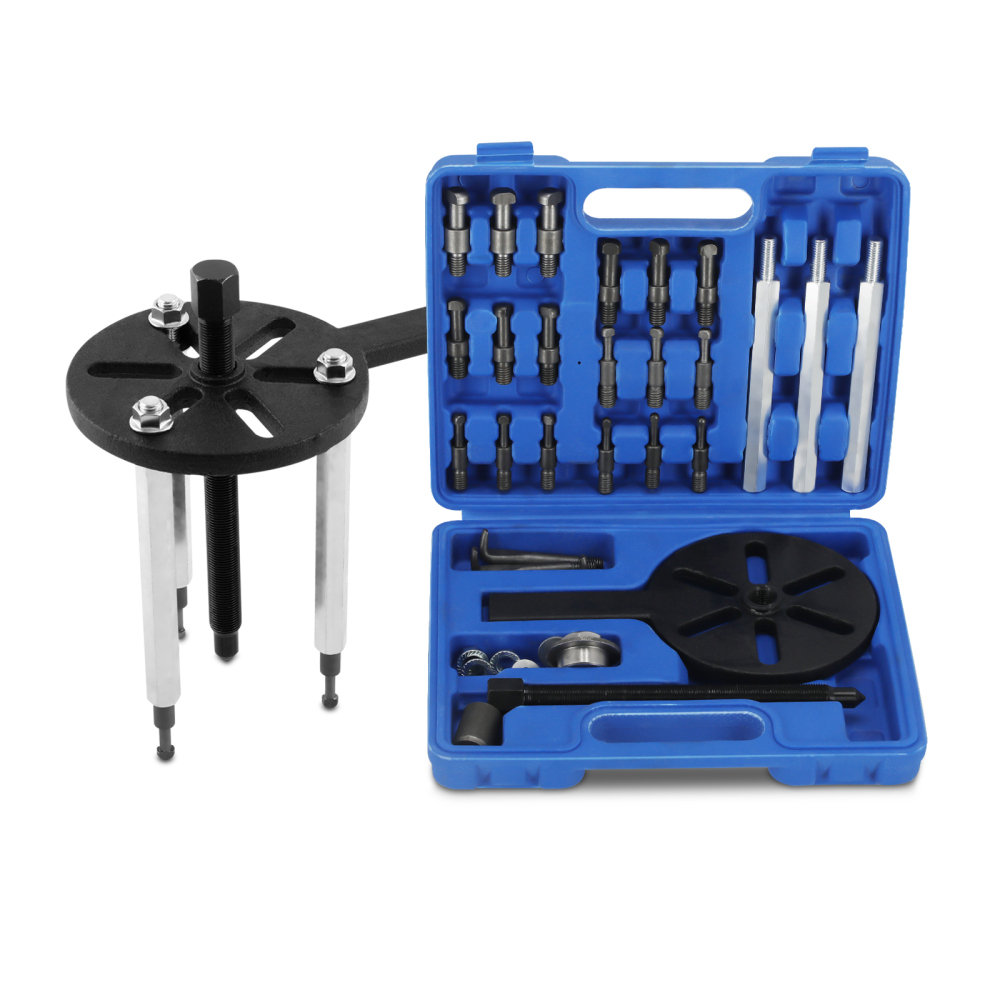

（As shown in the figure）

Feature

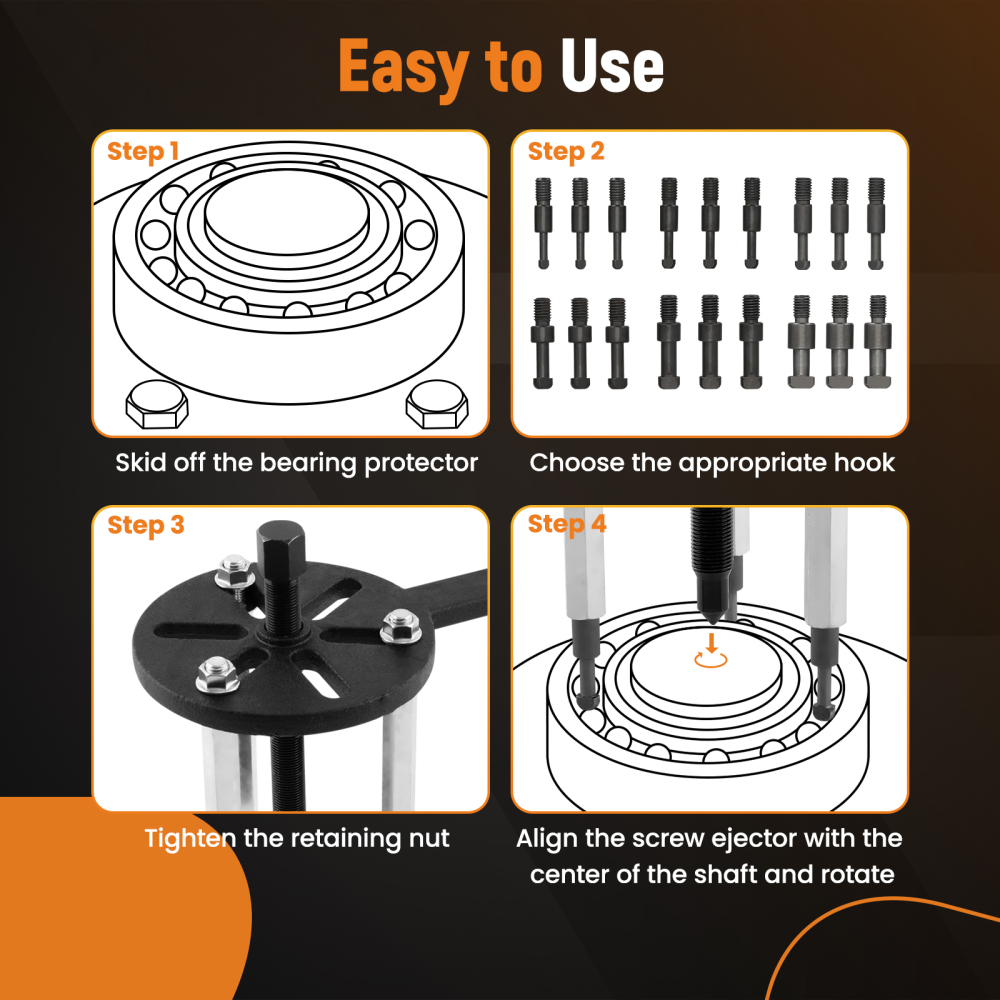

For various types of bearings, simply select the appropriate collet, secure it to the inner race, and continuously tighten the jack nut to easily remove the bearing.

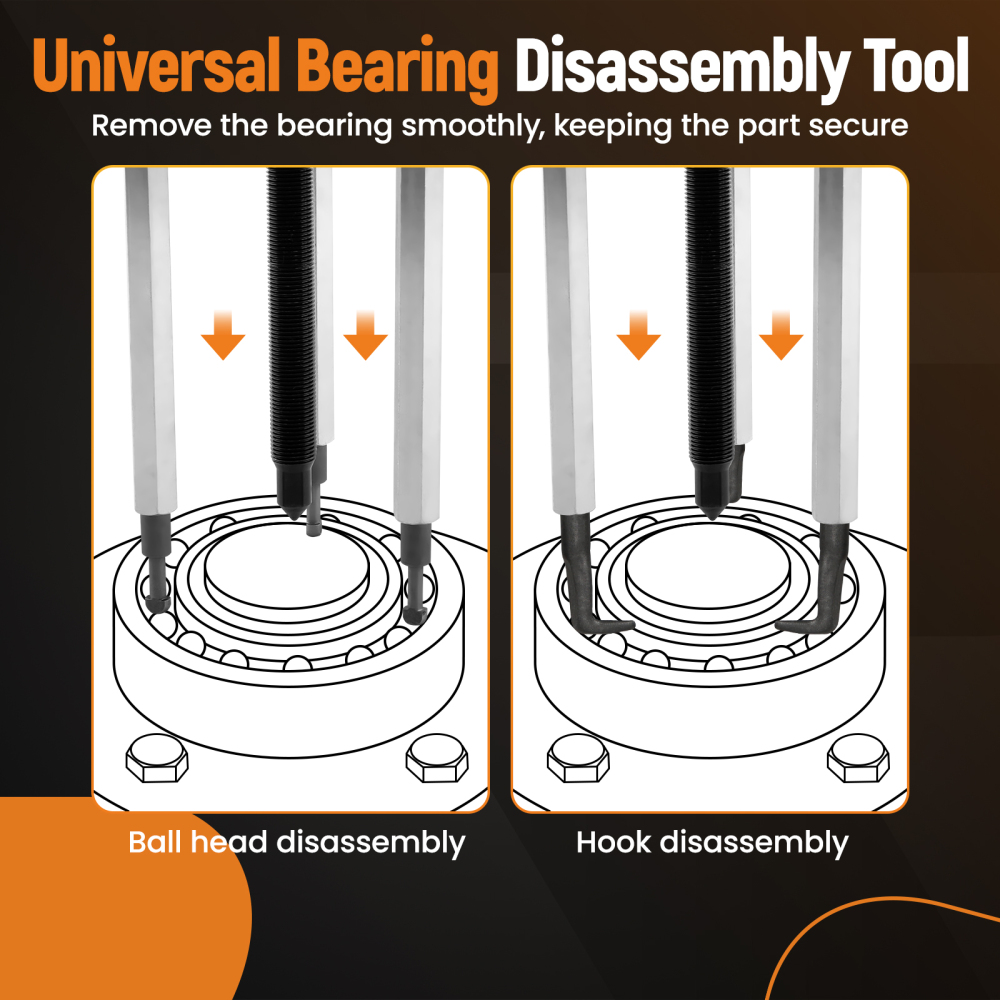

This internal bearing puller set includes six collets of different sizes and specifications, enabling the removal of a wide variety of bearings in various shapes and sizes. The addition of three new hooks makes disassembly easier and extends the set's applicability to a broader range of bearings.

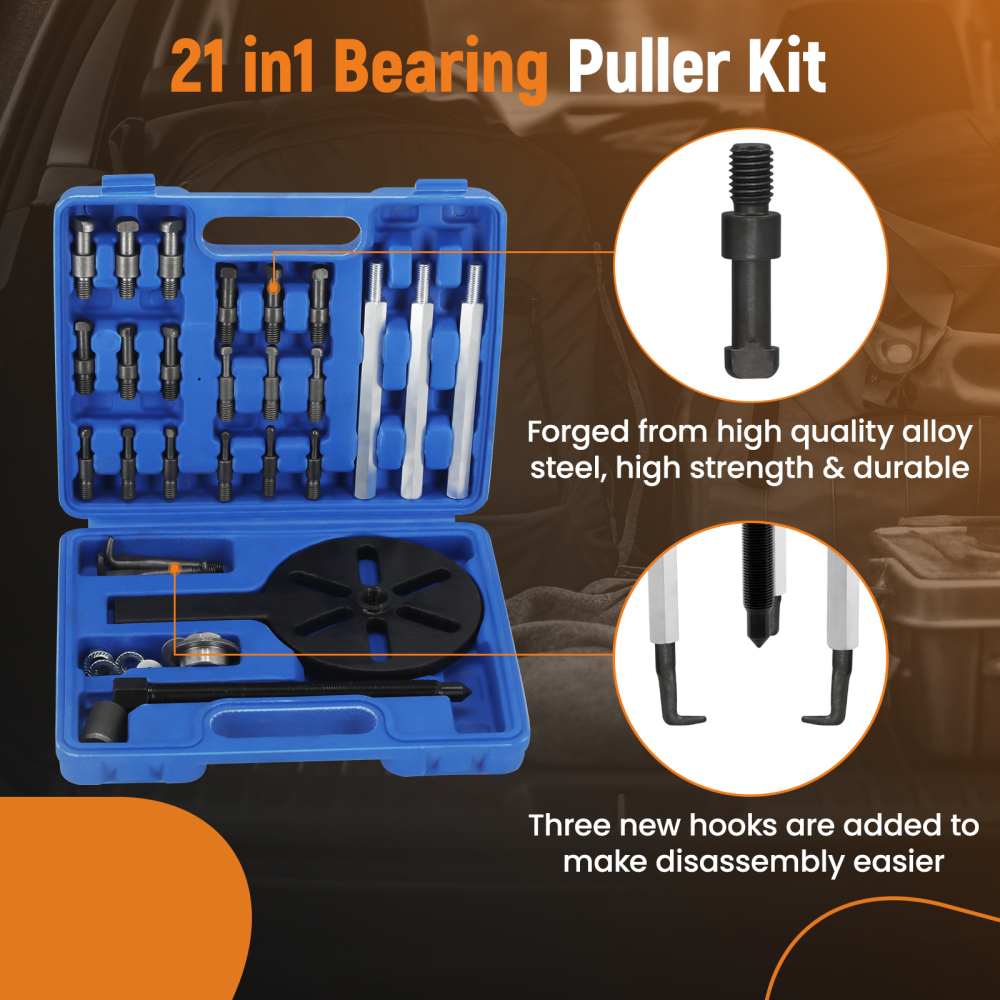

The wheel bearing removal tools come in a box for easy carrying and storage

Note

*Please carefully check whether it is compatible with your bearings before purchasing
*Manual measurement of dimensions may result in an error of 1-3cm
*Due to different shooting lighting, there may be slight color differences between the image and the actual object

Specification

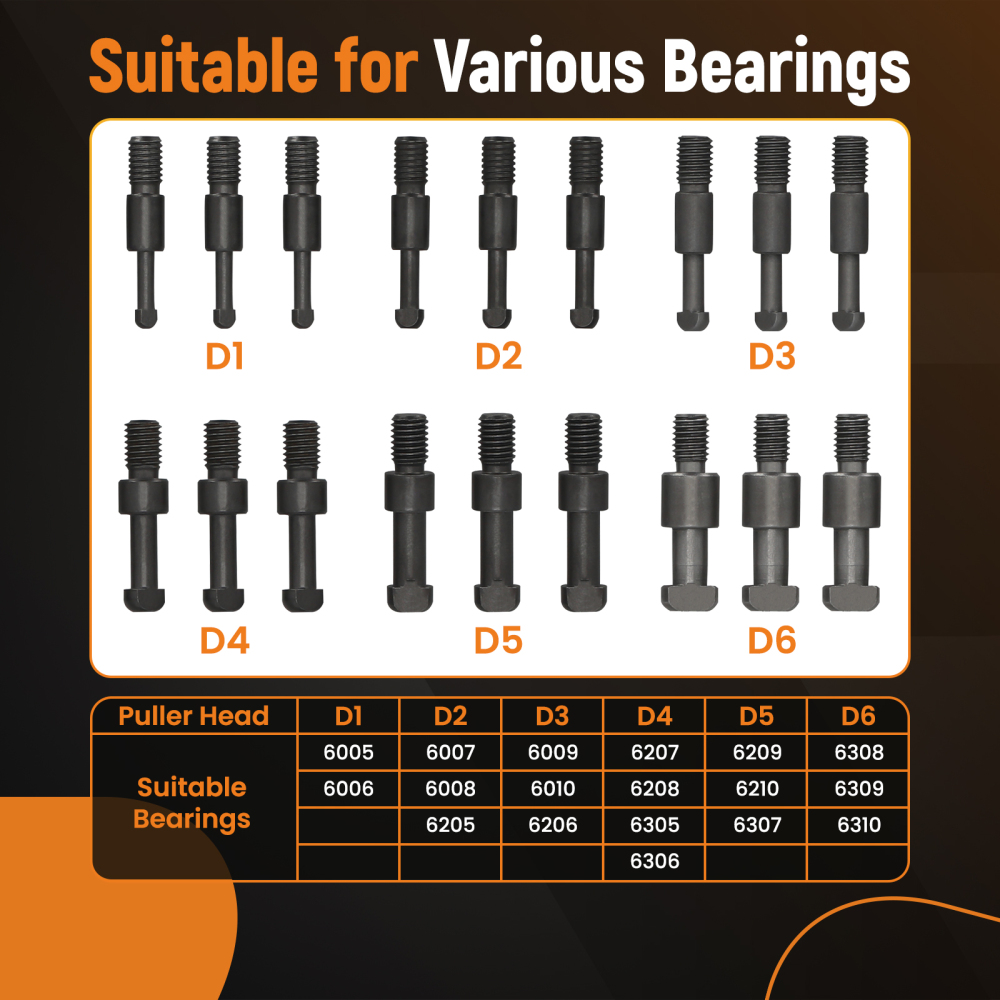

Puller collets: DL1/DL2/DL3/DL4/DL5/DL6
Applicable bearings: 6005/6006/6007/6008/6009/6010/6205/6206/6207/6208/6209/6210/6305/6306/6307/6308/6309/6310
Material: 40Cr

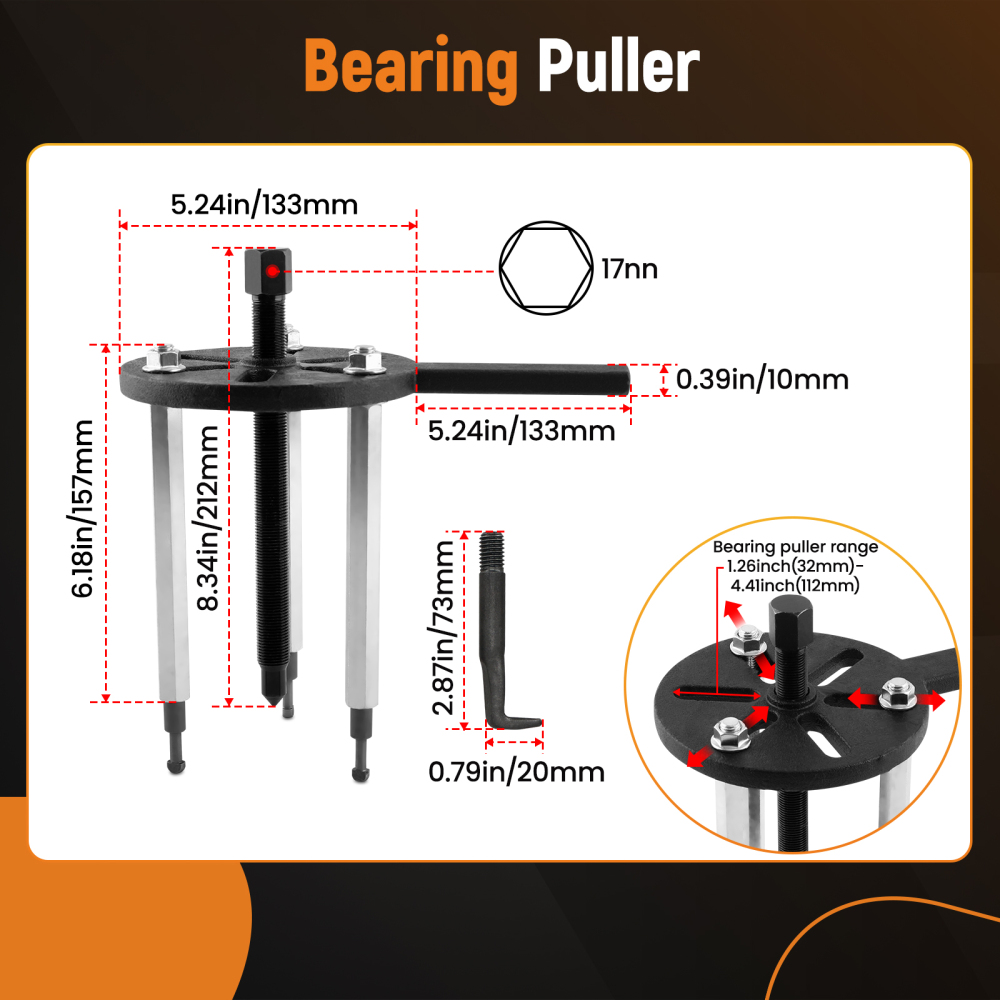

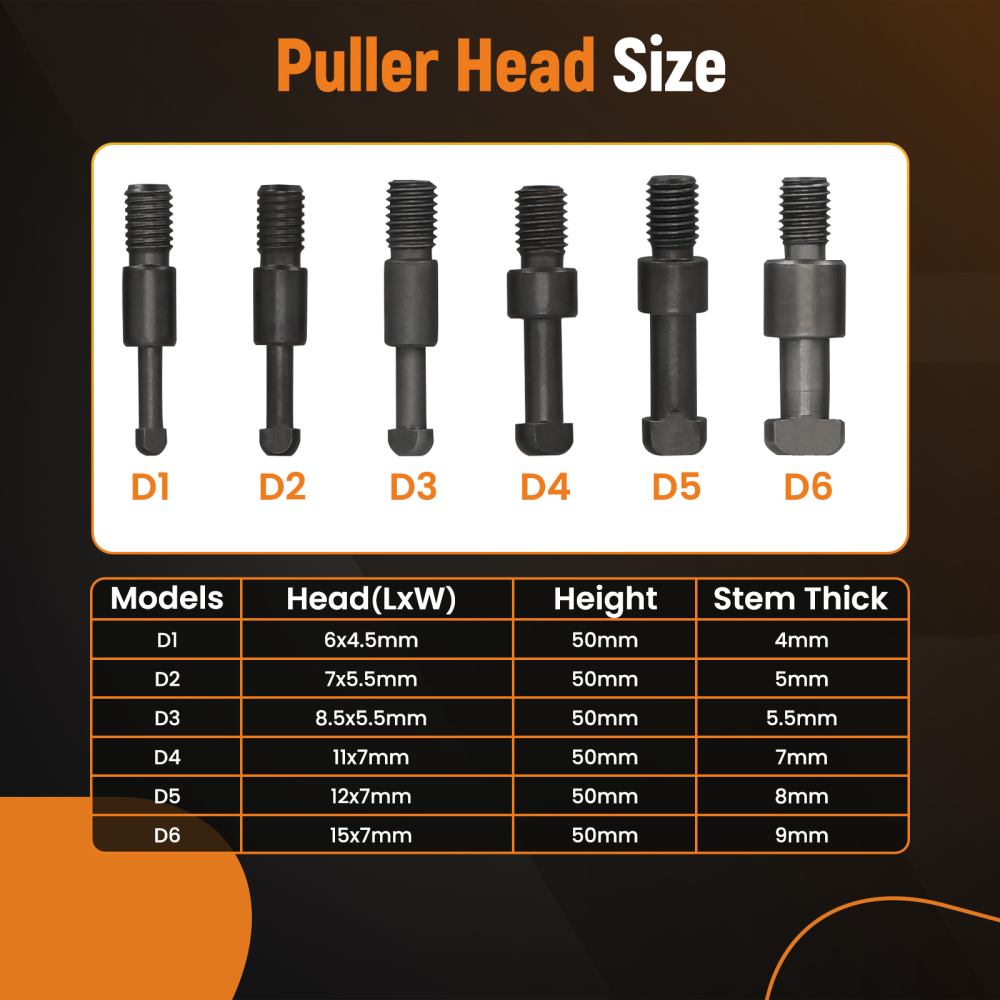

Please refer to the picture for dimensions.
