Air Suspension Bag Kit compatible for Ford Transit 2001-2020 RWD Twin Rear Wheel 8818.5LBS

Application

Compatible For Ford Transit 2001-onwards RWD Twin rear wheel

BODY TYPE: PANEL VAN, TIPPER, MOTORHOME, CAMPER, BOX VAN , HORSEBOX , MINIBUS, LUTON, CREW VAN, RECOVERY, DROPSIDE, FLATBED

Specification

Condition: Brand New
Placement on Vehicle: Rear left and right
Max loading：4000Kg/8818.5LBS
Package Length, width and height: 74*27*21 cm
Package Wight: 16.5 kg

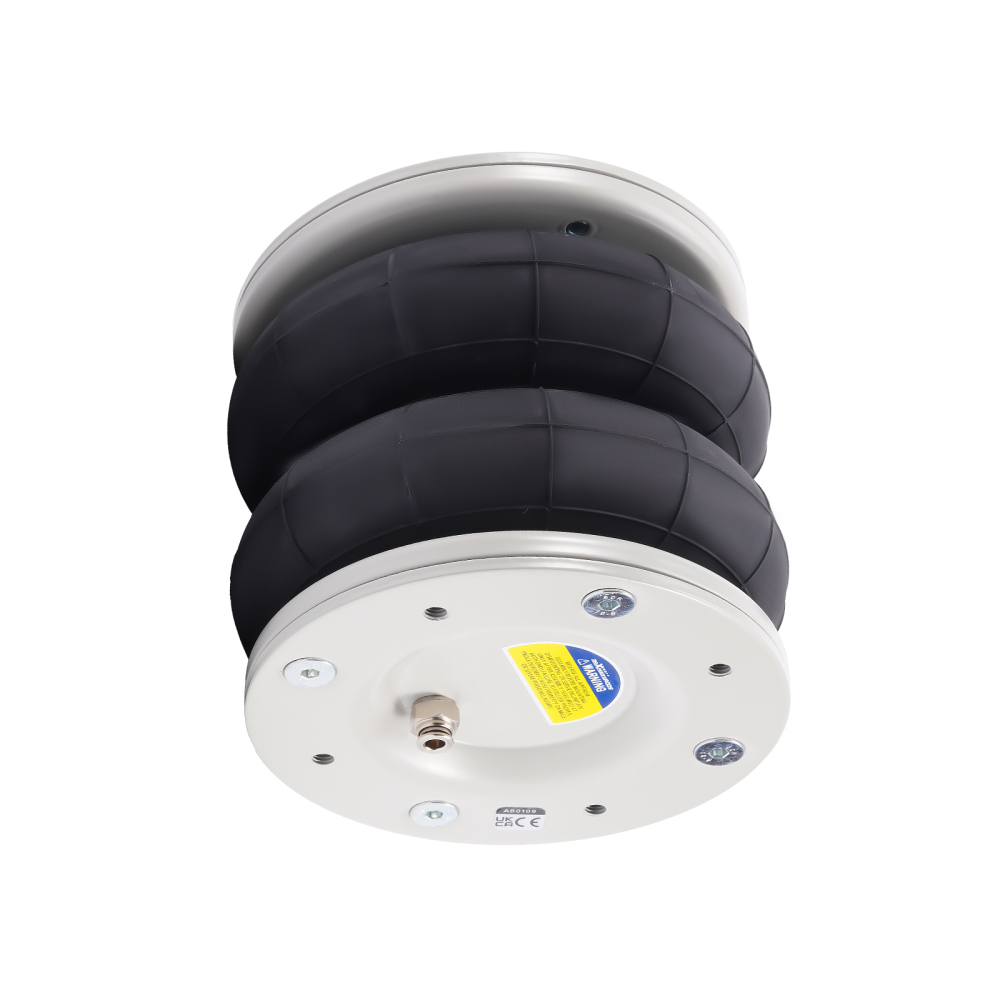

Air spring---
Stroke: 140 mm
Max. Extended: 230 mm
Min. Compressed: 90 mm
Operating Pressure : ≤2.0 MPA
Temperature range：≤+70°, ≥-40°
Air pump---
Power: 120W
Output Voltage: 12V
Maximum current: 10A
Maximum Working Voltage: 10bar（1MPa ）

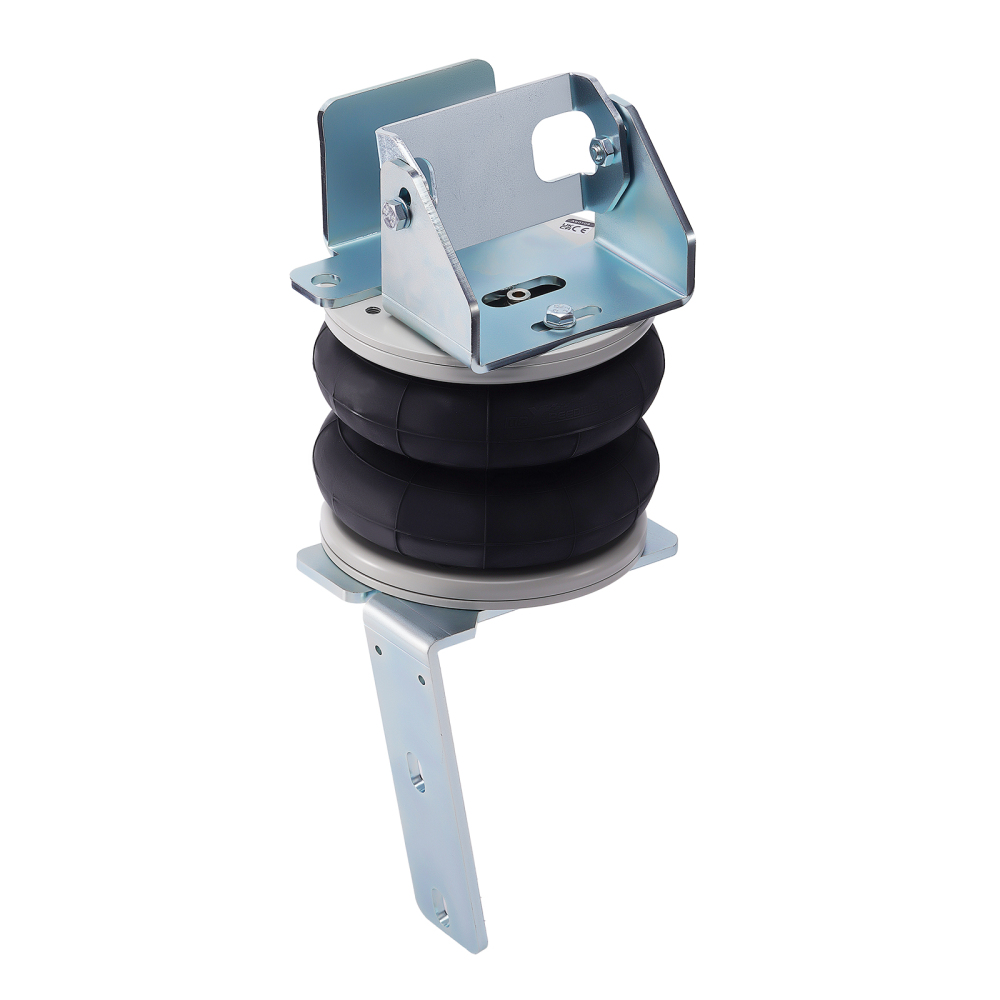

The package includes (as the picture shows):
2x Air spring
1x Air suspension compressor
1x Gauge
7x Mounting bracket
1x Air line 11.5m
Mounting bolts and Air fittings

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe
2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3、100% Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
5. 4-Layer reinforcement construction: Enhances air spring load support.
6、Use high-quality steel with high load-bearing capacity and long life.
7、Excellent and practical bolt-on installation.
8、Safe carrying capacity and stability
9、Restore the original ride height and improve ride quality
10、Ensure our driving comfort and reduce tire wear.
11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
