Compatible for Nissan s14 coilovers 240SX Silva 1994-1998 Adj. Height Shocks Coilovers Kits lowering kit

Application

for S14 Silvia 1994-1998 (Japan Market)
for S14 200SX BASE MODEL/ LE 1994-1998 (Europe / Australia/ New Zealand Market)
for S14 240SX BASE MODEL/ LE/SE 1995-1998 (USA Market)
Note: Don't compatible for Nissan 200SX SE /SE-R

Specification

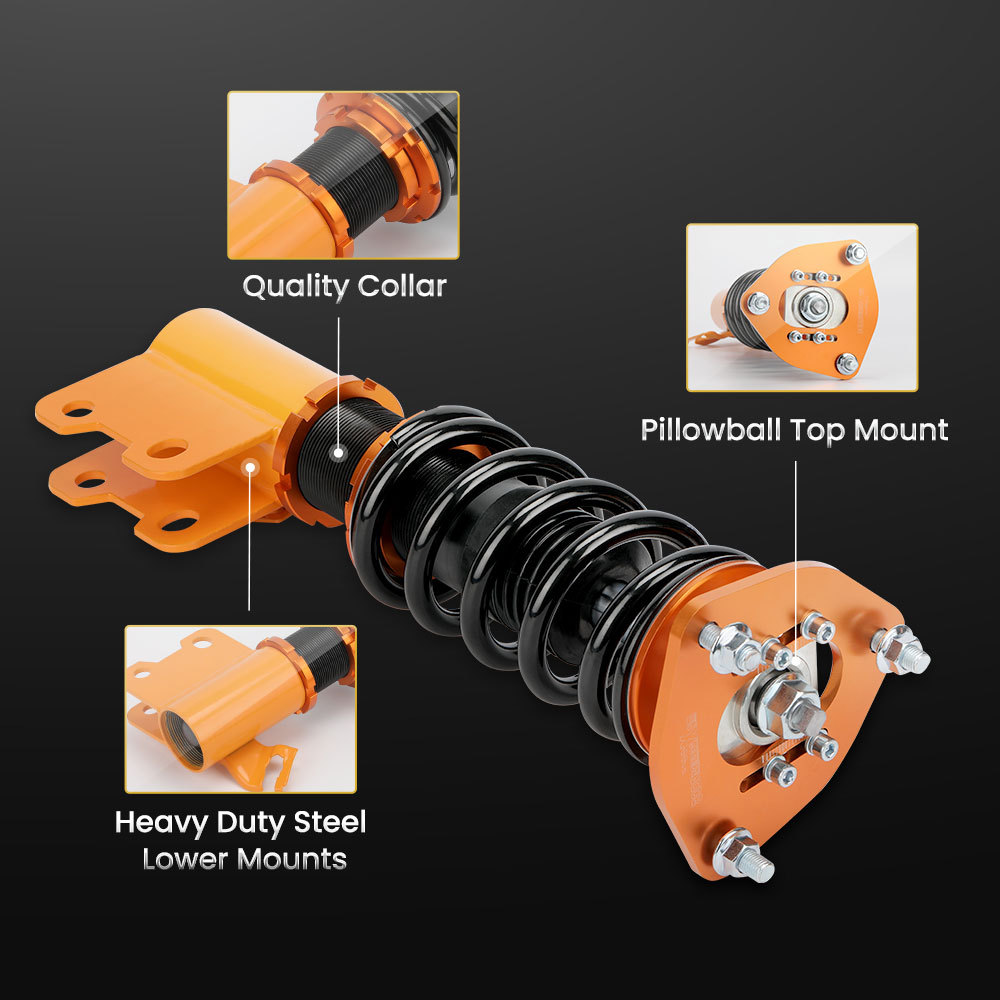

Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear
Damping:No adjustable damper force
Spring rate Front: 8 kg/mm (448 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 180mm
Spring length Rear: 255mm

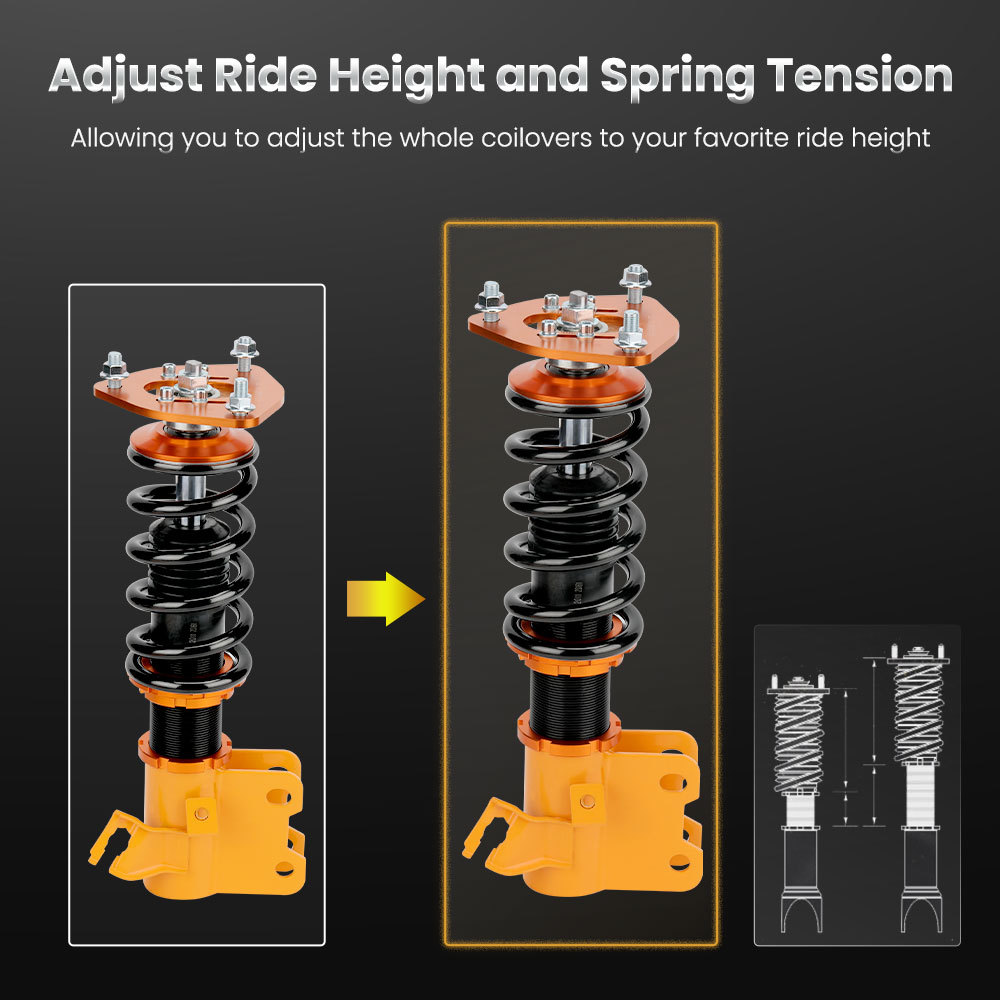

Adjustable height: lowering 1-3 inch
Coilover overall length Front: 420mm-470mm
Coilover overall length Rear: 550mm-700mm
Shock type: Twin tube.
Spring Preload: 7-10 mm.
Color: gold.

Package included

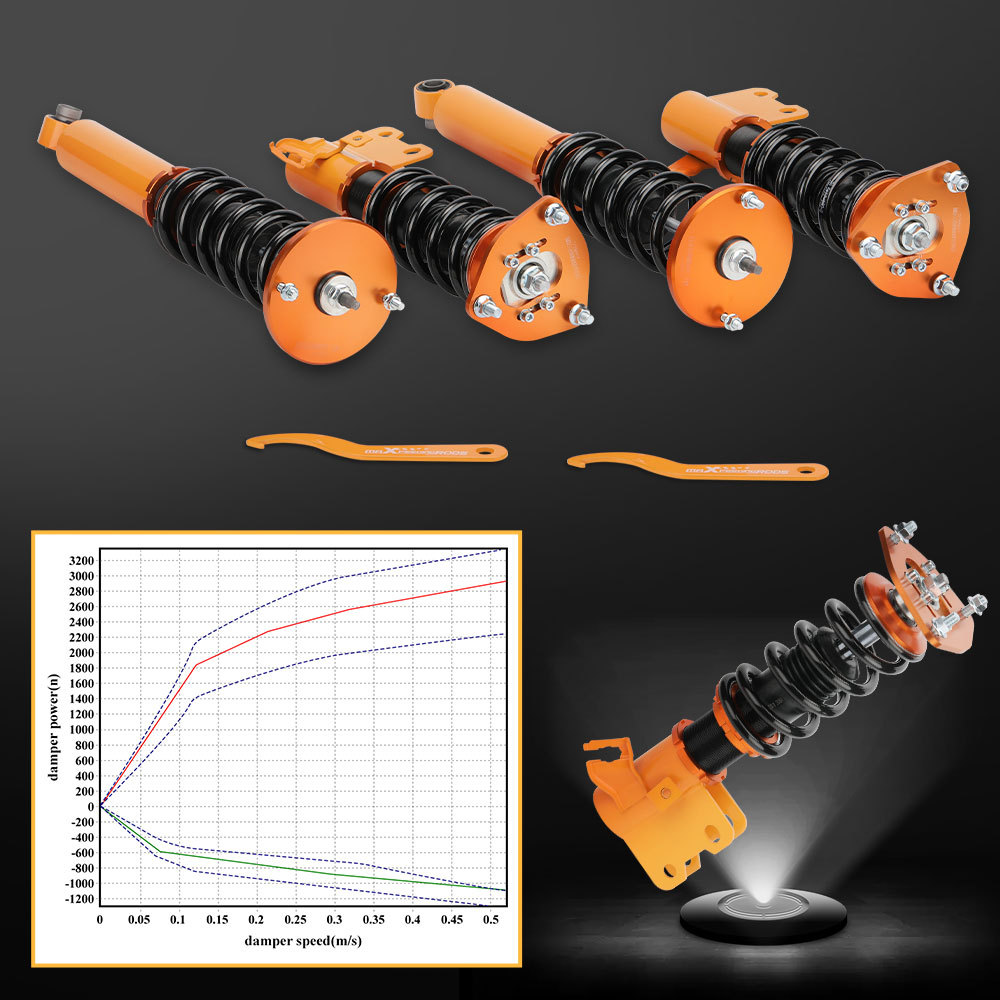

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight: 26.06kg
Package size: 71*51*21cm

Feature

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

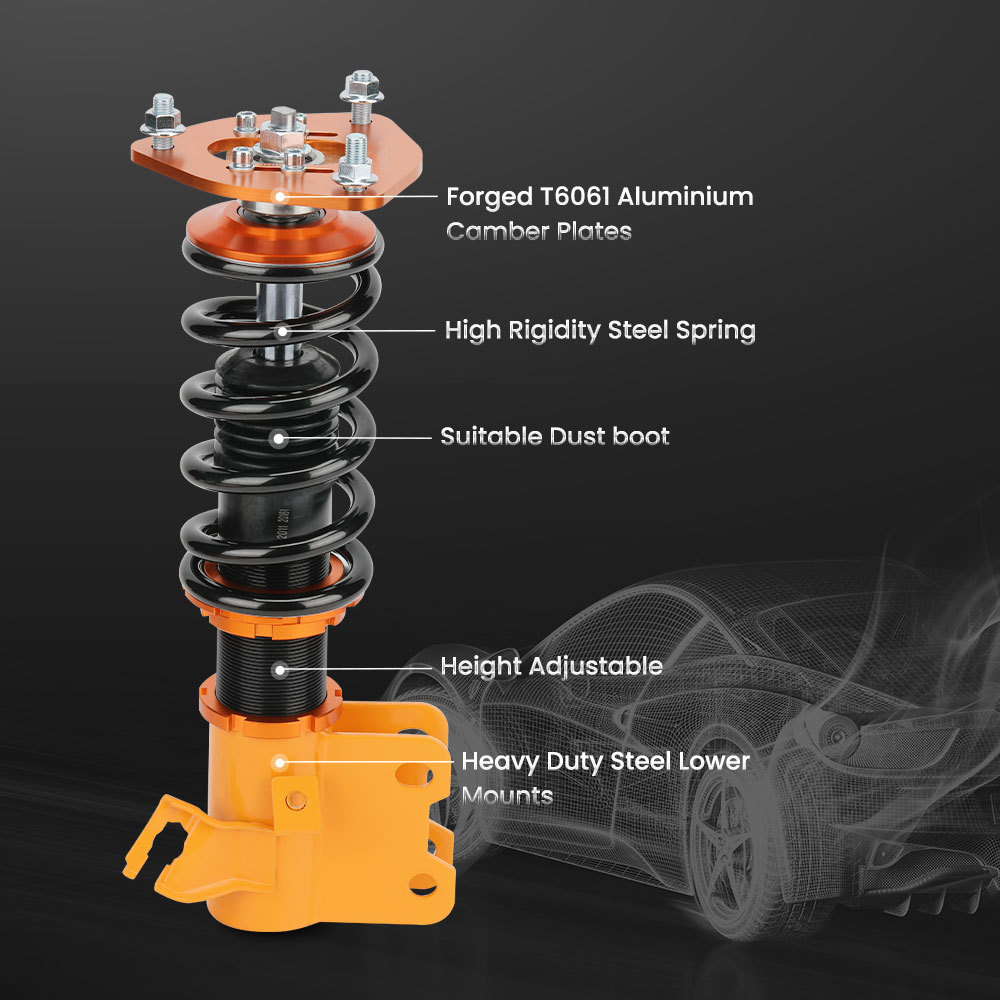

2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)
3.Pillow ball top mount - It improves the steering feel and response.（Only Front )
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (Only Rear)
5. Twin-Tube structure allows sufficient stroke within the shock absorber.
6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.

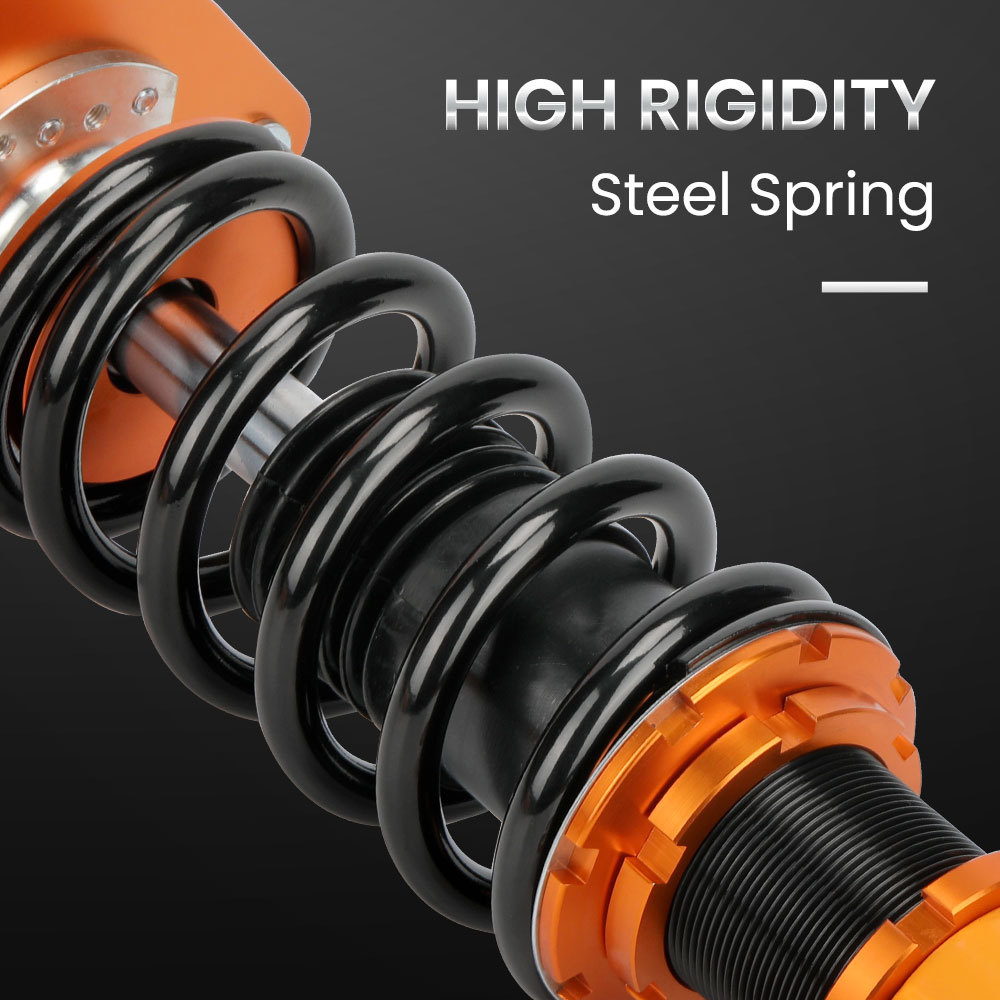

9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
10. Height Adjustment tools included.
11. Full rebuildable.
