4pcs Air Suspension Spring Bellows for Goodyear 1R11-268 compatible for Kenworth C811005

OE/Part number

replacement for Firestone W01-358-9541, 1T15LA-0, 1T15KW-0
replacement for ContiTech 68357, 99-10S861
replacement for Goodyear 1R11-268
compatible for Kenworth C811005, C81-1005, C81-1004

Other parts number:
fit for Airglide 20005/03, Later,Airglide 460, Airglide 690
for Automann 1DK20H-9541
for Brake & Wheel M3528
for Triangle AS-8861
for TRP AS95410
for Meritor FS9541

Specification

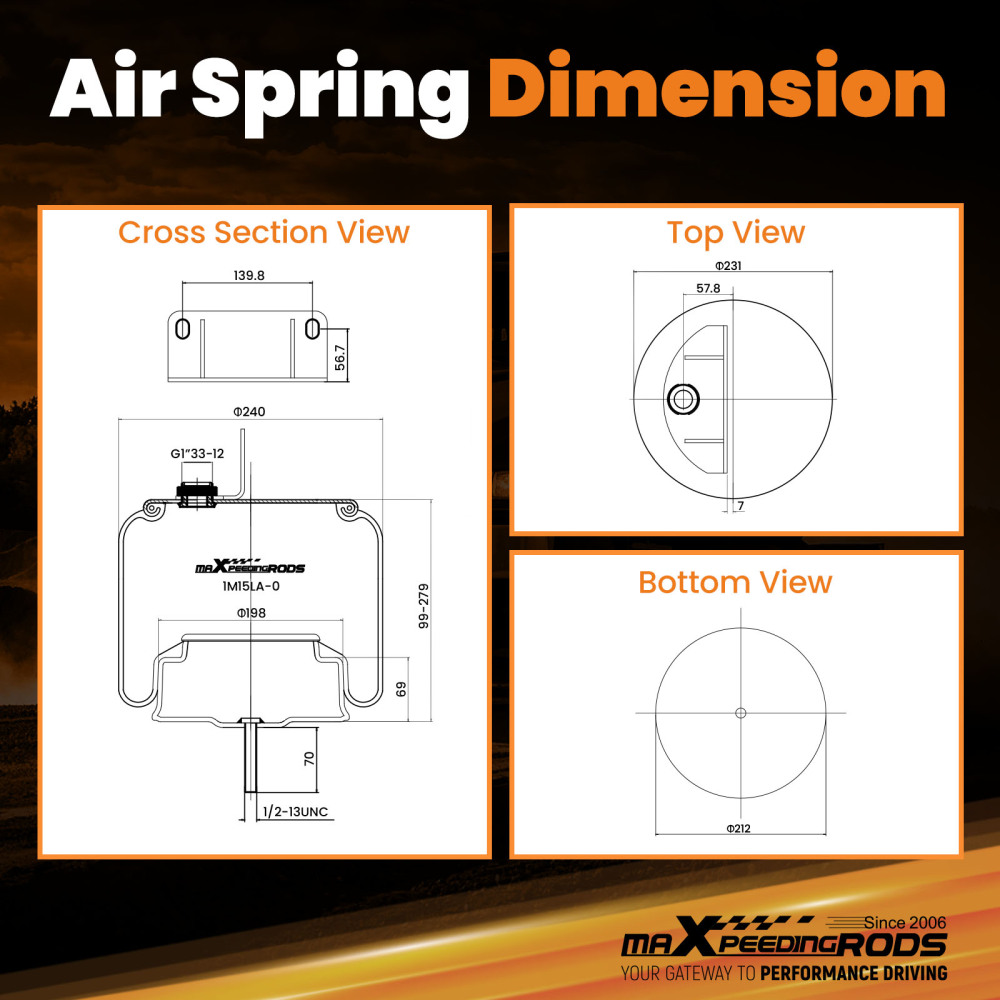

Top plate screw (nut) teeth: 1 5/16-12UNF
The screw center distance of the top bracket:139.8mm / 5.5inch
Screw (nut) teeth of the bottom cover plate: 1/2-13UNC
Top plate diameter: 231mm / 9.1 inch
Diameter of the bottom cover: 212mm / 8.3inch
Stroke: from 99mm / 3.9inch to 279mm / 11inch
Intern Jounce Bumper: Not included

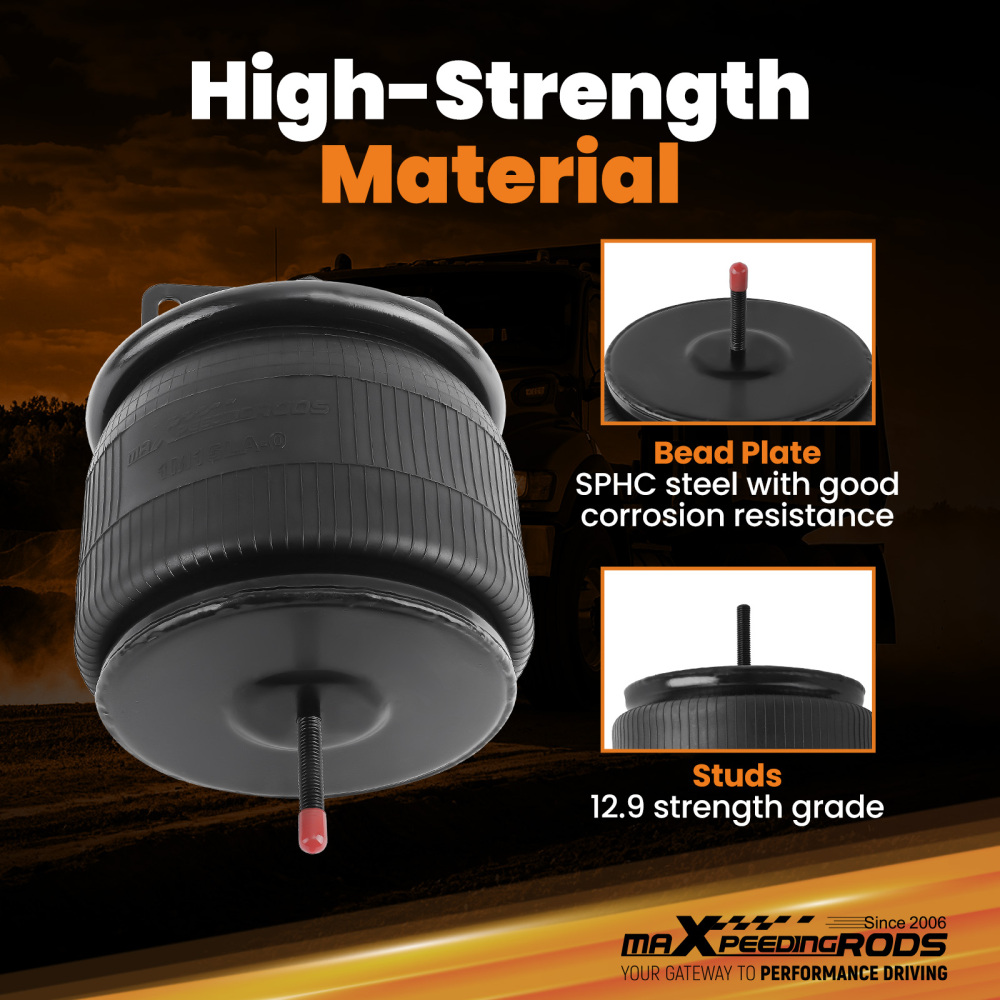

Piston Material: SPHC Steel
Quantity: 1 Piece
Condition: Brand New
Material: Natural rubber
Package Length, width and height: 66*35*50 cm/26*13.8*19.7inch
Package Wight:19.1Kg/42.4LB

Feature

1、Highest leak test ratio: 100% Air Tightness Testing.

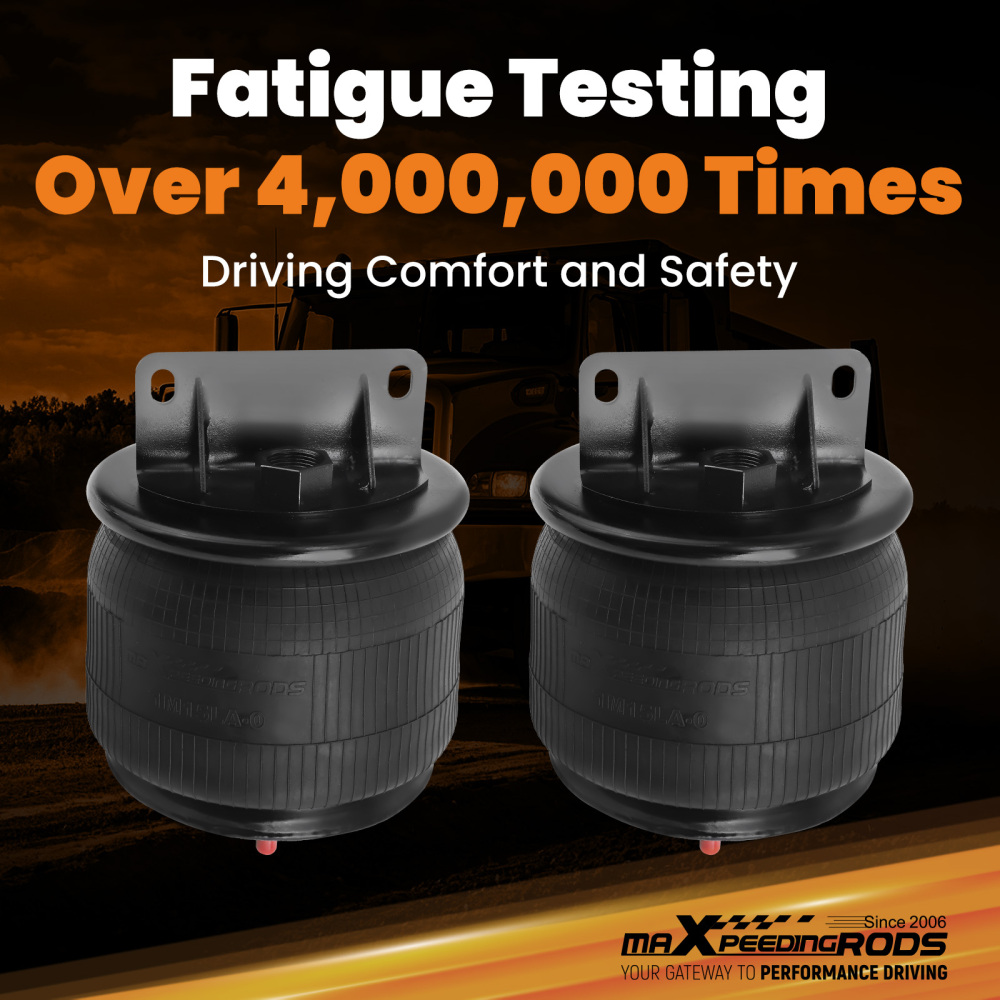

2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.

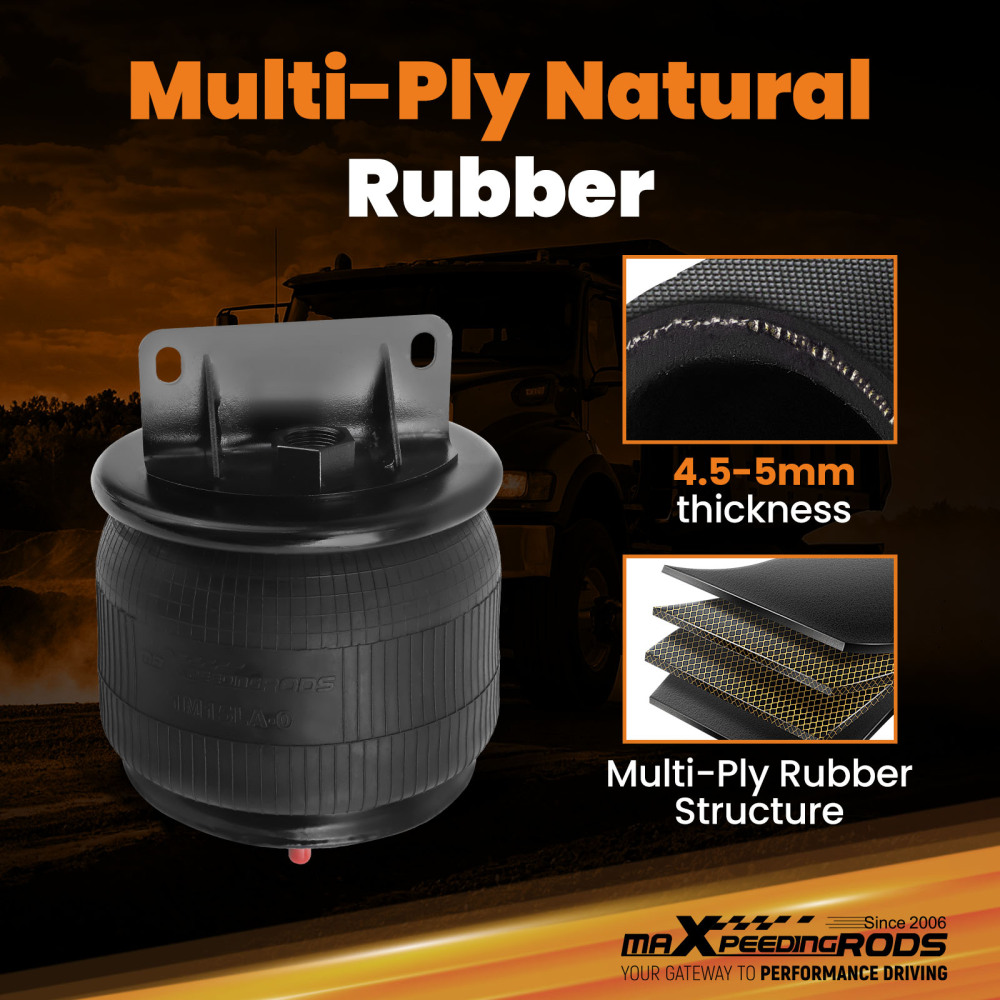

4、Exceeds OEM requirements for 4.5-5.0 mm thick rubber.
5、12.9 grade high strength steel studs.
6、Withstand 2Mpa of air pressure before the rubber burst.
7、Careful evaluation of OEM specifications.
8、Strict quality control.
9、Sturdy & Durable Material.
10、Reduces Damage of Trailer, Cab And Truck Body.
11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
12、Allow perfect load equalization between axles. Provide constant-level hauling.
13、Increase life of tires and brake linings.
14、Substantially reduce breakage and maintenance of other vehicle components.
