2 Suspension Lift Kit compatible for Jeep Wrangler TJ 4WD 1997-2006

Application

for 1997-2006 4WD compatible for Jeep Wrangler TJ
for 2004-2006 4WD compatible for Jeep Wrangler TJ Unlimited
for 2003 - 2006 compatible for Jeep Wrangler Rubicon 4WD
for 2005 - 2006 compatible for Jeep Wrangler Unlimited Rubicon 4WD

Specification

product type: spring spacer lift with shock

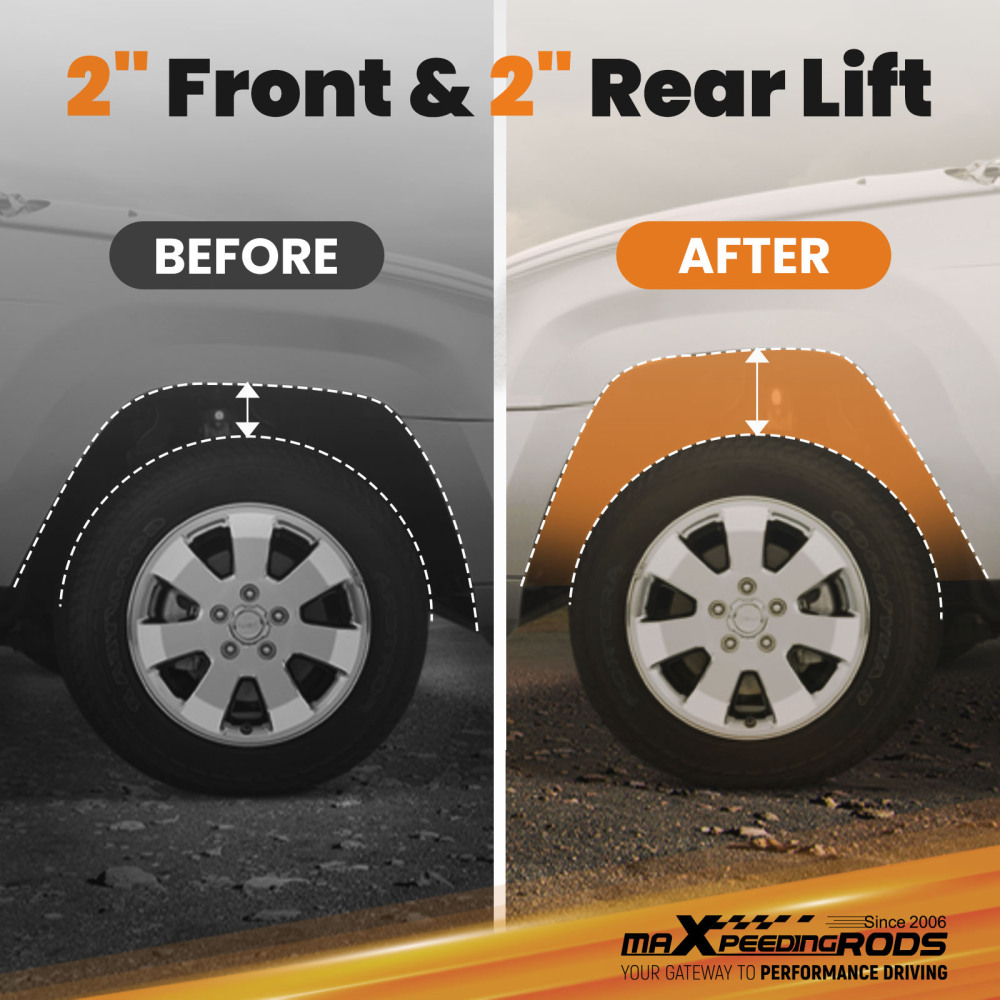

lift height: 2"
front spacer thickness: 50mm/1.96"
rear spacer thickness: 32mm/1.25"

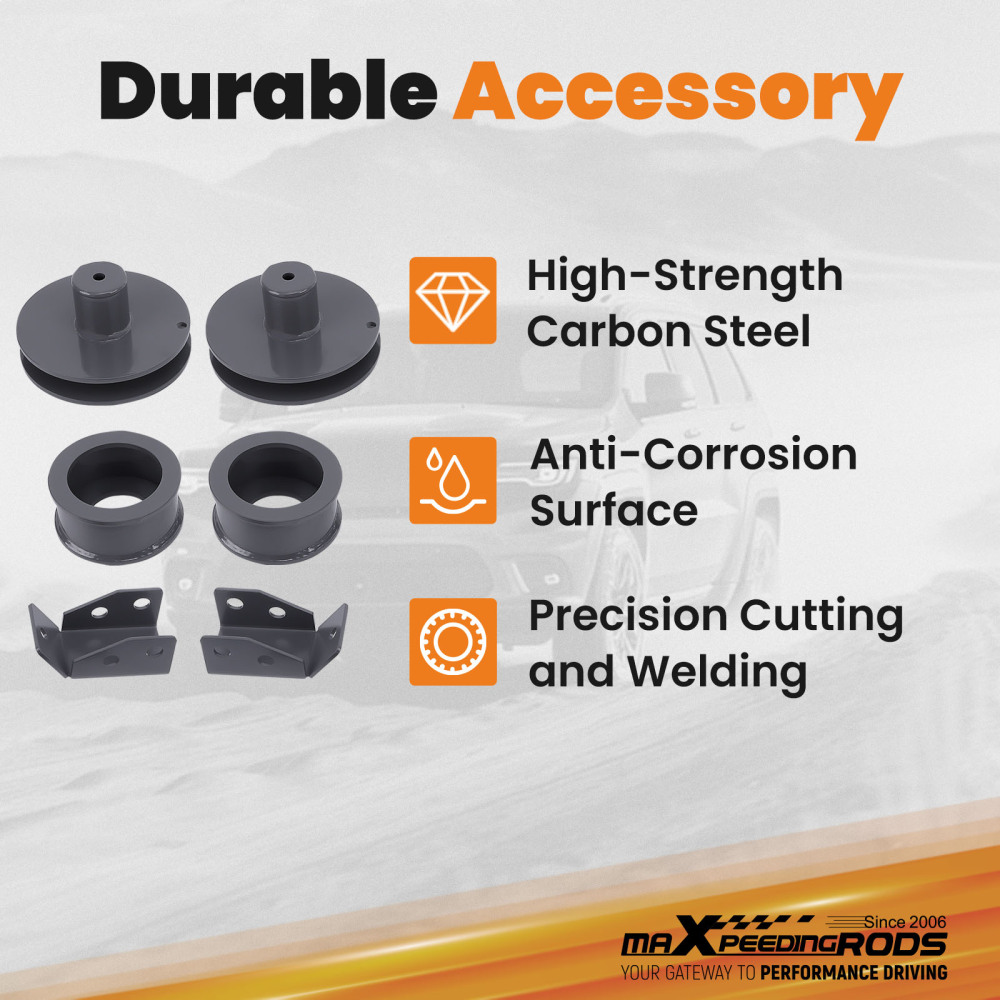

material: steel
finish: powder-coated
Diameter of piston rod: F&R 18mm/0.70"
Piston diameter：F&R 32mm/1.25"
Outer cylinder diameter: F&R 50mm/1.95"

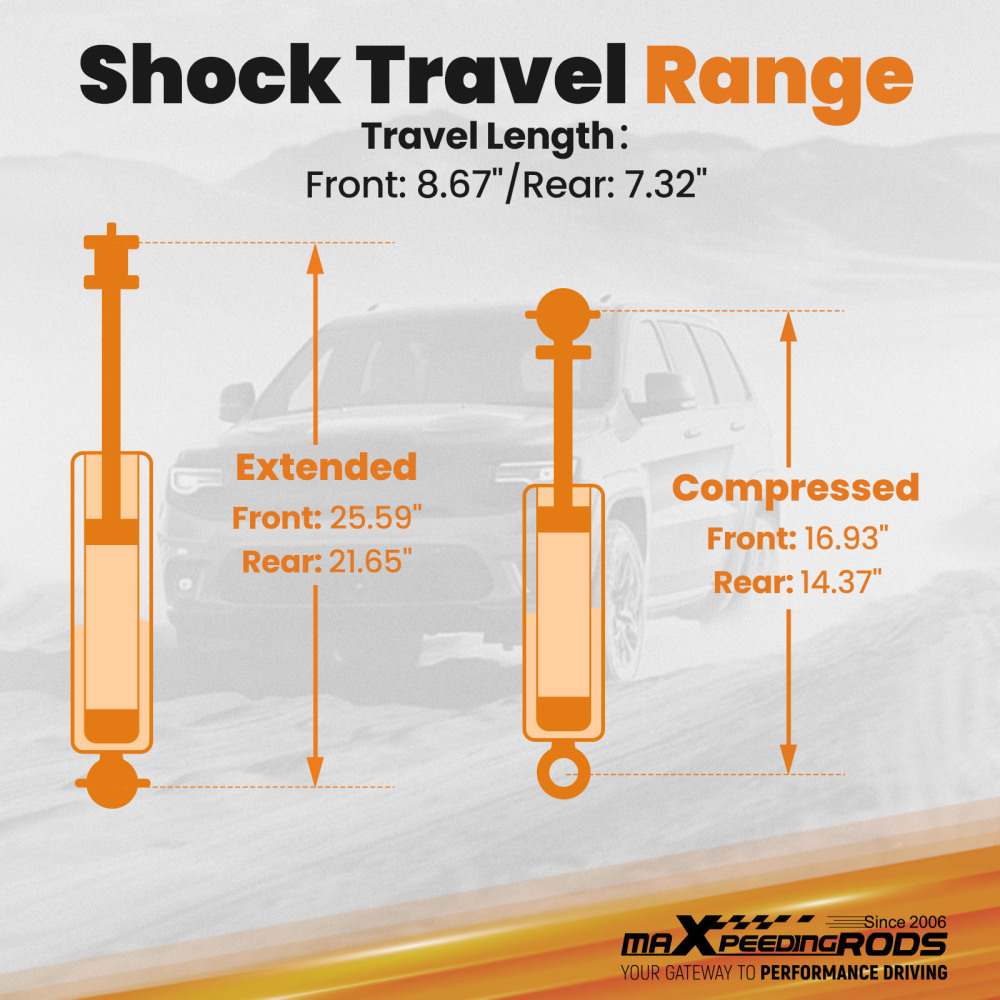

Travel Length: F 220mm R186mm
Extended Length: F 650mm / 25.59" R 550mm/21.65"
Collapsed Length: F 430mm/16.92" R 364mm/14.33"
Install time: 2-3 hours
Recommended tire size: 31x10.50
Wheel BS: 3.75"

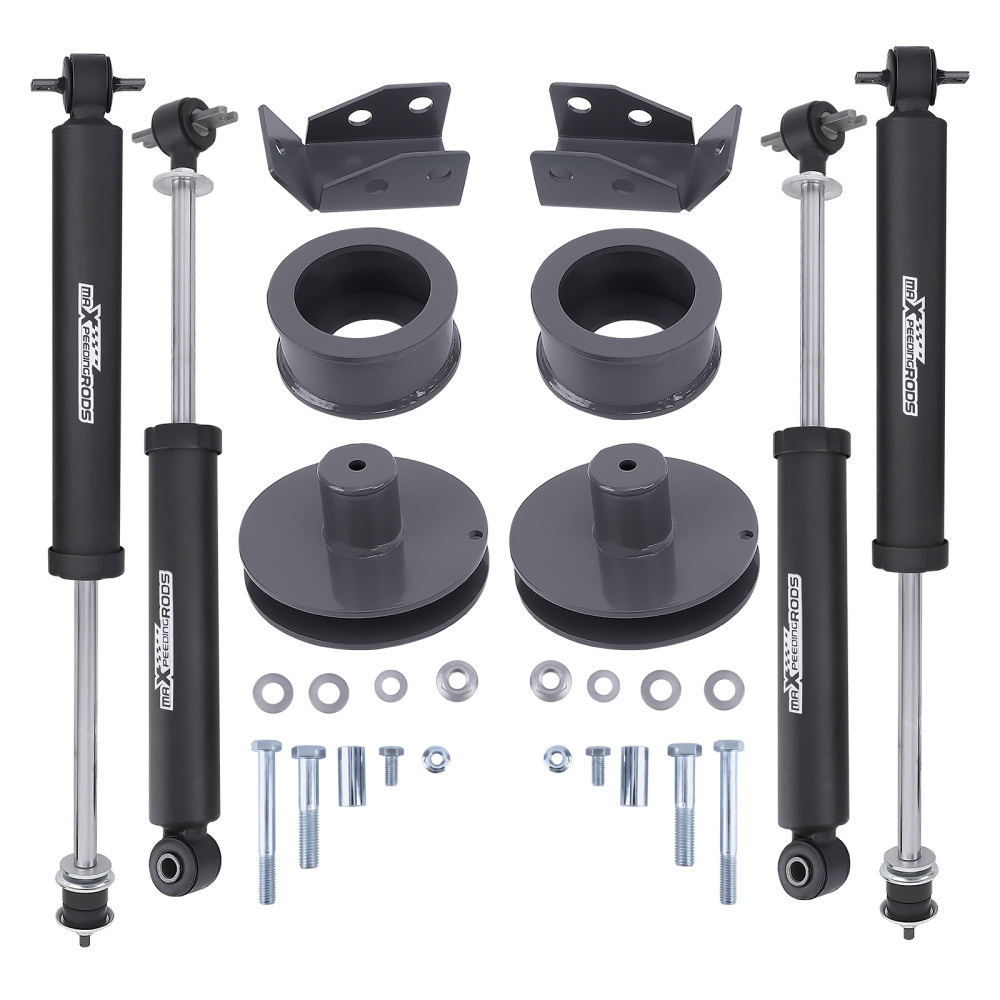

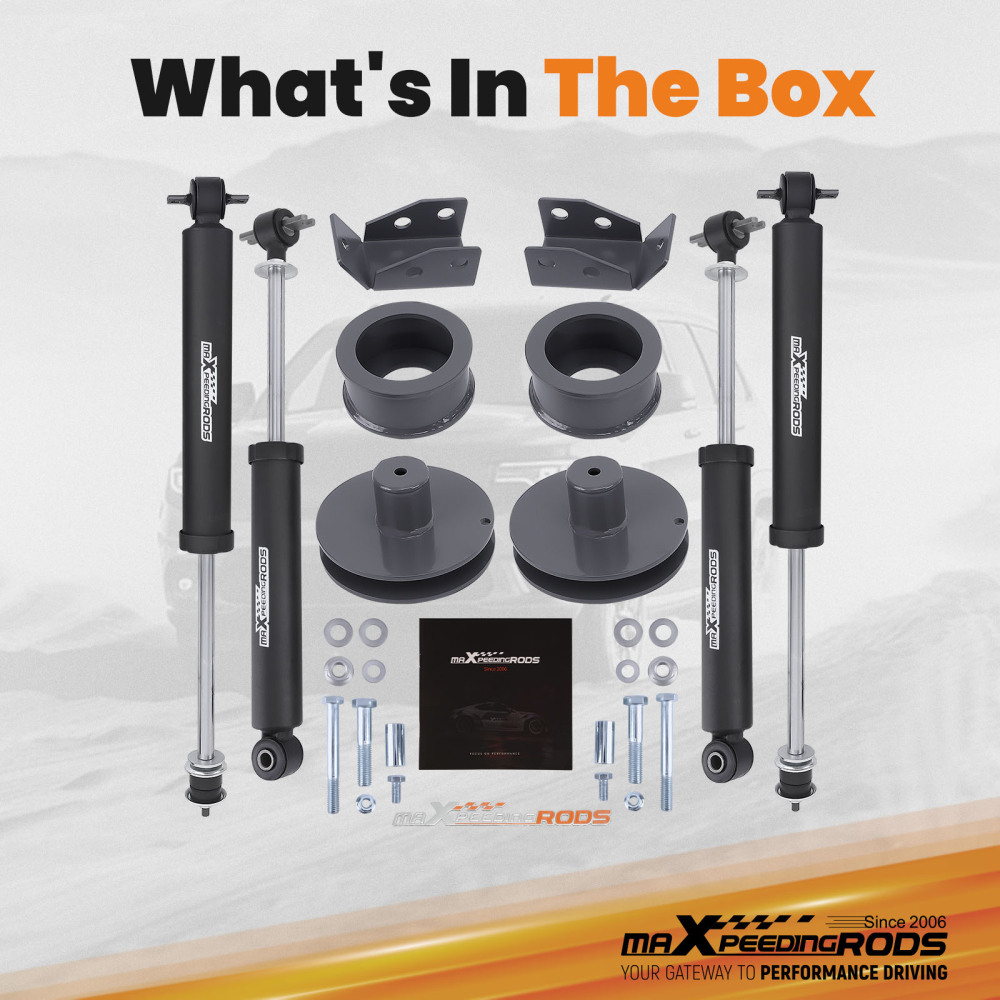

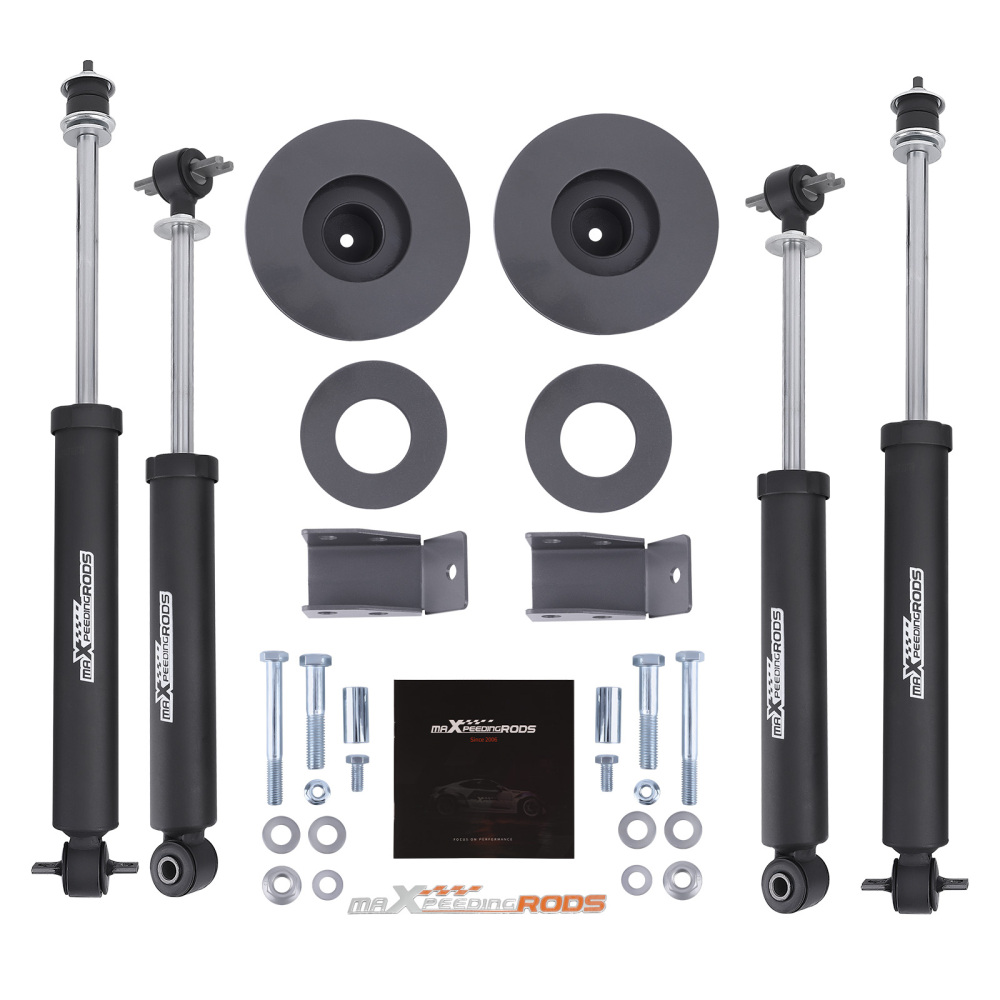

Package included

Front:
Coil spring spacers
2* Shock Absorber
Rear:
Coil spring spacers
Shock relocation brackets
2* Shock Absorbers
package dimensions: 65*22*19cm
weight: 16.9kg

Feature

Easy bolt-on installation
Increased ground clearance
Maintains factory ride quality
Enhances vehicle off-road performance

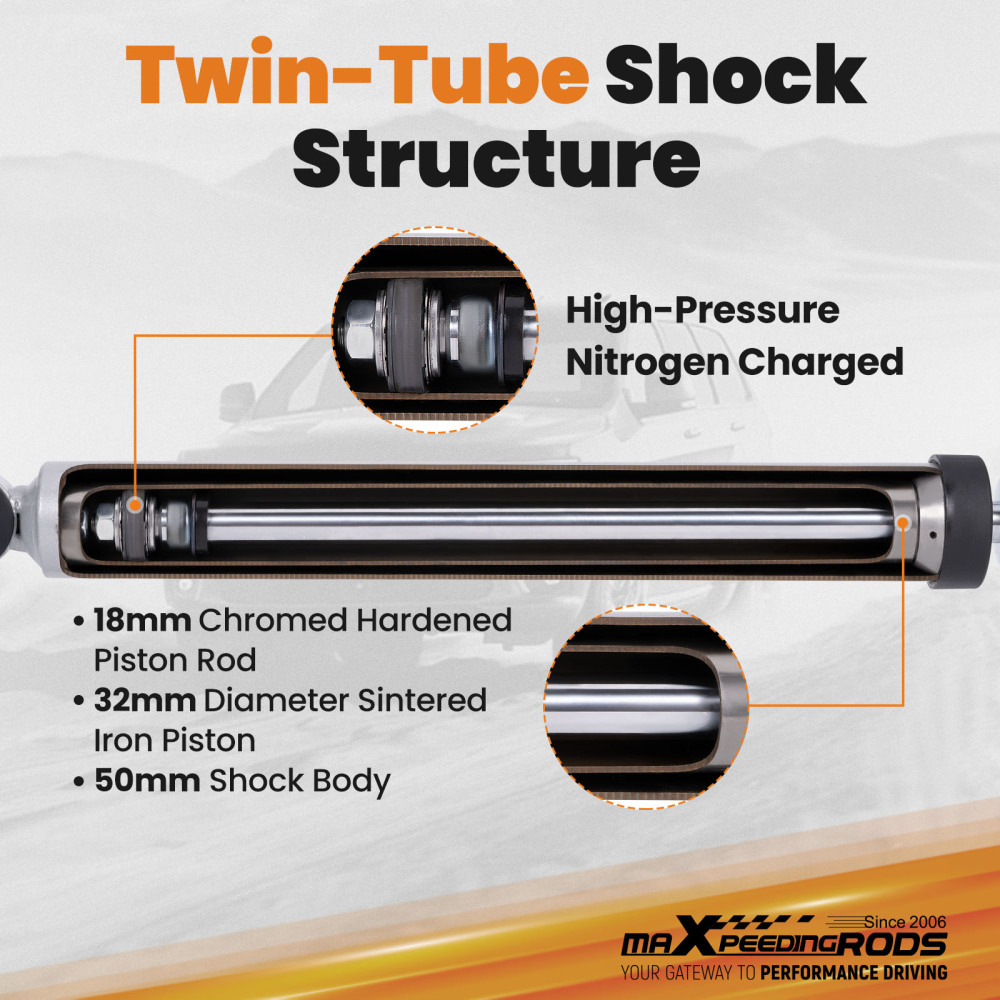

Twin-tube design provides comfortable ride

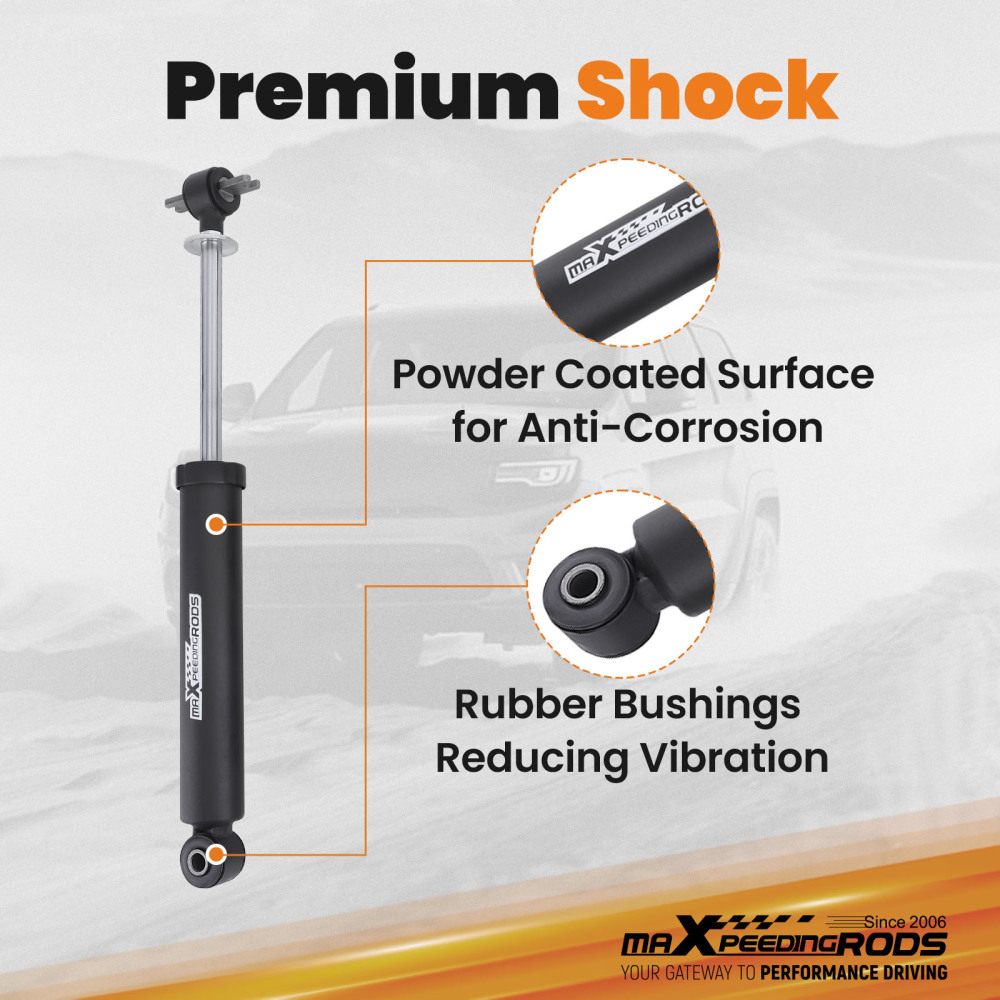

Power coated surface：provides superior corrosion resistance.

Note

The use of stock wheels with larger than stock tires may cause the tire to come in contact with the lower control arm at full turn.
aftermarket wheels are required
